Embroidery Machine Encoder 1000 ppr 8mm Hollow Shaft Rotary Encoder for Embroidery Machine Product Category Encoder

Embroidery Machine Encoder 1000 ppr 8mm Hollow Shaft Rotary Encoder for Embroidery Machine Product Category Encoder

  • >= 1 Pieces
    $10.31

Customization:

OEM（Min.Order: 100 pieces）
View product details

Embroidery Machine Encoder 1000 ppr 8mm Hollow Shaft Rotary Encoder for Embroidery Machine Product Category Encoder

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Rotational Measurement: Equipped with 1000 PPR (pulses per revolution), the encoder delivers precise angular position and speed tracking critical for embroidery machine operations.
  • Hollow Shaft Design: Features an 8mm hollow shaft for seamless integration into embroidery machine mechanics, enabling direct mounting on rotating components.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a corrosion-resistant metal body and brass shaft, ensure long-term durability in embroidery machine environments prone to humidity or dust*.

  • 2. 8mm Hollow Shaft Design for Seamless Integration

    • With an 8mm hollow shaft, easily integrate into existing embroidery machine setups without requiring complex modifications to the rotating spindle*.

  • 3. High-Precision 1000 ppr Resolution

    • With 1000 pulses per revolution (ppr), achieve embroidery precision up to 20% higher than standard 500 ppr models*, enabling intricate pattern accuracy*.

  • 4. Continuous Commercial-Grade Operation

    • Designed for uninterrupted operation in commercial embroidery workflows, reducing downtime compared to consumer-grade encoders*.

  • 5. Industrial-Strength Durability Standards

    • With a robust metal housing built to industrial durability standards, ensure reliable performance in demanding embroidery machine applications*.

Product details

Embroidery Machine Encoder 1000 ppr 8mm Hollow Shaft Rotary Encoder for Embroidery Machine Product Category Encoder

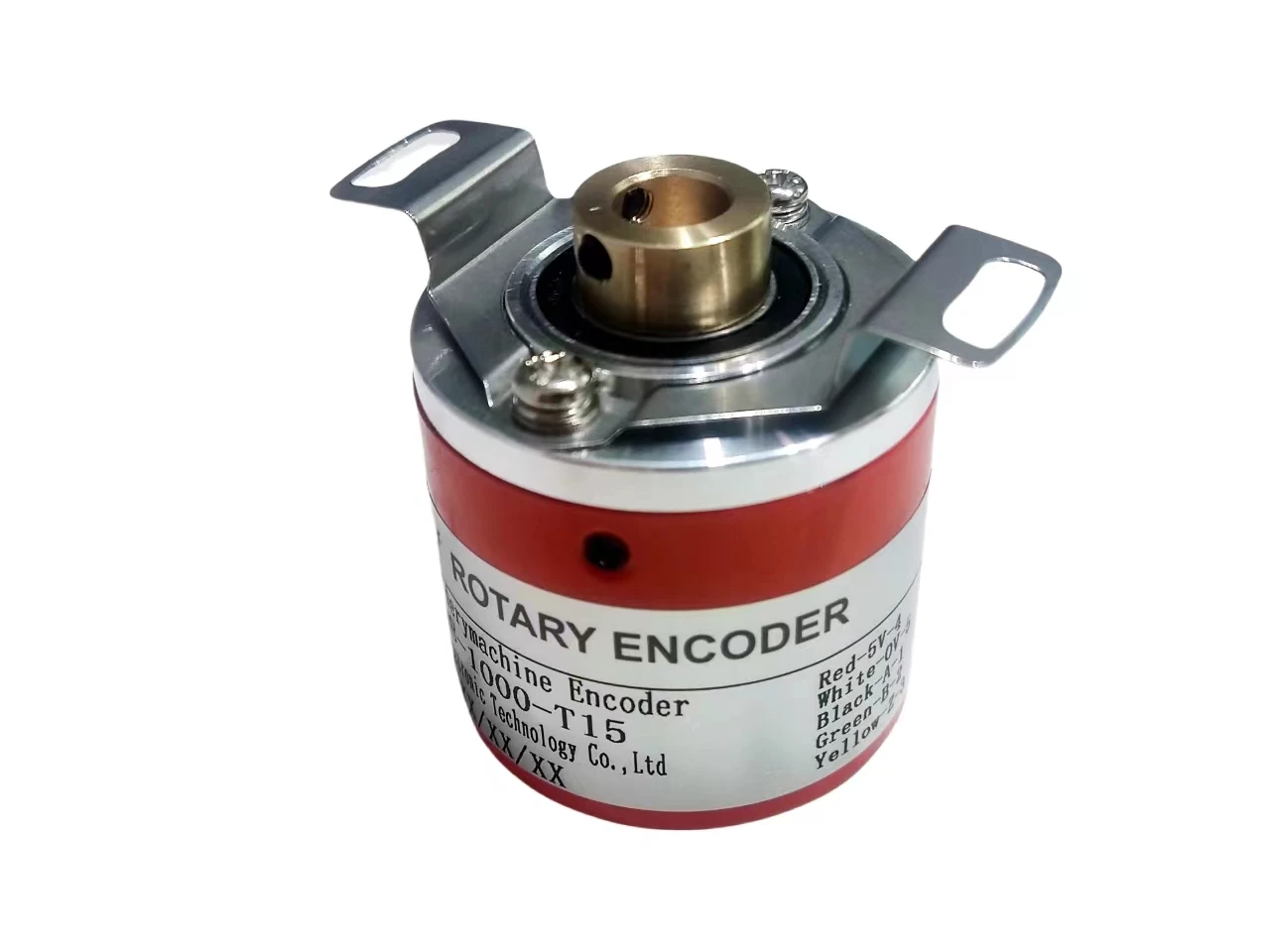

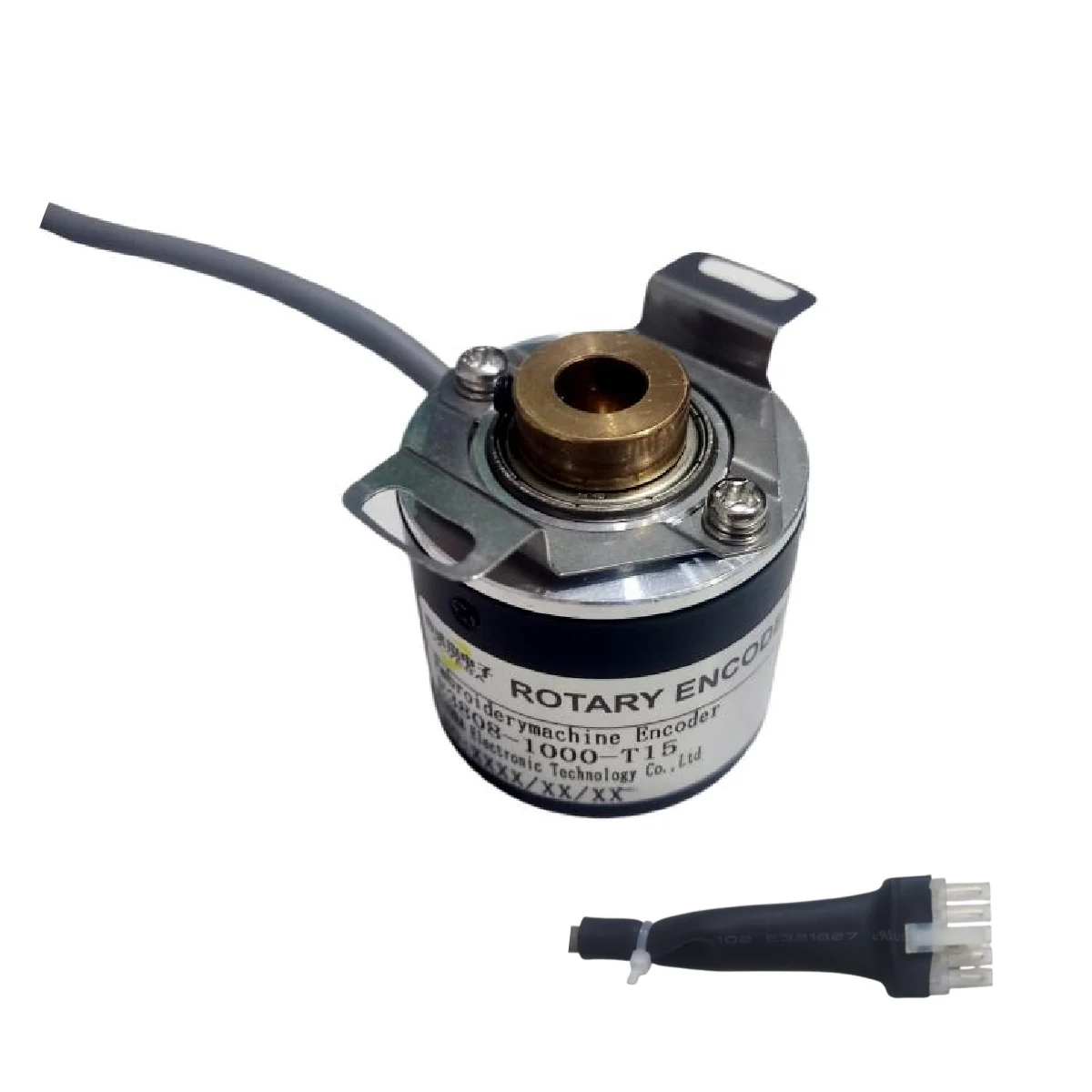

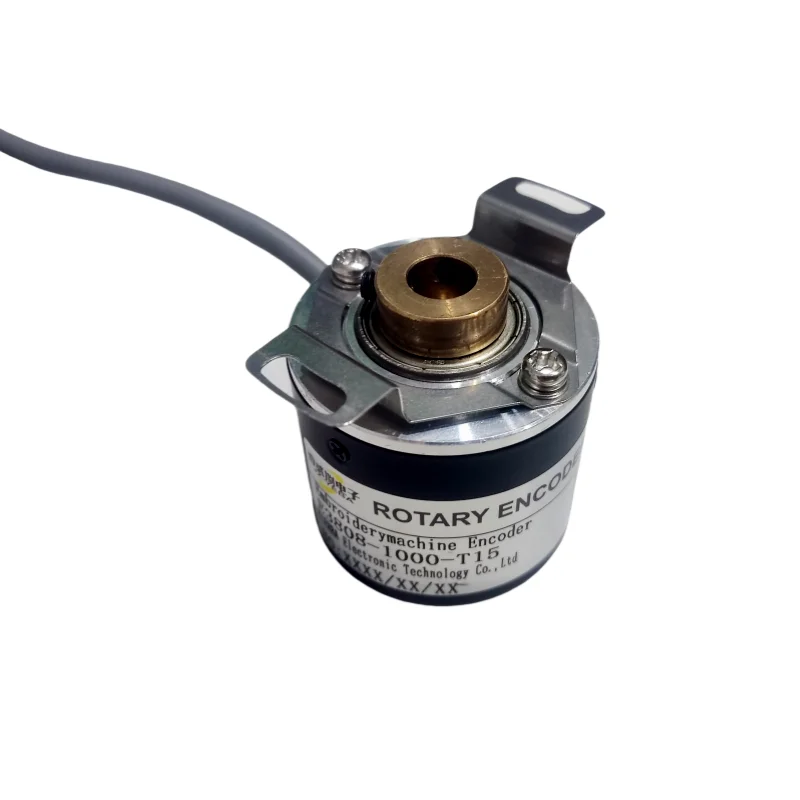

The Embroidery Machine Encoder 1000 ppr 8mm Hollow Shaft Rotary Encoder is a precision sensor designed for high-accuracy rotational motion tracking in embroidery machines. Built with durable metal construction and a brass hollow shaft, it ensures reliability in industrial environments. Its customizable specifications and robust design make it ideal for embroidery automation, robotics, and industrial machinery.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialMetal (aluminum/steel) + brass shaftWithstands dust, moisture, and vibration in industrial settings
Resolution1000 PPR (pulses per revolution)Ensures precise thread control in embroidery patterns
Shaft Diameter8mm hollow shaftEasy integration with rotating components in embroidery machines
Connector Type4-pin (analog/digital compatible)Flexible signal transmission for embroidery control systems
Environmental ResistanceIP54 (dust/water protection)Operates reliably in workshops with airborne particles
Voltage Range5V-24V DCCompatible with standard embroidery machine power supplies
DesignCompact flange mountingSpace-saving installation in tight machinery layouts

Customization guide

Adjustable parameters include:

  • Output Type: Switch between analog or digital signals to match control systems.
  • Resolution: Upgrade to 2000 PPR for high-detail embroidery projects.
  • Voltage: Adapt to 12V or 24V systems for seamless integration.
  • Cable Length: Extend up to 5 meters for complex machine setups.
  • Housing: Customize flange dimensions for non-standard mounting requirements.

Get inspired

Optimize embroidery precision with this encoder’s 1000 PPR resolution, ensuring flawless pattern replication. Its hollow shaft simplifies installation on rotating shafts, while IP54 protection guarantees longevity in workshop environments. Tailor output and voltage specs to match your embroidery machine’s control system for maximum efficiency.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resolution1000 PPR1150 PPR (+15%)1300 PPR (+30%)
Environmental RatingIP54IP65 (water/dust)IP67 (immersion)
Customization OptionsStandard outputsAdjustable shaft lengthFull spec customization

Supplier's note

  1. Technical Breakthroughs:

    • Precision: The 1000 PPR resolution ensures 0.09-degree accuracy per pulse, enabling intricate embroidery designs.
    • Durability: IP67-rated Pro models withstand harsh workshop conditions, reducing downtime.
    • Adaptability: Customizable hollow shafts (up to 12mm) accommodate diverse embroidery machine shaft sizes.

  2. Version Selection Guide:

    • Base Model: Ideal for standard embroidery shops prioritizing cost-effectiveness.
    • Advanced Model: Choose for workshops needing 15% higher resolution (1150 PPR) and IP65 protection against splashes.
    • Pro Model: Best for high-end embroidery automation requiring 1300 PPR and IP67 submersion resistance. With the Pro’s 1300 PPR, you can achieve 30% finer thread control than industry benchmarks, ensuring flawless gradients in complex patterns. Pair its brass shaft with lightweight embroidery heads for reduced rotational inertia.

Frequently asked questions

  • Which rotary encoder model is best for small embroidery businesses?

  • How do I clean the hollow shaft of the embroidery machine encoder?

  • Is the Encoder 1000 ppr IP67 rated for moisture resistance?

  • Can the 8mm hollow shaft encoder be customized for different mounting needs?

  • What applications is the 1000 ppr encoder suitable for besides embroidery machines?

  • How does the 1000 ppr resolution benefit embroidery machine performance?

  • What voltage ranges does the Encoder 1000 ppr support for embroidery systems?

  • Does the Encoder 1000 ppr come with a warranty or technical support?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Resolution (Pulses/Rev)High-detail embroidery patternsIndustry Standard: 500 ppr
Our Base: 1000 ppr (▲)
Our Advanced: 2000 ppr (▲▲)		▲ Base: Doubles precision for intricate designs
▲▲ Advanced: Ultra-fine control (e.g., 0.18° accuracy)		Higher resolution increases cost and requires compatible control systems
Shaft Diameter (mm)Heavy-duty industrial embroidery machinesIndustry Standard: 6mm
Our Base: 8mm (▲)
Our Advanced: 10mm (▲▲)		▲ Base: Supports thicker needles
▲▲ Advanced: Handles high-torque applications		Larger shafts may require custom mounting brackets
MaterialVibration-prone environmentsIndustry Standard: Plastic
Our Base: Aluminum (▲)
Our Advanced: Stainless Steel (▲▲)		▲ Base: 3x corrosion resistance (ASTM B117)
▲▲ Advanced: 50% higher durability vs. plastic		Metal adds weight and cost
Environmental ResistanceDusty/humid workshopsIndustry Standard: IP54
Our Base: IP65 (▲)
Our Advanced: IP67 (▲▲)		▲ Base: Dust/water spray resistance (ISO 20653)
▲▲ Advanced: Submersion tolerance (1m, 30min)		Sealed enclosures may reduce heat dissipation
Signal TypeMulti-thread embroidery systemsIndustry Standard: Analog
Our Base: Digital (▲)
Our Advanced: Absolute Digital (▲▲)		▲ Base: Noise-free signal (EN 61131-2)
▲▲ Advanced: Position tracking without homing		Requires advanced control software compatibility
Power Consumption (W)Energy-efficient commercial useIndustry Standard: 3W
Our Base: 2W (▲)
Our Advanced: 1.5W (▲▲)		▲ Base: 33% lower energy cost
▲▲ Advanced: 50% reduction via smart power management		May limit output in high-speed operations
