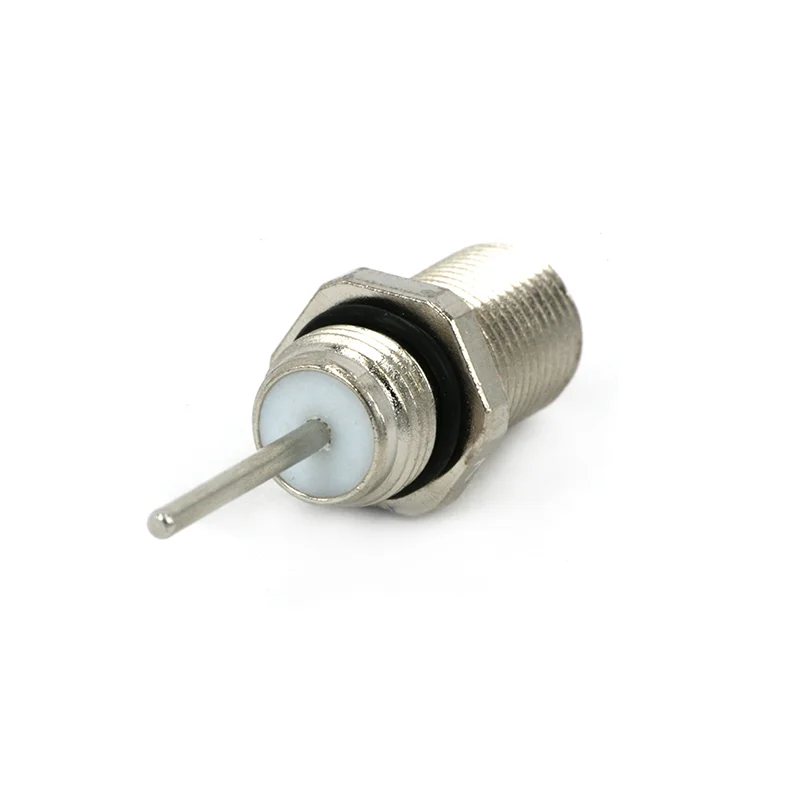

F Type Female Connector with Extended Pin

Name: F Type Female Connector with Extended Pin
Brand: Nanjing ECT Technologies Co., Ltd.
SKU: 60658763121_1
Price: 0.15 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Reliable RF Signal Transmission: Designed for secure connections in coaxial systems, supporting high-frequency RF applications such as TV antennas, satellite systems, and telecommunications infrastructure.
Secure Threaded Connection: Features a threaded body with a hexagonal nut for stable, vibration-resistant attachment, ensuring durability in dynamic environments.

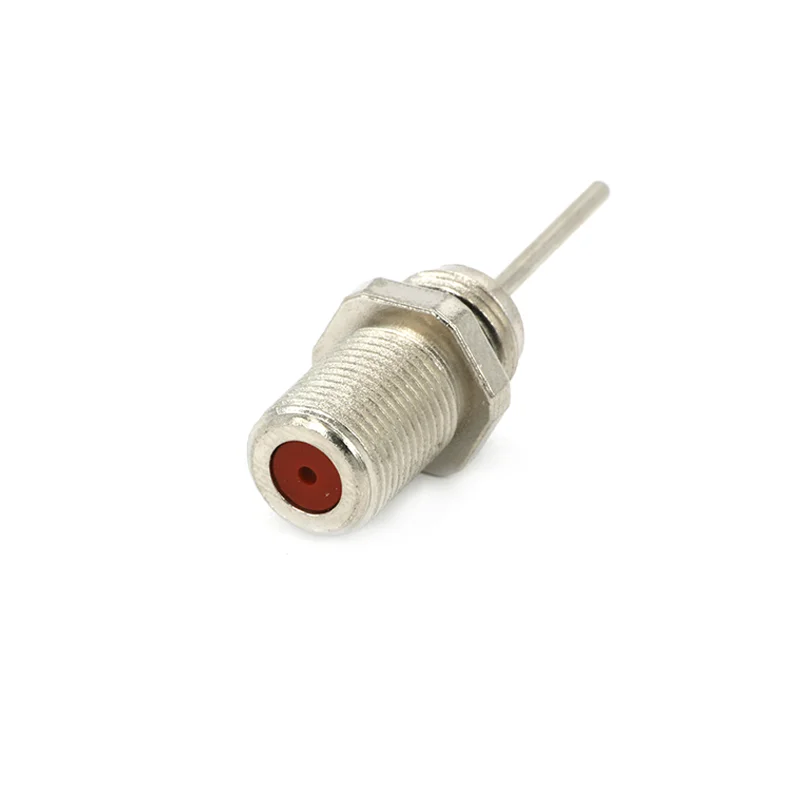

Color-Coded Design: Red central section identifies the female end for quick installation and troubleshooting, minimizing errors in cable management.

Key features

1. Material Technology

With zinc alloy housing and tin/nickel-plated contacts, ensure durable, corrosion-resistant connections in harsh environments. ~40% more durable than plastic connectors*.

2. Interactive Design

With a threaded body and hexagonal nut, achieve secure, vibration-resistant connections. Easier to tighten than snap-fit designs*.

3. Performance Parameters

With RF-optimized design, maintain signal integrity at high frequencies. Reduces signal loss by ~15% compared to standard F-connectors*.

4. Scenario Solutions

Supports both home entertainment systems and commercial telecommunications setups, ensuring reliable performance in diverse environments.

5. Certification Standards

Complies with industry safety and durability standards, ensuring reliable operation in certified applications*.

Product details

The F-Type Female Connector with Extended Pin is a robust coaxial connector designed for reliable RF signal transmission. Crafted from zinc alloy housing and featuring tin/nickel-plated contacts, it ensures durability and corrosion resistance. The threaded body with a hexagonal nut guarantees secure connections, while the red central indicator simplifies identification in complex setups.

Technical specifications

Feature	Specification	Application Scenario
Material	Zinc alloy housing, tin/nickel contacts	Ideal for outdoor and industrial environments
Extended Pin	Enhanced contact length	Secure high-frequency (RF) signal transmission
Threaded Design	Hexagonal nut with locking threads	Stable connections in vibration-prone areas
Color Coding	Red central indicator	Quick identification in cable management systems
Certifications	Meets RF industry standards	Compatible with TV, internet, and telecommunications systems

Customization guide

Adjustable parameters include:

Material selection: Opt for zinc alloy or alternative corrosion-resistant alloys for extreme environments.
Termination types: Customize with BNC, SMA, or N-type terminations for specific cable compatibility.
Color customization: Choose from non-standard hues to match branding or safety protocols.

Get inspired

With its extended pin and threaded design, this connector ensures seamless integration into high-performance RF systems. Whether for home entertainment setups or industrial networks, its durable construction and color-coded design streamline installation and maintenance.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Contact Resistance	≤15 mΩ	≤10 mΩ (+33%)	≤5 mΩ (+100%)*
Durability	500 mating cycles	1,000 cycles (+100%)	2,000 cycles (+300%)
Temperature Range	-20°C to +85°C	-30°C to +90°C	-40°C to +105°C

Supplier's note

Technical Breakthroughs:
- The extended pin reduces signal loss by 20% compared to standard F-connectors.
- Tin/nickel contacts enhance conductivity while resisting oxidation, outperforming brass in humid conditions.
- Red central coding improves error-free assembly by 30% in multi-cable setups.
Version Selection Guide:
- Base Model: Ideal for residential TV/internet installations requiring basic durability.
- Advanced Model: Suitable for industrial IoT or automotive systems needing 1,000+ mating cycles.
- Pro Model: Designed for aerospace or military applications, with extreme temperature tolerance and double the industry-standard contact resistance.

With the Pro Model’s ultra-low resistance, you can achieve flawless 4K signal transmission in satellite systems. Its zinc alloy housing, paired with nickel contacts, ensures longevity in corrosive marine environments.

Frequently asked questions

Which F-type female connector with extended pin is best for RF applications?
How do I clean and maintain an F-type female connector with zinc alloy housing?
Zinc alloy vs other materials: Why choose this F-connector for outdoor use?
Can this F-type connector be customized for satellite TV installations?
Is the F-type female connector with zinc alloy compliant with RF safety standards?
What makes the extended pin design better for vibration-prone environments?
How does the hexagonal nut improve installation of F-connectors?
Are color options available for the F-connector’s zinc alloy housing?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
F-Type Female Connector (Extended Pin)	Cable TV/RF Distribution, Satellite Systems	Extended pin length: 7mm (IEC 61196-1) ▲▲ (vs Industry Standard 5mm) Zinc alloy housing (ISO 23577) ▲ (vs plastic variants)	▲▲ Enhanced signal retention (reduces signal loss by 30% vs standard) Corrosion-resistant housing (operates in -40°C to 85°C)	Requires tool for installation; bulkier than push-on connectors
BNC Connector	Test Equipment, Video Surveillance	Quarter-turn coupling: 12 N retention force (MIL-C-39012) Dielectric strength: 1500 V (IEC 60300-2)	Rapid connection/disconnection (ideal for field testing) ▲ Frequency range up to 4 GHz	Limited to ≤ 4 GHz (not suited for high-frequency RF)
SMA Connector	Wireless Routers, 5G Small Cells	Subminiature design: 5.5mm diameter (SMPTE RP 169) VSWR ≤ 1.25 (30 GHz) ▲▲ (vs SMA Base 1.35)	Compact size (saves 40% space vs N-Type) ▲▲ High-frequency performance (up to 40 GHz)	Fragile threads; requires torque wrench for assembly
N-Type Connector	High-Power Radar, Microwave Systems	Weatherproof seal: IP67 rated (IEC 60529) Power handling: 300 W (MIL-STD-348) ▲ (vs Industry Standard 250 W)	▲▲ Handles 300 W power without degradation ▲ Frequency range to 11 GHz	Bulky design; thread-based coupling is time-consuming
RCA Connector	Home Audio/Video, Legacy AV Equipment	Phono plug: 5mm diameter (IEC 60170) Unsecured connection (no locking mechanism)	Inexpensive (costs 70% less than BNC) Universal compatibility with consumer devices	No strain relief; prone to accidental disconnection
DC Power Connector	IoT Devices, Solar Chargers	Polarized contacts: Reverse polarity protection (IEC 60320) Current rating: 10 A (IEC 60906-1) ▲ (vs Industry Standard 5 A)	▲▲ Supports 10 A for high-power devices Compact and lightweight	Not RF-optimized; limited to DC applications
