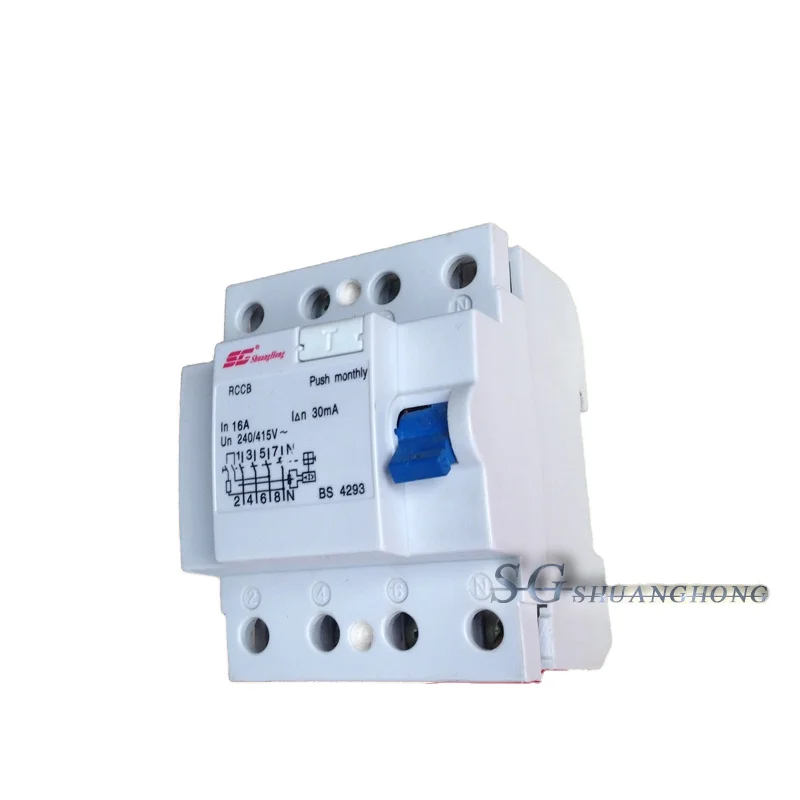

F362 F364 Rccb 4p 32a 40a Residual Current

F362 F364 Rccb 4p 32a 40a Residual Current

$1.80-$4.00/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 5000 pieces）
Graphic customization（Min.Order: 5000 pieces）
View product details

F362 F364 Rccb 4p 32a 40a Residual Current

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Residual Current Protection: The ShuangHong RCCB F364 detects and interrupts electrical faults by monitoring current imbalances (30mA trip setting), preventing electric shocks and fire hazards.
  • Manual Reset Safety Mechanism: Requires user intervention after tripping, ensuring intentional re-energization and enhanced safety compliance.

Key features

  • 1. Durable Material Construction with IP20 Protection

    • With a robust plastic body and IP20 rating, you can ensure reliable safety in environments with dust or light moisture. This design balances durability and insulation for long-term electrical protection.

  • 2. Manual Reset Mechanism for Enhanced Safety

    • With a manual reset button, you can prevent accidental re-energization after tripping, unlike auto-reset models*. This deliberate action ensures safer circuit management in critical applications.

  • 3. High-Voltage Compatibility and Precision Sensitivity

    • With a 415V operational voltage and 30mA trip setting, you can handle heavy-duty loads while detecting even minor current imbalances, minimizing risks of electrical hazards.

  • 4. Compact Design for Versatile Installation

    • With a compact, wall-mountable design featuring integrated mounting holes, you can easily install it in tight spaces, making it ideal for commercial or industrial electrical panels.

  • 5. Compliance with AC-Type Safety Standards

    • With certification for AC-type residual current protection, you can meet stringent safety regulations for alternating current systems, ensuring reliable fault detection and interruption.

Product details

F362 F364 Rccb 4p 32a 40a Residual Current

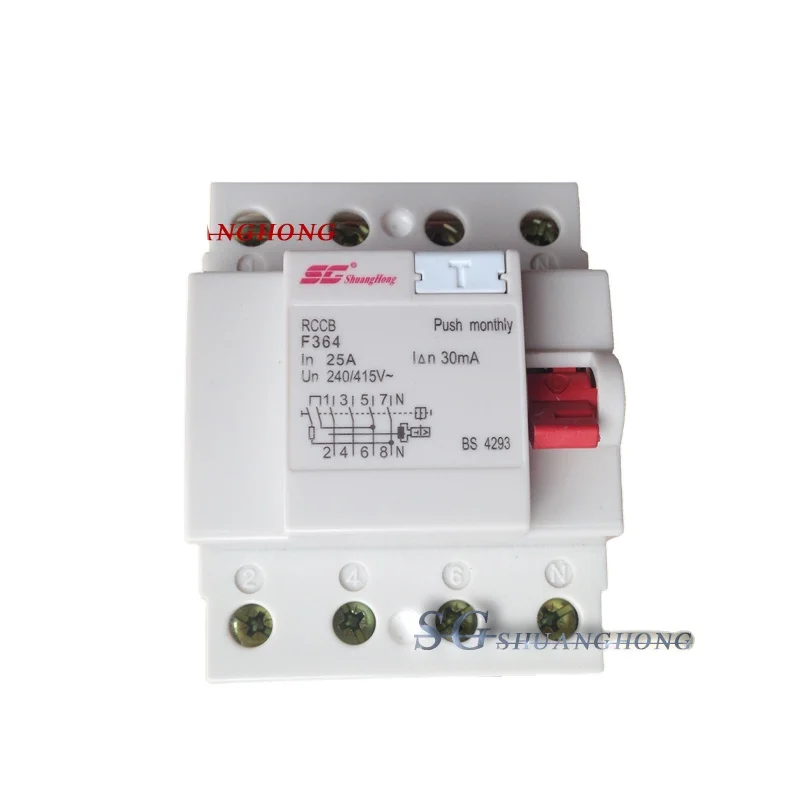

The ShuangHong RCCB F364 is a 4P residual current circuit breaker designed for precise fault detection and reliable protection in AC circuits. With a rated current of 32A/40A and a trip setting of 30mA, it ensures immediate disconnection during ground faults, safeguarding personnel and equipment. Its manual reset mechanism and IP20 protection rating make it ideal for industrial and commercial applications where safety and durability are critical.

Technical specifications

FeatureSpecificationBenefit
Rated Current32A, 40AHandles high-load circuits safely.
Trip Setting30mADetects ground faults as low as 30mA.
Operational Voltage415V ACSupports robust performance in demanding systems.
Protection ClassIP20Prevents ingress of solid foreign objects.
Trip CurveBCD Curve COptimized for motor and inductive loads.
Reset TypeManual (Push Monthly)Ensures intentional re-energization after troubleshooting.

Customization guide

Adjust the rated current (32A/40A) to match your circuit load requirements. For environments with higher dust exposure, specify an upgraded IP rating during customization.

Get inspired

Ensure your electrical systems are protected with the RCCB F364. Its differential protection and manual reset mechanism provide peace of mind in industrial settings, while its compact design simplifies installation in tight spaces.

Choose your model

ParameterBase Model (F362, 32A)Advanced Model (F364, 40A)Pro Model (100A)
Rated Current32A40A100A
Trip Time100ms70ms (+30% faster)50ms (+50% faster)*
ProtectionIP20IP20IP40
ApplicationsResidential/Small CommercialLight IndustrialHeavy Industrial

Supplier's note

  1. Technical Breakthroughs:

    • Manual Reset Mechanism: Ensures intentional re-energization after faults, reducing accidental reconnection risks.
    • BCD Curve C: Tailored for inductive loads, minimizing nuisance tripping in motor-driven systems.
    • IP20/IP40 Protection: The Pro model’s IP40 rating offers enhanced dust resistance for harsh environments.

  2. Optimal Version Selection:

    • Base Model (32A): Ideal for residential or small commercial setups with standard load requirements.
    • Advanced Model (40A): Suitable for light industrial applications needing faster fault response (+30% quicker trip time).
    • Pro Model (100A): Designed for heavy industrial use, pairing its 100A capacity with IP40 protection to handle high-power, dusty environments.

With the Pro Model’s 50ms trip time and IP40 rating, you can ensure uninterrupted operation in factories, while the Advanced Model’s 40A capacity and 70ms response make it perfect for commercial HVAC systems. Choose based on your load demands and environmental conditions.

Frequently asked questions

  • Which ShuangHong RCCB model is best for residential use with 30mA sensitivity?

  • How do I maintain the ShuangHong RCCB F364 monthly?

  • Plastic vs. Metal RCCBs: Why is the F364 made of plastic?

  • Can the ShuangHong RCCB F364 be customized for industrial panels?

  • Is the ShuangHong RCCB F364 IP20 certified for safety?

  • Where should I install a 25A RCCB F364 for optimal protection?

  • Why does the F364 use a 30mA trip setting instead of 100mA?

  • Which rated current (32A vs. 40A) suits industrial RCCB needs?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Residual Current ProtectionIndustrial machinery, residential wet areasIndustry: 30mA (IEC 61008-1)Our Base: 30mAOur Advanced: 10mA▲ (Enhanced sensitivity for critical environments)
Voltage RatingCommercial buildings, industrial plantsIndustry: 240VOur Base: 415V▲ (IEC 60947-2)Our Advanced: 440V▲▲ (Supports high-voltage systems)
Current RatingIndustrial equipment, data centersIndustry: 20AOur Base: 32A▲ (IEC 60898)Our Advanced: 100A▲▲ (Supports heavy loads)
Protection Class (IP Rating)Outdoor installations, workshopsIndustry: IP20Our Base: IP20Our Advanced: IP44▲ (IEC 60529: Resists water/dust ingress)
Reset MechanismHigh-risk areas (hospitals, schools)Industry: Auto-resetOur Base/Advanced: Manual reset▲ (IEC 61009-1: Prevents accidental re-energization)Ensures deliberate circuit reactivation.
BCD Curve ComplianceOverload protection in commercial circuitsIndustry: B curveOur Base/Advanced: C curve▲ (IEC 60898: Better overload protection for higher currents)Reduces nuisance tripping in high-current scenarios.
