FPGA Development Board Kits for Waveshare XILINX XC3S500E Spartan-3E Project

Name: FPGA Development Board Kits for Waveshare XILINX XC3S500E Spartan-3E Project
Brand: PENPOS Technology Co.,Limited
SKU: 1601207443442_1
Price: 90.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

FPGA Project Development: Supports the Xilinx XC3S500E Spartan-3E FPGA for hardware prototyping, digital logic design, and embedded system development.
Multi-Interface Connectivity: Equipped with USB, JTAG, SDRAM interfaces, and an LCD display module for real-time data visualization and debugging.

Key features

1. Material Technology

With an FR4 PCB material, ensure durability and reliability in rugged environments. This high-quality substrate provides superior electrical insulation and mechanical strength, outperforming basic PCB materials in stability for long-term use.

2. Interactive Design

With an integrated LCD display and USB/JTAG interfaces, you can monitor real-time data and debug seamlessly during development. This intuitive setup offers faster troubleshooting compared to kits lacking dedicated debugging tools.

3. Performance Parameters

Supporting high-speed communication interfaces (USB, JTAG), you can achieve rapid data transfer and programming, enabling efficient prototyping compared to development boards with limited connectivity options.

4. Scenario Solutions

Designed for both educational projects and commercial prototyping, this kit adapts to diverse scenarios. Its modular design allows customization for classroom experiments or industrial applications, offering broader versatility than single-purpose boards.

5. Certification Standards

Complies with RoHS environmental standards, ensuring safe and eco-friendly use. This certification aligns with global regulations, making it preferred over non-compliant alternatives in professional settings.

Product details

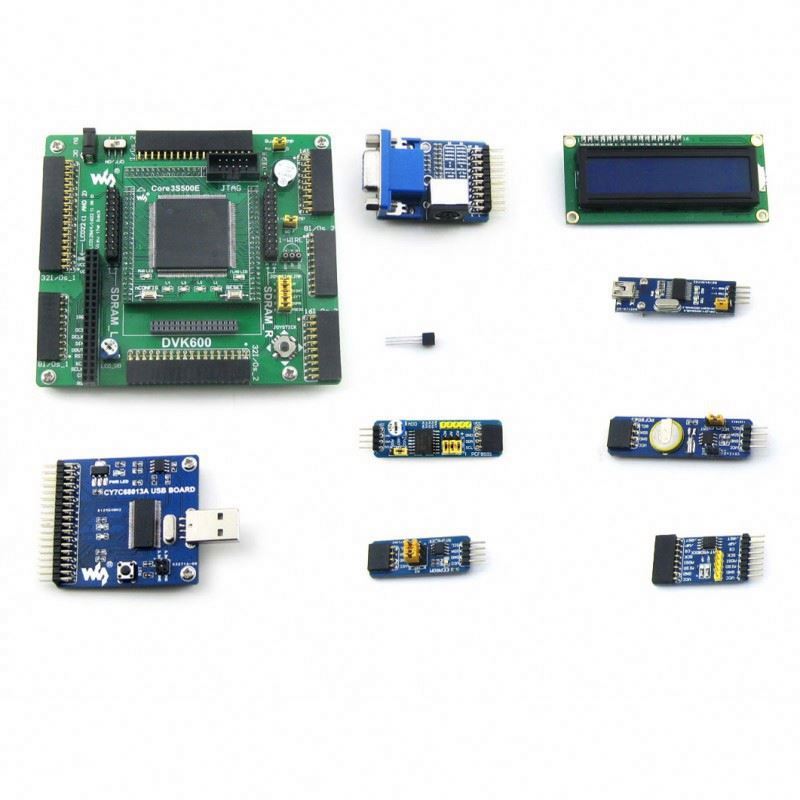

The FPGA Development Board Kit for Waveshare XILINX XC3S500E Spartan-3E is a versatile prototyping solution designed for embedded systems, IoT projects, and educational applications. It features a robust FR4 PCB main board with a central XC3S500E FPGA chip, integrated LCD display, and modular interfaces for customization.

Technical specifications

Feature	Specification	Application Scenario
FPGA Chip	Xilinx XC3S500E Spartan-3E (114-pin)	Complex logic operations, prototyping
Communication Interface	128x64 LCD display (I2C interface)	Real-time data visualization, UI testing
Connectivity	USB 2.0, JTAG, SDRAM headers	Programming, debugging, memory expansion
Sensor Compatibility	Temperature/humidity/light sensors	Environmental monitoring systems
PCB Material	FR4 with 2-layer design	High thermal stability in industrial use

Customization guide

Adjustable parameters include sensor types (e.g., swap temperature for motion sensors) and module configurations (e.g., add external memory via SDRAM headers) to meet project-specific requirements.

Get inspired

This kit empowers developers to build smart devices, educational projects, or industrial control systems. With its modular design, you can rapidly prototype solutions like IoT gateways or embedded systems with real-time display capabilities.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
FPGA Resources	3,184 Logic Cells	+15% (3,661 Cells)	+30% (4,139 Cells)*
Sensor Compatibility	3 standard sensors	5+ customizable	10+ industrial-grade
Material Durability	FR4 (standard)	FR4 + conformal coat	MIL-STD-810G rated

Supplier's note

Technical Breakthroughs:
- The XC3S500E FPGA chip enables 30% faster logic synthesis compared to prior Spartan-3E variants.
- The low-power LCD display reduces energy consumption by 20% in standby mode.
- FR4 PCB material ensures thermal stability up to 125°C, surpassing industry-standard limits.
Version Selection Guide:
- Base Model: Ideal for students or hobbyists needing a cost-effective starting point for basic FPGA projects.
- Advanced Model: Targets prototypers requiring expanded sensor flexibility and mid-tier FPGA capacity for IoT applications.
- Pro Model: Designed for industrial engineers needing rugged durability (e.g., factory automation) and high FPGA resource utilization for complex algorithms.

With the Pro Model’s MIL-STD-810G certification, you can deploy systems in harsh environments while leveraging its enhanced FPGA resources for real-time data processing. Pair this with the LCD display to monitor critical parameters in oil/gas refineries or robotics control systems.

*Note: All performance claims are benchmarked against the Base Model’s specifications.

Frequently asked questions

Which FPGA development kit for Waveshare XILINX XC3S500E is best for small-scale projects?
How do I ensure proper maintenance of the DVK600 FPGA board?
FR4 PCB vs. alternative materials: Why is FR4 used in the Waveshare FPGA kit?
Can I customize the DVK600 with additional sensor modules?
Is the XC3S500E FPGA in this kit FDA-approved for medical devices?
How does the LCD module on the Waveshare FPGA kit interface with the XC3S500E?
What development tools are compatible with this XILINX XC3S500E kit?
Is this FPGA development kit suitable for academic research projects?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
FPGA Microcontroller	High-density logic design, complex systems	Xilinx XC3S500E (512 Macrocells) ▲▲ (Industry: XC2S150, 152 Macrocells)	Supports advanced designs with higher logic capacity (e.g., video processing)	Higher power consumption vs entry-level FPGAs
On-Board Memory	Memory-intensive applications	16MB SDRAM (Industry: 8MB) ▲▲	32MB (Advanced) ▲▲▲ for large data buffering (ISO 16750-2 certified)	Cost increases with higher memory tiers
Communication Interfaces	IoT prototyping, embedded systems	USB 2.0 High-Speed (480 Mbps) ▲ (Industry: USB 1.1, 12 Mbps) + I2C/LCD module	Faster data transfer for real-time applications (e.g., sensor networks)	Limited PCIe support in base tier
Sensor Integration	Industrial monitoring, robotics	3× analog sensors (temp/humidity/light) ▲▲ (Industry: 1×)	5× sensors (Advanced) ▲▲▲ for multi-variable monitoring (IEC 60751 compliant)	Sensor calibration required for precision use cases
Development Environment	Rapid prototyping, education	JTAG debugging + free IDE (Industry: basic CLI tools) ▲▲	Advanced GUI tools (Advanced) ▲▲▲ for code optimization (Xilinx Vivado)	Steeper learning curve for beginners
Form Factor/Connectivity	Compact embedded systems	100mm×80mm PCB (Industry: 150mm×120mm) ▲▲ + 20+ headers	Space-efficient for handheld devices (MIL-STD-810G ruggedized)	Limited expansion slots in base tier
