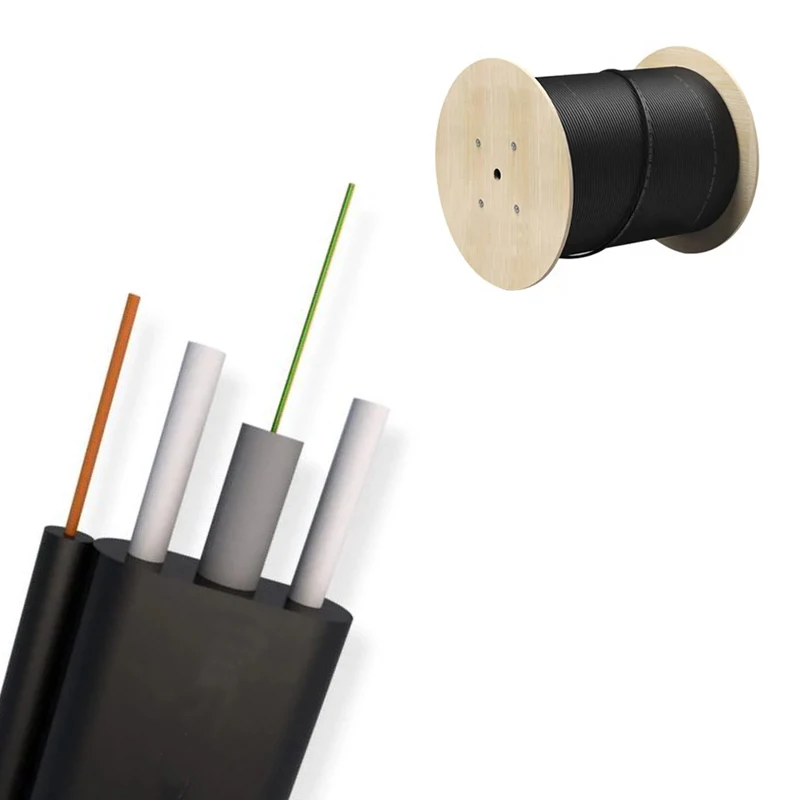

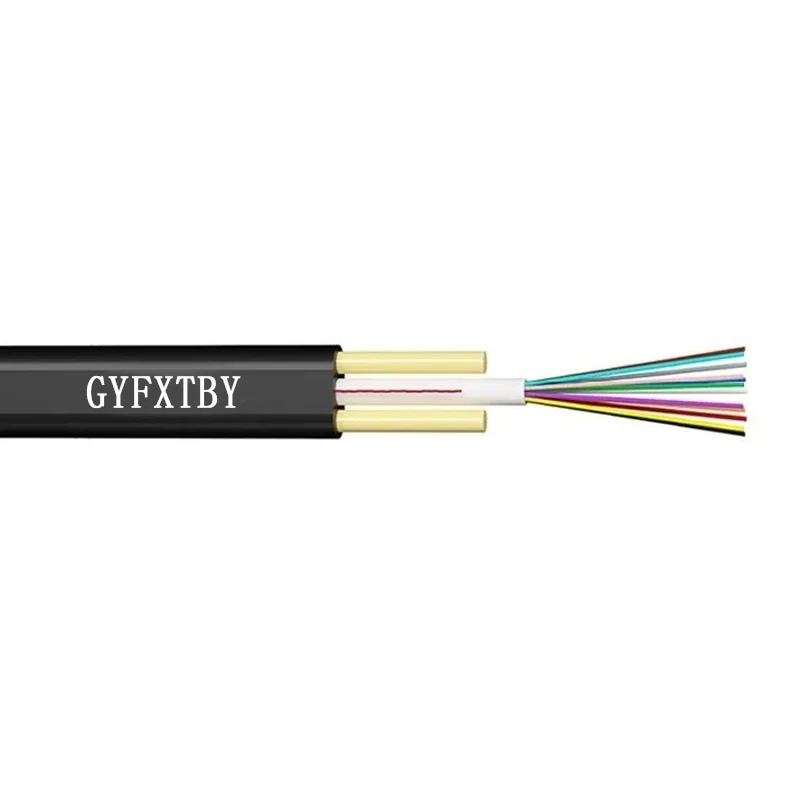

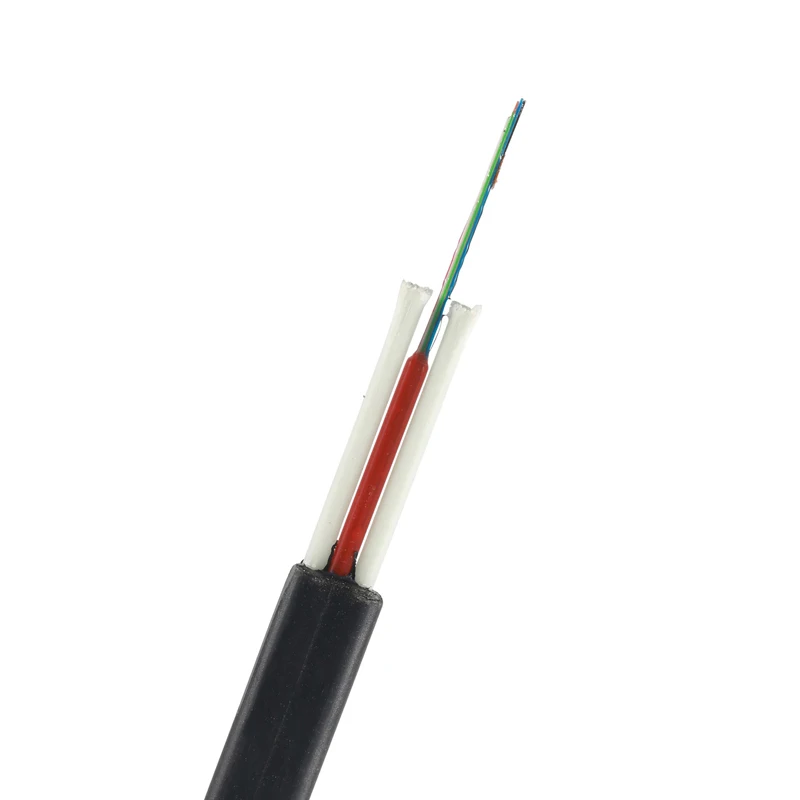

The FTTH Outdoor 1-Core GYFXTBY Overhead LSZH Flat Single Mode Fiber Optic Cable G625D is engineered for high-performance outdoor and aerial FTTH deployments. With a PBT loose tube design and LSZH jacket, it ensures durability, low smoke emission, and compliance with global safety standards (RoHS, CE). Ideal for telecommunications infrastructure, this cable combines flexibility, water resistance, and interference immunity to support long-distance, high-speed data transmission.

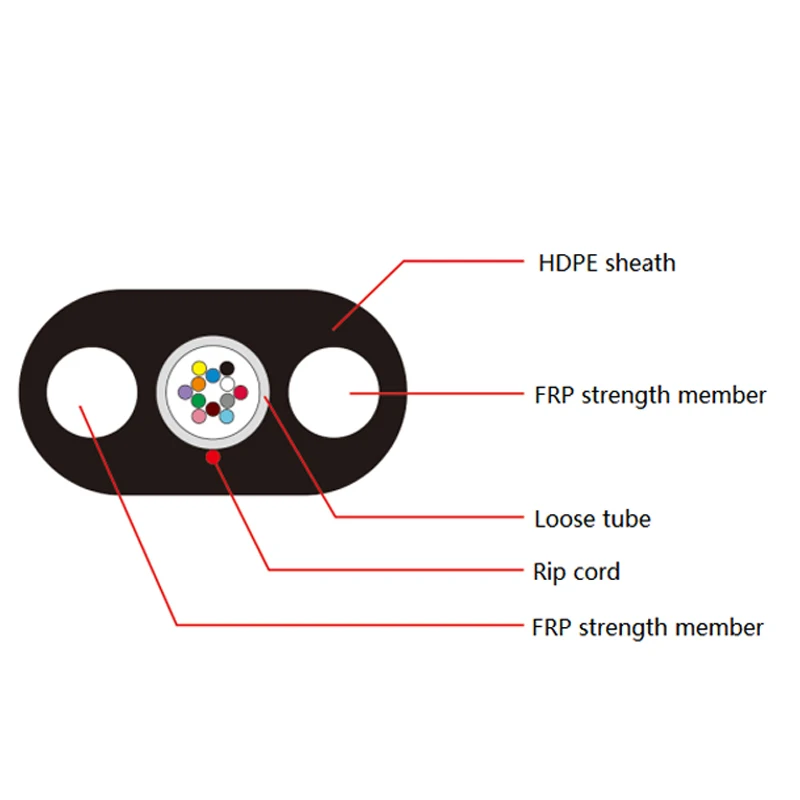

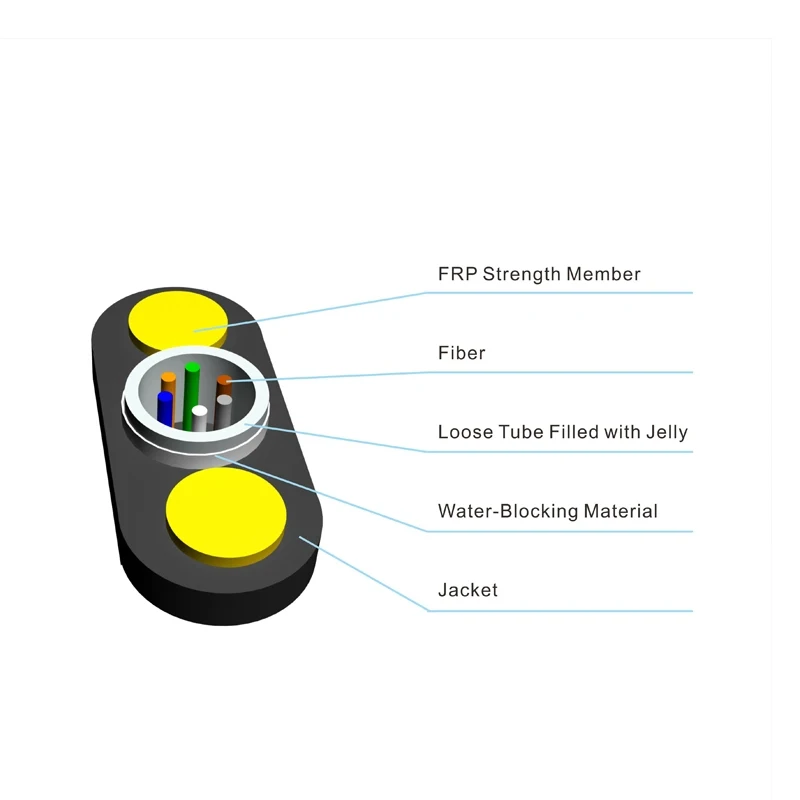

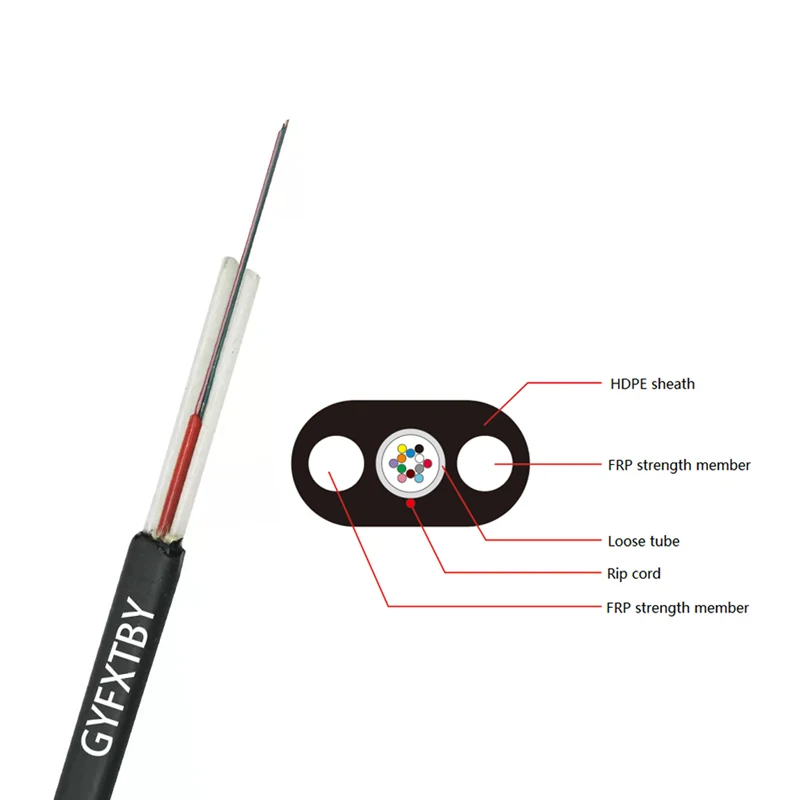

| Feature | Specification | Benefit |
|---|---|---|
| Jacket Material | LSZH (Low Smoke Zero Halogen) | Reduces toxic fumes and smoke in fires |
| Loose Tube Material | PBT (Polybutylene Terephthalate) | Enhanced flexibility and chemical resistance |
| Strength Member | FRP (Fiberglass Reinforced Plastic) | Withstands extreme tensile loads |
| Water Blocking | Gel-filled loose tube | Prevents moisture ingress for outdoor use |
| Fiber Type | G652D Single Mode (2F/4F configurations) | Supports high bandwidth over long distances |
| Certifications | RoHS, CE | Ensures environmental and safety compliance |
Adjust fiber counts (2F/4F) and jacket thickness to meet specific network demands. For example:
Deploy this cable in urban aerial networks where low smoke emissions and lightweight design are critical. Its flat profile simplifies installation on poles, while the LSZH jacket ensures safety in confined spaces like tunnels or underground ducts.
| Parameter | Base Model (2F) | Advanced Model (4F) | Pro Model (8F) |
|---|---|---|---|
| Fiber Count | 2 cores | 4 cores | 8 cores |
| Max Tensile Strength | 1,200 N | 1,500 N (+25%) | 2,000 N (+67%) |
| Operating Temp Range | -20°C to +60°C | -30°C to +70°C | -40°C to +80°C |
| Bend Radius | 25x diameter | 20x diameter (-20%) | 15x diameter (-40%) |
Three Breakthroughs:
Version Selection Guidance:
With the Pro Model’s 8-core capacity, you can future-proof networks against bandwidth demands. The LSZH jacket ensures compliance in safety-critical zones, while the PBT tube’s flexibility simplifies aerial installations. Choose based on your fiber density needs and environmental challenges.
