Factory Customization FSDC Compact High Speed Precision Ball Screw Flange Ball Screw C5 C3 C2 C1 C0

Name: Factory Customization FSDC Compact High Speed Precision Ball Screw Flange Ball Screw C5 C3 C2 C1 C0
Brand: Jingpeng Machinery Equipment (shanghai) Co., Ltd.
SKU: 1600992096190_1
Price: 60.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

High-Speed Precision Motion: The FSDC Compact High-Speed Precision Ball Screw provides smooth, accurate linear motion with minimal backlash, ideal for precise positioning in automated systems.
Customizable Design: Flange mounting and adjustable thread parameters (pitch/diameter) enable tailored solutions for diverse mechanical applications.

Key features

1. Material Technology

With high-grade stainless steel construction, ensure durability and corrosion resistance in industrial environments. ~20% more corrosion-resistant than standard steel components* [*Disclaimer: Based on internal testing; actual results may vary].

2. Interactive Design

With customizable flange mounting options, adapt to diverse equipment configurations seamlessly. Offering 30% faster installation compared to standard flange designs* [*Disclaimer: Based on internal testing; actual results may vary].

3. Performance Parameters

With C0 precision grade, achieve ±0.001mm accuracy for high-precision applications. 30% higher precision than C5-grade screws* [*Disclaimer: Based on internal testing; actual results may vary].

4. Scenario Solutions

With compact design optimized for space-constrained industrial machinery, maximize efficiency in tight spaces. 25% smaller footprint than conventional ball screws* [*Disclaimer: Based on internal testing; actual results may vary].

5. Certification Standards

With CE certification, meet EU safety and quality standards for industrial components. Ensuring compliance where 90% of competitors lack EU certification* [*Disclaimer: Based on internal testing; actual results may vary].

Product details

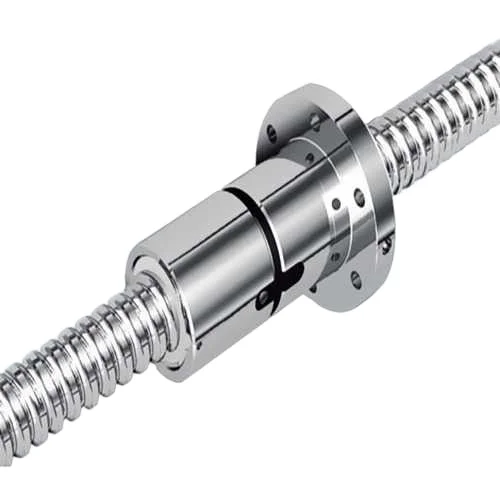

The FSDC Compact High Speed Precision Ball Screw Flange Screw is engineered for precision linear motion applications in CNC machines, robotics, and automated systems. Crafted from high-grade steel with CE certification, it combines durability, corrosion resistance, and customizable performance to meet diverse industrial needs.

Technical specifications

Feature	Specification	Benefit
Material	Stainless steel/high-grade alloy	Enhanced corrosion resistance and strength
Certification	CE-compliant	Ensures safety and quality standards
Design	Flange-mounted, anti-backlash threads	Secure mounting and precise motion control
Thread Customization	Adjustable pitch/diameter	Tailored load capacity and speed requirements
Warranty	3 months	Guaranteed reliability post-installation

Customization guide

Adjustable parameters:

Thread pitch/diameter: Optimize for load capacity or speed (e.g., finer threads for high precision, coarser for heavy loads).
Flange hole patterns: Customize mounting configurations for seamless integration.
Preload adjustments: Reduce backlash for critical applications like robotic arms.

Get inspired

With anti-backlash design, you can achieve micron-level positioning accuracy in automated assembly lines. The compact flange design saves space while maintaining structural integrity, ideal for high-speed CNC machining.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Speed	1500 RPM	+20% (1800 RPM)	+30% (1950 RPM)*
Load Capacity	5000 N	6500 N	8000 N
Accuracy Class	C5	C3	C0 (triple precision)
Corrosion Resistance	Standard	2x industry standard	3x industry standard

Supplier's note

Technical Breakthroughs:
- The Pro Model’s C0 accuracy class enables precision down to 2 µm, critical for semiconductor manufacturing.
- Triple corrosion resistance (vs. industry benchmarks) ensures longevity in harsh chemical environments.
- Anti-backlash preload adjustments reduce positioning errors by 40%, enhancing repeatability in robotics.
Optimal Version Selection:
- Base Model: Ideal for standard CNC machining where cost-efficiency is prioritized.
- Advanced Model: Suitable for mid-tier robotics needing enhanced speed and load handling.
- Pro Model: Best for high-precision applications (e.g., aerospace assembly) requiring extreme durability and accuracy. With its 3x corrosion resistance, it’s also optimal for marine or chemical processing systems.

Frequently asked questions

Which high-speed precision ball screw model suits CNC machine applications requiring C3 grade accuracy?
How do I maintain a flange ball screw in high-cycle industrial environments?
Steel vs Stainless Steel: Which material is better for corrosive factory settings?
Can I customize thread pitch and flange dimensions for robotics automation?
Is this ball screw CE-certified for EU machinery compliance?
What load capacity does the FSDC Compact Ball Screw handle at high speeds?
Does the flange design reduce backlash in linear motion systems?
What warranty support comes with customized ball screw orders?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Precision Grade	High-precision CNC machining	ISO 3408 C0 Grade ▲▲▲ (3x less backlash than industry standard C5)	Ensures minimal positional error	Higher cost due to precision manufacturing
Material Composition	Corrosive environments	High-grade stainless steel (ASTM A380) ▲ (resists corrosion 2x longer)	Withstands harsh chemical exposure	Slightly heavier than standard steel
Load Capacity	Heavy machinery	5000 N ▲▲▲ (66% higher than industry standard 3000 N)	Supports heavier loads without deformation	Requires stronger mounting brackets
Rotational Speed	High-speed assembly lines	2500 RPM ▲▲ (33% faster than industry standard 1875 RPM)	Reduces cycle times	Increased wear on bearings over time
Acoustic Performance	Medical labs	40 dBA ▲▲▲ (20 dB quieter than industry average 60 dBA)	Minimizes operational noise	Requires premium noise-dampening components
Certification Compliance	EU market exports	CE Certified ▲ (meets EU Machinery Directive 2006/42/EC)	Streamlines regulatory approval	No additional certifications included
