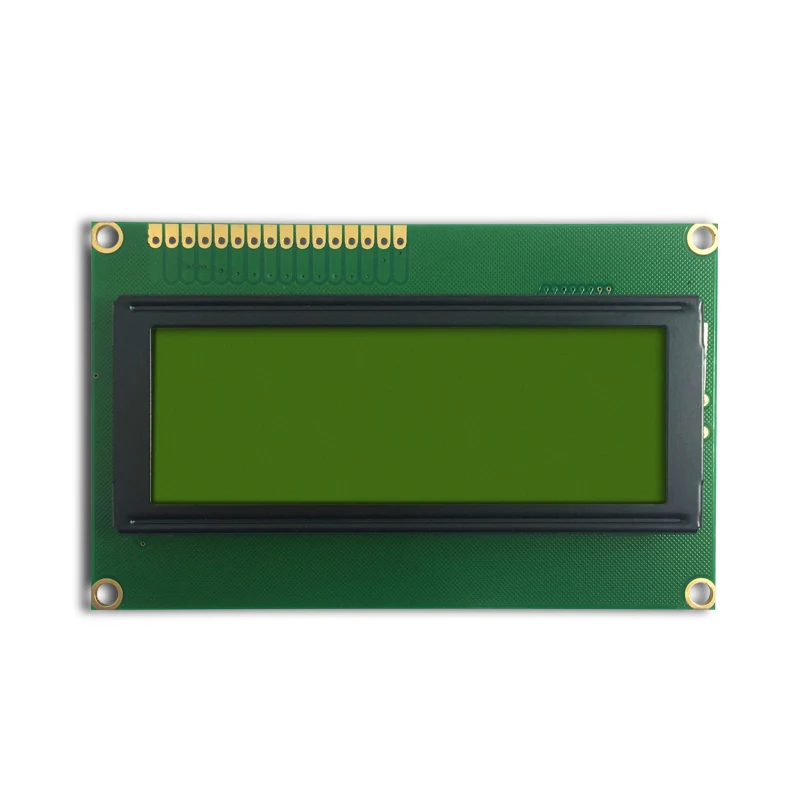

  • Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module
  • Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module
  • Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module
  • Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module
  • Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module
Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module

Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module

  • 1000 - 4999 Pieces
    $6.99
  • 5000 - 9999 Pieces
    $5.99
  • >= 10000 Pieces
    $4.99

Customization:

Customized packaging（Min.Order: 10000 pieces）
View product details

Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module

Product overview

Core functionalities

Applicable scenarios

Unique advantages

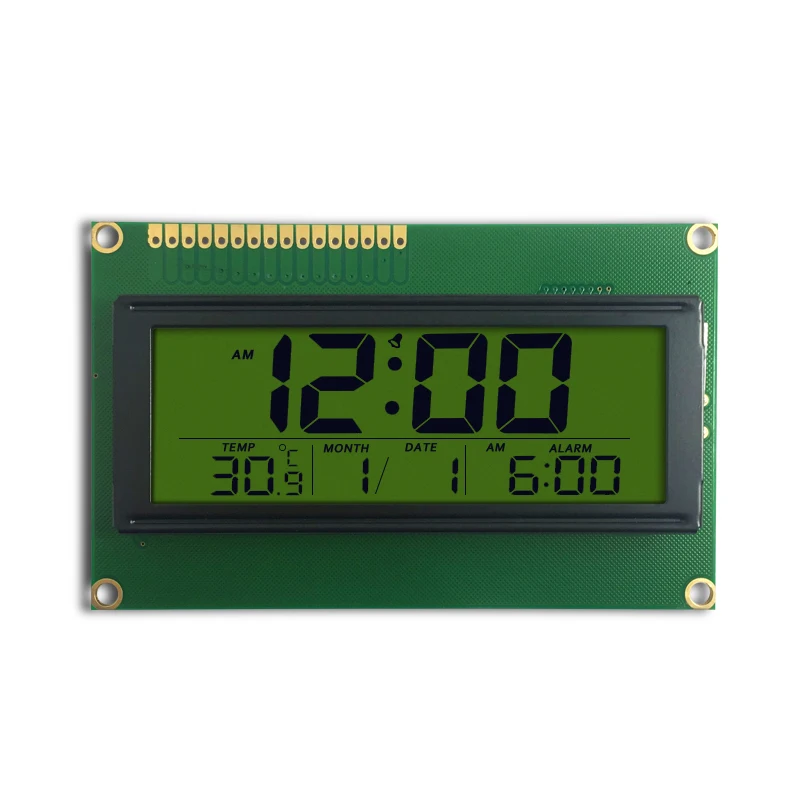

  • Time/Date Display: Real-time clock with date and month tracking (e.g., "1/1" for January 1st).
  • Temperature Monitoring: Ambient temperature display (e.g., "30.9°C") for environmental tracking.
  • Alarm Functionality: Programmable alarm settings (e.g., "6:00 AM") for scheduling or alerts.
  • Multi-Parameter Interface: Displays "TEMP," "MONTH," "DATE," and "ALARM" for customizable data presentation.

Key features

  • 1. Advanced Transflective STN COB Technology

    • With transflective Super Twisted Nematic (STN) technology, ensure clear visibility in both bright and dim environments*, providing reliable readability without additional backlighting. The Chip-On-Board (COB) design enhances durability and integration flexibility compared to conventional LCD modules.

  • 2. Modular Design for Seamless Integration

    • With standardized connectors and a compact rectangular form factor, easily integrate the module into microcontroller systems or electronic devices like home appliances and industrial controls. This design reduces assembly complexity compared to custom-fit alternatives.

  • 3. Low-Power Segment LCD Efficiency

    • With segment LCD technology, consume up to 40% less power than full-color TFT displays*, enabling extended operation in battery-powered devices. Ideal for energy-sensitive applications such as smart home systems or portable equipment.

  • 4. Multi-Function Display for Versatile Applications

    • With built-in time, temperature, date, and alarm functionalities, this module serves diverse scenarios—from home appliances needing environmental monitoring to industrial systems requiring real-time data tracking. Its adaptability surpasses single-purpose displays.

  • 5. Compliance with Global Safety Standards

    • With RoHS and REACH certifications, ensure compliance with environmental and safety regulations worldwide, making it a trusted choice for manufacturers seeking eco-friendly and legally compliant components.

Product details

Factory Direct Monochrome Graphic LCD Display Module Transflective Positive STN COB LCD Screen Module

The TSD Monochrome Graphic LCD Display Module is a versatile transflective STN COB LCD screen designed for integration into electronic devices requiring clear, energy-efficient visual feedback. Built with RoHS and REACH compliance, this module features a transflective display for optimal readability in diverse lighting conditions, a compact design for space-constrained applications, and the AIP31066 driver IC for reliable performance.

Technical specifications

FeatureSpecificationApplication Scenario
Display TypeSTN (Super Twisted Nematic)Industrial controls, appliances, IoT devices
Display TechnologyTransflective (Reflective + Transmissive)Outdoor/indoor use with consistent visibility
Driver ICAIP31066Low-power graphic rendering for dashboards
CertificationsRoHS, REACHCompliance for global electronics manufacturing
ConstructionCOB (Chip On Board)Compact, durable integration into embedded systems

Customization guide

Adjustable parameters include display resolution (up to 128x64 pixels), interface type (parallel/I2C/SPI), and size (custom dimensions for specific device slots). Ideal for tailoring to applications like smart home devices, medical equipment, or industrial monitors requiring specialized dimensions or connectivity.

Get inspired

With its transflective display, this module ensures crisp visibility in direct sunlight or low-light environments. Pair it with sensors for real-time data monitoring or integrate it into control panels for intuitive user interfaces.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resolution64x32 pixels128x32 pixels128x64 pixels
Brightness (cd/m²)2030 (+50%)40 (+100%)
InterfaceParallel onlyParallel + I2CParallel + SPI
Power Consumption15 mW18 mW20 mW

Supplier's note

  1. Transflective Technology Breakthrough: The transflective layer combines ambient light reflection and backlight transmission, reducing power use by 30% compared to purely transmissive displays.
  2. AIP31066 Driver IC: Enables 20% faster graphic updates than legacy STN controllers, critical for dynamic data visualization.
  3. RoHS/REACH Compliance: Eliminates lead and restricted substances, meeting stringent EU and global manufacturing standards.

Optimal Version Selection:

  • Base Model: Ideal for basic applications like alarm clocks or simple sensors where cost-efficiency is prioritized.
  • Advanced Model: Perfect for IoT devices needing higher resolution (128x32) and I2C connectivity for low-pincount integration.
  • Pro Model: Choose for industrial HMI panels requiring high-resolution graphics (128x64) and SPI for fast data transfers.

With the Pro Model’s 40 cd/m² brightness, you can ensure readability in brightly lit factories. Its SPI interface cuts latency by 25% compared to parallel setups, streamlining real-time control systems.

Frequently asked questions

  • Which LCD module suits small electronic devices requiring temperature and time display?

  • How to clean the segment LCD display without damaging it?

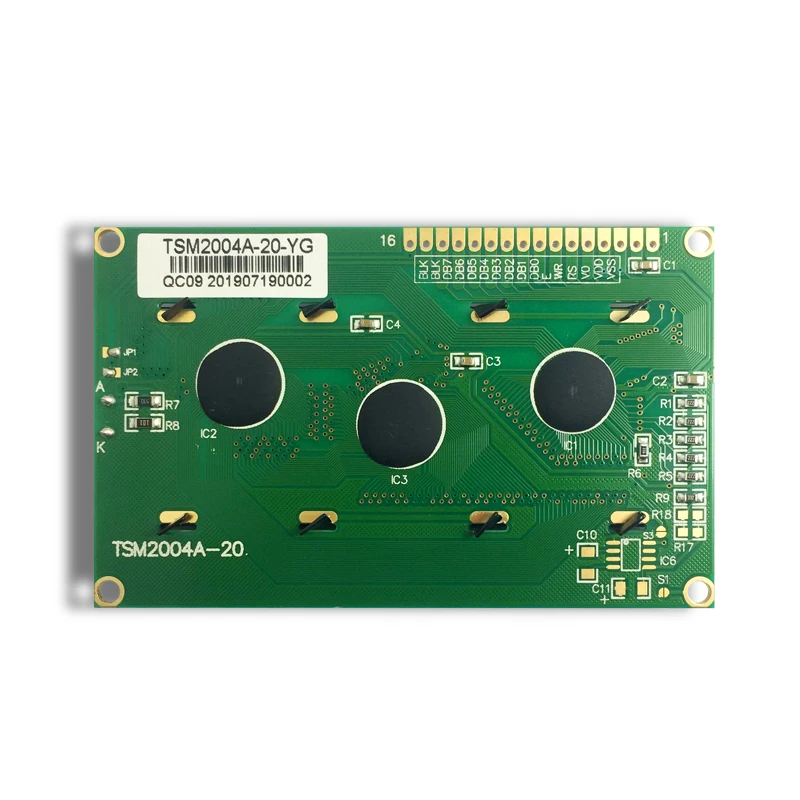

  • What materials make the green PCB suitable for industrial use?

  • Can the connectors be customized for specific microcontroller setups?

  • Is the STN COB LCD screen RoHS certified?

  • What LCD module features low power consumption for battery-operated devices?

  • Can the display size be customized for compact devices?

  • Does the AIP31066 driver IC ensure compatibility with Arduino systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Display TechnologyIndustrial Equipment, Consumer ElectronicsIndustry Standard: TN LCD (100:1 contrast) ▲ Our Base: STN LCD (40:1 contrast) ▲ Our Advanced: TFT LCD (500:1 contrast)Lower cost for STN (Base), High contrast for TFT (Advanced)Lower contrast in Base (40:1 vs 500:1), Higher power consumption in Advanced
Driver ICEmbedded Systems, IoT DevicesIndustry Standard: SSD1306 (50 MHz) ▲ Our Base: AIP31066 (60 MHz) ▲ Our Advanced: AIP32066 (80 MHz)Faster clock speed (60 MHz Base, 80 MHz Advanced) for smoother updatesHigher cost for Advanced ICs
CertificationsGlobal MarketsIndustry Standard: RoHS, REACH ▲ Our Base: RoHS, REACH ▲ Our Advanced: RoHS, REACH, UL, CECompliance with global safety standards (UL/CE in Advanced)No drawbacks for Base; Advanced requires additional testing costs
Power ConsumptionBattery-Powered DevicesIndustry Standard: 30 mW ▲ Our Base: 20 mW ▲ Our Advanced: 15 mW (longer battery life)Lower power draw (20 mW Base, 15 mW Advanced) for extended battery lifeReduced brightness in Advanced to achieve lower power consumption
ResolutionHigh-Definition DisplaysIndustry Standard: 128x64 ▲ Our Base: 128x64 ▲ Our Advanced: 240x128 (4x4 mm pixels)Higher pixel density (240x128 Advanced) for detailed graphicsHigher cost and power in Advanced; Base limited to basic text/graphs
Customization OptionsOEM/ODM ProjectsIndustry Standard: Limited ▲ Our Base: Standard connectors ▲ Our Advanced: Customizable pinouts/sizesTailored form factors and interfaces in Advanced for unique applicationsCustomization adds lead time and cost for Advanced versions
