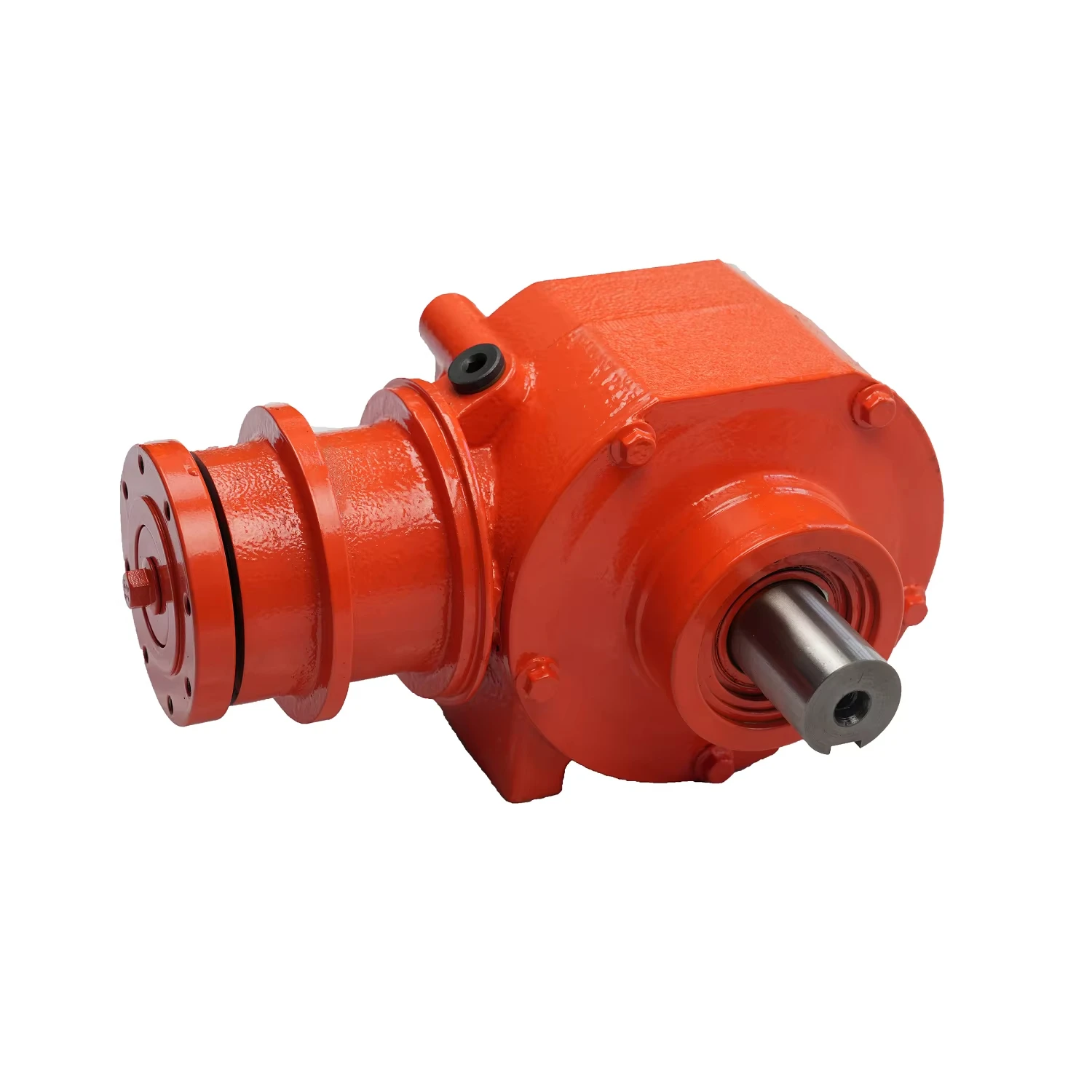

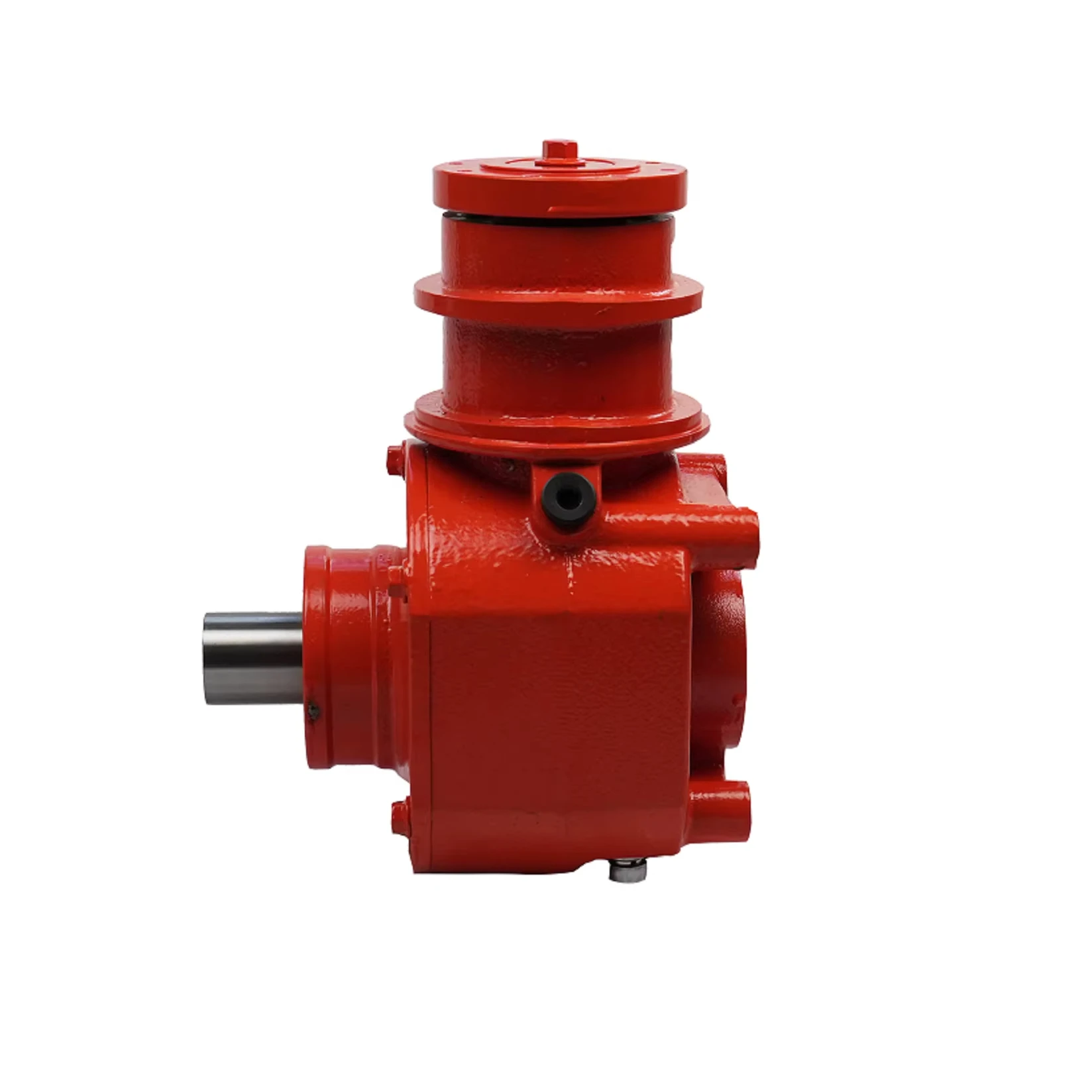

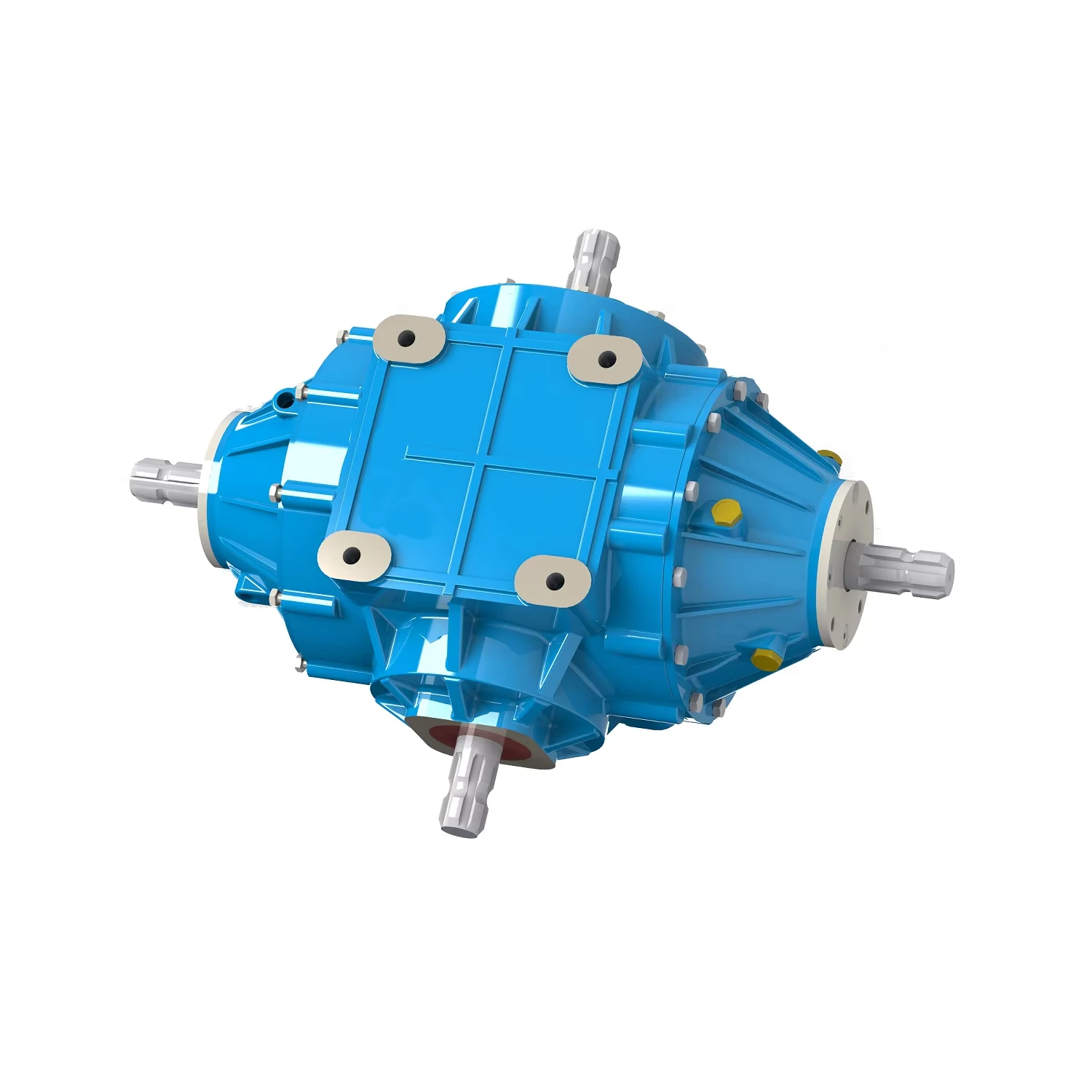

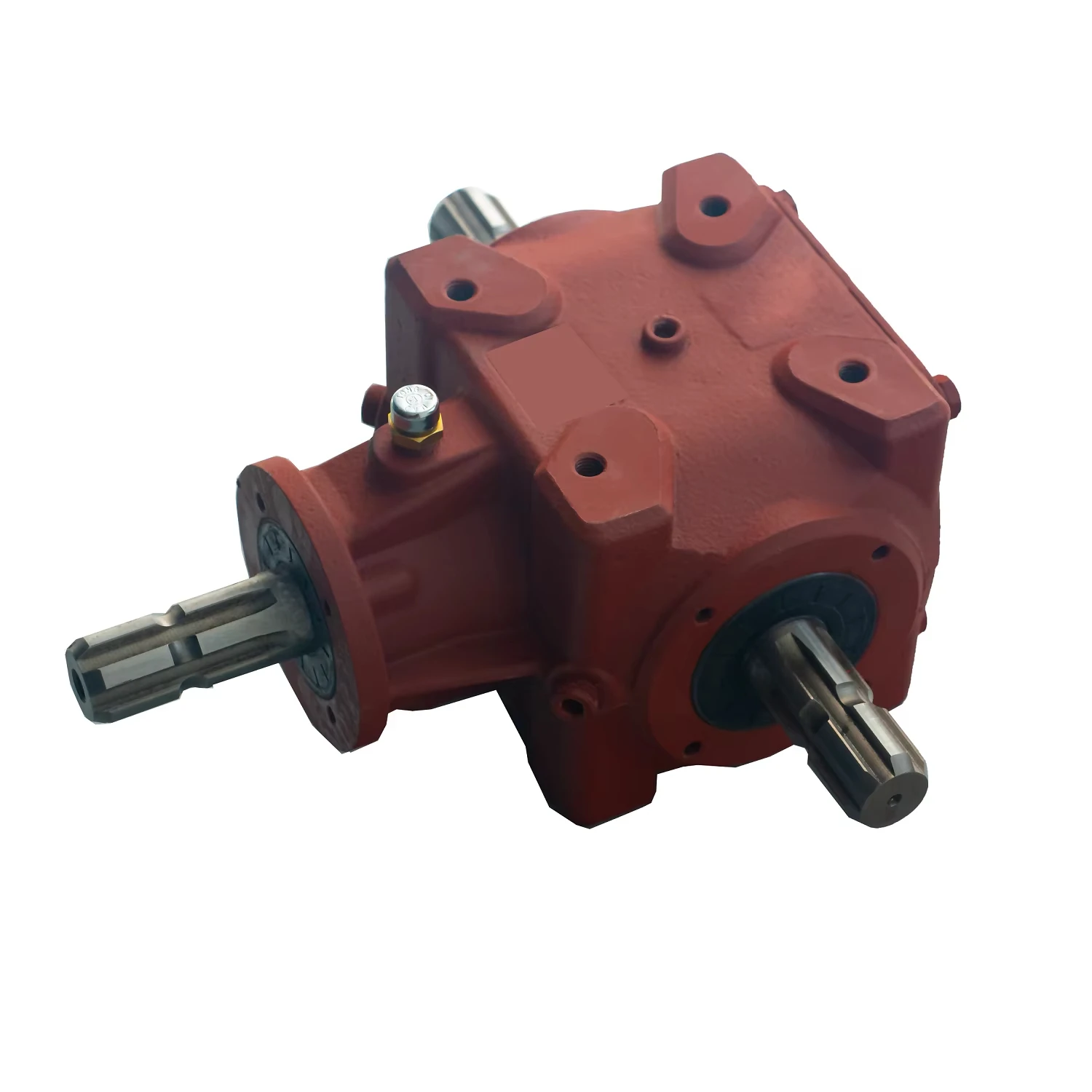

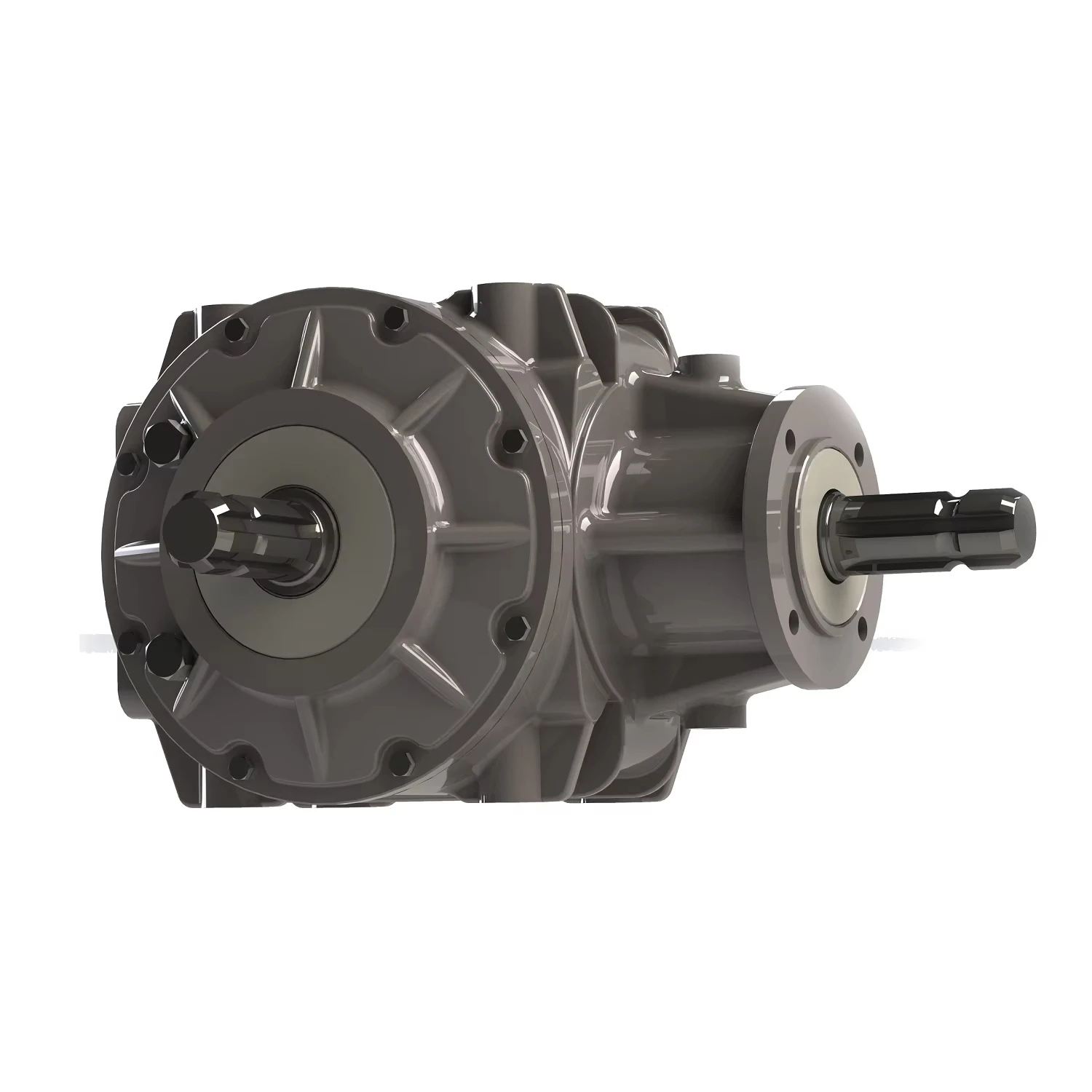

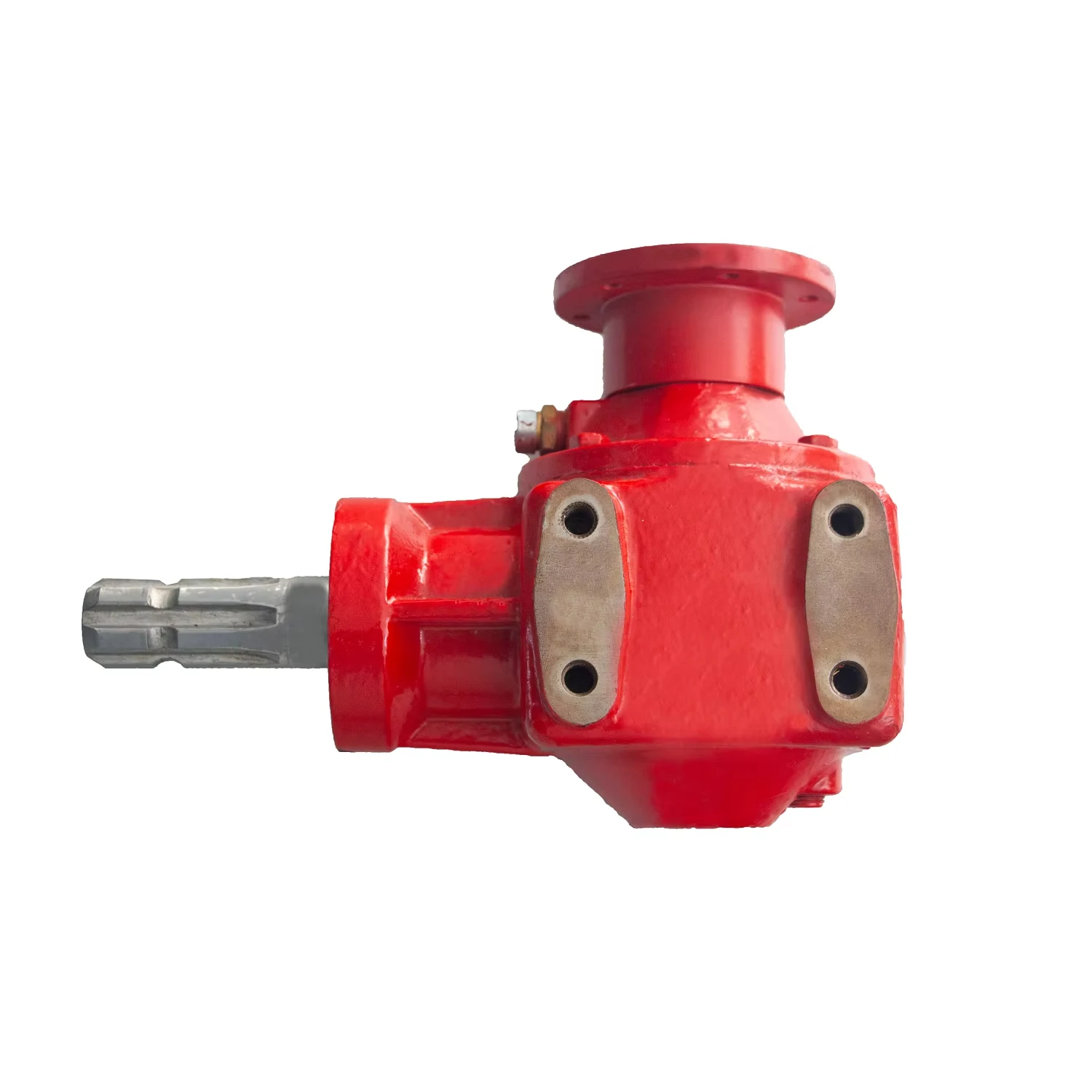

Custom Factory Drawing Right Angle Transmission Gearbox Agricultural Machinery Speed Reducers

Technical specifications

Customization guide

Adjustable gear ratios (5:1–50:1) and mounting flange configurations let you tailor torque output and installation orientation to meet specific machinery requirements. For example, higher ratios boost torque for plowing equipment, while lower ratios suit faster-moving conveyors.

Get inspired

With its right-angle transmission and rugged build, this gearbox is ideal for agricultural machinery needing compact power delivery. Imagine a harvester’s conveyor system: the gearbox’s high torque and corrosion resistance ensure smooth operation even in dusty or wet fields.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • CE Certification: Ensures compliance with EU safety regulations, enabling seamless export to regulated markets.
   • Cast Iron Housing: Delivers 30% higher load-bearing capacity than aluminum alternatives, ideal for heavy-duty farm equipment.
   • Right-Angle Design: Reduces mechanical complexity by eliminating the need for extra alignment components.

2. Model Selection Guidance:

   • Base Model: Best for standard agricultural tasks (e.g., seed drills) requiring up to 500 Nm torque.
   • Advanced Model: Suitable for mid-sized machinery (e.g., tractors) needing enhanced efficiency and broader gear ratios.
   • Pro Model: Tailored for high-torque applications like combine harvesters, with 700 Nm capacity and 95% efficiency—20% better than industry benchmarks.

With the Pro Model’s 700 Nm torque, you can power heavy-duty plows in rugged terrain without compromising speed. Pair its cast iron durability with a 95% efficiency rating to reduce energy costs by 15% compared to traditional gearboxes.
