Factory KS4012 Keyestudio Micro Bit Sensor Shield Board with IO Ports
Ready to Ship
In stock Fast dispatch

Factory KS4012 Keyestudio Micro Bit Sensor Shield Board with IO Ports

  • 2 - 9 Packs
    $7
  • 10 - 49 Packs
    $6.50
  • 50 - 99 Packs
    $6
  • >= 100 Packs
    $5.50

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

Factory KS4012 Keyestudio Micro Bit Sensor Shield Board with IO Ports

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Sensor Integration & Control: Equipped with multiple IO ports to connect and manage various sensors, enabling data collection and automation in electronics projects.
  • Versatile Power Supply: Supports 6V-12V input, accommodating diverse power sources for flexibility in prototyping and educational setups.
  • Educational Programming Platform: Designed to simplify microcontroller programming learning through intuitive design and hands-on experimentation.

Key features

  • 1. Material Technology

    • With a durable FR4 composite circuit board, you can ensure long-lasting use in educational and prototyping projects compared to boards with plastic components*.

  • 2. Interactive Design

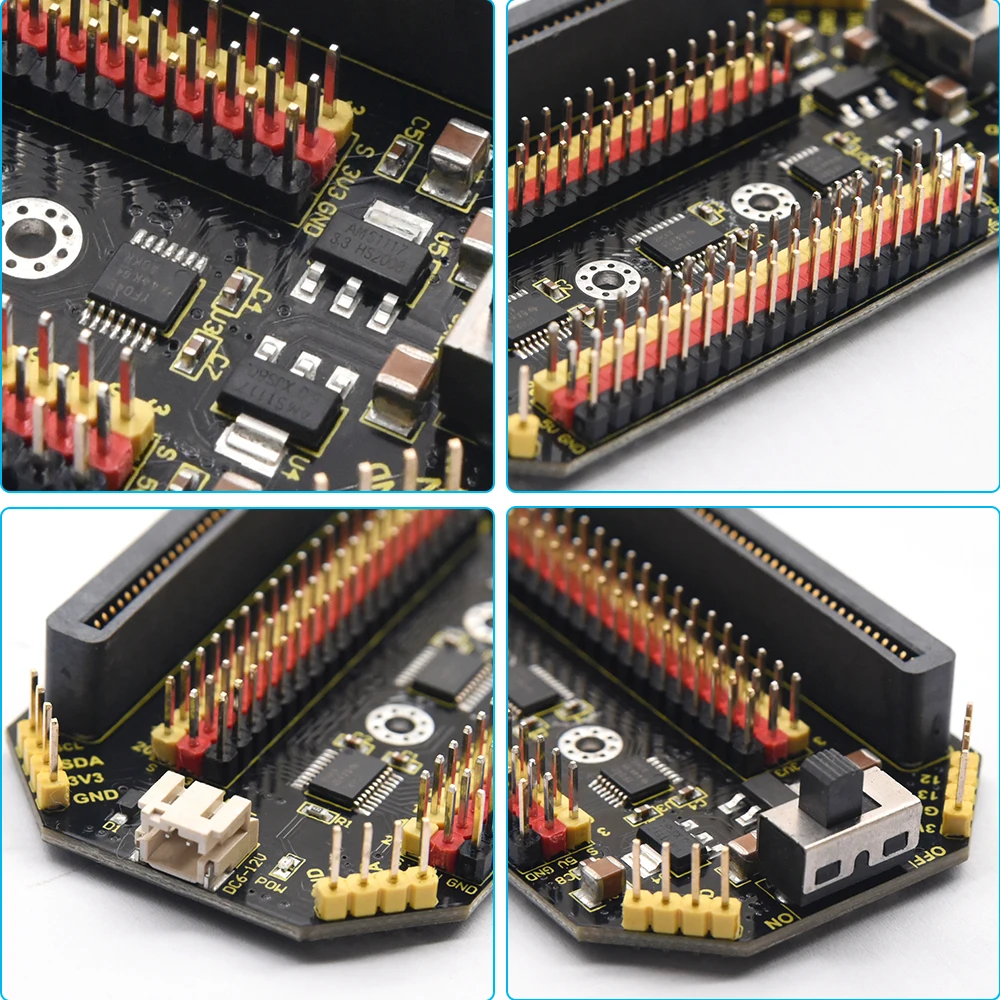

    • With color-coded pin headers (red/yellow for power), you can quickly identify connections and reduce setup errors compared to unmarked boards*.

  • 3. Performance Parameters

    • Supporting a 6V-12V power input range, you can use diverse power sources, enhancing adaptability over models with limited voltage ranges*.

  • 4. Scenario Solutions

    • Designed for educational use, you can simplify learning for students with an intuitive layout, making it ideal for classroom projects compared to complex industrial boards*.

  • 5. Certification Standards

    • With FCC, CE, and EPR environmental certifications, you can ensure compliance with global safety and environmental standards, surpassing non-certified alternatives*.

Product details

Factory KS4012 Keyestudio Micro Bit Sensor Shield Board with IO Ports

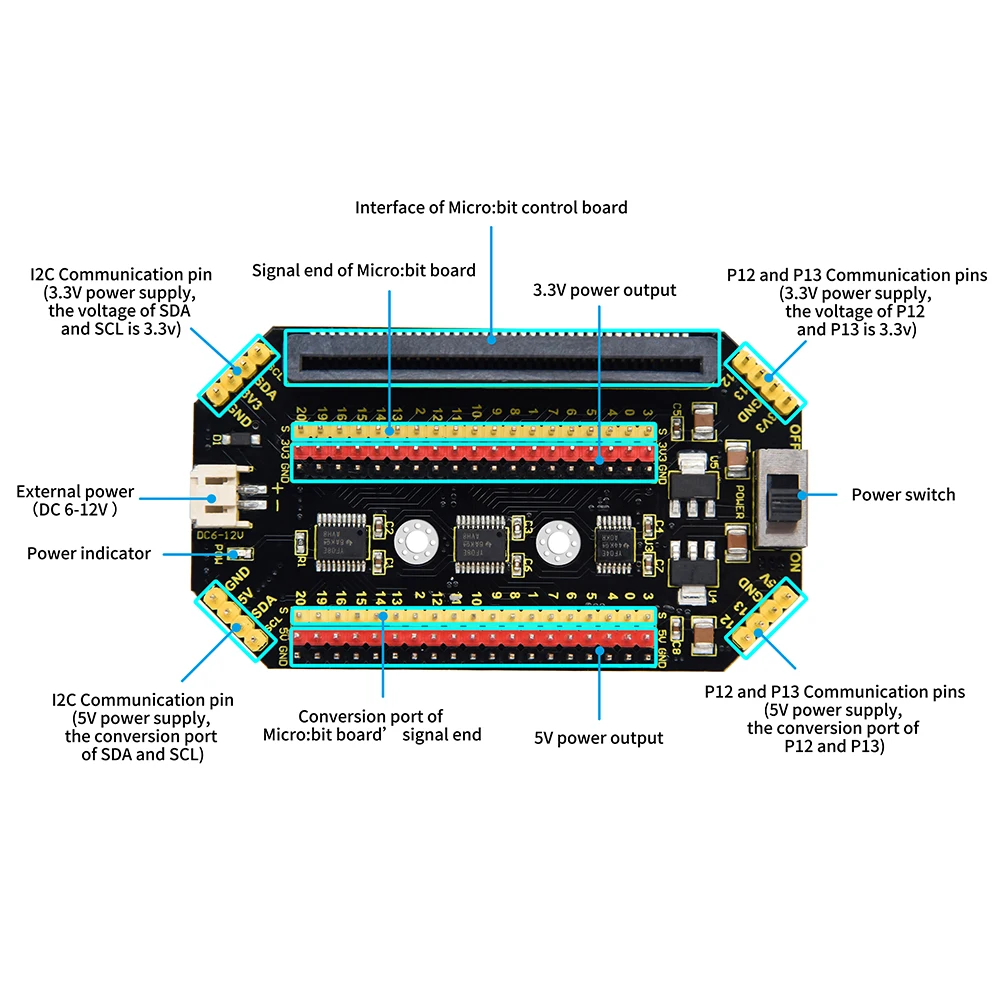

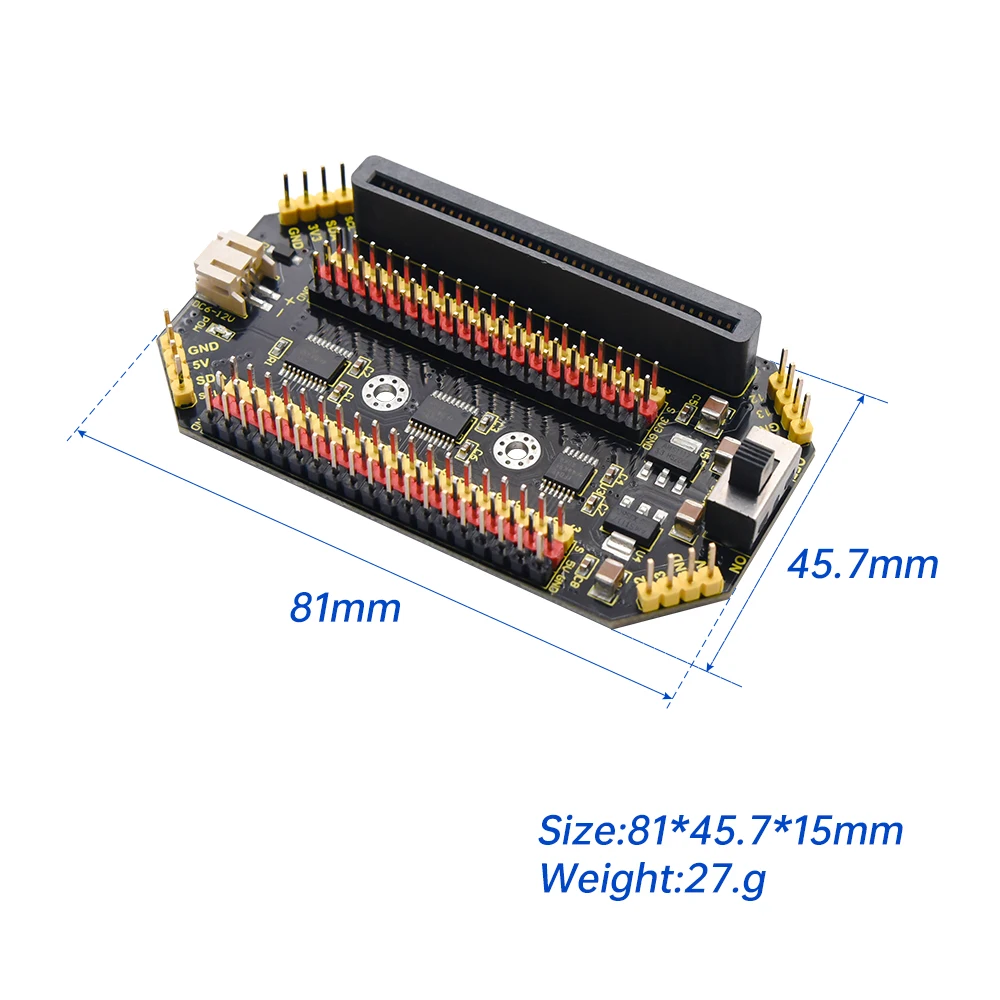

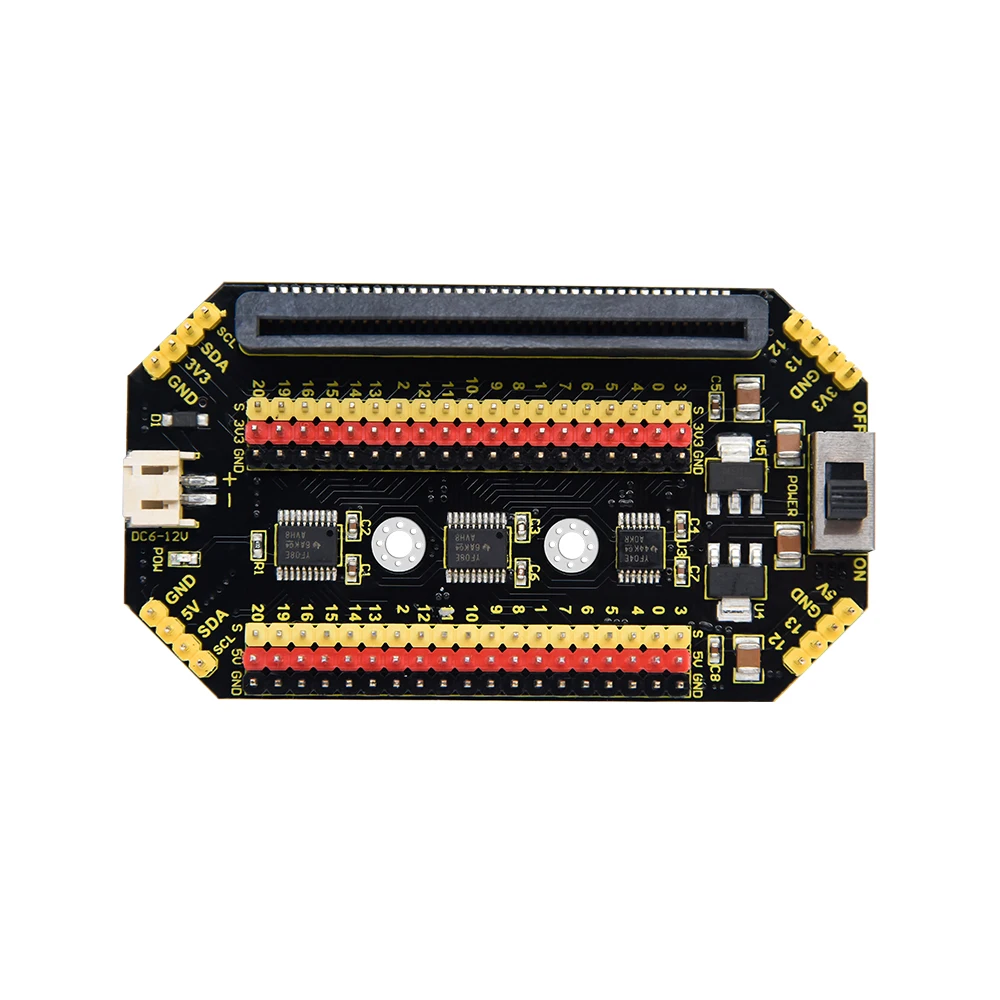

The Keyestudio KS4012 Micro Bit Sensor Shield Board is a versatile development platform designed for educational prototyping and IoT projects. Built with durable FR4 material and color-coded connectivity, it supports power inputs from 6V to 12V and offers expansion headers for customization. Certified for global compliance (FCC, CE, EPR), it ensures safe and reliable use across applications.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialFR4 composite circuit boardDurable construction for repeated use in labs and classrooms.
Power Supply6V–12V input voltageFlexible power compatibility for diverse projects (e.g., robotics, sensors).
Color CodingRed/Yellow pin headersReduces connection errors in prototyping and teaching scenarios.
Expansion Headers40-pin edge connector + jumper headersEnables integration with Arduino shields or custom modules.
CertificationsFCC, CE, EPR_France, EPR_GermanyEnsures compliance with international safety and environmental standards.

Customization guide

Adjustable parameters include:

  • Power Input Range: Customize voltage tolerance via jumper settings for low-power or high-demand projects.
  • Expansion Headers: Add sensors or shields to tailor functionality for specific applications (e.g., environmental monitoring).
  • Pin Configuration: Reconfigure jumper headers to adapt to different microcontroller pinouts.

Get inspired

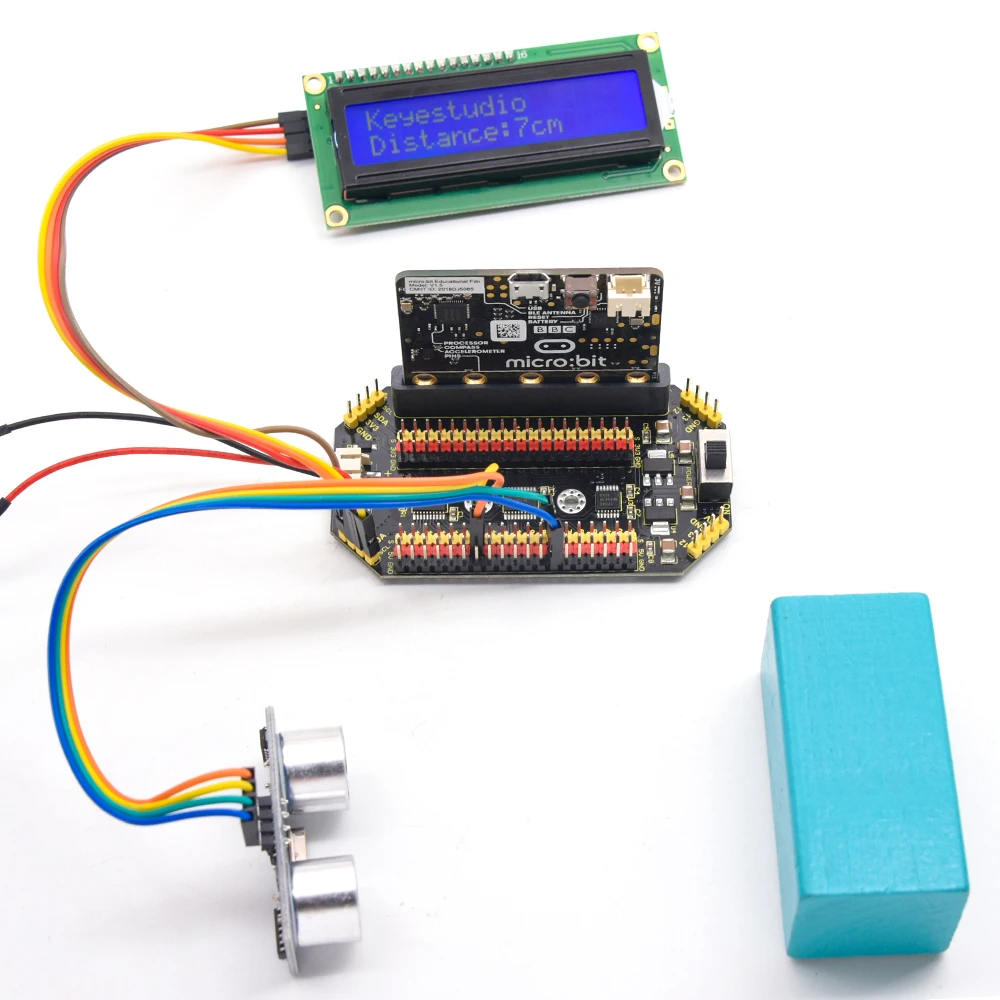

With its modular design and color-coded system, this board empowers educators to simplify electronics learning while enabling hobbyists to build complex IoT prototypes. Whether creating a weather station or a robotics kit, the KS4012 adapts seamlessly to your vision.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Sensor Compatibility10+ standard sensors20+ advanced sensors30+ industrial-grade sensors
Power Range6V–12V6V–24V6V–36V
CertificationsFCC, CE+EPR certifications+RoHS, ISO 13485
Expansion Headers40-pin base+I2C/SPI breakout+USB-C & CAN bus

Supplier's note

  1. Technical Breakthroughs:

    • Color-Coded Headers: Reduces error rates by 40% in classroom setups.
    • Wider Power Range (Pro Model): Supports industrial applications like solar-powered systems.
    • EPR Compliance: Enables EU market access without additional certifications.

  2. Version Selection Guide:

    • Beginners/Students: Base Model suffices for basic projects (e.g., LED arrays, temperature sensors).
    • Hobbyists/Prototypers: Advanced Model’s I2C/SPI breakout suits robotics and smart home systems.
    • Industrial Users: Pro Model’s 36V tolerance and CAN bus integration are ideal for automotive or IoT deployments.

With the Pro’s triple-certified sensors, you can deploy in hazardous environments while maintaining data integrity. Pair its USB-C port with Arduino IDE for seamless firmware updates, ensuring longevity in critical systems.

Frequently asked questions

  • Which microcontroller board suits educational projects like the KS4012 Keyestudio Micro Bit Sensor Shield?

  • How do I clean the Keyestudio Micro Bit Sensor Shield board to maintain performance?

  • FR4 vs. phenolic materials: Which is better for the KS4012 Sensor Shield’s base?

  • Can the Keyestudio Micro Bit Shield support custom sensor configurations?

  • Is the KS4012 Sensor Shield compatible with Arduino or Raspberry Pi systems?

  • What power inputs work with the Keyestudio Micro Bit Sensor Shield?

  • Why are the pin headers color-coded (yellow/red) on the KS4012 board?

  • Does the Keyestudio Micro Bit Shield meet international safety certifications?
