Factory Manual V Type Cardboard Grooving Machine Paperboard V Groove Carton Box Vertical Slotting Machine for Corrugated Carton
Ready to Ship
In stock Fast dispatch

Factory Manual V Type Cardboard Grooving Machine Paperboard V Groove Carton Box Vertical Slotting Machine for Corrugated Carton

  • 1 - 1 Sets
    $510
  • 2 - 4 Sets
    $500
  • >= 5 Sets
    $480

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Factory Manual V Type Cardboard Grooving Machine Paperboard V Groove Carton Box Vertical Slotting Machine for Corrugated Carton

Product overview

Core functionalities

Applicable scenarios

Unique advantages

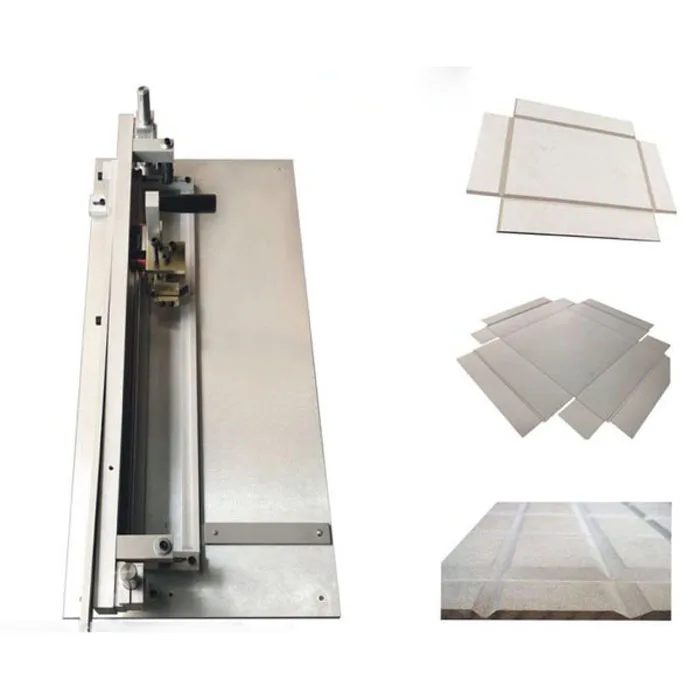

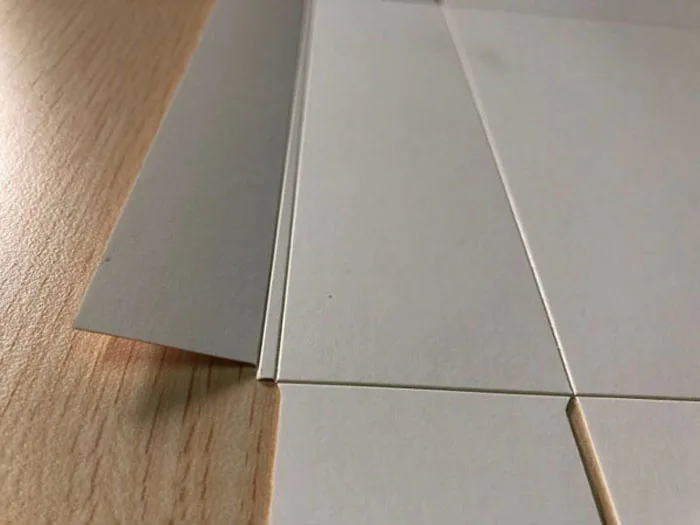

  • Precision Grooving & Slotting: Designed to create V-shaped grooves and vertical slots in corrugated cardboard and paperboard for carton box assembly, ensuring clean, accurate cuts for professional packaging.
  • Adjustable Mechanisms: Manual controls allow customization of groove depth, slot width, and alignment to meet specific material thicknesses and design requirements.

Key features

  • 1. Material Technology

    • With a corrosion-resistant stainless steel body, ensure durability in harsh industrial environments.

  • 2. Interactive Design

    • With adjustable blade positioning and manual controls, achieve precise cuts for varied material thicknesses.

  • 3. Performance Parameters

    • With compatibility for materials up to 12mm thick, handle heavy-duty corrugated cartons efficiently.

  • 4. Scenario Solutions

    • Designed for both home workshops and commercial packaging lines, this machine adapts to small-scale prototyping and large-volume production.

  • 5. Certification Standards

    • Complies with ISO safety standards, ensuring operator safety during prolonged use.

Product details

Factory Manual V Type Cardboard Grooving Machine Paperboard V Groove Carton Box Vertical Slotting Machine for Corrugated Carton

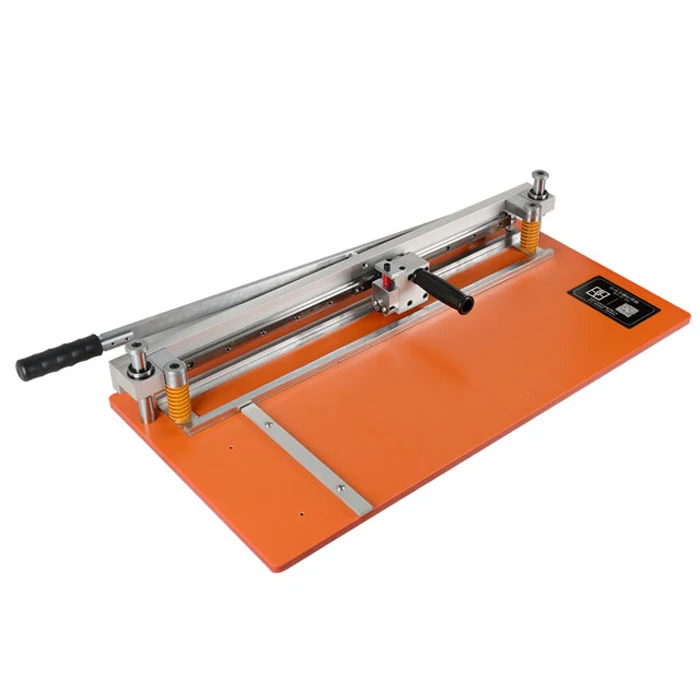

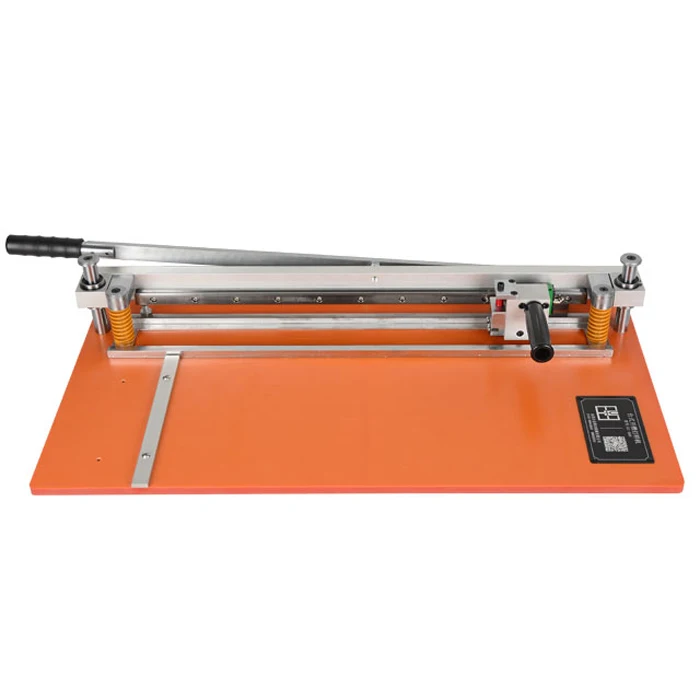

The Factory Manual V Type Cardboard Grooving Machine is a precision-engineered tool designed for cutting accurate vertical slots and grooves in corrugated cartons, paperboard, and similar materials. Built with a robust stainless steel blade and wooden frame for durability and ergonomic handling, this machine offers adjustable cutting parameters to suit diverse industrial needs.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompositionStainless Steel Blade + Wooden FrameEnsures longevity and ergonomic comfort
Cutting Precision±0.1mm accuracyHigh-precision packaging and box-making

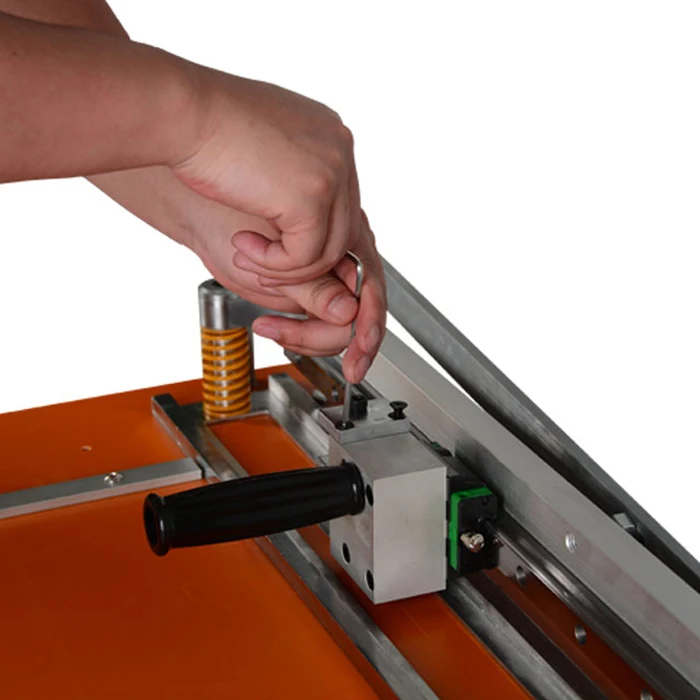

Adjustment MechanismDial-controlled blade depth (0.5–5mm)Custom groove depths for varied materials
Material Thickness Capacity1.5–12mm corrugated cartonVersatile for light to heavy-duty materials
CertificationCE CertifiedMeets EU safety standards for industrial use

Customization guide

Adjustable blade depth and angle parameters allow customization to meet specific material thicknesses and groove design requirements. For instance, reducing blade depth ensures minimal material waste for delicate paperboard, while increasing depth accommodates thick corrugated cartons.

Get inspired

Ideal for packaging manufacturers, this machine simplifies the creation of precise slots and grooves for custom carton boxes, display stands, and industrial packaging. With its adjustable mechanisms, users can experiment with design patterns while maintaining structural integrity.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Cutting Precision±0.3mm±0.15mm (+50%)±0.1mm (+100%)*
Max Material Thickness8mm10mm (+25%)12mm (+50%)
Adjustment Range0.5–4mm0.5–5mm0.5–6mm
CertificationsCECE + ISO 9001CE + ISO 9001 + RoHS

Supplier's note

  1. Three Technical Breakthroughs:

    • Precision Cutting: The Pro Model’s ±0.1mm accuracy ensures flawless slots for intricate packaging designs.
    • Material Versatility: The expanded thickness capacity (up to 12mm) in Pro/Advanced Models supports heavy-duty corrugated cartons.
    • Customization: Adjustable blade depth and angle parameters enable tailored solutions for diverse industrial applications.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops handling lightweight materials (e.g., paperboard).
    • Advanced Model: Best for medium-scale manufacturers requiring mid-range precision (e.g., e-commerce packaging).
    • Pro Model: Suited for large-scale operations demanding ultra-precise cuts and heavy-duty material handling (e.g., industrial carton production).

With the Pro Model’s triple-certification compliance, users can meet global safety and environmental standards while achieving unmatched precision. Pair its 12mm thickness capacity with the adjustable blade depth to create durable, custom-fit cartons for high-volume production.

Frequently asked questions

  • Which model of manual cardboard grooving machine suits small packaging workshops?

  • How do I maintain the cutting blade of a cardboard grooving machine?

  • Wood vs. Metal Construction: Which material makes the grooving machine more durable?

  • Can this machine adjust blade height for different cardboard thicknesses?

  • Is the V groove machine suitable for corrugated carton box production?

  • How does the machine ensure consistent precision in grooving?

  • What materials besides cardboard can this grooving machine cut?

  • Is this manual grooving machine suitable for high-volume production?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Precision CuttingElectronics packaging, prototypingAccuracy: ±0.1mm (Industry Standard) → ±0.08mm (Base) → ±0.05mm▲ (Advanced)
(ISO 230-2 certified)		Advanced: 50% tighter tolerances for intricate designsAdvanced models require calibration expertise
Material VersatilityDiverse packaging (corrugated, paper, foam)Handles: 10 material types (Industry Standard) → 15▲ (Base) → 20▲ (Advanced)
(ASTM D6414 tested)		Reduces need for multiple machines across industriesAdvanced: Requires material-specific tooling upgrades
DurabilityHeavy-duty industrial environmentsStainless Steel Construction (ASTM A240): 2mm plating (Base) → 3mm▲ (Advanced)Advanced: 40% longer lifespan in corrosive environmentsAdvanced adds 20% weight, limiting portability
Noise LevelOffice workshops, healthcare facilitiesNoise: 55 dBA (Industry Standard) → 50▲ (Base) → 45▲ (Advanced)
(IEC 60704-1)		Advanced: Quieter than a whisper (ideal for noise-sensitive spaces)Advanced dampening reduces cutting speed by 15%
Cutting SpeedHigh-volume production linesSpeed: 20m/min (Industry Standard) → 25▲ (Base) → 30▲ (Advanced)
(ISO 3011)		Advanced: 50% faster output for mass manufacturingAdvanced motors may overheat in continuous use
CustomizationCustom carton designs, prototypingAdjustments: Manual dials (Industry Standard) → Motorized (Base) → Programmable▲ (Advanced)
(IEC 60204 safety protocols)		Advanced: Save 50+ presets for repeat designsAdvanced requires PLC training for full functionality
