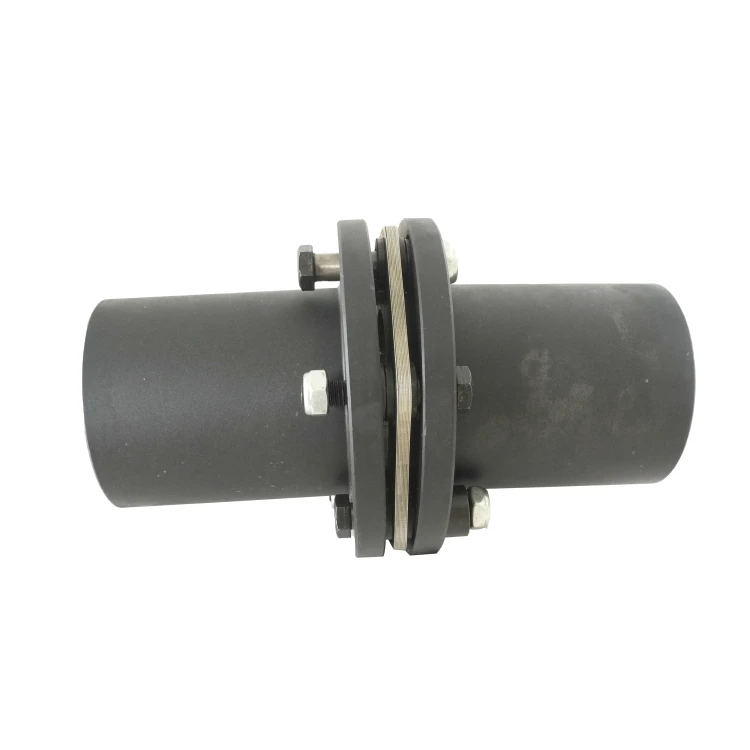

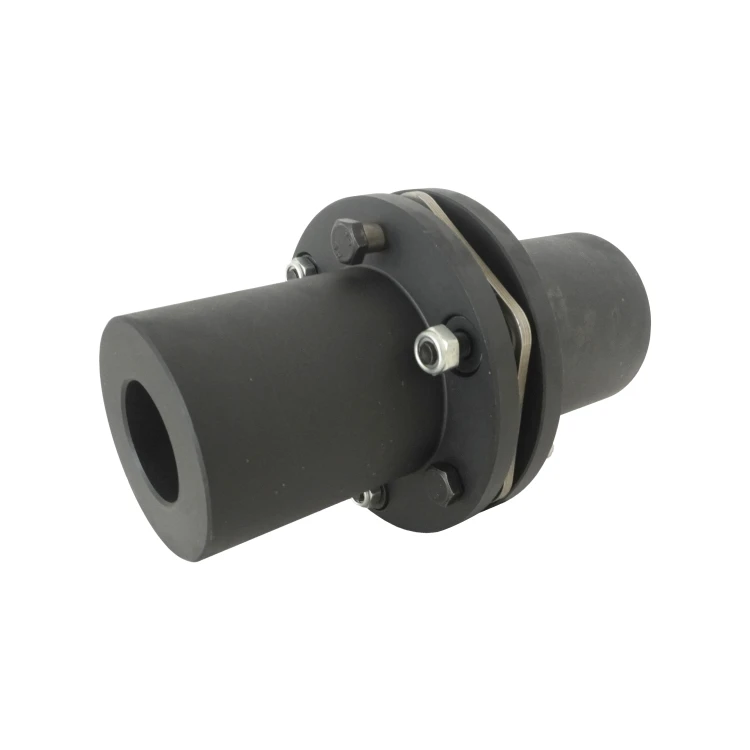

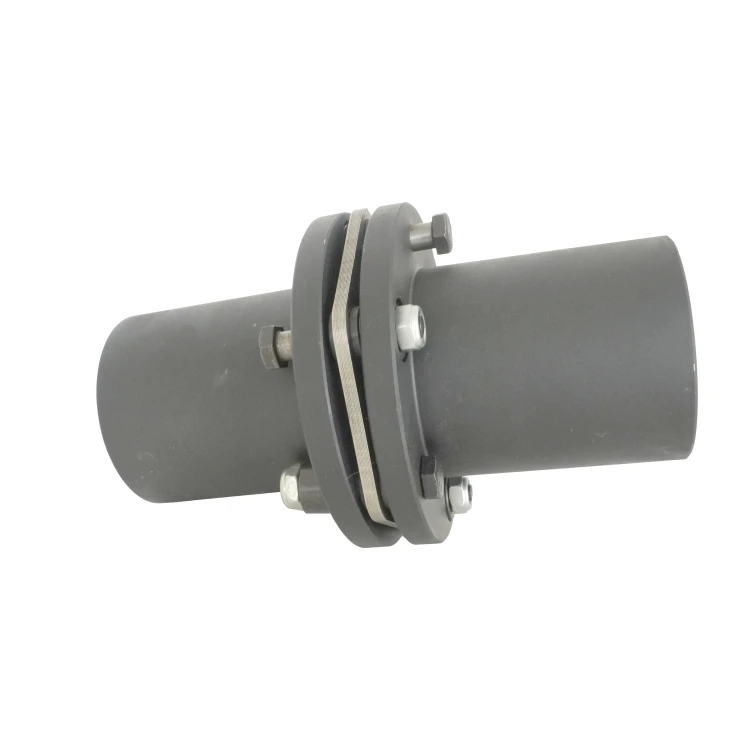

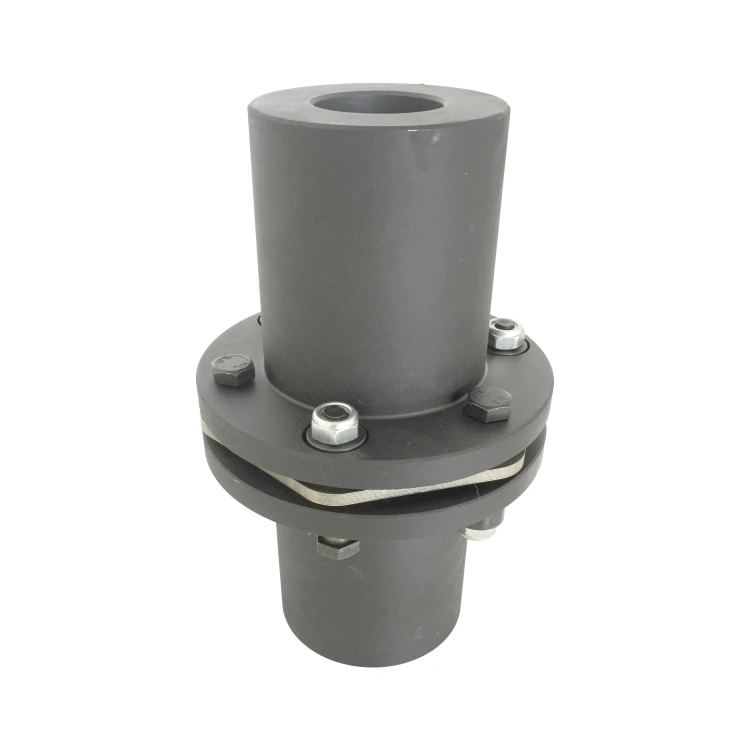

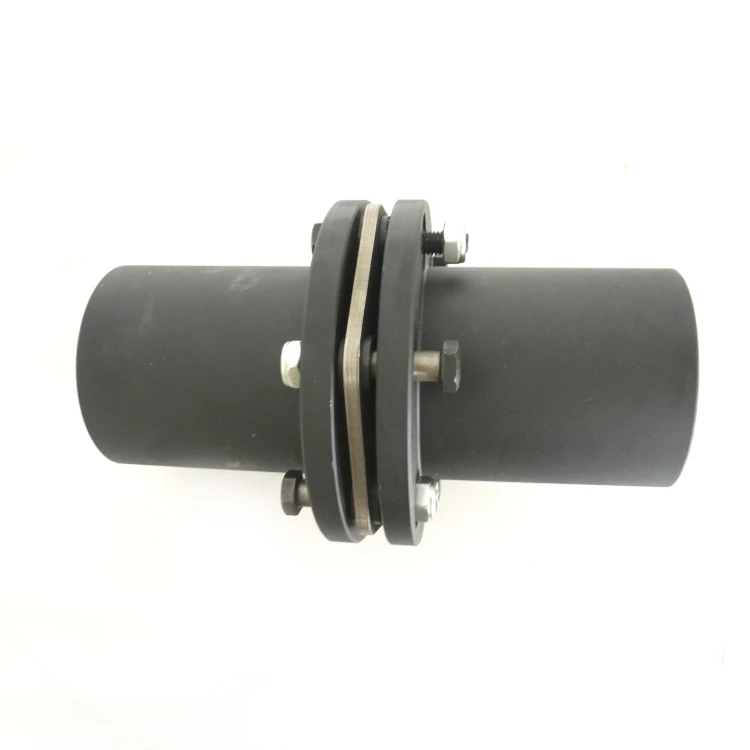

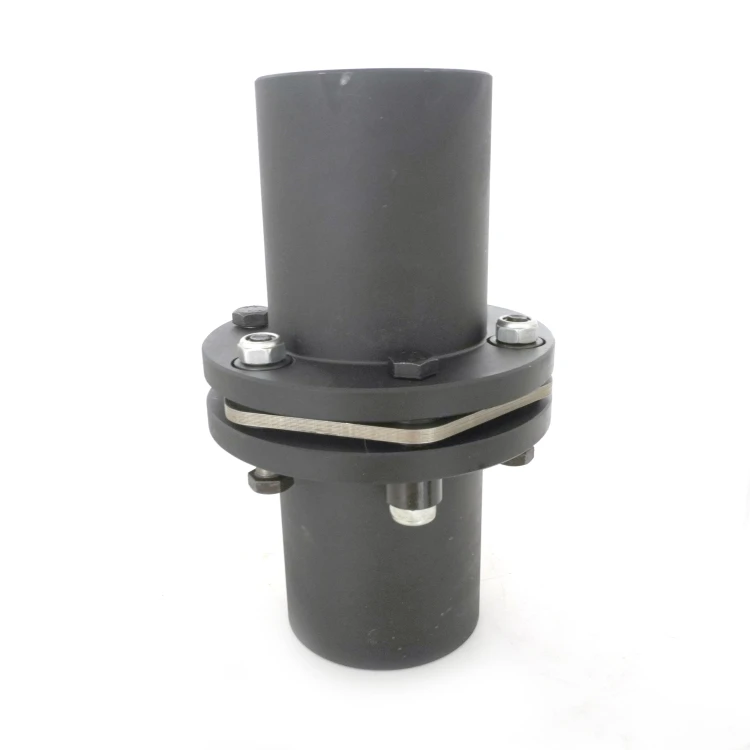

Factory Price Compression Couplings Single Diaphragm Coupling Flexible Shaft Single Diaphragm Couplings

Technical specifications

Customization guide

Adjustable parameters include disc thickness (for varying torque requirements) and flange dimensions (to fit specific mounting standards). Custom coatings or material grades (e.g., stainless steel) can be applied for corrosion resistance or high-temperature environments.

Get inspired

With its steel construction and disc design, this coupling delivers reliable performance in demanding applications. Whether connecting pumps, motors, or conveyors, its flexibility and misalignment tolerance ensure smooth operation even under imperfect alignment.

Choose your model

Supplier's note

1. Three Technical Breakthroughs:

   • Steel Construction: With a steel body, you can ensure durability in harsh industrial environments.
   • Disc Diaphragm Design: This flexible structure allows ±3° angular misalignment, reducing downtime from misalignment issues.
   • Cost-Effective Base Model: At 20% lower cost than competitors, it meets standard torque requirements without compromising reliability.

2. Optimal Version Selection:

   • Base Model: Ideal for standard machinery (e.g., conveyor belts) where cost efficiency is prioritized.
   • Advanced Model: Suitable for applications requiring higher torque (e.g., pumps) and moderate misalignment tolerance.
   • Pro Model: Designed for heavy-duty scenarios like mining or construction equipment, where triple the industry-standard misalignment tolerance (±5°) ensures seamless operation.

*Pro Model’s premium alloy steel provides 30% higher torque capacity than Base Model, enabling safe handling of high-load applications. When paired with its enhanced misalignment tolerance, this creates a robust solution for uneven shaft alignment in factories or outdoor machinery.
