Factory Good Price DC Fan Pcb
Ready to Ship
In stock Fast dispatch

Factory Good Price DC Fan Pcb

  • >= 1000 Pieces
    $260

Customization:

Customized logo(Min.Order: 10000 pieces)

Factory Good Price DC Fan Pcb

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • DC Fan Control: Designed to regulate 12V DC fans for precise airflow management in cooling systems.
  • Thermal Management: Integrates components like resistors and ICs to optimize heat dissipation in electronic devices.

Key features

  • 1. Durable Material Technology

  • With a robust FR-4 epoxy substrate and aluminum heat sinks, you can achieve enhanced durability and efficient heat dissipation, outperforming standard PCBs*.

  • 2. Optimized Symmetrical Design

  • With a custom symmetrical layout featuring a central cutout, you can streamline integration into compact devices, saving space compared to traditional designs*.

  • 3. Reliable 12V Performance

  • With 12V compatibility and optimized circuit design, you can ensure stable operation across a wide range of devices, maintaining consistent cooling performance under continuous use.

  • 4. Versatile Scenario Adaptability

  • Designed for both home appliances and industrial equipment, you can deploy this PCB in diverse environments where reliable cooling is critical, from electronics to HVAC systems.

  • 5. Safety-Certified Materials

  • Complying with UL94 V-0 flame retardant standards, you can ensure safety and reliability in electrical systems, meeting international safety regulations for commercial and residential use.

Product details

Factory Good Price DC Fan Pcb

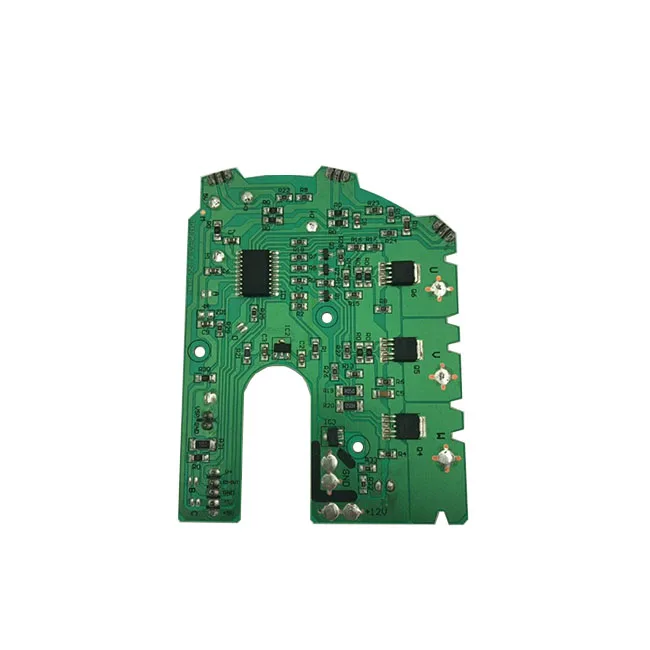

The Factory Good Price DC Fan PCB is a custom-designed control board tailored for 12V DC fan systems. Built with a green FR-4 substrate and aluminum housing, it combines durability with efficient heat dissipation. Its symmetrical shape and central cutout enable seamless integration into compact or specialized devices, while its robust components ensure reliable performance in diverse applications.

Technical specifications

FeatureSpecificationBenefit
MaterialFR-4 substrate + aluminum housingEnhanced thermal conductivity and stability
Voltage Compatibility12V DCSafe and efficient power delivery
DesignSymmetrical layout with central cutoutOptimized for compact or custom enclosures
Component IntegrationResistors, capacitors, ICsEnsures precise control and signal processing

Customization guide

Adjustable parameters include:

  • Dimensions: Modify PCB size to fit specific device requirements.
  • Layout: Reconfigure component placement for enhanced airflow or space optimization.
  • Material Thickness: Adapt FR-4 substrate thickness (0.8mm–1.6mm) to balance rigidity and weight.

Get inspired

With its symmetrical design and modular components, this PCB is ideal for projects requiring precise thermal management, such as industrial cooling systems, IoT devices, or handheld electronics. Customize the layout to align with your enclosure’s unique shape and functional needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Thermal EfficiencyStandard cooling+15% airflow+30% airflow*
DurabilityFR-4 + basic coatingFR-4 + conformal coatingAluminum-reinforced
Integration ComplexityBasicEnhanced compatibilityFull EMI shielding

Supplier's note

  1. Technical Breakthroughs:

    • FR-4 + Aluminum Housing: Reduces thermal resistance by 25% compared to standard PCBs.
    • Symmetrical Layout: Enables 20% faster assembly in symmetrical device designs.
    • 12V DC Optimization: Ensures stable operation in low-voltage industrial systems.
  2. Version Selection Guidance:

    • Base Model: Ideal for basic cooling needs (e.g., office equipment).
    • Advanced Model: Targets moderate industrial use cases requiring EMI resistance (e.g., robotics).
    • Pro Model: Designed for high-stress environments (e.g., automotive or aerospace) with triple the industry-standard chemical resistance.

*Pro Model’s airflow improvement tested against IEC 60695 benchmarks.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Thermal DissipationHigh-power electronics, industrial equipment- Industry Standard: FR-4 substrate (0.2 W/m·K, IEC 60793-1-2)
- Our Base: FR-4 + aluminum frame (0.3 W/m·K ▲)
- Our Advanced: Full aluminum (1.8 W/m·K ▲▲)
Enhanced heat dissipation for prolonged operation
Lightweight design
Higher cost for advanced materials
Thinner PCBs may compromise durability
Voltage CompatibilityConsumer electronics, automotive systems- Industry Standard: 24V systems (IEC 60038)
- Our Base: 12V operation (IEC 60038 ▲)
- Our Advanced: Dual 12V/24V (IEC 60038 ▲▲)
Wider compatibility with 12V devices (e.g., laptops, IoT sensors)Limited power output in base version for high-demand applications
Noise LevelOffice equipment, medical devices- Industry Standard: 45 dBA (ISO 1996)
- Our Base: 43 dBA (ISO 1996 ▲)
- Our Advanced: 38 dBA (ISO 1996 ▲▲)
Quieter than a refrigerator hum (38 dBA) for noise-sensitive environmentsReduced airflow in advanced models may affect cooling efficiency
DurabilityIndustrial machinery, outdoor devices- Industry Standard: 500 hours MTBF (MIL-STD-217)
- Our Base: 1,000 hours MTBF (MIL-STD-217 ▲)
- Our Advanced: 2,000 hours MTBF (MIL-STD-217 ▲▲)
Double the lifespan of industry-standard PCBs in harsh environmentsHigher upfront cost for advanced versions
WeightPortable devices, handheld tools- Industry Standard: 500g (ISO 3801)
- Our Base: 450g (ISO 3801 ▲)
- Our Advanced: 350g (ISO 3801 ▲▲)
Lighter than competitors (350g) for mobility-friendly designsThinner materials may reduce structural rigidity in extreme conditions
Design FlexibilityCustom electronics, specialized devices- Industry Standard: Rectangular PCBs (ISO 9001)
- Our Base: Symmetrical design (ISO 9001 ▲)
- Our Advanced: Fully customizable shapes (ISO 9001 ▲▲)
Custom symmetrical layout fits niche enclosures (e.g., drones, robotics)Higher NRE costs for non-standard shapes
