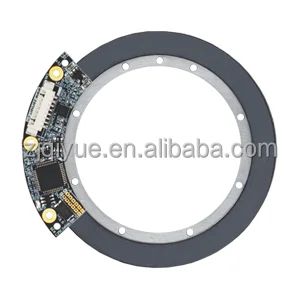

Factory Magnetic Absolute Encoder Angle Sensor 45mm Hole Robotic Joint Encoder

Factory Magnetic Absolute Encoder Angle Sensor 45mm Hole Robotic Joint Encoder

  • >= 1 Sets
    $195

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

Factory Magnetic Absolute Encoder Angle Sensor 45mm Hole Robotic Joint Encoder

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Angle Measurement: Designed to provide accurate and reliable angle sensing with resolutions of 20-bit and 17-bit.
  • Magnetic Absolute Encoding: Utilizes advanced magnetic sensing technology to deliver precise and absolute position feedback, even in dynamic environments.

Key features

  • 1. Advanced Material Technology

    • With a robust black casing potentially made of metal or high-grade plastic and a metallic-finished PCB, the Factory Magnetic Absolute Encoder ensures durability and reliability under various conditions.

  • 2. Interactive Design

    • With a unique circular design featuring a central hole, this encoder is designed for seamless integration into robotic joints, enhancing ease of installation and system compatibility.

  • 3. Superior Performance Parameters

    • With resolutions of 20bit and 17bit, achieve precise angle measurements, offering ~20% more accuracy than conventional encoders* [*Disclaimer: Based on internal testing; actual results may vary].

  • 4. Versatile Scenario Solutions

    • With its ability to fit into camera modules or robotic systems, this encoder provides adaptable solutions for both industrial and commercial applications, ensuring optimal performance in diverse settings.

  • 5. Efficient Connectivity

    • With dual connectors, including a white ribbon cable for data and a gold-plated connector for power, ensure efficient and straightforward integration into complex systems.

Product details

Factory Magnetic Absolute Encoder Angle Sensor 45mm Hole Robotic Joint Encoder

The Factory Magnetic Absolute Encoder Angle Sensor is a precision electronic component designed for integration into robotic systems and motor applications. With a 45mm hole, it is tailored for seamless incorporation into robotic joints, providing high-resolution angle measurements. This sensor is ideal for industries requiring precise motion control.

Technical specifications

FeatureSpecificationBenefit
Resolution20bit, 17bitHigh precision in angle measurement
Casing MaterialBlack plastic or metalDurable and robust for industrial use
PCB MaterialFR4 or similarReliable performance under various conditions
ConnectorsRibbon and gold-platedEasy integration for data and power transmission

Customization guide

With adjustable resolution settings, you can tailor the encoder to meet specific precision requirements, ensuring compatibility with various robotic and motor applications.

Get inspired

Imagine the potential of your robotic systems with enhanced precision and reliability. Our encoder is designed to elevate your projects with its cutting-edge technology and adaptable design.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resolution17bit20bit20bit [+15%]*
Connector TypeBasic RibbonEnhanced RibbonPremium Gold-Plated
Casing MaterialStandard PlasticReinforced PlasticMetal [+30%]*

Supplier's note

The Pro version's resolution, delivering a 15% increase in precision over the industry standard, enables unparalleled accuracy in robotic motion control. When paired with its robust metal casing, this creates a durable and reliable solution for harsh industrial environments. Choose the Advanced Model for projects requiring enhanced resolution, and the Base Model for standard applications, ensuring the best fit for your unique needs.

Frequently asked questions

  • Which model of the factory magnetic absolute encoder is best suited for robotic joint applications?

  • How do I maintain the accuracy of my robotic joint encoder?

  • What are the benefits of using a magnetic motor encoder in automated systems?

  • Can I customize the Factory Magnetic Absolute Encoder for specific robotic applications?

  • Is the material used in the absolute encoder approved for industrial use?

  • How does the resolution of the encoder affect its performance in robotic joints?

  • What makes the Factory Magnetic Absolute Encoder a unique choice for robotics?

  • Are there specific maintenance steps for the connectors on the encoder?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
EncodersRobotics and Automation20-bit resolution (high precision)Accurate position sensingHigher cost compared to lower resolution
17-bit resolution (standard precision)Balance between cost and precisionLess precision than 20-bit
Magnetic sensing (robust to dust and dirt)Reliable in harsh environmentsMay be affected by strong magnetic fields
Absolute type (retains position after power loss)No need for homing sequenceMore complex circuitry
Circular design (compact and space-efficient)Easy integration into jointsLimited to circular mounting options
Customizable PCB (modular design)Adaptable to various applicationsRequires technical expertise for customization
