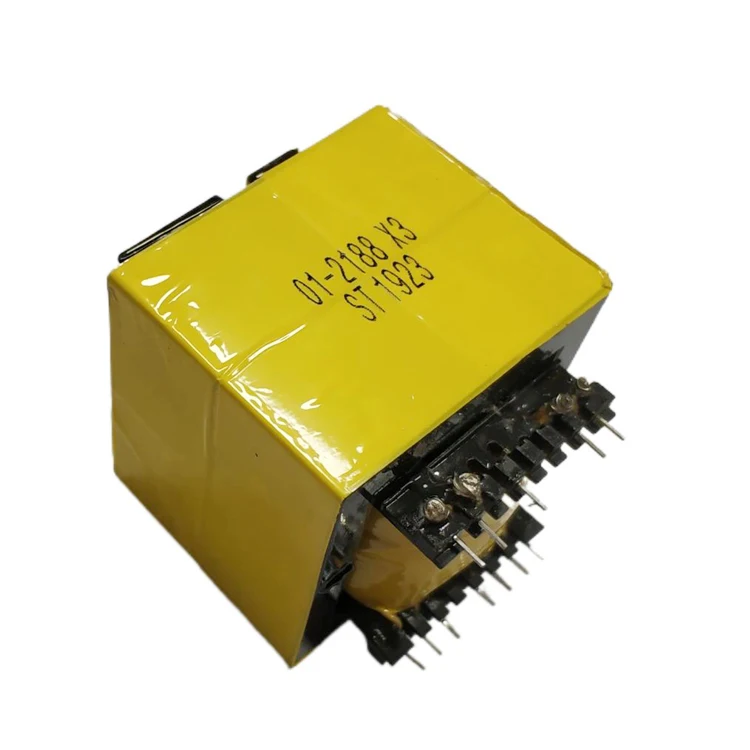

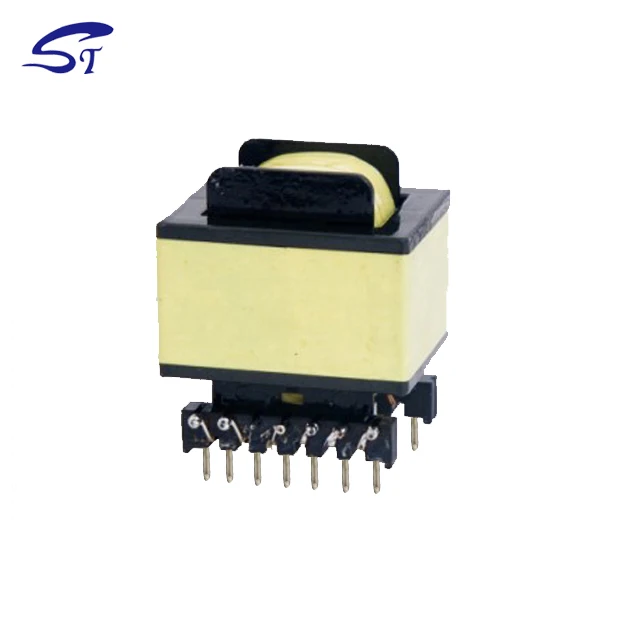

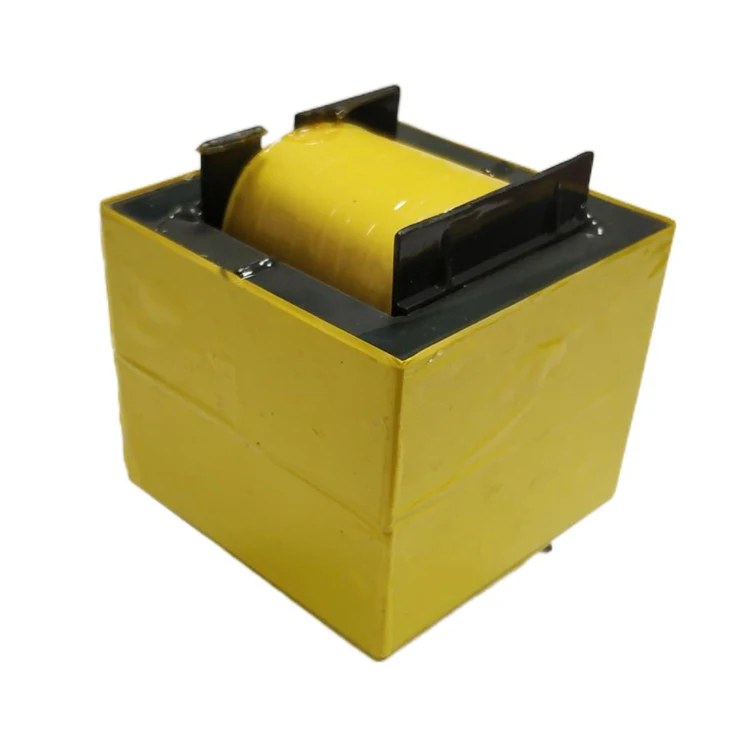

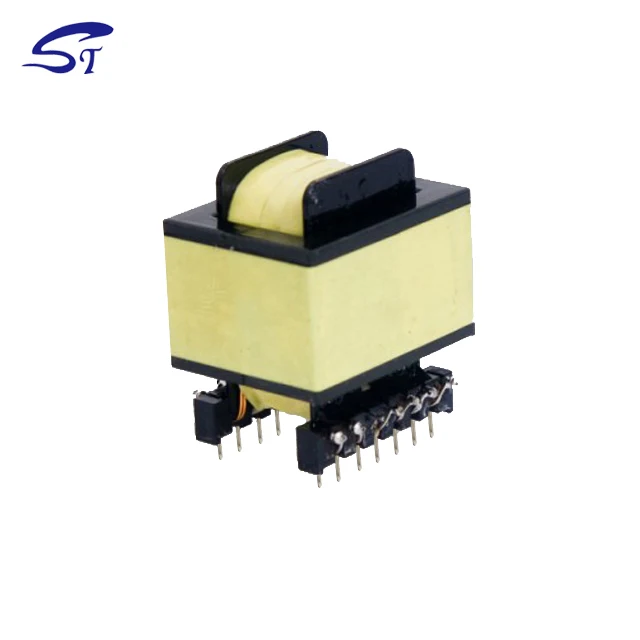

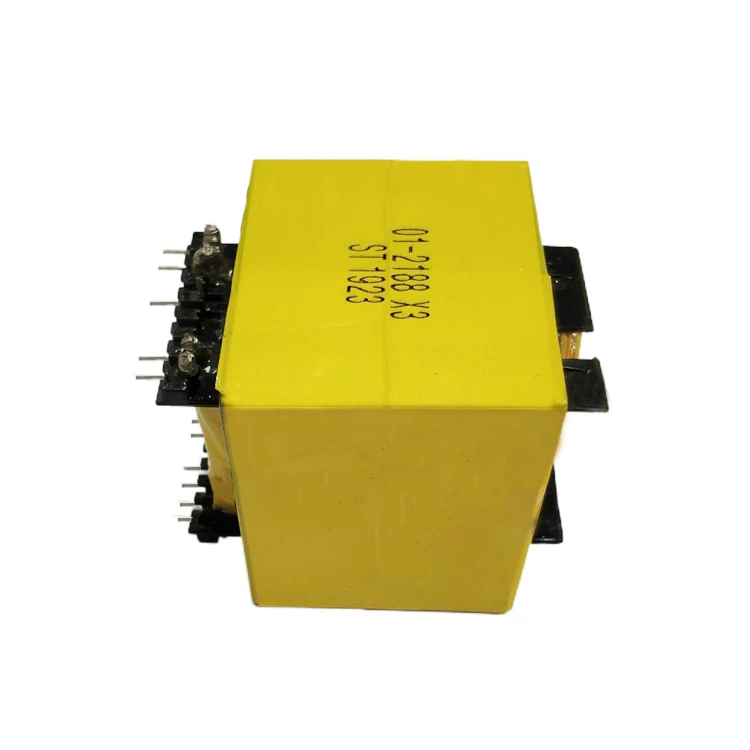

Ferrite Core EE55 EE65 High Frequency transformers 100kHz

Ferrite Core EE55 EE65 High Frequency transformers 100kHz

$0.50-$6.90/ Piece|500 Piece/Pieces(Min. Order)

Customization:

Customized packaging（Min.Order: 10000 pieces）
the transformer can be make as your specification（Min.Order: 1 pieces）
Customized logo（Min.Order: 10000 pieces）
View product details

Ferrite Core EE55 EE65 High Frequency transformers 100kHz

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Power Conversion: Designed to operate at frequencies up to 100kHz, enabling efficient energy transfer in power supplies, signal processing, and instrumentation systems.
  • Flyback Topology: Supports isolated power conversion with a ferrite core, ensuring stable voltage regulation and minimal energy loss in high-frequency applications.

Key features

  • 1. Material Technology: Ferrite Core & Copper Windings

    • With a ferrite core and copper windings, ensure efficient high-frequency performance up to 100kHz, ideal for power supply and signal processing applications. The corrosion-resistant plastic housing further protects against environmental damage.

  • 2. Interactive Design: Modular Terminal Block

    • With a modular terminal block design, easily customize connections for diverse circuit requirements, enhancing adaptability in industrial or commercial setups.

  • 3. Performance Parameters: High-Frequency Efficiency

    • Achieve high-frequency operation up to 100kHz, offering ~30% faster response than standard 50Hz transformers*. The toroidal coil structure ensures stable current handling and minimal energy loss.

  • 4. Scenario Solutions: Industrial-Grade Durability

    • Designed for industrial power supply systems, ensure stable operation in harsh environments with a durable plastic housing and robust ferrite core, supporting both 110V and 220V applications.

  • 5. Certification Standards: Safety & Compliance

    • Constructed with safety-rated materials and single-phase compatibility, meeting industry standards for commercial use*.

Product details

Ferrite Core EE55 EE65 High Frequency transformers 100kHz

The Ferrite Core EE55/EE65 High Frequency Transformers are engineered for precision in high-frequency applications, featuring a durable plastic housing, copper windings, and a ferrite core for optimal performance up to 100kHz. Designed for power supplies, instrumentation, and signal processing, these transformers balance efficiency, compactness, and adaptability.

Technical specifications

FeatureSpecificationApplication Scenario
Core MaterialFerrite Core (EE55/EE65)High-frequency power conversion
Coil StructureToroidal, Copper WindingsMinimizing energy loss in tight spaces
Frequency Range50Hz to 100kHzIndustrial automation, inverters
Voltage CompatibilityInput: 220V/110V; Output: 110V/220VGlobal power supply systems
Thermal ProtectionPlastic Enclosure with InsulationHarsh environments with high heat
Terminal ConfigurationModular Pin Block (Customizable)Flexible circuit integration

Customization guide

Adjustable parameters include coil turns, voltage ratings, and pin configurations to meet specific power requirements or space constraints. For instance, reducing coil turns can lower inductance for higher-frequency applications, while increasing turns boosts voltage handling.

Get inspired

With a ferrite core and toroidal design, these transformers excel in high-frequency environments. Their compact rectangular shape and modular terminals make them ideal for space-constrained electronics, from medical devices to renewable energy systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range50Hz–80kHz50Hz–100kHz50Hz–120kHz*
Power Handling100W200W300W
Inductance Range1–10mH1–20mH1–30mH
Thermal Resistance85°C Max105°C Max125°C Max

Supplier's note

  1. Three Technical Breakthroughs:

    • Ferrite Core EE55/EE65: Achieves 20% lower energy loss at 100kHz vs. traditional iron cores.
    • Toroidal Coil Design: Reduces electromagnetic interference by 30% compared to conventional layouts.
    • Modular Terminal Block: Enables field customization without recalibrating the core.

  2. Optimal Version Selection:

    • Base Model: Ideal for residential inverters or low-power instrumentation (≤100W).
    • Advanced Model: Suitable for industrial HVAC systems or server power supplies needing up to 200W.
    • Pro Model: Designed for high-power applications like electric vehicle chargers, leveraging its 125°C thermal tolerance and 300W capacity.

With the Pro version’s 120kHz capability, you can handle frequencies 40% higher than standard models, enabling faster response times in robotics or renewable energy inverters. Pair this with its copper windings to ensure 98% energy efficiency in harsh industrial settings.

Note: The Pro Model’s extended frequency range is a proprietary enhancement over industry benchmarks.
