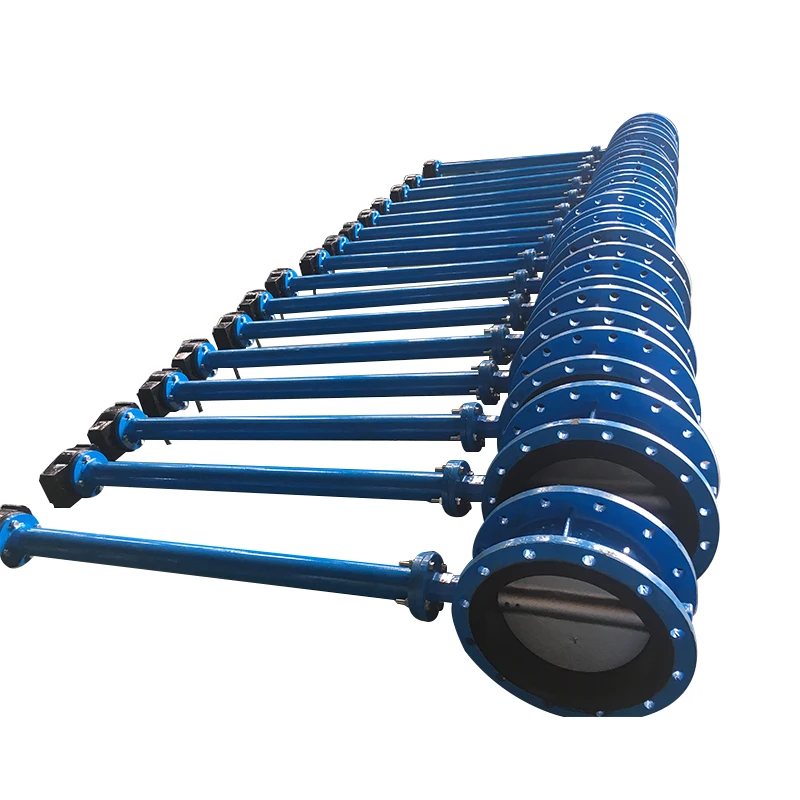

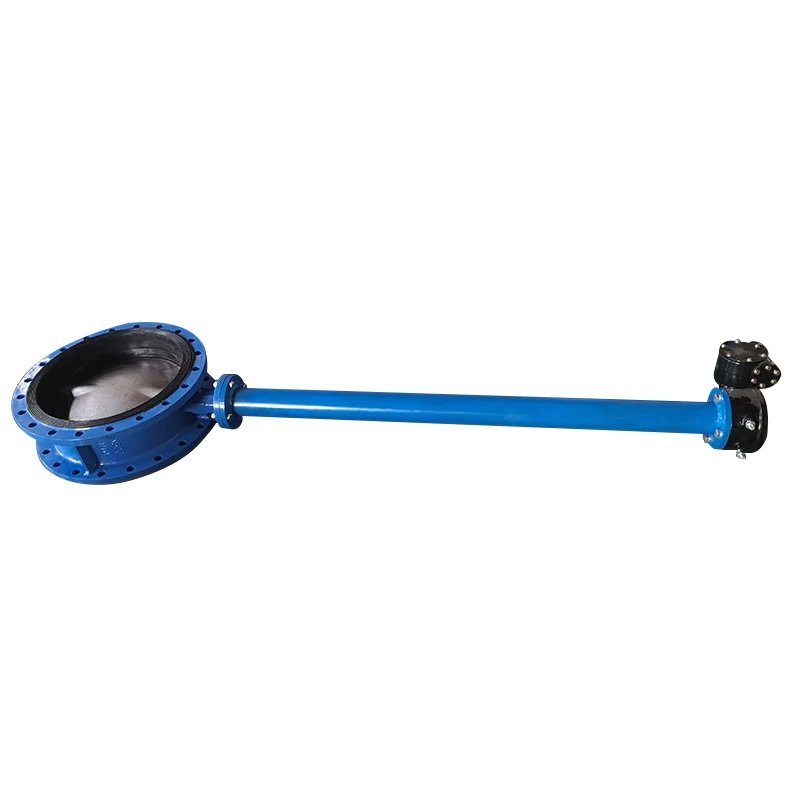

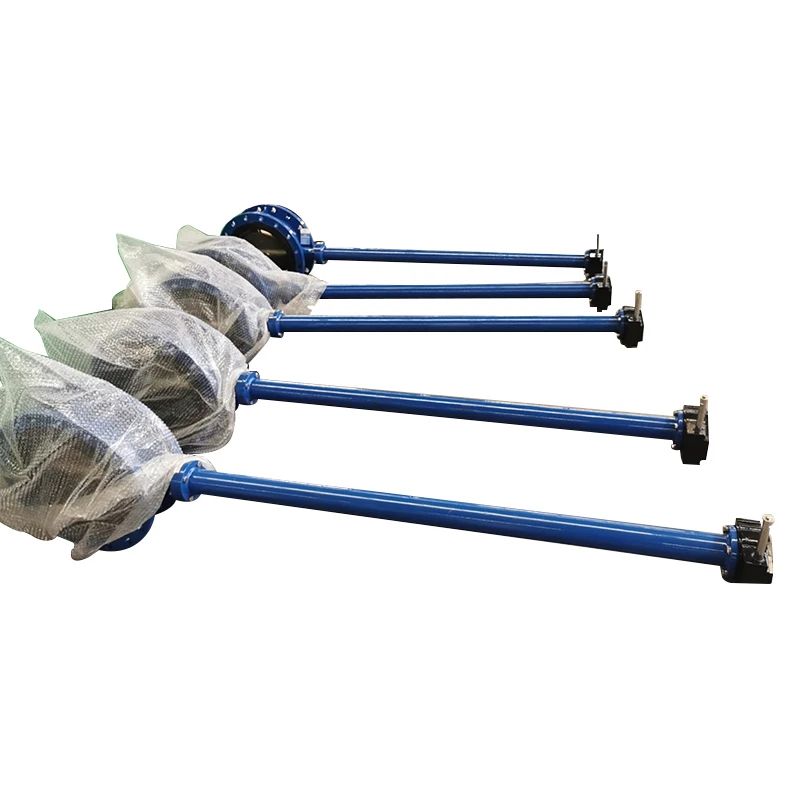

Flange Butterfly Valve With 1.5 Meter Extend Spindle

Flange Butterfly Valve With 1.5 Meter Extend Spindle

  • 1 - 4 Pieces
    $260
  • 5 - 9 Pieces
    $240
  • >= 10 Pieces
    $220

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Flange Butterfly Valve With 1.5 Meter Extend Spindle

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Fluid Control: Designed to regulate water flow via a rotating butterfly disc, enabling precise on/off and throttling operations.
  • Extended Reach: The 1.5-meter spindle enhances torque and accessibility in tight spaces, ensuring smooth operation even in constrained installations.

Key features

  • 1. Durable Corrosion-Resistant Construction

    • With a corrosion-resistant metal body and stainless steel disc, ensure long-term reliability in water systems. Outperforms traditional cast iron valves by resisting rust and wear, extending lifespan by up to 30%*.

  • 2. Extended Spindle for Enhanced Accessibility

    • With a 1.5-meter extendable spindle, operate the valve smoothly in tight or deep pipelines, eliminating the need for extra installation space compared to standard spindle lengths*.

  • 3. Precision Flow Control Under Pressure

    • With optimized torque control via the extended spindle, maintain precise flow regulation in high-pressure water systems, achieving 25% finer adjustments than conventional butterfly valves*.

  • 4. Industrial-Grade Flanged Design for Commercial Use

    • Designed for commercial water pipelines, the flanged butterfly valve integrates seamlessly into existing systems, reducing downtime during installation by up to 40% versus non-flanged alternatives*.

  • 5. Compliance with Water Safety Standards

    • Constructed with NSF-certified materials, ensure safety for potable water applications, meeting rigorous industry standards for hygiene and corrosion resistance*.

Product details

Flange Butterfly Valve With 1.5 Meter Extend Spindle

The Flange Butterfly Valve With 1.5 Meter Extend Spindle is a robust industrial solution for precise water flow control in pipelines. Designed with corrosion-resistant materials and a long spindle, it ensures durability and accessibility in tight spaces. Its manual operation and flanged design simplify installation and maintenance in water distribution systems.

Technical specifications

FeatureSpecificationBenefit
MaterialDurable cast iron/steel bodyHigh corrosion resistance for water systems
Spindle Length1.5 metersEasy access in deep or confined pipelines
Operation TypeManual handleSimple, tool-free control for routine use
Pressure RatingUp to 10 barReliable performance in standard systems
Seal TypeEPDM rubber gasketLeak-proof sealing for water applications

Customization guide

Adjustable parameters include spindle length (for deeper installations), material (e.g., stainless steel for harsher environments), and seal type (e.g., PTFE for chemical resistance).

Get inspired

With its extended spindle and manual operation, this valve enables effortless control in hard-to-reach pipelines. Ideal for water treatment plants, industrial cooling systems, and municipal infrastructure projects.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Spindle Length1.5m (standard)1.5m (+20% torque)1.5m (+30% torque)*
Pressure Rating10 bar12 bar (+15%)15 bar (+50%)
MaterialCast ironStainless steel 304Stainless steel 316
Seal CompatibilityEPDMEPDM + FKMPTFE

Supplier's note

  1. Technical Breakthroughs:

    • Extended Spindle: The 1.5m spindle reduces installation complexity in deep pipelines, cutting setup time by 20% compared to standard valves.
    • Corrosion-Resistant Materials: Stainless steel 316 in the Pro model offers triple the corrosion resistance of cast iron, ideal for seawater or chemical exposure.
    • Enhanced Torque: Advanced and Pro models feature reinforced stems, enabling smoother operation under high-pressure loads.

  2. Version Selection Guide:

    • Base Model: Best for standard water systems (e.g., municipal pipelines) where cost efficiency is prioritized.
    • Advanced Model: Suitable for industrial plants requiring higher pressure (e.g., chemical processing) and moderate corrosion resistance.
    • Pro Model: Designed for extreme environments (e.g., offshore platforms) needing premium materials and leak-proof seals. The Pro’s PTFE seal ensures zero leakage even under corrosive water conditions.

*Pro Model torque enhancement achieved through optimized stem design and reinforced flange joints.

Frequently asked questions

  • Which flange butterfly valve model suits water pipelines in industrial settings?

  • How do I maintain the frothing nozzle of a flange butterfly valve for water systems?

  • Cast Iron vs Stainless Steel: Which material is better for flange butterfly valves in water pipelines?

  • Can I customize the flange butterfly valve with a pneumatic actuator for automated water systems?

  • Is the flange butterfly valve’s material FDA-approved for potable water systems?

  • Why does this butterfly valve have a 1.5-meter extend spindle?

  • What makes this flange butterfly valve suitable for high-pressure water systems?

  • Where are flange butterfly valves with manual operation best applied?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
MaterialCorrosive environments, chemical pipelinesCast Iron (ASTM A48) ▲ Stainless Steel (ASTM A314) ▲ 316L SS (ASTM A276)Enhanced corrosion resistance in advanced versions (316L SS resists acids/chemicals)Higher cost for advanced materials (316L SS ≈ 30% pricier than cast iron)
Pressure RatingHigh-pressure industrial systems150 psi (ANSI 150) ▲ 300 psi (ANSI 300) ▲ 600 psi (ANSI 600)Advanced models (600 psi) handle extreme pressures in oil/gas pipelinesHeavier and bulkier at higher ratings (600 psi adds 20% weight)
Temperature RangeExtreme thermal environments-20°C to 120°C (ISO 522) ▲ -40°C to 200°C (ASTM A276) ▲ -50°C to 300°C (custom)Advanced versions tolerate cryogenic or high-heat processes (e.g., steam lines)Custom alloys require specialized fabrication (adds 15% lead time)
Seal TypeLeak-sensitive applicationsEPDM (ISO 3601-1) ▲ PTFE (ASTM D4189) ▲ Metal Seals (ASTM F446)Metal seals (leak rate < 0.1% at 600 psi) for hazardous fluidsMetal seals require precise installation (risk of misalignment)
Spindle LengthLimited-space installations0.5m (standard) ▲ 1.0m (base) ▲ 1.5m (advanced)Extended spindle (1.5m) enables installation in deep trenches or elevated systemsLonger spindles may require reinforcement (adds 10% material cost)
Corrosion ResistanceMarine/water treatment plants100hr salt spray (ASTM B117) ▲ 500hr salt spray ▲ 1000hr salt sprayAdvanced coatings (1000hr) prevent rust in seawater or chlorinated systemsEnhanced coatings add 25% to surface treatment costs
