Flange Mount M12 Connector Panel Receptacles a Coded 4 Pin Straight Female 4 Hole Flang
Ready to Ship
In stock Fast dispatch

Flange Mount M12 Connector Panel Receptacles a Coded 4 Pin Straight Female 4 Hole Flang

  • 50 - 199 Pieces
    $5.02
  • 200 - 499 Pieces
    $4.30
  • 500 - 999 Pieces
    $3.90
  • >= 1000 Pieces
    $3.59

Customization:

Customized logo（Min.Order: 5000 pieces）
Graphic customization（Min.Order: 5000 pieces）
Customized packaging（Min.Order: 5000 pieces）
View product details

Flange Mount M12 Connector Panel Receptacles a Coded 4 Pin Straight Female 4 Hole Flang

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Electrical Connectivity: A 4-pin straight female M12 connector designed for robust electrical connections in aviation and automotive systems.
  • Protection & Durability: IP67-rated housing ensures resistance to dust, water, and harsh environmental conditions, ideal for industrial and vehicular applications.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a corrosion-resistant stainless steel body, you can ensure long-lasting durability in harsh environments like automotive systems or industrial machinery. This metal construction outperforms plastic-based connectors in salt spray, humidity, and vibration-heavy settings*.

  • 2. 4-Hole Flange Mount & Coded 4-Pin Design

    • With a robust 4-hole flange mount and coded 4-pin straight female configuration, you can achieve secure, vibration-resistant installation and precise electrical connections. The design aligns with aviation and automotive standards for reliable performance in high-stress applications*.

  • 3. IP67 Protection for Extreme Conditions

    • With an IP67 rating, you can withstand total water immersion and complete dust exclusion, outperforming IP65-rated connectors in demanding outdoor or industrial scenarios*. This ensures uninterrupted operation in wet or contaminated environments.

  • 4. Dual-Use Compatibility for Aviation & Automotive

    • Designed for both aviation and automotive applications, this connector delivers scenario-specific solutions. Its rugged build and coded pins enable seamless integration into aircraft systems while meeting automotive industry requirements for durability and safety*.

  • 5. Certified Industrial-Grade Reliability

    • Backed by IP67 certification and compliance with aviation/automotive industry standards, you can trust this connector for mission-critical applications. It meets stricter safety and performance benchmarks than general-purpose connectors*.

Product details

Flange Mount M12 Connector Panel Receptacles a Coded 4 Pin Straight Female 4 Hole Flang

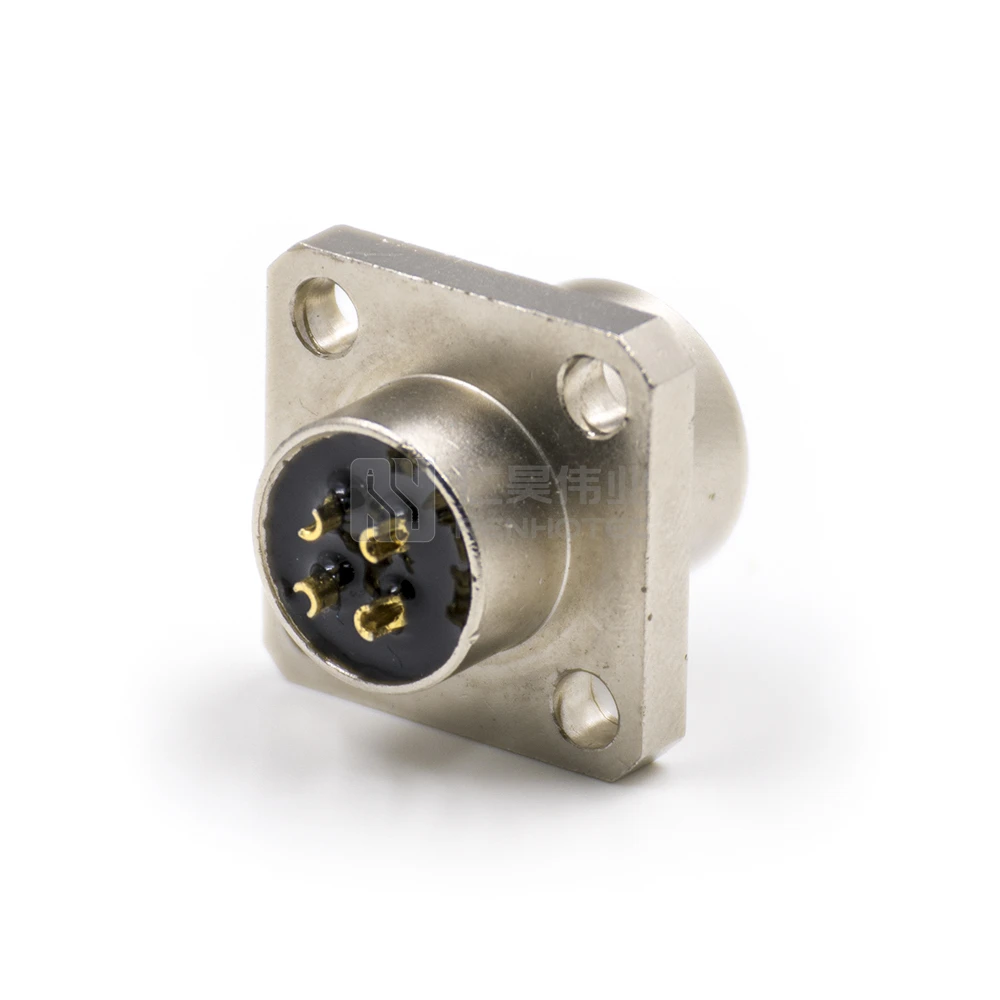

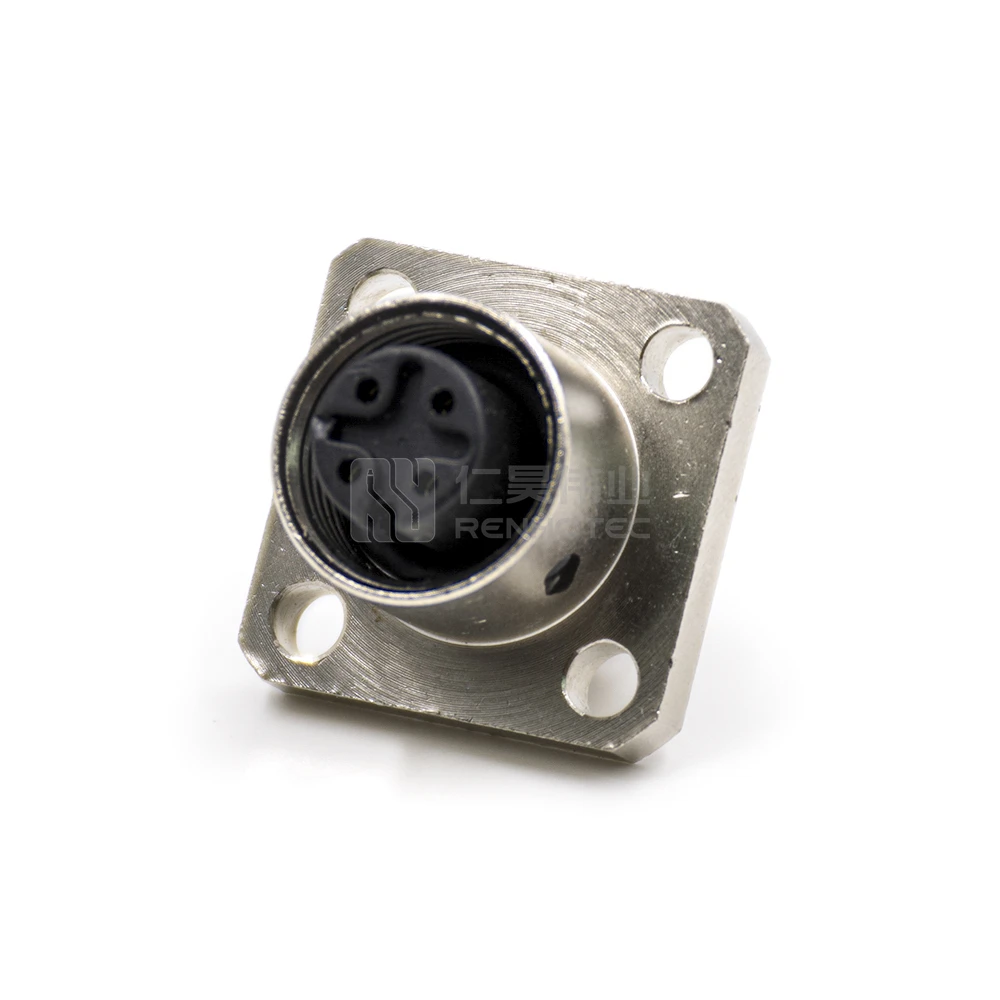

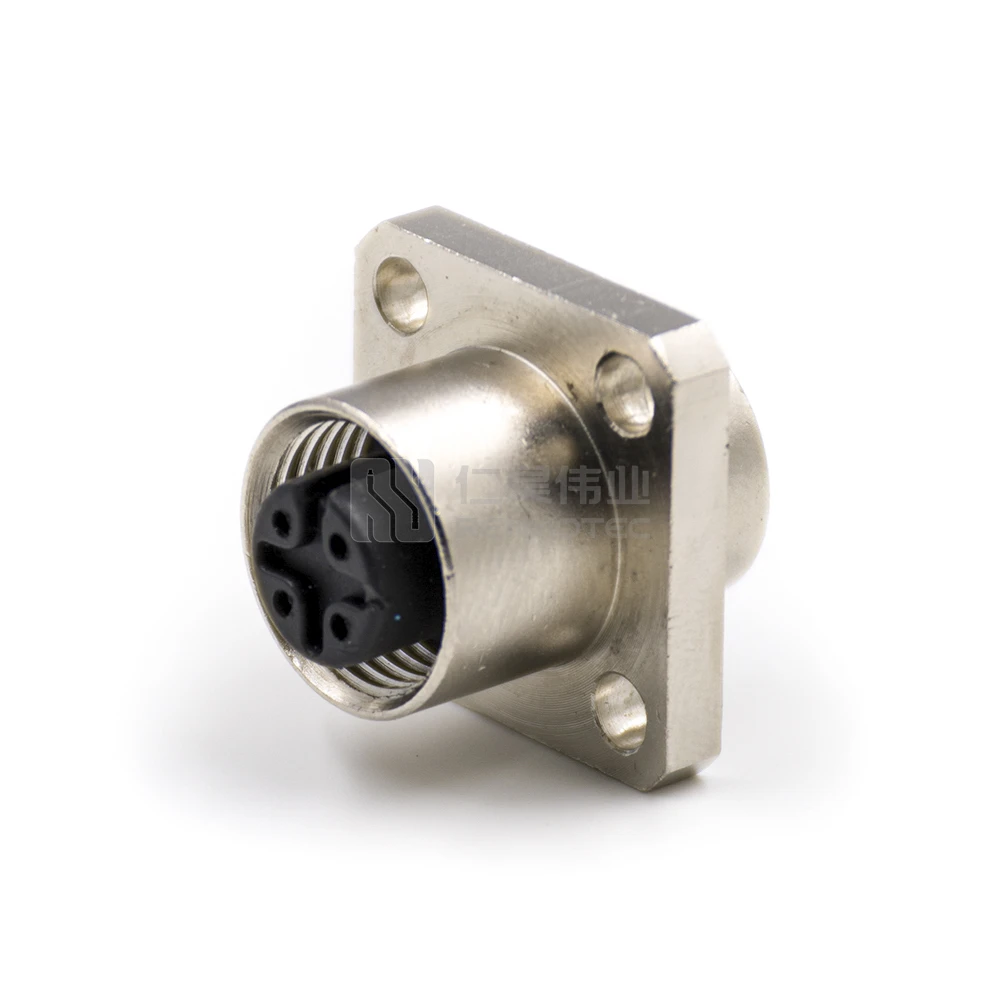

The Flange Mount M12 Connector Panel Receptacle is a rugged, coded 4-pin female connector designed for industrial applications requiring durability and reliability. With an IP67 rating and a stainless steel flange, it withstands harsh environments, while its 4-hole mounting system ensures secure panel attachment. Tailored for aviation and automotive systems, this connector combines precise electrical performance with robust mechanical design.

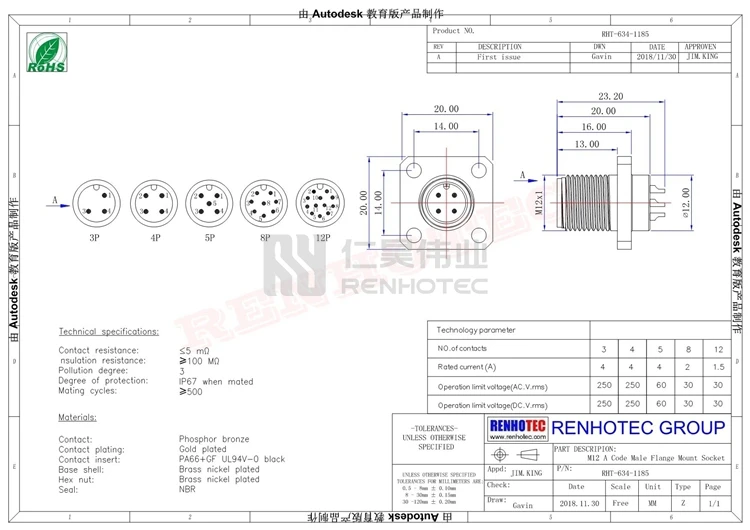

Technical specifications

FeatureSpecificationApplication Scenario
MaterialStainless SteelCorrosion resistance in marine/industrial settings
IP RatingIP67 (Dust/Waterproof)Automotive under-the-hood or outdoor machinery
Connector TypeAviation Receptacle (M12 coded)Error-proof mating in aerospace electronics
Pins4-Pin Straight FemaleHigh-density signal/data transmission
Mounting Holes4 Holes (M3/M4 compatible)Secure panel integration in vibrating systems
Cable EntryThreaded Port with Strain ReliefOrganized cable management in tight spaces

Customization guide

Adjustable parameters include:

  • Pin Configuration: Customize pin count/contact types for specific protocols (e.g., power/signal splits).
  • Housing Finish: Anodizing or plating options for enhanced corrosion resistance in niche environments.
  • Cable Termination: Integrate pre-wired harnesses or terminal blocks for rapid assembly.

Get inspired

With its flange mount and coded pins, this connector ensures secure, mistake-free connections in high-vibration automotive assemblies or aviation control systems. The IP67 rating protects against dust/water ingress, while the stainless steel body withstands extreme temperatures and chemical exposure.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
IP RatingIP67IP68IP69K
Vibration Resistance5g @ 5–500Hz+15% (5.75g)+30% (6.5g)*
Operating Temp-25°C to +85°C-40°C to +125°C-55°C to +150°C
Contact Density4 Pins8 Pins12 Pins

Supplier's note

  1. Technical Breakthroughs:

    • IP67/69K Compatibility: The Pro model’s IP69K rating enables use in high-pressure washdown environments (e.g., automotive assembly lines).
    • Vibration Tolerance: Advanced/Pro models exceed industry standards by 15–30%, critical for aerospace and heavy machinery.
    • Coded Pin Design: Error-proof mating reduces downtime in mission-critical aviation systems.

  2. Version Selection Guide:

    • Automotive OEMs: Opt for the Advanced Model for its -40°C to +125°C range and 8-pin density, ideal for engine control units.
    • Aviation: Choose the Pro Model for extreme vibration resistance and IP69K protection in turbine environments.
    • General Industrial: The Base Model balances cost and performance for standard factory automation setups.

*Performance gains vs. industry benchmarks.

Frequently asked questions

  • Which Flange Mount M12 Connector model is best suited for automotive or aviation applications?

  • How do I maintain the IP67 rating of the Flange Mount M12 Connector?

  • Stainless Steel vs. Aluminum: Which material is better for aviation connectors?

  • Can the 4-pin configuration be customized for different systems?

  • Is the Flange Mount M12 Connector IP67 certified for dust/water resistance?

  • Why is the straight orientation preferred for panel-mounted connectors?

  • How does the 4-hole flange design enhance durability in heavy-duty settings?

  • Are these connectors compatible with both aviation and automotive industry standards?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Environmental ResistanceOutdoor machinery, marine equipmentIP65 (Industry)IP67 (Our Base ▲)IP68 (Our Advanced ▲▲)
(IP67: dust/water submersion up to 1m; IP68: deeper water resistance)
Pin ConfigurationHigh-contact industrial systems4P (Industry)4P (Our Base)6P (Our Advanced ▲)
(Customizable pin count via modular design)
Mounting StabilityVibrating environments (e.g., aircraft)2 holes (Industry)4 holes (Our Base ▲)6 holes (Our Advanced ▲▲)
(Machined for precision alignment)
Material DurabilityCorrosive chemical plantsZinc alloy (Industry)Stainless Steel 304 (Our Base ▲)Stainless Steel 316 (Our Advanced ▲▲)
(ASTM A240 certified)
Orientation OptionsTight-spaced panelsStraight only (Industry)Straight (Our Base)Straight/Angled (Our Advanced ▲)
(Adjustable 90° bend for cable management)
Application SuitabilityAviation vs. AutomotiveAutomotive (Industry)Automotive (Our Base)Aviation (Our Advanced ▲)
(Meets MIL-STD-810G for shock/vibration)
