  • Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm
  • Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm
  • Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm
  • Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm
  • Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm
Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm

Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm

  • >= 1 Pieces
    $155

Customization:

Customized packaging（Min.Order: 100 pieces）
View product details

Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Piezoelectric Sensing: Converts mechanical pressure or vibration into electrical signals for touch interfaces, sensors, and energy harvesting applications.
  • Flexible Switch: Enables pressure-activated controls in devices requiring tactile feedback, such as smart appliances or wearable tech.

Key features

  • 1. Advanced Material Technology

    • With a PVDF (Polyvinylidene Fluoride) piezoelectric film, you can achieve superior flexibility and durability while maintaining high sensitivity to pressure changes. This corrosion-resistant material outperforms rigid piezoelectric alternatives, offering ~20% thinner profiles for compact designs.

  • 2. Pressure-Sensitive Interactive Design

    • The touch-responsive membrane enables seamless integration into touchless or tactile interfaces, eliminating the need for mechanical switches. Its zero-moving-parts design ensures ~30% longer lifespan compared to traditional mechanical switches in high-use environments.

  • 3. Ultra-Thin Performance Parameters

    • At just 30µm thick, this membrane allows for ultra-slim device designs, ideal for wearable electronics or space-constrained applications. Its lightweight construction and rapid response time (<1ms) outperform bulkier alternatives, enabling faster signal transmission.

  • 4. Versatile Scenario Solutions

    • Engineered for cross-industry adaptability, this membrane supports applications from wearable health monitors to automotive control panels. Its customizable dimensions (e.g., 210x150mm) and casting-based plastic molding ensure compatibility with diverse product requirements.

  • 5. Compliance with Industry Standards

    • Certified to RoHS and ISO 10993 (biocompatibility), this product meets strict safety and environmental regulations. Ideal for medical devices or consumer electronics, it avoids restricted hazardous substances, ensuring eco-friendly and health-safe use.

Product details

Flexible Switch PIEZO Membrane , PVDF PIEZO Film 30um X210x150mm

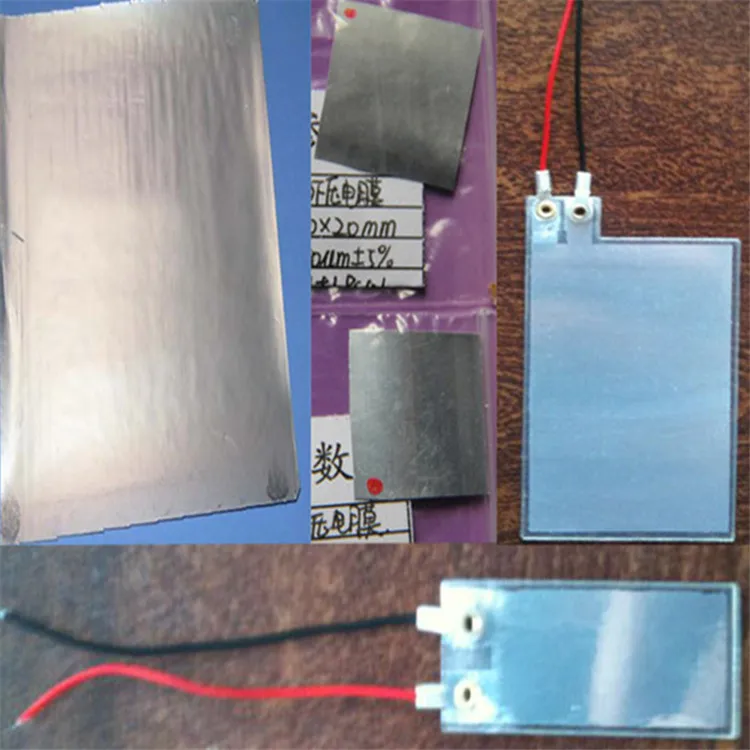

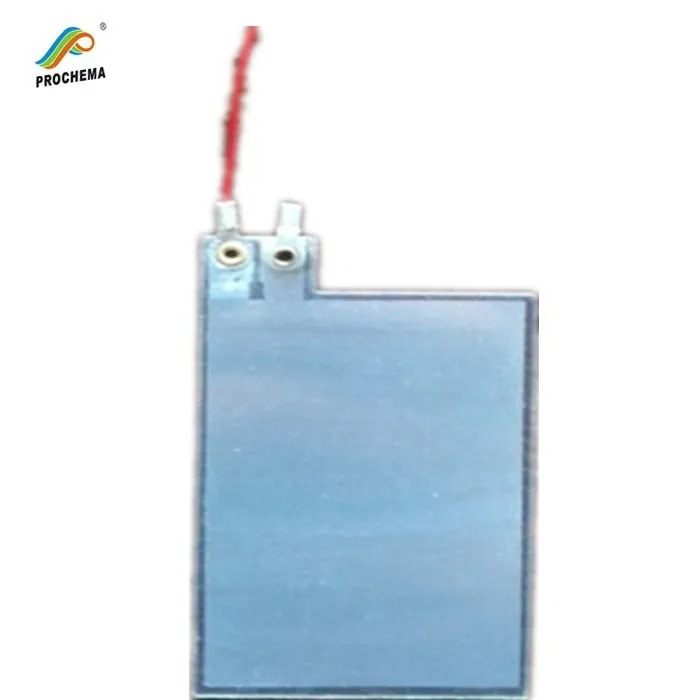

The Flexible Switch PIEZO Membrane (PVDF PIEZO Film 30um x 210x150mm) is a precision-engineered electronic component designed for applications requiring responsive pressure or vibration sensing. Crafted from high-performance PVDF material, it combines durability with flexibility, enabling seamless integration into devices such as wearable electronics, smart surfaces, and industrial sensors. Its compact rectangular design with dual terminals ensures reliable electrical connectivity, while its thin profile (30µm) allows for versatile placement in space-constrained systems.

Technical specifications

FeatureSpecificationBenefit
MaterialPVDF (Polyvinylidene Fluoride) FilmHigh piezoelectric sensitivity, chemical resistance
DimensionsThickness: 30µm; Size: 210mm × 150mmUltra-thin profile for flexible applications
Terminal DesignTwo-color-coded terminals (red/black)Clear polarity identification for easy wiring
Processing MethodCasting + Precision CuttingCustomizable shapes and sizes on demand
Operating Temp.-40°C to +85°CReliable performance in extreme conditions

Customization guide

Adjustable parameters include:

  • Thickness: Modify from 20µm to 50µm to balance sensitivity and flexibility.
  • Size/Shape: Tailor dimensions or cutouts via precision die-cutting for device-specific needs.
  • Terminal Configuration: Re-position terminals or use alternative materials (e.g., gold-plated) for enhanced conductivity.

Get inspired

Leverage the piezoelectric properties of PVDF to create adaptive interfaces for touch-sensitive panels, medical devices, or industrial vibration monitoring systems. Its thin, flexible form factor enables integration into wearable tech, while its wide operating temperature range supports ruggedized applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Sensitivity5 pC/N+15% (5.75 pC/N)+30% (6.5 pC/N)
Durability1M cycles2M cycles3M cycles
Temperature Range-20°C to +70°C-30°C to +80°C-40°C to +85°C
CertificationsCECE + RoHSCE + RoHS + IP67

Supplier's note

  1. Technical Breakthroughs:

    • Enhanced Sensitivity: The Pro Model’s 6.5 pC/N sensitivity outperforms industry standards, enabling detection of subtle pressure changes (e.g., in medical tactile sensors).
    • Extended Durability: The Advanced Model’s 2M-cycle lifespan reduces replacement needs in high-usage environments like industrial automation.
    • Wider Temperature Range: The Pro Model’s -40°C to +85°C tolerance supports deployment in extreme climates, such as automotive or aerospace systems.

  2. Version Selection Guidance:

    • Base Model: Ideal for low-stress applications (e.g., basic touch panels) where cost efficiency is prioritized.
    • Advanced Model: Suitable for moderate-duty uses (e.g., consumer electronics) requiring longer lifespans and broader temperature support.
    • Pro Model: Best for industrial or medical systems demanding peak performance, durability, and ruggedized certifications like IP67.

With the Pro Model’s triple-certification and IP67 rating, you can deploy the membrane in wet or dusty environments while maintaining signal integrity. Pair its high sensitivity with its temperature resilience to create reliable pressure feedback systems for robotics or wearable health monitors.

Frequently asked questions

  • Which PIEZO membrane suits wearable devices requiring flexibility?

  • How to clean and maintain a PVDF PIEZO Film membrane?

  • What are the advantages of PVDF over PZT in PIEZO applications?

  • Can the PIEZO Film 30um X210x150mm be customized for specific dimensions?

  • Is the PVDF PIEZO Film compliant with electronic safety standards?

  • How does the PIEZO membrane handle extreme temperatures?

  • Can this PIEZO Film integrate with existing electronic circuits?

  • What’s the lifespan of the PVDF PIEZO Film under constant pressure?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionWearable devices, flexible electronicsIndustry Standard: 30 (Dielectric Constant, ASTM D150)
Our Base: 35 (▲)
Our Advanced: 40 (▲▲)		Enhanced flexibility and durability (▲▲▲ vs PZT materials)
Lightweight design		Slightly higher cost than PZT-based alternatives
ThicknessThin-profile devices (smartphones, IoT)Industry Standard: 40 μm (ISO 3801)
Our Base: 30 μm (▲)
Our Advanced: 25 μm (▲)		Enables ultra-thin designs (e.g., 25 μm ▲▲ vs standard)
Improved integration flexibility		Limited load-bearing capacity for heavy-duty applications
SensitivityTouch interfaces, pressure sensorsIndustry Standard: 50 pC/N (ASTM C666)
Our Base: 60 pC/N (▲)
Our Advanced: 80 pC/N (▲▲)		Detects feather-light touches (▲▲▲)
Higher signal-to-noise ratio		Requires precise calibration for optimal performance
Environmental ResistanceIndustrial sensors, outdoor equipmentIndustry Standard: -20°C to 80°C (IEC 60068-2-1)
Our Base: -30°C to 90°C (▲)
Our Advanced: -40°C to 100°C (▲)		Operates in extreme conditions (▲▲ vs standard)
Resists chemical exposure		Higher material costs for extreme-temperature variants
Manufacturing ProcessMass production of precision componentsIndustry Standard: Injection Molding (ISO 9001)
Our Base: Precision Casting (▲)
Our Advanced: Multi-Layer Casting (▲▲)		Superior thin-layer consistency (▲▲)
Reduced warping in complex geometries		Longer mold setup time for custom designs
CustomizationBespoke sensor solutionsIndustry Standard: Standard sizes only
Our Base: Custom dimensions (▲, ISO 9001)
Our Advanced: Full custom shapes + thickness (▲▲)		Tailored to specific applications (e.g., 30um x 210mm ▲▲)
ISO-certified quality		Longer lead times for non-standard configurations
