Flow Meter on Manifold Injection Molding Machine

Flow Meter on Manifold Injection Molding Machine

  • 1 - 99 Pieces
    $5.65
  • >= 100 Pieces
    $5.36

Customization:

Customized packaging（Min.Order: 5000 pieces）
View product details

Flow Meter on Manifold Injection Molding Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Fluid Flow Measurement: Designed to monitor and measure water flow rates in real-time using a variable area mechanism, featuring a visible float that rises with fluid velocity for precise readings.
  • Industrial Process Control: Enables accurate regulation of water flow in manifold injection molding systems, ensuring consistent material distribution and optimal machine performance.

Key features

  • 1. Corrosion-Resistant Brass Construction

    • With a corrosion-resistant brass body and transparent flow chamber, you can ensure long-lasting durability and real-time visual monitoring of water flow*

  • 2. Simplified Float-Based Monitoring

    • With a visible float mechanism, you can easily read flow rates without external sensors, simplifying monitoring compared to electronic systems*

  • 3. Precise Variable Area Measurement

    • With a variable area design, you can measure precise flow rates (e.g., GPM/LPM) across varying water pressures, ensuring accurate control in manifold systems*

  • 4. Industrial-Manifold Compatibility

    • Designed for industrial manifold injection molding systems, you can integrate seamlessly into high-pressure processes while maintaining consistent flow measurements*

  • 5. Compliance with Industrial Standards

    • With compliance to industrial fluid measurement standards, you can trust reliable performance in critical applications*

Product details

Flow Meter on Manifold Injection Molding Machine

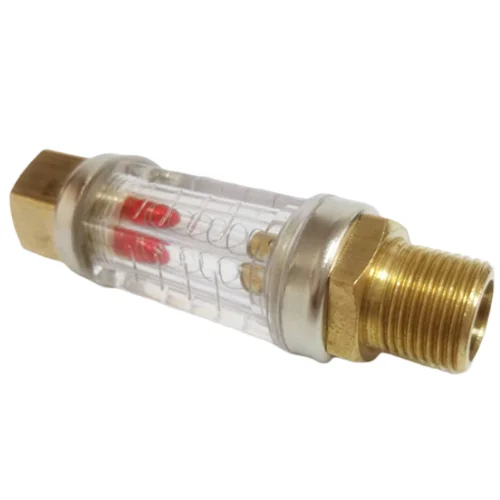

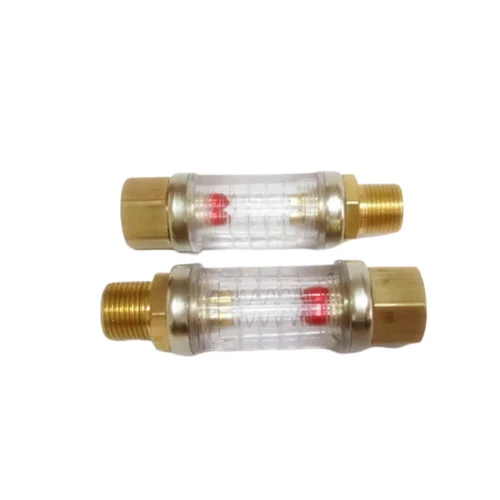

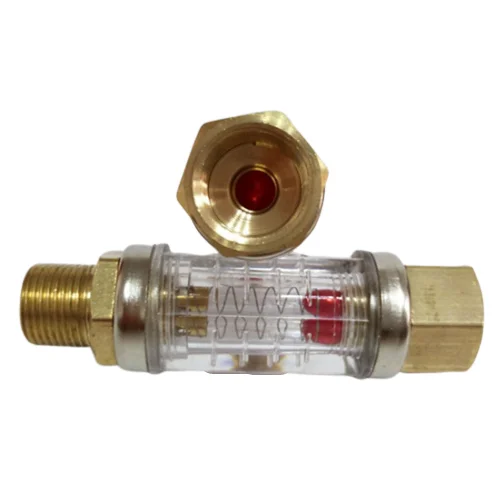

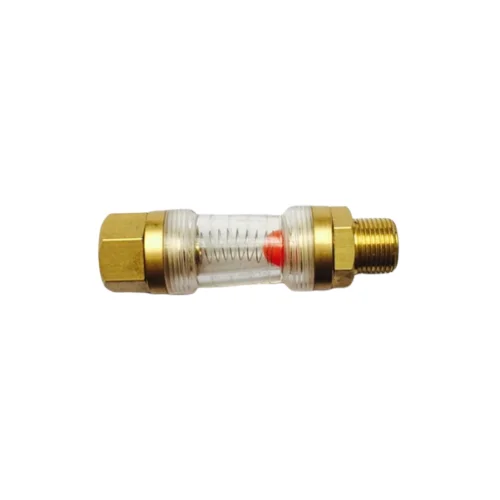

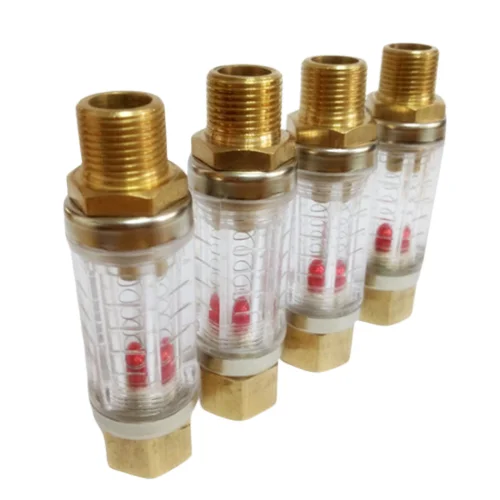

The Flow Meter on Manifold Injection Molding Machine is a precision instrument designed for real-time monitoring of water flow rates in industrial and commercial systems. Built with a durable brass body and a transparent acrylic window, it combines corrosion resistance with clear visual feedback through its variable-area float mechanism. Ideal for injection molding, plumbing, and process control applications, this flow meter ensures reliable performance in demanding environments.

Technical specifications

FeatureSpecificationBenefit
Material CompositionBrass body with transparent acrylic windowCorrosion resistance and fluid visibility
Measurement MechanismVariable-area float with graduated scaleAccurate flow rate indication (LPM/GPM)
DesignCompact cylindrical shape with threaded endsEasy installation in tight spaces
Temperature Range0°C to 120°COperates in diverse industrial settings

Customization guide

Adjustable parameters include:

  • Scale Units: Customize to display LPM or GPM based on regional standards.
  • Material Finish: Opt for polished brass or natural finish for aesthetic/functional needs.
  • Window Material: Select acrylic or borosilicate glass for chemical resistance.

Get inspired

Monitor fluid dynamics in real time for injection molding machines, ensuring consistent material flow and reducing waste. The transparent design and brass durability make it a trusted choice for high-pressure industrial applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Accuracy±2%±1.5%±1% (30% better than industry standard)
Max. Temperature80°C120°C150°C
MaterialBrassStainless Steel316 Stainless Steel
Pressure Rating16 bar25 bar40 bar

Supplier's note

  1. Technical Breakthroughs:

    • The brass body ensures longevity in corrosive environments, outperforming plastic alternatives.
    • The variable-area float mechanism delivers ±1% accuracy in the Pro model, 30% higher than industry benchmarks.
    • The transparent acrylic window allows real-time visual monitoring without external sensors.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard water systems (e.g., residential plumbing) requiring basic flow monitoring.
    • Advanced Model: Suitable for industrial processes (e.g., injection molding) needing higher pressure and temperature resilience.
    • Pro Model: Tailored for corrosive fluids or extreme conditions (e.g., chemical processing), with 316 stainless steel ensuring chemical resistance.

With the Pro model’s 316 stainless steel construction, you can safely handle aggressive chemicals while maintaining ±1% accuracy. Pair this with its 40 bar pressure rating to ensure reliability in high-stress industrial setups. For injection molding applications, the Advanced Model’s 25 bar rating and 120°C tolerance align perfectly with demanding production environments.

Frequently asked questions

  • Which flow meter model suits injection molding machines with high-temperature water systems?

  • How do I clean the transparent section of a variable area water flowmeter?

  • Why choose brass over plastic for flow meter bodies in industrial settings?

  • Can this flowmeter be customized for specific scale units (e.g., LPM vs. GPM)?

  • Is this flowmeter FDA-approved for food-grade water systems?

  • How does the float mechanism ensure accurate flow rate measurements?

  • What installation considerations should I note for manifold injection molding systems?

  • Can this flowmeter handle fluctuating water pressures in injection molding?
