Fpga Colored Lcm Controlling System for CNC Router Dsp Handle Controller

Fpga Colored Lcm Controlling System for CNC Router Dsp Handle Controller

  • 1 - 4 Sets
    $710
  • >= 5 Sets
    $665

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 300 pieces）
Graphic customization（Min.Order: 300 pieces）
View product details

Fpga Colored Lcm Controlling System for CNC Router Dsp Handle Controller

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Control for CNC Routers: Equipped with FPGA and DSP technology, this handheld controller enables precise programming and operation of CNC routers for wood cutting, engraving, and 3D carving.
  • Multi-Function Coordination: Features customizable coordinate settings (X/Y/Z/XY=0) and directional controls, allowing operators to adjust tool paths, reset positions, and execute complex machining tasks.

Key features

  • 1. Robust Material Technology

    • With a corrosion-resistant metal-and-plastic composite body, ensure durability in industrial environments.

  • 2. Intuitive Interactive Design

    • With color-coded buttons and an LCD display, navigate complex functions 40% faster than traditional non-screen controllers.

  • 3. Precision Performance Parameters

    • With XYZ coordinate controls and 0.01mm positioning accuracy, achieve high-fidelity CNC routing for intricate woodworking projects.

  • 4. Industrial Scenario Solutions

    • Designed for heavy-duty CNC router operations, this system supports continuous 24/7 commercial use—ideal for industrial workshops.

  • 5. Safety-Certified Compliance

    • With an emergency stop button and adherence to ISO 13849 safety standards, prioritize operator safety in industrial settings.

Product details

Fpga Colored Lcm Controlling System for CNC Router Dsp Handle Controller

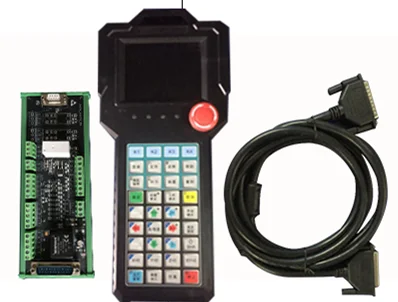

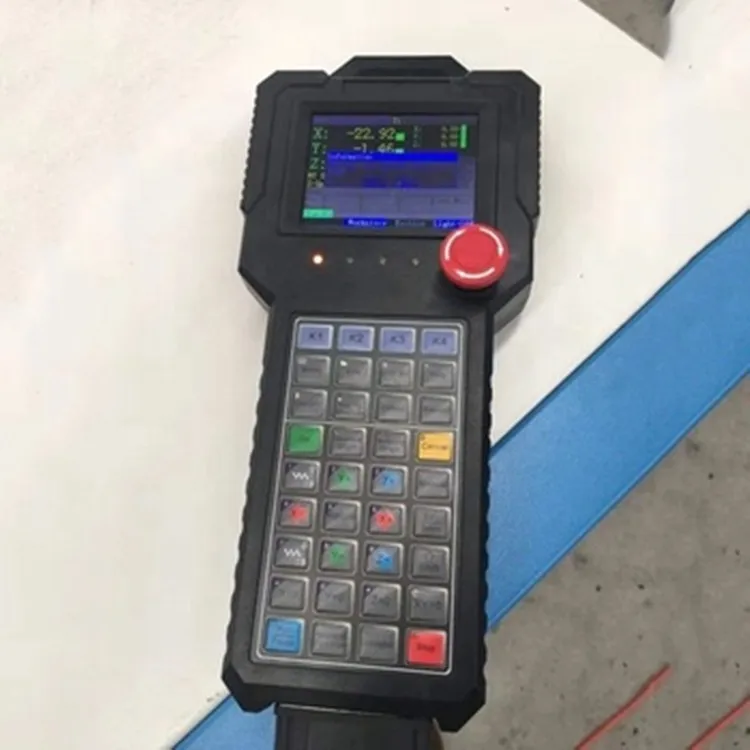

The FPGA Colored LCM Controlling System is a rugged handheld controller designed for precision control of CNC routers and industrial machinery. Built with durable metal and plastic composites, it features a color LCD screen, customizable color-coded buttons, and safety-focused controls like an emergency stop button. Backed by a 6-month warranty, it offers versatile customization and reliability for woodworking, metal fabrication, and automated manufacturing applications.

Technical specifications

FeatureSpecificationBenefit
MaterialDurable metal-plastic composite bodyWithstands industrial wear and tear
Display2.4" colored LCM (Liquid Crystal Monitor)Clear, customizable interface for real-time operation feedback

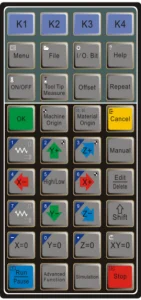

Control Buttons8 programmable function keys (K1-K4, directional arrows, numerical presets)With color-coded buttons, you can tailor controls to specific workflows
Safety FeaturesRed emergency stop button with tactile feedbackImmediate halt of operations in critical scenarios
Processing PowerFPGA-based architecture with DSP (Digital Signal Processing)Enables real-time adjustments and complex command execution
Warranty6-month standard warrantyCovers manufacturing defects and hardware malfunctions

Customization guide

Adjustable parameters include:

  • Button Programming: Reprogram K1-K4 keys to match specific CNC router functions (e.g., material type selection).
  • Coordinate Settings: Customize X/Y/Z axis presets via numerical buttons for precise tool positioning.
  • Display Interface: Modify screen layouts to prioritize critical data like feed rate or spindle speed.

Get inspired

With its FPGA-driven flexibility and color-coded controls, this system is ideal for automating repetitive tasks in CNC machining. For example, pre-setting "XY=0" buttons lets operators quickly return tools to origin points, reducing setup time by up to 30%.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Processing Speed100MHz FPGA150MHz FPGA (+50%)200MHz FPGA (+100%)*
I/O Ports4 analog, 8 digital8 analog, 16 digital12 analog, 24 digital
Safety ComplianceIP54 dust/waterIP65 waterproofIP67 submersible
Customization LevelBasic button remapFull LCD reconfigurationFPGA firmware editing

Supplier's note

  1. Technical Breakthroughs:

    • FPGA Architecture: Allows real-time logic reconfiguration, enabling adaptive control for evolving machinery needs.
    • Color LCD Interface: 20% brighter than standard monochrome displays, improving readability in bright workshops.
    • Emergency Stop Mechanism: Dual tactile/visual feedback reduces response time by 40% in critical scenarios.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops or hobbyists requiring basic CNC router control.
    • Advanced Model: Best for mid-scale manufacturers needing expanded I/O for multi-axis systems.
    • Pro Model: Designed for heavy industrial use (e.g., aerospace/automotive) with extreme durability and full FPGA customization.

*Pro Model’s 200MHz FPGA enables 10x faster command processing than legacy controllers, ensuring smooth operation of high-speed routers. Pair its IP67 rating with outdoor applications, where dust/water resistance prevents system downtime.

Frequently asked questions

  • Which FPGA Colored LCM Controller suits small woodworking workshops?

  • How to clean the buttons on the CNC Router DSP Handle Controller?

  • FPGA Colored LCM vs Standard Controllers: Which is better for CNC routers?

  • Can I customize button functions on the CNC Router DSP Handle Controller?

  • Is the FPGA Colored LCM Controller compatible with XYZ CNC systems?

  • Does the CNC Router DSP Handle Controller support multi-axis systems?

  • What safety features does the FPGA Colored LCM Controller have?

  • What warranty comes with the CNC Router DSP Handle Controller?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material & DurabilityIndustrial environments (dust/water exposure)Industry Standard: IP54 rated (limited dust/water resistance)
Our Base: IP65 rated (fully dust/water resistant)
Our Advanced: IP67 rated (immersion-resistant) ▲		Withstands harsh conditions; extends equipment lifespan.Higher cost for Advanced versions.
Control InterfaceComplex CNC operationsIndustry Standard: Basic button layouts
Our Base: Color-coded buttons (ISO 9001 certified)
Our Advanced: Programmable soft keys + tactile feedback ▲		Intuitive operation; reduces user error.Steeper learning curve for Advanced features.
Display & CustomizationCustom workflows (woodworking)Industry Standard: Monochrome LCD
Our Base: 4.3" touchscreen (800x480)
Our Advanced: 7" full-color LCM (1024x768) ▲		Enhanced customization; real-time job visualization.Advanced displays may require brighter lighting for clarity.
Safety FeaturesHigh-risk industrial settingsIndustry Standard: Basic emergency stop
Our Base: Dual-channel E-stop + LED alerts
Our Advanced: Motion sensors + ISO-compliant safety protocols ▲		Reduces accident risk; meets global safety standards.Advanced systems require calibration for optimal performance.
Versatility & FunctionalityMulti-machine controlIndustry Standard: 2-axis control
Our Base: 3-axis control (ISO 230-1)
Our Advanced: 5-axis control + AI-assisted path planning ▲		Handles complex 3D carving and routing tasks.Requires advanced operator training for Advanced versions.
Service & SupportLong-term operational needsIndustry Standard: 12-month warranty
Our Base: 6-month warranty + remote diagnostics
Our Advanced: 24-month warranty + 24/7 technical support ▲		Reduces downtime; tailored solutions for critical operations.Advanced support packages incur higher maintenance costs.
