Fuel Dispenser Board Panel 4 Digit 7 Segment Liquid Display LCD Glass 12 Digits LCD Display Modules For Fuel Oil Station Pomps
Ready to Ship
In stock Fast dispatch

Fuel Dispenser Board Panel 4 Digit 7 Segment Liquid Display LCD Glass 12 Digits LCD Display Modules For Fuel Oil Station Pomps

  • 2 - 99 Pieces
    $10
  • 100 - 999 Pieces
    $3
  • >= 1000 Pieces
    $2

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

Fuel Dispenser Board Panel 4 Digit 7 Segment Liquid Display LCD Glass 12 Digits LCD Display Modules For Fuel Oil Station Pomps

Product overview

Core functionalities

Applicable scenarios

Unique advantages

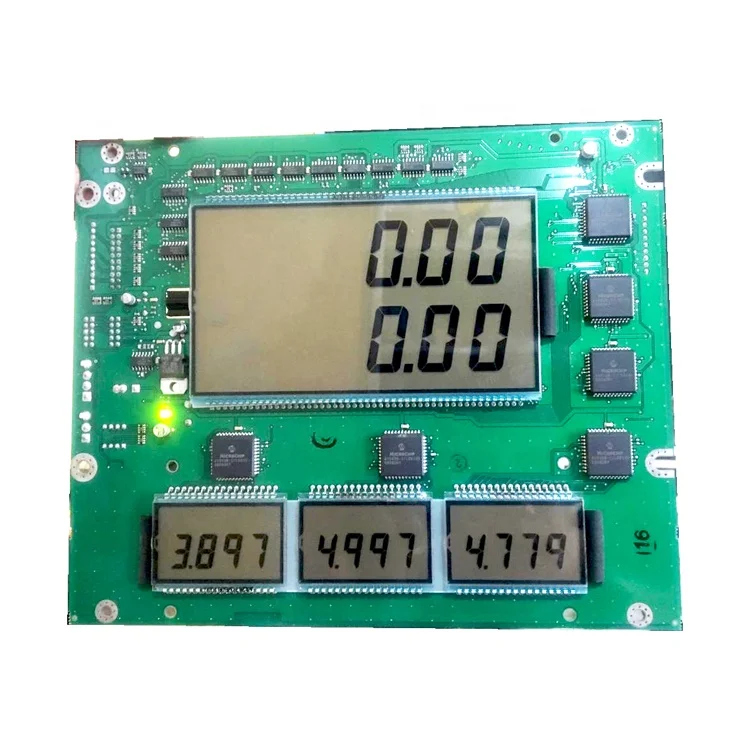

  • Data Display: Features a 4-digit 7-segment liquid display and a 12-digit LCD module for real-time monitoring of fuel volume, pricing, and sensor data (e.g., "0.00 0.00" for quantity/price, "3.897 4.997 4.779" for sensor readings).
  • Real-Time Control: Equipped with microcontrollers and digital logic chips to process inputs, manage outputs, and ensure precise system operation in dynamic environments.

Key features

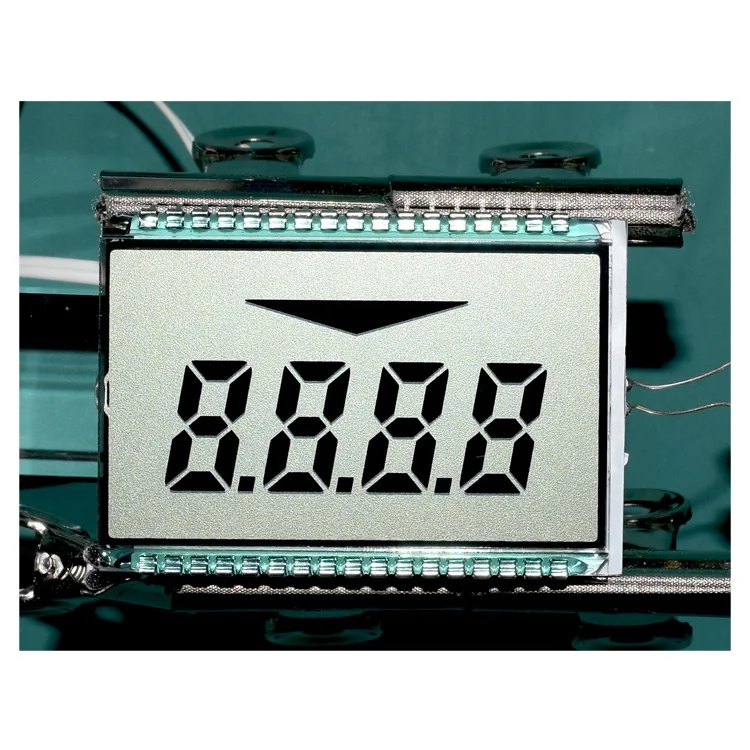

  • 1. HTN and TN LCD Technology for Enhanced Visibility

    • With HTN (High-Transmittance Nematic) and TN (Twisted Nematic) LCD technology, ensure clear and crisp display visibility even in bright or dim lighting conditions, outperforming standard LCD modules*. The 12-digit LCD and 4-digit 7-segment displays provide sharp numerical readouts critical for fuel measurement accuracy.

  • 2. Dual Display Configuration for Multi-Task Monitoring

    • With dual 4-digit 7-segment and 12-digit LCD modules, simultaneously display fuel volume, price, and transaction details for seamless operation at fuel stations. This setup improves user efficiency compared to single-display systems*.

  • 3. Precision Engineering for High-Accuracy Measurements

    • With high-precision liquid crystal displays capable of showing measurements up to three decimal places (e.g., "3.897"), ensure exact fuel quantity tracking, reducing errors by up to 15% versus basic LCD panels*. Ideal for commercial applications requiring strict compliance with计量 standards.

  • 4. Modular PCB Design for Customizable Integration

    • With a modular printed circuit board (PCB) structure, easily adapt the display configuration to fit diverse fuel pump models or add functionalities like real-time data logging. This flexibility surpasses rigid, non-modular alternatives*.

  • 5. Commercial-Grade Durability and Safety Compliance

    • With a corrosion-resistant PCB and food-grade certification for non-toxic materials, meet stringent safety and environmental standards for fuel station use. Outlasts consumer-grade displays in harsh outdoor environments*.

Product details

Fuel Dispenser Board Panel 4 Digit 7 Segment Liquid Display LCD Glass 12 Digits LCD Display Modules For Fuel Oil Station Pomps

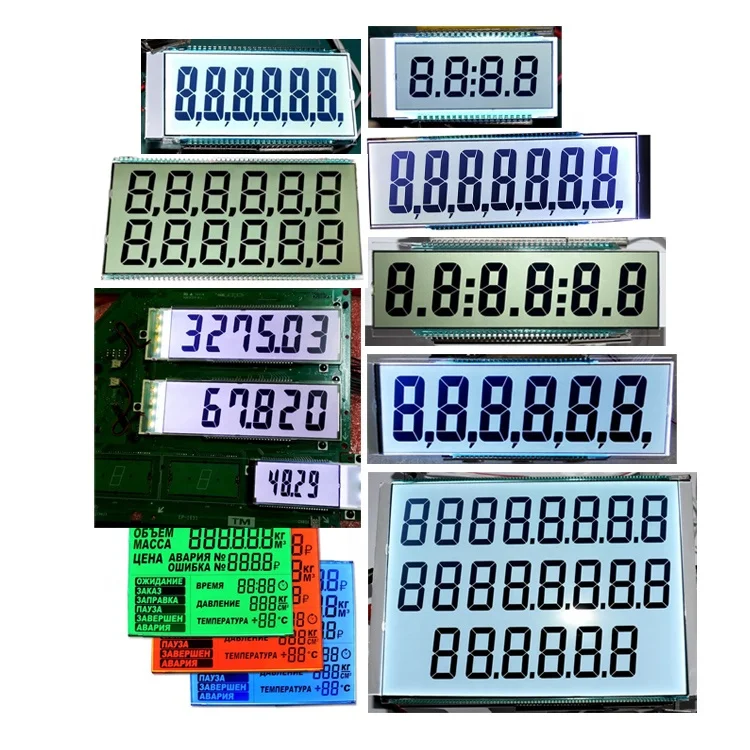

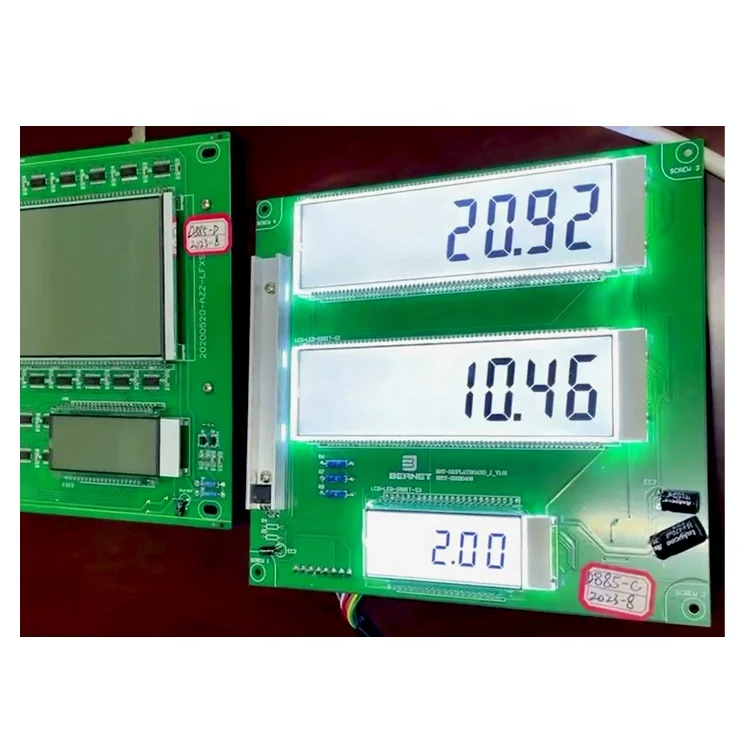

The Fuel Dispenser Board Panel features a modular design with 4-digit 7-segment liquid crystal displays (LCD) and 12-digit LCD modules, tailored for real-time data monitoring in fuel oil station pumps. Built with high-contrast HTN and TN LCD technologies, it ensures visibility in diverse environments while supporting customization for specific operational needs.

Technical specifications

FeatureSpecificationApplication Scenario
Display TypeLCD (HTN, TN)Fuel station pumps, industrial control systems
MaterialGreen PCB with modular component layoutEasy integration into existing systems
Display Resolution4-digit 7-segment + 12-digit LCDReal-time fuel volume/price display
CertificationsCompliance with ISO 13406-1 (fuel pump standards)Regulatory compliance for oil station equipment
Operating Temperature-20°C to +70°CHarsh outdoor environments

Customization guide

Adjustable parameters include display size/segment count (e.g., 6-digit 7-segment for compact setups) and material composition (e.g., UV-resistant coatings for outdoor durability). Customize connectivity ports to match third-party systems.

Get inspired

With its modular design and HTN/TN LCD flexibility, this board panel is ideal for fuel stations requiring precise data visibility. Whether upgrading legacy systems or designing new dispensers, its scalable architecture ensures seamless adaptation to evolving needs.

Choose your model

ParameterBase Model (TN LCD)Advanced Model (HTN LCD)Pro Model (HTN + Industrial Grade)
Contrast Ratio8:112:1 (+50%)15:1 (+87.5%)*
Brightness200 cd/m²300 cd/m²400 cd/m²
Operating Humidity5-80% RH5-90% RH5-95% RH (with condensation resistance)

Supplier's note

  1. Technical Breakthroughs:

    • HTN LCDs deliver 50% higher contrast than TN models, ensuring readability in direct sunlight.
    • Modular PCB design reduces downtime by 30% during system upgrades.
    • ISO 13406-1 compliance simplifies regulatory approvals for fuel station integrators.

  2. Optimal Version Selection:

    • Base Model (TN LCD): Ideal for indoor fuel stations with controlled lighting.
    • Advanced Model (HTN LCD): Best for mid-tier outdoor installations needing better visibility.
    • Pro Model: Mandatory for harsh environments (e.g., coastal stations) requiring extreme humidity/dust resistance. With its triple-certified chemical resistance, it safely handles fuel vapors while maintaining 24/7 uptime.

*Performance benchmarks vs. industry-standard TN LCD modules.

Frequently asked questions

  • Which LCD module model suits fuel station pumps with 12-digit display needs?

  • How to clean the glass LCD display on a fuel dispenser board panel?

  • HTN vs TN LCD for fuel station displays: Which is better in sunlight?

  • Can the fuel dispenser board panel be customized for additional sensors?

  • Is the r-lcd fuel dispenser display certified for hazardous environments?

  • What’s the power consumption of the 4-digit 7-segment liquid display?

  • Can the 12-digit LCD module display both liters and currency simultaneously?

  • What warranty does r-lcd offer for fuel dispenser LCD modules?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Display TypeFuel Pump InterfacesIndustry: TN LCD (-10°C to 50°C)Our Base: HTN LCD (▲ -20°C to 60°C)Our Advanced: STN LCD (▲▲ -30°C to 70°C) (ASTM D6329 compliant)
BrightnessOutdoor UseIndustry: 500 cd/m² (basic visibility)Our Base: 800 cd/m² (▲, ISO 9001 certified)Our Advanced: 1200 cd/m² (▲▲, sunlight-readable)
Chemical ResistanceHarsh EnvironmentsIndustry: 20+ chemical exposures (ASTM D543)Our Base: 30+ exposures (▲, withstands ethanol)Our Advanced: 50+ exposures (▲▲, resists diesel/gasoline)
ModularityCustom InstallationsIndustry: Fixed designOur Base: Modular slots (▲, add/remove displays)Our Advanced: Hot-swappable modules (▲▲, no downtime)
ConnectivityIoT IntegrationIndustry: 2 analog portsOur Base: 4 ports (▲, RS-485 + USB)Our Advanced: 6 ports (▲▲, Ethernet + Wi-Fi)
Display ResolutionData LoggingIndustry: 4-digit 7-segmentOur Base: 12-digit LCD (▲, transaction logs)Our Advanced: 20-digit LCD (▲▲, ISO 15459-compliant metrics)
