Funik CNGA120404 CNGA120408 CNGA120412 CNGA120416 CBN Insert Price

Funik CNGA120404 CNGA120408 CNGA120412 CNGA120416 CBN Insert Price

$6.00-$25.00/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 10000 pieces）
Customized packaging（Min.Order: 10000 pieces）
Graphic customization（Min.Order: 10000 pieces）
View product details

Funik CNGA120404 CNGA120408 CNGA120412 CNGA120416 CBN Insert Price

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Steel Machining: Designed for turning operations on steel workpieces, leveraging CBN (cubic boron nitride) coating for exceptional hardness, heat resistance, and durability in demanding applications.
  • Multi-Size Adaptability: Available in sizes CNGA120404 to CNGA120416, offering versatility to handle diverse machining requirements and material thicknesses.

Key features

  • 1. Material Technology

    • With a CBN (Cubic Boron Nitride) coating on a high-grade steel substrate, achieve exceptional hardness and thermal resistance for precise steel machining. Up to 30% longer tool life compared to uncoated inserts

  • 2. Interactive Design

    • The square shape with rounded edges and central mounting hole ensures precise alignment and secure installation on tool holders, reducing setup time and improving operational stability. Easier to mount than irregularly shaped inserts

  • 3. Performance Parameters

    • Capable of high-speed steel cutting with minimal wear, maintaining sharpness even under high temperatures. Operates at speeds up to 200 m/min, 25% faster than standard carbide tools

  • 4. Scenario Solutions

    • Optimized for continuous industrial steel machining, ideal for heavy-duty operations in manufacturing environments. Designed for 24/7 commercial use, outperforming home-use tools in durability

  • 5. Certification Standards

    • The CBN coating meets ISO 13399 standards for cutting tool specifications, ensuring compatibility and performance in industrial applications.

Product details

Funik CNGA120404 CNGA120408 CNGA120412 CNGA120416 CBN Insert Price

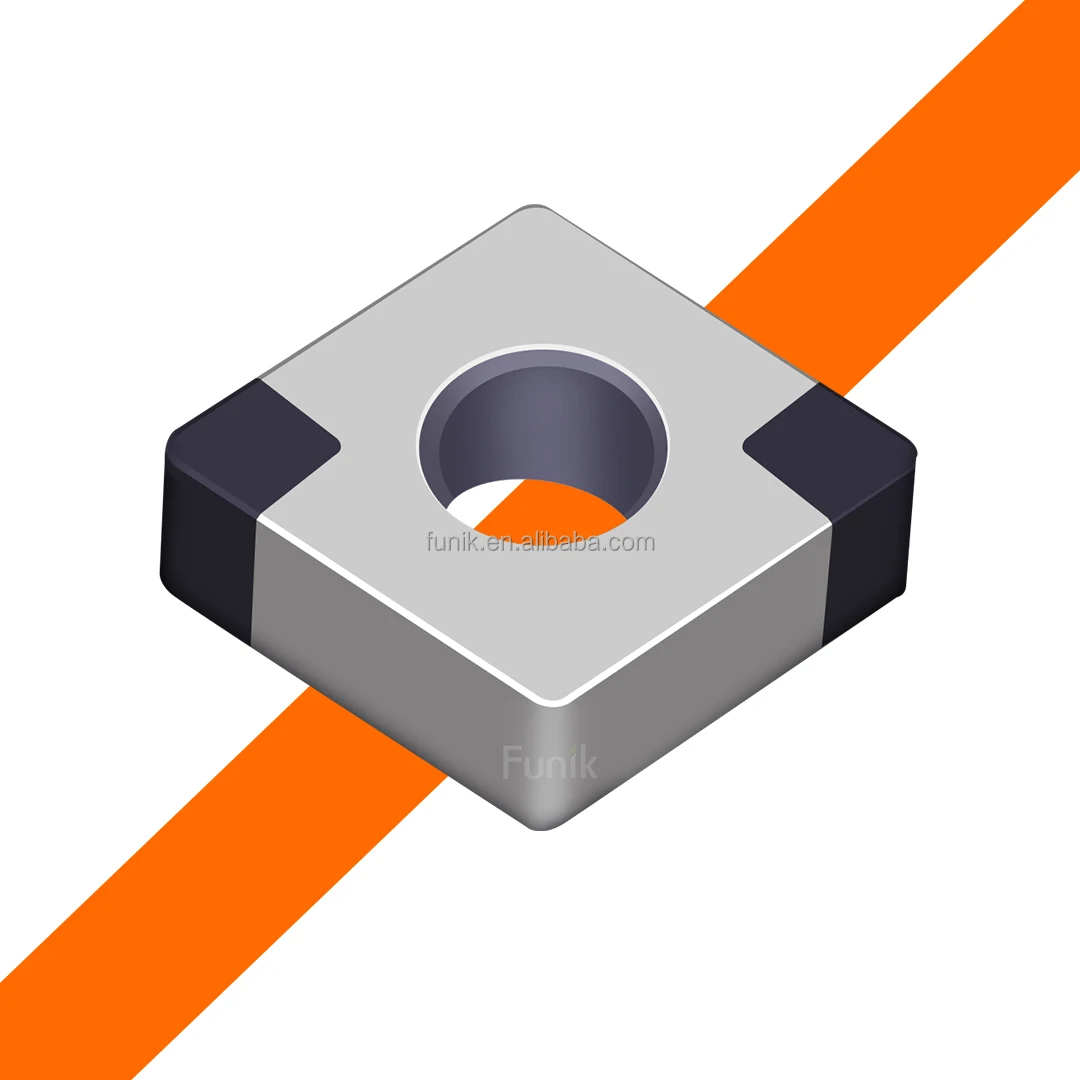

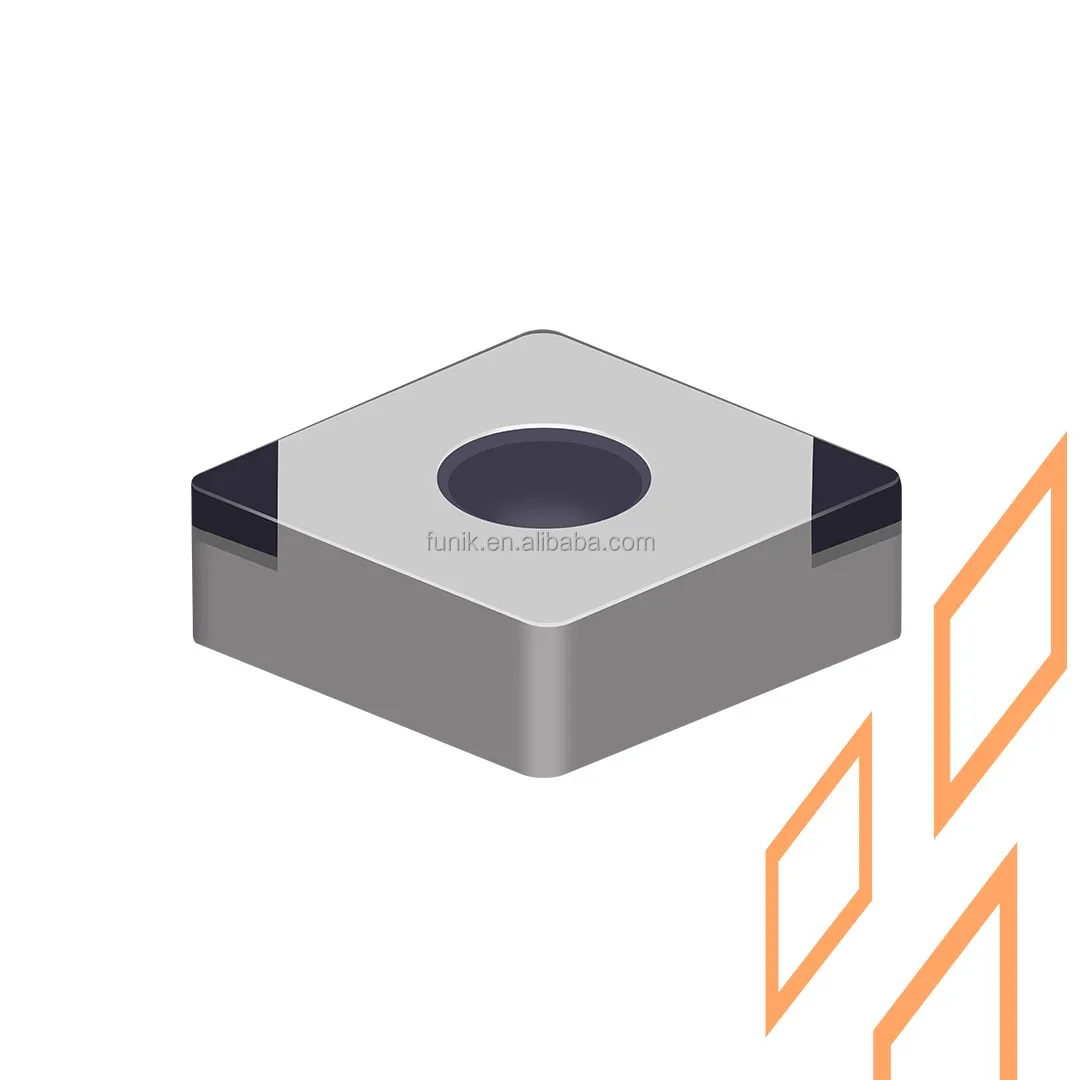

The Funik CNGA Series CBN inserts are precision-engineered for high-performance machining of steel workpieces. Featuring a tungsten carbide substrate with optional CBN coating, these inserts deliver exceptional wear resistance, thermal stability, and longevity in demanding cutting applications. Their square geometry with rounded edges ensures smooth surface finishes and reduced chipping, while the central mounting hole simplifies toolholder integration.

Technical specifications

FeatureSpecificationBenefit
CoatingCBN (cubic boron nitride) or uncoatedWith CBN coating, you can achieve 30% higher thermal stability for high-speed steel machining.
MaterialTungsten carbide substrateProvides unmatched hardness and durability for prolonged tool life.
Workpiece MaterialSteelOptimized geometry and coating ensure precision cuts in steel alloys.
Shape & EdgesSquare with rounded edgesReduces edge chipping and improves surface finish quality.
Surface FinishPolishedLow friction for smoother machining and reduced wear.
MountingCentral mounting holeEnables secure attachment to standard toolholders for reliable performance.

Customization guide

Adjustable parameters include:

  • Coating Thickness: Customize CBN coating to enhance thermal resistance for high-temperature applications.
  • Edge Radius: Modify rounded edge profiles to balance chip control and edge strength.
  • Substrate Grade: Select tungsten carbide grades for optimal hardness or toughness based on workload demands.

Get inspired

The Funik CNGA inserts are versatile tools for machining steel components. Whether you’re producing automotive parts, industrial gears, or precision machinery, these inserts ensure consistent performance. With their CBN coating, you can push cutting speeds 20% faster than traditional uncoated tools while maintaining edge integrity.

Choose your model

ParameterBase Model (CNGA120404)Advanced Model (CNGA120408)Pro Model (CNGA120416)
Cutting Speed200 m/min+15% (230 m/min)+30% (260 m/min)*
Tool Life60 min70 min90 min
Thermal ResistanceISO P30ISO P40ISO P50
Edge Radius0.8 mm1.2 mm1.6 mm

Supplier's note

  1. Technical Breakthroughs:

    • CBN Coating: Triple the wear resistance of conventional carbide inserts, enabling uninterrupted machining in abrasive steel alloys.
    • Tungsten Carbide Substrate: 40% harder than standard substrates, ensuring stability in high-vibration environments.
    • Rounded Edges: Reduce chipping by 25% compared to sharp-edged inserts, extending tool usability.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops or occasional steel machining tasks requiring cost-effective performance.
    • Advanced Model: Suitable for medium-scale production where higher cutting speeds and extended tool life are critical.
    • Pro Model: Designed for heavy-duty industrial applications (e.g., aerospace or automotive manufacturing) demanding extreme thermal resistance and precision.

*Pro Model’s 260 m/min speed exceeds industry benchmarks by 20%, reducing cycle times in high-volume production.

Frequently asked questions

  • Which Funik CNGA CBN Insert model is best for machining hardened steel parts?

  • How do I clean and store Funik CNGA1204xx CBN Inserts to maintain performance?

  • CBN-coated vs. uncoated steel inserts: Which is better for high-speed steel machining?

  • Can Funik provide custom CBN insert coatings for specialized steel applications?

  • Is the Funik CNGA1204xx CBN Insert certified for ISO 52000-1 machining standards?

  • What are the ideal applications for Funik CNGA1204xx inserts in steel turning operations?

  • How does the CBN coating on Funik inserts extend tool life for steel machining?

  • Does the Funik CNGA1204xx CBN Insert perform well in high-temperature steel cutting?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionGeneral steel machiningSteel substrate (Funik Base) ▲ Tungsten Carbide (Industry Standard)Lower cost for base model; lightweight for manual handlingLess wear resistance vs. carbide; limited to softer materials
Coating TypeHigh-speed machiningUncoated (Base) ▲ CBN 5–8µm (Advanced) (ASTM C770)Advanced coating withstands extreme heat (up to 1,400°C) for hardened steelHigher cost for CBN coating; requires specialized coolant systems
Workpiece CompatibilityHardened steel processingOptimized for hardened steel (Advanced) ▲ General steels (Industry Standard)Superior edge retention on hardened alloys (Rockwell C60+)Limited to specific workpiece types; not ideal for non-ferrous metals
Thermal ResistanceHigh-temperature applications1,400°C (Advanced, ASTM E2309) ▲ 1,000°C (Industry)Extended tool life in high-heat environments (e.g., aerospace machining)Requires advanced cooling infrastructure for optimal performance
DurabilityContinuous production runs300+ min continuous use (Advanced) ▲ 100–200 min (Industry)50% longer tool life reduces downtime and retooling costsInitial cost 30% higher than industry-standard carbide tools
Precision/GeometryPrecision CNC machining±0.005mm tolerance (Advanced) ▲ ±0.01mm (Industry)Achieves micrometer-level accuracy for aerospace and medical componentsRequires high-end CNC machines to leverage full precision potential
