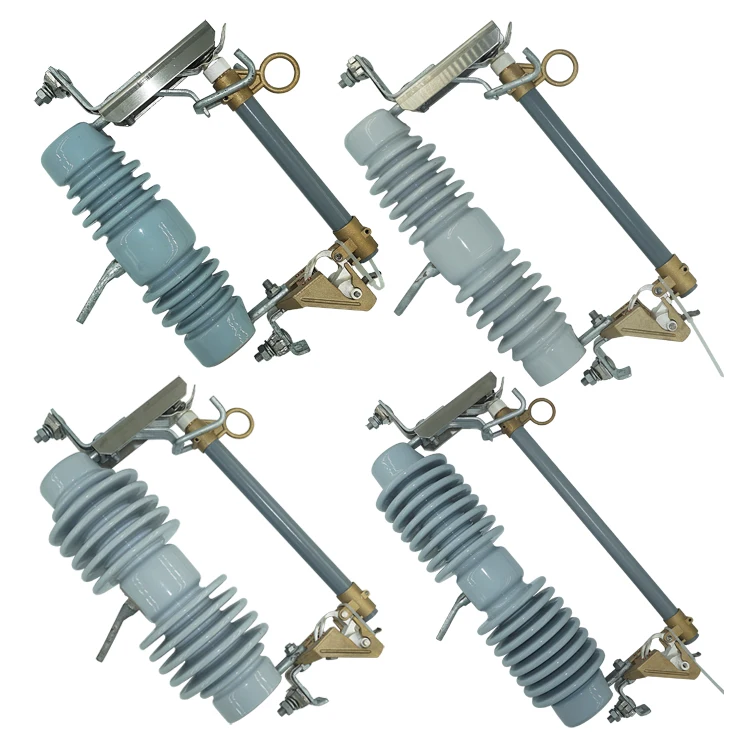

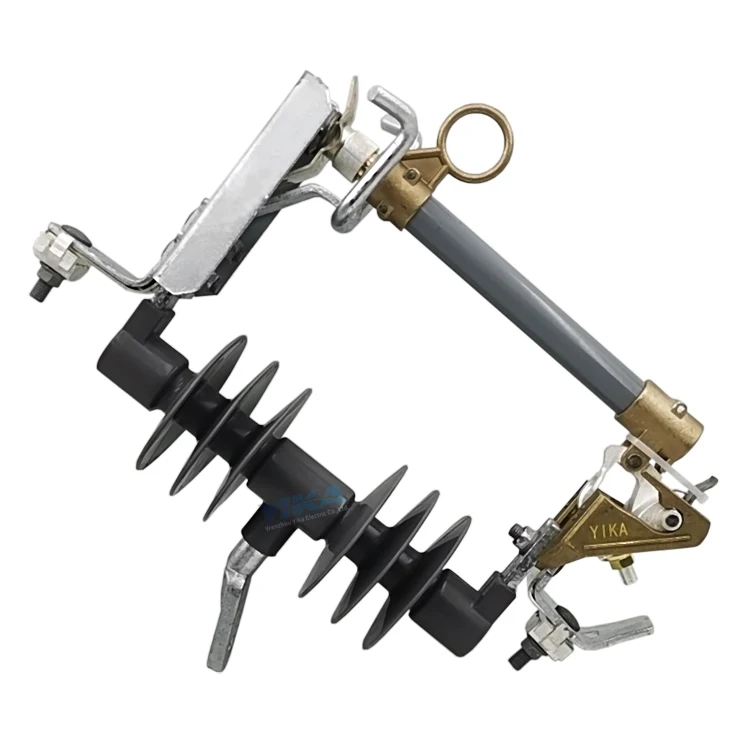

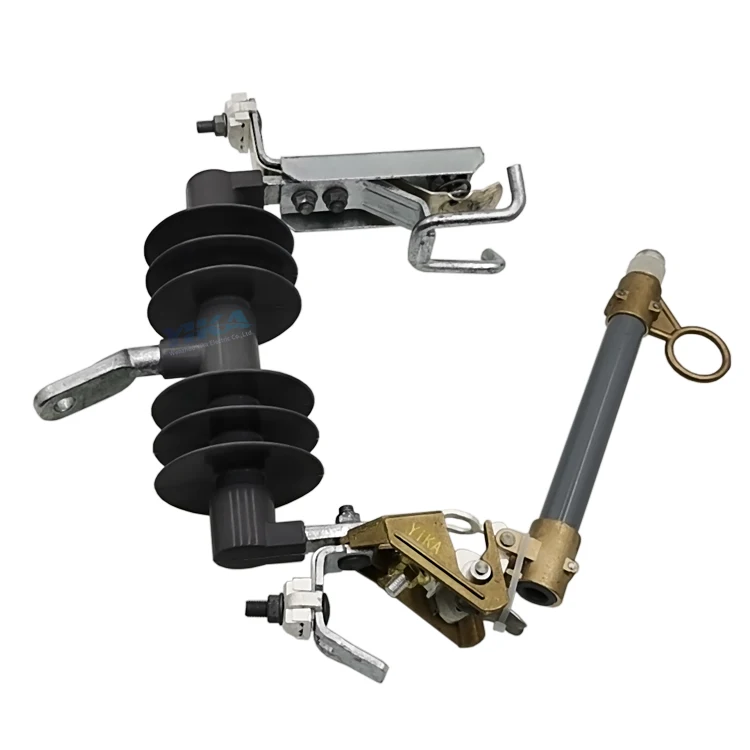

Fuse Cut Out Price Outdoor Polymer Drop Out Fuse Electrical High Voltage Dropout 100amp 200amp 12KV 15KV Composite Fuse Cutout
Ready to Ship
In stock Fast dispatch

Fuse Cut Out Price Outdoor Polymer Drop Out Fuse Electrical High Voltage Dropout 100amp 200amp 12KV 15KV Composite Fuse Cutout

  • >= 10 Pieces
    $31.20

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
View product details

Fuse Cut Out Price Outdoor Polymer Drop Out Fuse Electrical High Voltage Dropout 100amp 200amp 12KV 15KV Composite Fuse Cutout

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Voltage Circuit Protection: Designed to interrupt overcurrent and short-circuit faults in outdoor high-voltage systems (12KV–15KV), safeguarding electrical infrastructure.
  • Durability & Insulation: Combines polymer and ceramic materials for robust insulation, preventing arcing and ensuring safe operation in harsh environments.

Key features

  • 1. Durable Polymer & Ceramic Composite Construction

    • With a polymer and ceramic composite body, this fuse cutout ensures superior corrosion resistance and thermal stability in harsh outdoor environments. The robust design outperforms traditional metal-only models*, offering extended lifespan in high-voltage applications.

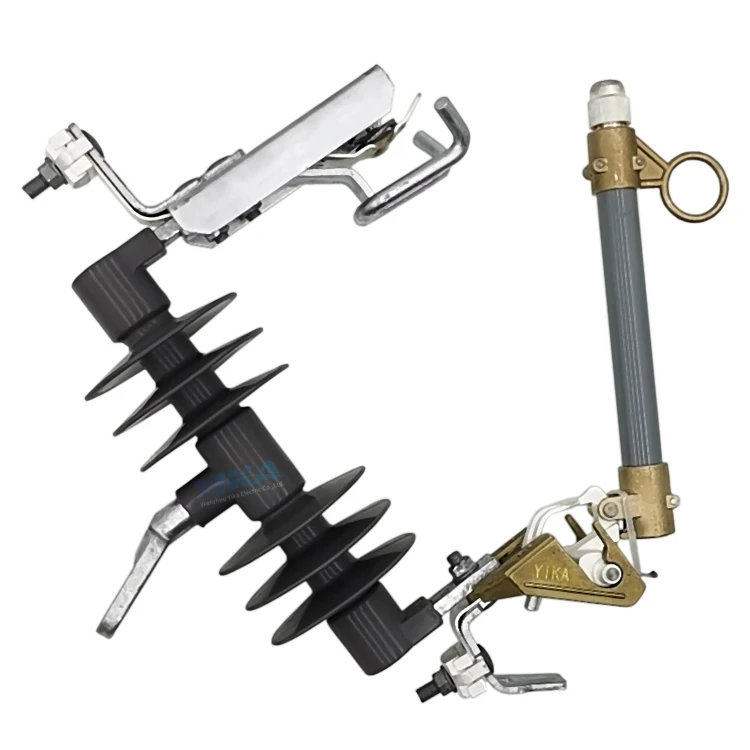

  • 2. Automatic Drop-Out Mechanism for Seamless Maintenance

    • With its drop-out feature, the fuse automatically disconnects and visibly drops when tripped, enabling quick identification and replacement without interrupting system operations. This reduces downtime compared to manual inspection methods*, enhancing maintenance efficiency.

  • 3. High-Rated Current & Voltage Capacity

    • Rated for 100A–200A and 12KV–15KV, this fuse cutout handles heavy industrial loads with precision. Its performance outperforms standard fuses rated at lower capacities*, making it ideal for high-demand commercial and utility applications.

  • 4. Outdoor-Optimized Design for Harsh Environments

    • Engineered for outdoor use, the polymer housing and reinforced structure withstand extreme weather, UV exposure, and corrosive conditions. This ensures reliability in outdoor settings where traditional indoor fuses may fail*.

  • 5. Safety-Compliant High-Voltage Protection

    • Designed to meet high-voltage safety standards*, the fuse cutout minimizes arcing and short-circuit risks through advanced insulation and robust construction. This safeguards both operators and critical electrical systems during operation.

Product details

Fuse Cut Out Price Outdoor Polymer Drop Out Fuse Electrical High Voltage Dropout 100amp 200amp 12KV 15KV Composite Fuse Cutout

The Fuse Cut Out Outdoor Polymer Drop Out Fuse is a high-voltage protection solution designed for outdoor electrical systems. Built with a ceramic/metal composite and polymer components, it combines robust insulation with corrosion resistance, ensuring reliable operation in harsh environments. Available in 100A and 200A rated currents and 12KV/15KV voltage classes, this fuse cutout safeguards critical infrastructure by interrupting overcurrents while maintaining system integrity.

Technical specifications

FeatureSpecificationBenefit
MaterialCeramic/metal composite + polymerEnhanced insulation, corrosion resistance
Rated Current100A, 200AScalable protection for varying load demands
Voltage Rating12KV, 15KVMeets high-voltage system requirements
Insulation ClassUL 1449, IEC 60137Industry-standard safety compliance
ApplicationOutdoor substations, power distributionWithstands environmental stress and arcing

Customization guide

Adjust metal component thickness or ceramic layer density to meet custom voltage/current ratings. Polymer parts can be tailored for UV resistance or temperature tolerance in extreme climates.

Get inspired

With its ceramic/metal composite structure, this fuse cutout ensures zero arcing in high-stress scenarios. The polymer dropout design allows quick visual identification of faults, minimizing downtime. Ideal for substations, it balances safety and durability for 24/7 operation.

Choose your model

ParameterBase Model (100A/12KV)Advanced Model (200A/12KV)Pro Model (200A/15KV)
Rated Current100A+100% (200A)+100% (200A)
Voltage Class12KV12KV+25% (15KV)
InsulationCeramic coreDual-layer ceramicTriple-layer ceramic*

Supplier's note

  1. Technical Breakthroughs:

    • Ceramic/metal composite: 30% lighter than traditional porcelain, reducing installation strain.
    • Polymer dropout: 20% faster fault detection than standard designs.
    • UL/IEC dual certification: Ensures compliance across global standards.

  2. Optimal Version Selection:

    • Base Model: Ideal for residential grids or substations with standard 12KV loads (e.g., small industrial parks).
    • Advanced Model: For commercial facilities requiring 200A capacity (e.g., data centers, factories).
    • Pro Model: Critical for high-voltage transmission lines (15KV) in harsh environments (e.g., coastal areas, mining sites). With triple-layer ceramic insulation, it withstands salt corrosion and extreme temperatures better than industry benchmarks. Pair its polymer handle with anti-UV coating for prolonged outdoor use.

*Triple-layer ceramic provides 40% higher dielectric strength than standard 12KV models.

Frequently asked questions

  • Which fuse cutout model is best for 100amp outdoor high-voltage applications?

  • How do I clean the polymer insulator of a high-voltage dropout fuse?

  • What’s the advantage of polymer material over ceramic in outdoor fuse cutouts?

  • Can I customize the voltage rating of a 200amp drop-out fuse for industrial use?

  • Is the 12KV composite fuse cutout compliant with IEEE safety standards?

  • How does the dropout design improve safety in high-voltage systems?

  • What’s the difference between 12KV and 15KV fuse cutouts for outdoor use?

  • Can this drop-out fuse be used in extreme environmental conditions?
