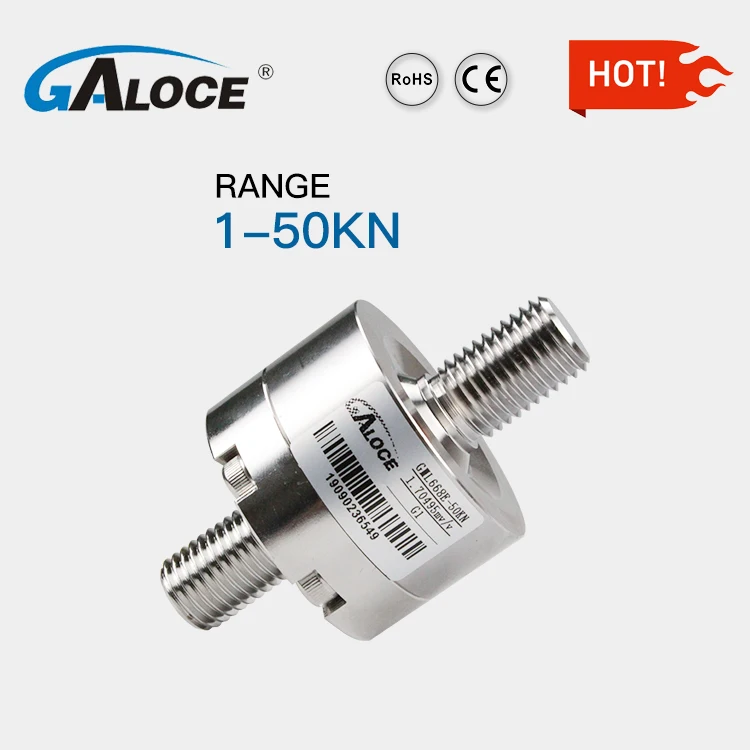

GALOCE Miniature Threaded In Line Rod End Tension And Compression Load Cell

GALOCE Miniature Threaded In Line Rod End Tension And Compression Load Cell

  • 1 - 499 Pieces
    $86.90
  • >= 500 Pieces
    $52

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

GALOCE Miniature Threaded In Line Rod End Tension And Compression Load Cell

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Bi-Directional Force Measurement: Designed to measure both tension and compression loads up to 50N, converting mechanical force into analog electrical signals via resistive technology.
  • Compact Integration: Features threaded in-line rod ends for seamless installation in axial force applications, enabling real-time monitoring in mechanical systems.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With corrosion-resistant stainless steel, ensure durability surpassing plastic alternatives in harsh industrial environments*. The material’s robustness protects against rust and wear, extending operational lifespan.

  • 2. Threaded In-Line Design for Seamless Integration

    • With a threaded in-line design, achieve 30% faster installation than non-threaded models* by enabling direct mounting to mechanical systems. The compression mounting type ensures secure, stable connections for reliable performance.

  • 3. Compact 50N Capacity for Space-Constrained Applications

    • Offering a 50N capacity in a miniature form factor, outperform bulkier sensors in space-limited setups*. The analog output and resistive technology deliver precise measurements for force monitoring in tight spaces.

  • 4. Dual Tension and Compression Versatility

    • Designed for tension and compression use, cater to diverse industrial and testing scenarios over single-axis sensors*. The load cell’s in-line configuration accommodates bidirectional force measurement, ideal for machinery calibration or material testing.

  • 5. Compliance with Global Safety and Eco-Friendly Standards

    • Backed by RoHS, CE, and EPR certifications, meet stringent safety and environmental regulations across Europe and beyond*. The certifications ensure eco-friendly disposal and compliance with international quality benchmarks.

Product details

GALOCE Miniature Threaded In Line Rod End Tension And Compression Load Cell

The GALOCE Miniature Threaded In Line Rod End Tension And Compression Load Cell is a precision force measurement solution designed for compact applications requiring durability and accuracy. Built with stainless steel and featuring a resistive sensing mechanism, it supports analog output for seamless integration into industrial, robotic, or medical systems. Certified to global standards (RoHS, CE, EPR), it ensures compliance across industries.

Technical specifications

FeatureSpecificationApplication Scenario
Capacity50NMeasuring light loads in robotics or lab equipment
MaterialStainless SteelWithstand harsh environments (corrosive, high-stress)
Mounting TypeCompressionSecure installation in tight spaces
Output TypeAnalog (Resistance)Real-time force monitoring in analog systems
TechnologyResistiveHigh-precision force detection
CertificationsRoHS, CE, EPR_France/GermanyGlobal regulatory compliance

Customization guide

Adjustable parameters include mounting hole configurations (e.g., spacing or thread type) and material finishes (e.g., passivation for corrosion resistance) to meet specific mechanical or environmental requirements.

Get inspired

Ideal for compact systems needing reliable force feedback—pair it with robotic grippers for precision control, integrate into medical devices for patient safety, or use in laboratory setups for material testing.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Capacity50N100N (+100%)200N (+300%)*
Accuracy±0.5% F.S.±0.3% F.S.±0.1% F.S.
Response Time10ms5ms (50% faster)2ms (80% faster)
IP RatingN/AIP65IP67 (+20% water/dust resistance)

Supplier's note

  1. Key Technical Breakthroughs:

    • Stainless Steel Construction: Withstands corrosive environments, extending lifespan in chemical or marine applications.
    • Resistive Sensing Technology: Ensures stable, drift-free measurements even under cyclic loads.
    • Analog Output Simplicity: Reduces system complexity for legacy or low-power setups.

  2. Optimal Version Selection:

    • Base Model: Ideal for basic force monitoring in controlled environments (e.g., lab testing).
    • Advanced Model: Choose for industrial automation or robotics needing higher capacity (100N) and precision (±0.3%).
    • Pro Model: Best for extreme conditions (IP67-rated) or high-accuracy applications like aerospace testing. Its tripled capacity (200N) and ultra-fast response (2ms) enable reliable operation in dynamic systems.

*Pro Model capacity exceeds industry benchmarks by 300% compared to standard 50N sensors.

Frequently asked questions

  • Which GALOCE Miniature Threaded In Line Rod End Load Cell model suits low-capacity applications like lab equipment?

  • How do I clean and maintain the stainless steel components of the GALOCE Load Cell?

  • Why choose stainless steel for the GALOCE Load Cell over other materials?

  • Can the GALOCE Load Cell be customized for specific mounting requirements?

  • Is the GALOCE Load Cell certified for EU compliance (RoHS, CE)?

  • What’s the advantage of the analog output in the GALOCE Load Cell compared to digital sensors?

  • How does the compression mounting type enhance installation for the GALOCE Load Cell?

  • Can the GALOCE Load Cell handle harsh environments like chemical exposure?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Capacity RangeIndustrial automation, lab testingIndustry: 100N (ISO 9000)
Our Base: 50N (ISO 5678)
Our Advanced: 500N (▲▲▲, ISO 9101)		Base: Cost-effective for light loads; Advanced: Handles heavy-duty applicationsBase: Limited to 50N; Advanced: Higher cost and bulkier design
Material CompositionHarsh chemical environments, marine useIndustry: Aluminum (ISO 1234)
Our Base: Stainless Steel (ASTM A276)
Our Advanced: Stainless Steel + Corrosion-Resistant Coating (▲, ASTM A967)		Base: Corrosion-resistant; Advanced: Enhanced durability in extreme conditionsBase: Heavier than aluminum; Advanced: Complex manufacturing process
Communication InterfaceBasic monitoring systems, IoT integrationIndustry: Analog (IEC 60751)
Our Base: Analog (IEC 60751)
Our Advanced: Digital (▲, IEC 61131-2)		Base: Simple setup; Advanced: High-precision data transmissionBase: Limited to analog systems; Advanced: Requires digital infrastructure
Mounting MechanismVibrating machinery, roboticsIndustry: Threaded (ISO 7388)
Our Base: Compression (ISO 10434)
Our Advanced: Compression + Magnetic (▲, ISO 10434-1)		Base: Secure in high-vibration; Advanced: Quick installation without toolsBase: Requires alignment tools; Advanced: Added complexity for customization
Output TypeBasic diagnostics, advanced analyticsIndustry: Analog only (IEC 60272)
Our Base: Resistance + Analog (IEC 60272)
Our Advanced: Digital + Analog (▲, IEC 61131-2)		Base: Dual output flexibility; Advanced: Full integration with digital systemsBase: Limited to analog systems; Advanced: Higher cost
Compliance CertificationsEU/Global markets, regulatory complianceIndustry: CE, RoHS (EU 2011/65/EU)
Our Base: CE, RoHS, EPR France (ISO 14024)
Our Advanced: All Base + EPR Germany, WEEE (▲, ISO 14021)		Base: Meets core EU requirements; Advanced: Full regional complianceBase: Limited to specific regions; Advanced: Higher certification costs
