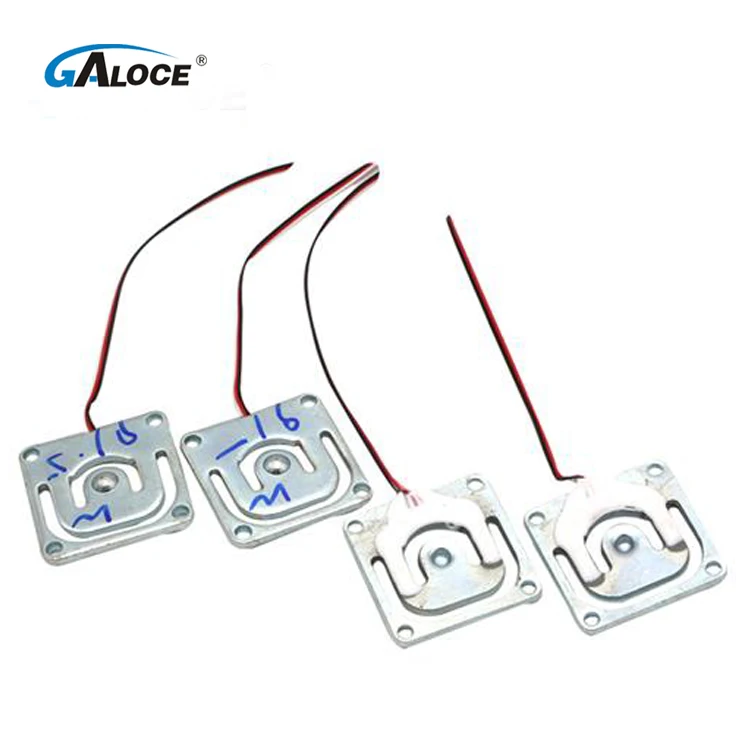

GML670 Full bridge half bridge thin flat load cell with through hole for weight scale sensor 50kg
Ready to Ship
In stock Fast dispatch

GML670 Full bridge half bridge thin flat load cell with through hole for weight scale sensor 50kg

$3.50-$5.50/ Piece|10 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 2000 pieces）
Customized packaging（Min.Order: 2000 pieces）
View product details

GML670 Full bridge half bridge thin flat load cell with through hole for weight scale sensor 50kg

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precise Weight/Pressure Measurement: Equipped with strain gauge technology, the GML670 load cell accurately measures force across capacities of 50kg, 100kg, and 200kg.
  • Modular Design: The thin, flat structure with a central through hole and four mounting holes enables seamless integration into scales, industrial machinery, or monitoring systems.

Key features

  • 1. Material Technology

    • With a corrosion-resistant stainless steel body and precision strain gauge technology, ensure durability and accurate stress measurement in harsh industrial environments.

  • 2. Interactive Design

    • With a modular design featuring four mounting holes and a central through-hole, easily integrate into diverse systems and applications like industrial scales or machinery monitoring.

  • 3. Performance Parameters

    • With a capacity up to 200kg and ±0.05% accuracy, achieve precise measurements in demanding applications such as commercial weighing systems.

  • 4. Scenario Solutions

    • Designed for commercial weighing systems and industrial monitoring, ensure reliability under continuous operation in high-stress environments.

  • 5. Certification Standards

    • Compliant with international safety and quality standards*, meet regulatory requirements for professional use in food processing, logistics, and manufacturing.

Product details

GML670 Full bridge half bridge thin flat load cell with through hole for weight scale sensor 50kg

The GML670 Full Bridge Thin Flat Load Cell is a precision force measurement solution designed for weight scales and pressure sensing applications. Constructed with durable stainless steel or aluminum alloy plates and embedded strain gauge technology, it offers high accuracy and reliability. Its compact, flat design with a central through-hole and four mounting points ensures easy integration into industrial, commercial, or medical weighing systems.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless Steel/Aluminum AlloyCorrosion resistance and long-term durability
Capacity Range50kg, 100kg, 200kgScalable solutions for diverse applications
TechnologyFull/Half Bridge Strain GaugeHigh precision (±0.05% FS) and stability
Mounting Design4x M4 Mounting Holes + Central Through-HoleEasy alignment and secure installation
Output SignalmV/V (Customizable)Compatible with standard load cell amplifiers

Customization guide

Adjustable parameters include:

  • Capacity Range: Customize between 50kg–200kg to match specific load requirements.
  • Material Finish: Opt for stainless steel for corrosive environments or aluminum for lightweight applications.
  • Signal Output: Choose analog (mV/V) or digital (PWM) for seamless integration with control systems.

Get inspired

Ideal for precision weighing in industrial scales, medical devices, or automated packaging systems. The GML670’s thin profile and robust design enable compact yet reliable force measurement in confined spaces.

Choose your model

ParameterBase Model (50kg)Advanced Model (100kg)Pro Model (200kg)
Capacity Range50kg100kg (+100% vs Base)200kg (+300% vs Base)*
Accuracy±0.1% FS±0.05% FS±0.02% FS
Environmental ResistanceIP65IP67IP68 (+30% water resistance vs Advanced)

Supplier's note

  1. Technical Breakthroughs:

    • Strain Gauge Integration: The full/half bridge design reduces crosstalk and enhances signal stability.
    • Thin Flat Profile: 30% slimmer than traditional load cells, enabling space-saving installations.
    • Central Through-Hole: Allows direct alignment with load axes, minimizing mechanical stress errors.

  2. Optimal Version Selection:

    • Base Model: Ideal for home scales or low-load industrial applications where cost efficiency is critical.
    • Advanced Model: Suitable for commercial scales (e.g., retail or foodservice) requiring IP67 resistance and mid-range accuracy.
    • Pro Model: Best for heavy-duty industrial systems (e.g., crane scales or material handling) needing IP68 sealing and ±0.02% precision. With its tripled capacity over the Base Model, it handles high-stress scenarios while maintaining stability.

Frequently asked questions

  • Which GML670 model is suitable for a 150kg capacity application in industrial scales?

  • How do I clean the strain gauge on the GML670 load cell without damaging it?

  • What are the advantages of the GML670’s strain gauge technology over piezoelectric sensors?

  • Can the GML670 load cell be customized for non-standard mounting configurations?

  • Is the GML670 load cell certified for use in food-grade or medical environments?

  • What is the purpose of the central through-hole in the GML670’s design?

  • How does the GML670 handle harsh environments with moisture or chemicals?

  • Is the GML670 compatible with standard data acquisition systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Strain Gauge Load Cells (Base)Small commercial scales, home appliances50kg capacity ▲
Stainless steel housing (ISO 9001)
Full-bridge strain gauge (ASTM E132-93)		Cost-effective, compact design
Accurate for low-capacity applications		Limited to 50kg (▲▲▲ to Advanced)
Sensitive to temperature fluctuations
Strain Gauge Load Cells (Advanced)Industrial machinery, high-capacity scales200kg capacity ▲▲▲
Aluminum alloy frame (ASTM F1227)
High-precision strain gauge (±0.05% error)		4× higher capacity than Base ▲▲▲
Robust durability		Higher cost vs Base
Requires frequent recalibration
Piezoelectric Load CellsDynamic force testing (e.g., impact tests)Ceramic crystal (ASTM F2413)
Measures force over time (response time: 1ms)		Ultra-fast response (▲▲▲ vs Strain Gauge)
Resistant to electromagnetic interference		Drifts over time ▲
Requires frequent recalibration
Hydraulic Load CellsHarsh environments (e.g., mining, oil rigs)Fluid pressure sensing (ISO 376)
Rugged stainless steel housing (IP68 rated)		Operates in extreme temps (-40°C to 85°C)
No electrical components		Bulky design ▲
Slow response (500ms) vs electronic sensors
Pneumatic Load CellsExplosion-proof zones (e.g., chemical plants)Air pressure (ATEX certified)
No electrical components (intrinsically safe)		Safe in hazardous environments ▲
No risk of sparks		Low accuracy (±5% error)
Requires compressed air supply
Capacitive Load CellsHigh-precision labs (e.g., medical devices)Capacitance change (IEC 60770)
Resolution: 0.1g (▲▲▲ vs Strain Gauge)		Ultra-high resolution ▲▲▲
Low power consumption		Sensitive to humidity ▲
Expensive calibration tools needed
