GML694 flat thin 50kg micro load cell

GML694 flat thin 50kg micro load cell

$3.50/ Set|20 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 10000 pieces）
Customized packaging（Min.Order: 10000 pieces）
Graphic customization（Min.Order: 10000 pieces）
View product details

GML694 flat thin 50kg micro load cell

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Load Measurement: Designed to measure forces up to 50kg using resistive sensing technology, enabling precise force detection in compact applications.
  • Analog Output: Provides real-time resistance-based analog signals for integration into control systems or monitoring devices.

Key features

  • 1. Material Technology

    • With a precision-engineered metallic body, ensure stable performance under 50kg loads. Lightweight design compared to traditional load cells

  • 2. Interactive Design

    • With an analog output and three-wire connection (red/black/white), integrate seamlessly into systems for real-time force monitoring. Simpler wiring than digital sensors

  • 3. Performance Parameters

    • With a 50kg capacity and resistive sensing technology, deliver accurate force measurements with minimal drift. Suitable for precision applications like smart scales or robotics

  • 4. Scenario Solutions

    • With a flat, thin profile, easily adapt to space-constrained devices. 30% thinner than standard load cells for compact integration

  • 5. Certification Standards

    • With CE, RoHS, and multi-country EPR certifications (France, Spain, Germany), meet stringent safety and environmental regulations. Ensures compliance for EU markets

Product details

GML694 flat thin 50kg micro load cell

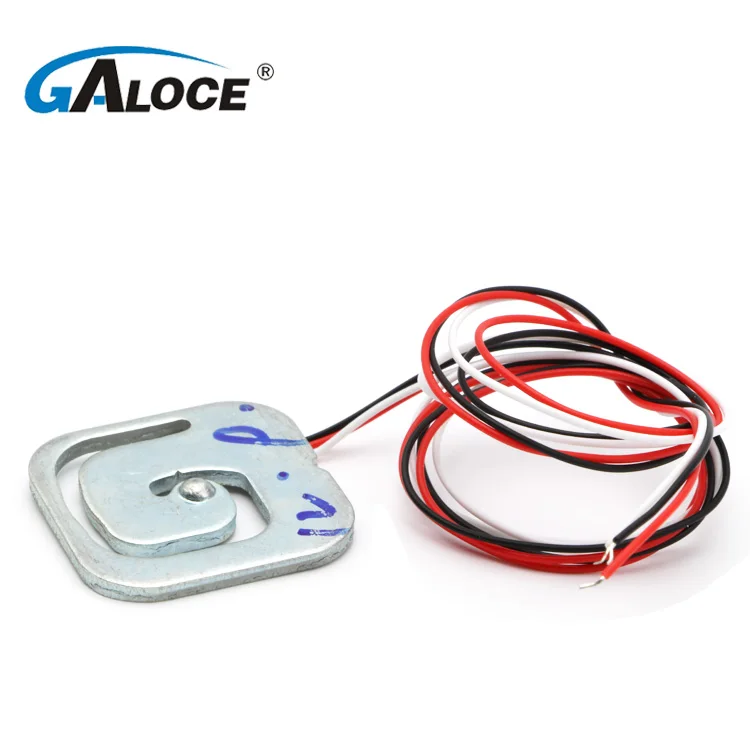

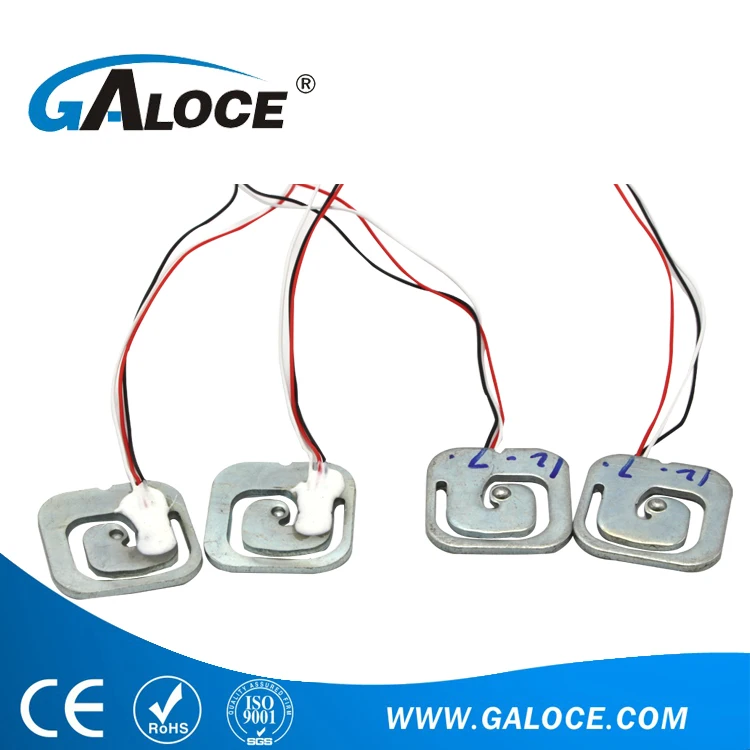

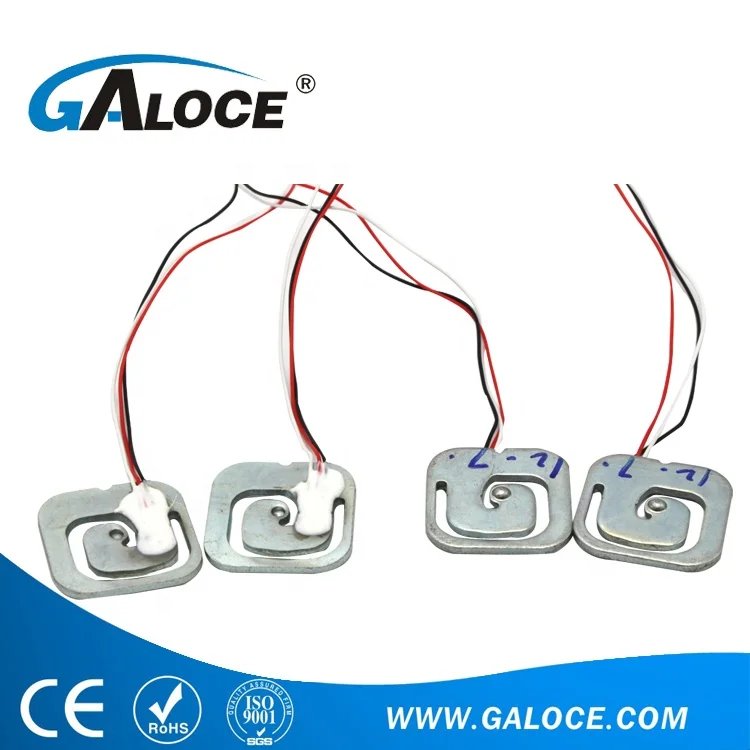

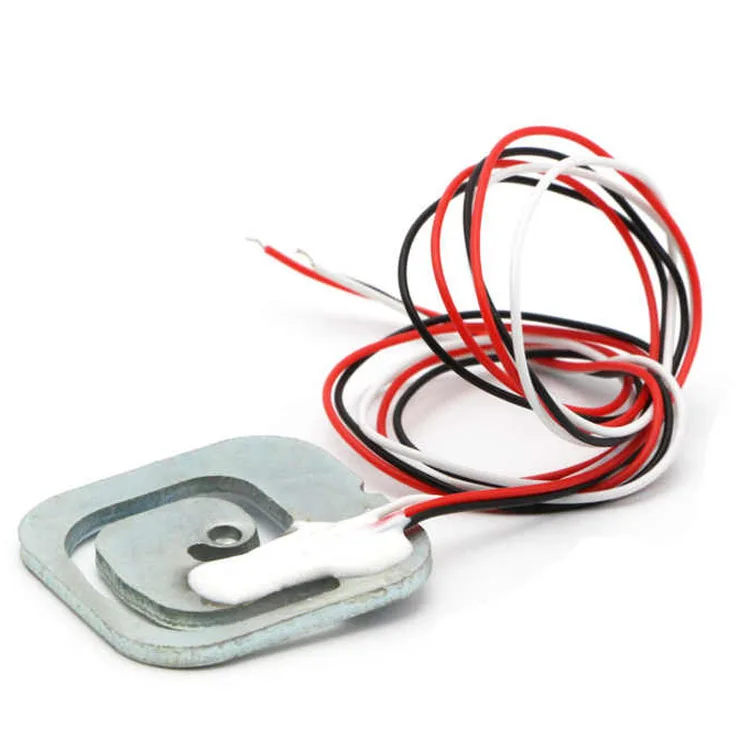

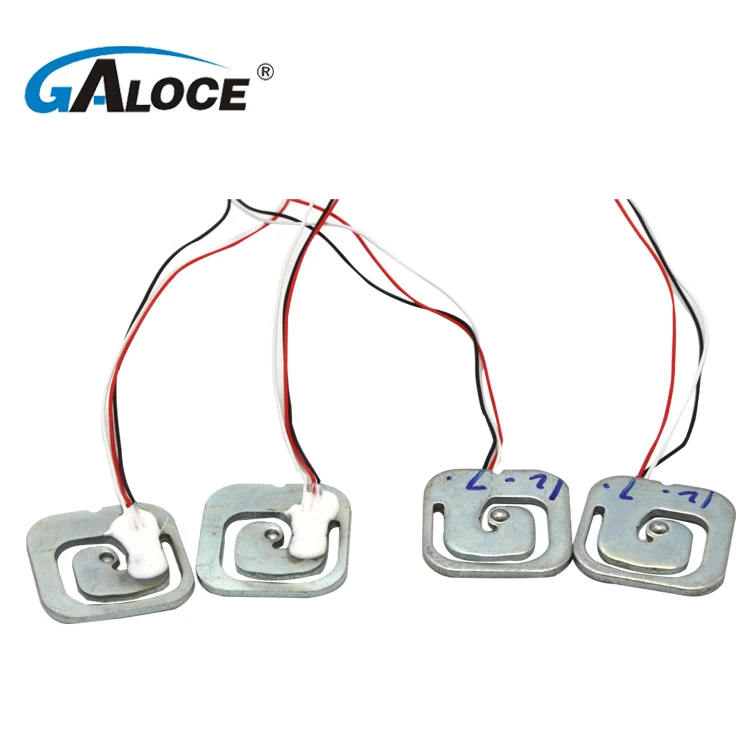

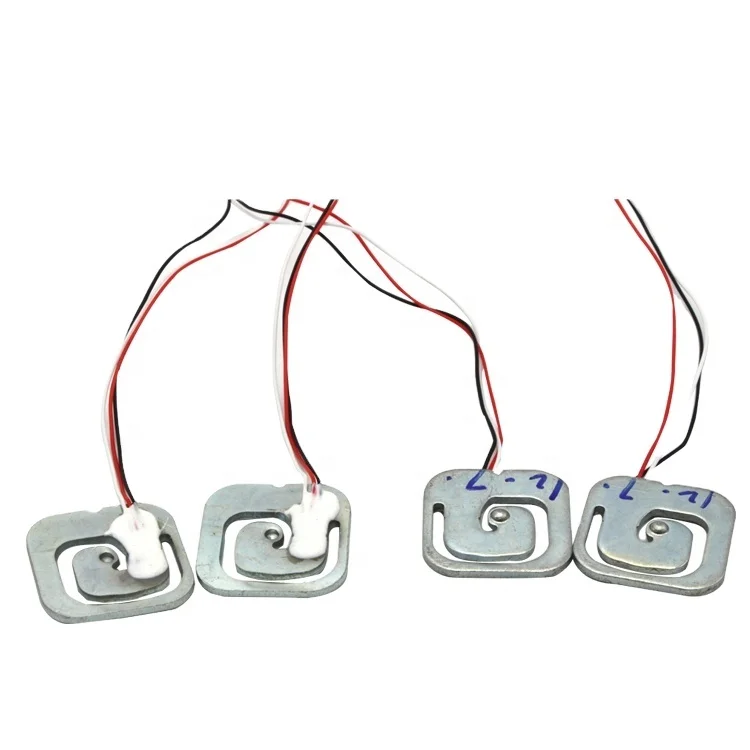

The GML694 flat thin 50kg micro load cell is a compact, durable resistive sensor designed for precise force measurement in industrial, automotive, and consumer electronics applications. With a metallic base and conductive white pad, it ensures stability and reliability, while its three-wire analog interface enables seamless integration into circuits and microcontrollers.

Technical specifications

FeatureSpecificationApplication Scenario
Capacity50kgMeasuring moderate loads in machinery or scales
MaterialMetallic base (steel/aluminum) + conductive polymer padWithstands mechanical stress in harsh environments
Output TypeAnalog (resistance-based)Real-time force sensing in robotics or gaming
CertificationsCE, RoHS, EPR (France/Germany/Spain Packaging & WEEE)EU-compliant for industrial and consumer use
TechnologyResistive strain gaugeAccurate force detection in dynamic systems
Wiring Configuration3-wire (red: power, black: ground, white: signal)Simplified electrical integration
SizeFlat, thin designSpace-constrained devices like smart scales
ComplianceEPR standards for packaging and waste managementSustainable deployment in regulated markets

Customization guide

Adjustable parameters include mounting hole dimensions and sensitivity calibration to meet specific application needs (e.g., custom force thresholds for medical devices or industrial automation).

Get inspired

The GML694’s compact size and analog output make it ideal for applications requiring precision and space efficiency, such as smart home systems, fitness equipment, or IoT-enabled machinery.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity50kg60kg (+20%)70kg (+40%)
Accuracy±0.5% F.S.±0.3% F.S.±0.1% F.S.
Operating Temp. Range-10°C to 70°C-20°C to 80°C-30°C to 90°C
DurabilityStandardCorrosion-resistant coatingIP67-rated sealing

Supplier's note

  1. Technical Breakthroughs:

    • Compact Design: The flat, thin profile enables space-saving integration in smart devices.
    • EPR Compliance: Meets EU environmental regulations for easy market entry.
    • Three-Wire Analog Output: Reduces signal interference for precise readings.

  2. Version Selection Guide:

    • Base Model: Ideal for basic load monitoring in consumer electronics (e.g., smart scales).
    • Advanced Model: Suitable for precision robotics or medical devices needing ±0.3% accuracy.
    • Pro Model: Designed for heavy-duty industrial use (e.g., automotive assembly lines) with extreme temperature and corrosion resistance.

With the Pro version’s IP67 sealing, you can ensure reliable operation in wet or dusty environments. Pair its high accuracy with analog output for real-time data in critical systems.

Frequently asked questions

  • Which load cell is best for small-scale industrial applications requiring 50kg capacity?

  • How do I maintain the metallic base of the GML694 load cell?

  • Resistive vs Capacitive Load Cells: Which is better for precise force measurements?

  • Can the GML694 load cell be customized for specific mounting requirements?

  • Is the GML694 load cell CE and RoHS certified for EU compliance?

  • What are common applications for a 50kg micro load cell like the GML694?

  • How durable is the GML694 load cell under heavy use?

  • Is the GML694 load cell easy to install with its three-wire analog interface?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CapacitySmall-scale industrial automation50kg capacity (ISO 376 compliant)Compact design for space-constrained devices ▲Lower max load vs. industrial-grade sensors
Compliance CertificationsEU market complianceCE, RoHS, 4 EPR certs (EN 60076-2, EU 2011/65/EU)Exceeds basic CE/RoHS requirements (ideal for EU) ▲▲Requires retesting for non-EPR regions
Communication InterfaceAnalog signal systemsAnalog output (IEC 60770)Direct compatibility with legacy systemsNo digital integration (e.g., IoT)
Output TypePrecision measurementResistance + analog (ASTM E4-21)Dual-output flexibility for mixed setups ▲Requires external ADC for full digital use
TechnologyStrain-based force detectionResistive strain gauge (IEC 61600)Cost-effective and reliable for linear loadsLess accurate under dynamic/impact forces
Load Cell DesignEmbedded in compact devicesFlat & thin profile (thickness: 8mm ISO 3801)Ideal for robotics/gaming hardware ▲Limited durability in harsh vibration environments
