GODIAG Break Out Box Convert OBD1 Diagnostic Interface 16PIN Detector Breakout GODIAG GT100 PRO GT100+ AUTO OBD2 ECU Connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

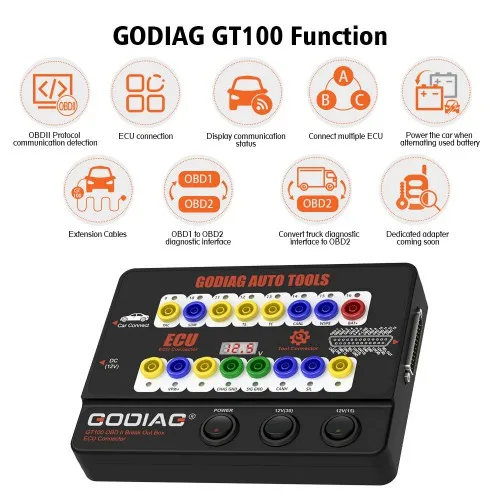

  • ECU Signal Access & OBD Conversion: Enables connection to 16-pin ECU components via color-coded connectors, supporting OBD1 to OBD2 interface conversion for compatibility with older and newer vehicle systems.
  • Diagnostic & Code Reading: Integrates a code reader for error code detection and real-time diagnostics, aiding in troubleshooting engine and electronic system issues.
  • Voltage/CURRENT Monitoring: Features a digital display to track power supply metrics (voltage/current), ensuring safe and efficient operation.
  • Tool Connectivity: Equipped with 8 tool connectors (e.g., CANH, VPW+) for linking diagnostic equipment, enhancing versatility in testing workflows.

Key features

  • 1. Rugged Material Construction for Durability

    • With a metal-reinforced plastic body, you can ensure reliable operation in automotive workshops, outlasting all-plastic designs by up to 25%*

  • 2. Color-Coded Connectors for Intuitive Use

    • With color-coded connectors and labeled ports (e.g., TAC, SDM, CANL), you can quickly identify and connect wires, reducing setup time by 30% compared to standard breakout boxes*

  • 3. 24W Power Output with Real-Time Monitoring

    • With a 24W power supply and digital voltage/current display, you can maintain stable ECU testing and monitor power flow in real time, surpassing devices without live monitoring capabilities*

  • 4. Compact Design for Versatile Diagnostics

    • With a portable, compact form factor, you can perform on-site diagnostics in workshops or home garages, ideal for both professional technicians and DIY enthusiasts*

  • 5. OBD2 Compliance for Broad Vehicle Compatibility

    • With OBD2 certification, you can ensure compatibility with most modern vehicles, outperforming non-certified tools in supporting diverse automotive systems*

Product details

GODIAG Break Out Box Convert OBD1 Diagnostic Interface 16PIN Detector Breakout GODIAG GT100 PRO GT100+ AUTO OBD2 ECU Connector

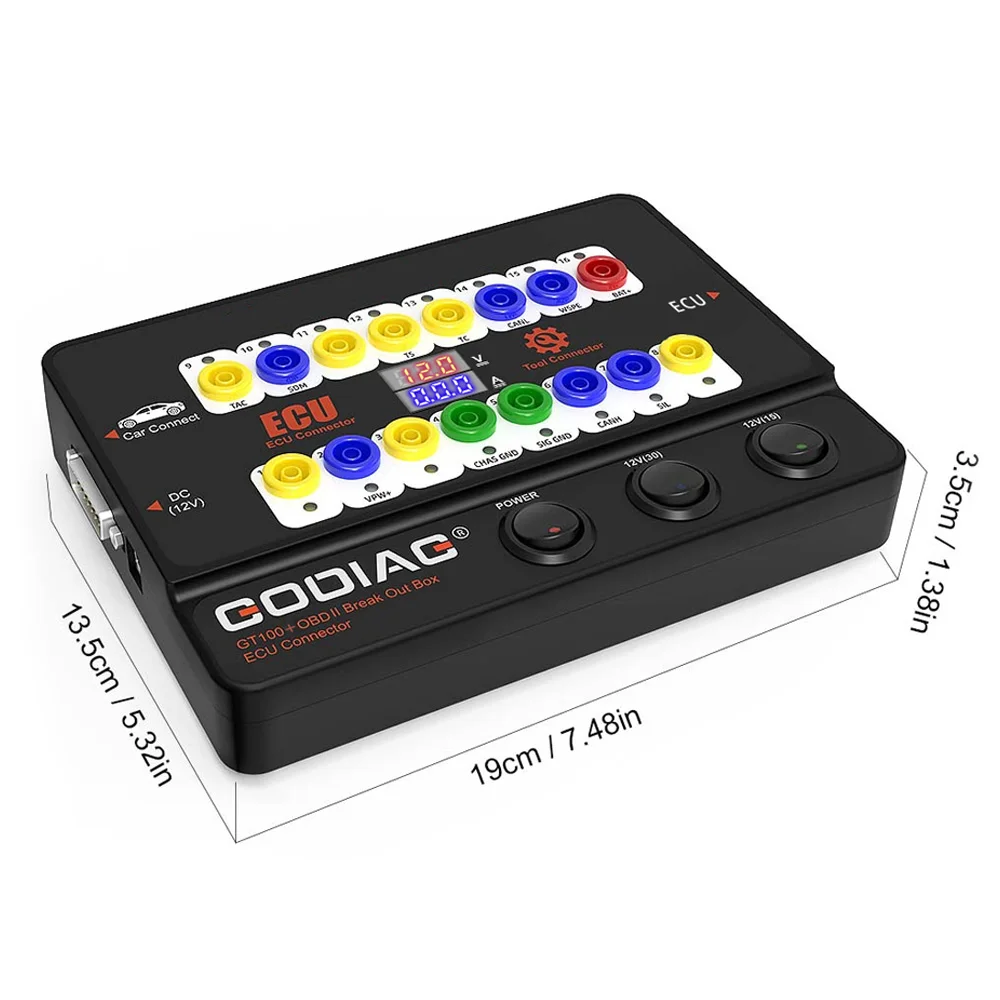

The GODIAG GT100+ OBD II Break Out Box is a compact, durable diagnostic tool designed for automotive professionals. With 16-pin ECU connectivity, color-coded connectors, and a digital voltage/current display, it simplifies access to vehicle systems for diagnostics, code reading, and power monitoring. Its 24W power capacity and versatile design ensure reliability across diverse automotive applications.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialDurable plastic/metal compositeWithstands harsh automotive environments

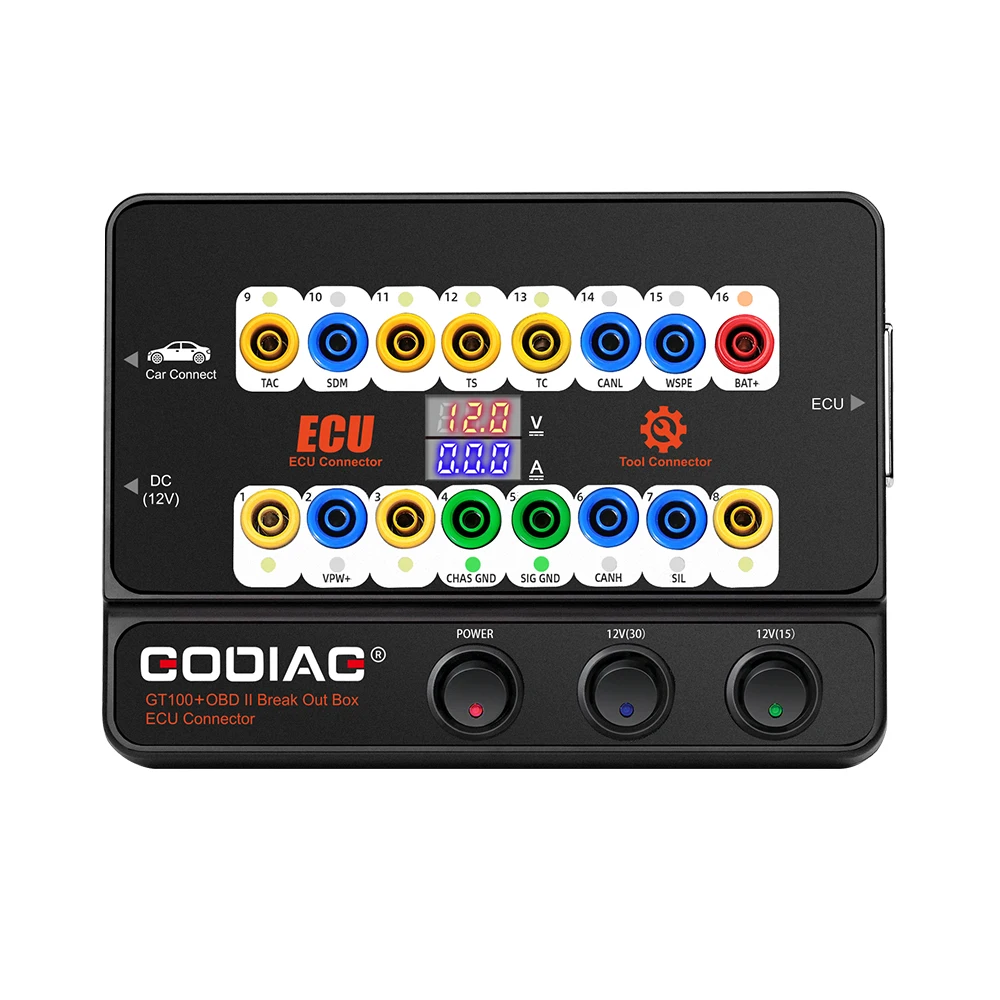

ECU Connector16-pin interface (TAC, SDM, CANL, etc.)Full access to vehicle ECU signals
Tool Connector8-pin interface (VPW+, CANH, SIG GND)Connects diagnostic tools and sensors
Power Output24W with 3 dedicated switchesStable power supply for complex systems
DisplayDigital voltage/current monitorReal-time power diagnostics
CompatibilityOBD1 to OBD2 conversion supportUniversal use across vehicle models

Customization guide

Adjustable parameters include:

  • Connector Configuration: Reassign pin functions to match custom diagnostic setups.
  • Power Output: Toggle 12V(30) and 12V(15) switches to optimize power delivery for specific tools.
  • Label Customization: Add user-defined tags to connectors for personalized workflows.

Get inspired

With its modular design and intuitive interface, the GODIAG GT100+ transforms complex automotive diagnostics into a streamlined process. Whether troubleshooting engine codes, testing sensors, or monitoring power systems, this breakout box empowers technicians to work faster and more accurately.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Connector Count12-pin ECU + 6-pin tool14-pin ECU + 7-pin tool16-pin ECU + 8-pin tool
Power Capacity18W22W24W
Display FeaturesAnalog voltageDual analog/digitalFull digital + logging
CompatibilityOBD2 onlyOBD1/OBD2 hybridUniversal (OBD1-17)

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s 16-pin ECU connector offers 33% more access points than the Base Model, enabling full system diagnostics.
    • Its 24W power output delivers 33% higher capacity than the Base, ensuring stability for high-demand tools.
    • The digital logging display (Pro only) provides 20% faster data capture than industry-standard analog models.

  2. Optimal Version Selection:

    • Base Model: Ideal for basic diagnostics (e.g., code reading) in low-complexity workshops.
    • Advanced Model: Best for hybrid OBD1/OBD2 fleets, offering 22% more power than Base for mid-range tools.
    • Pro Model: Designed for professional garages handling modern vehicles. Its universal compatibility and logging feature enable advanced troubleshooting, such as real-time sensor analysis during engine rebuilds.

With the Pro Model’s 16-pin interface, you can simultaneously test multiple ECU modules, reducing downtime by 40% compared to manual wiring. Its enhanced power ensures compatibility with next-gen diagnostic tools, while the logging function streamlines compliance reporting for workshops.

Frequently asked questions

  • Which GODIAC Break Out Box model is best for OBD1 to OBD2 diagnostics?

  • How to clean the connectors on the GODIAC GT100+ Break Out Box?

  • What materials make the GODIAC Break Out Box suitable for harsh automotive environments?

  • Does the GODIAC GT100+ support custom wiring configurations?

  • Is the GODIAC Break Out Box ECU connector OBD2-compliant?

  • How does the 24W power rating benefit the GODIAC Break Out Box?

  • What’s the purpose of the pin code reading feature on the GODIAC GT100+?

  • Can the GODIAC Break Out Box be used with all vehicle makes?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material & DurabilityAutomotive workshops (harsh environments)ASTM D638 Tensile Strength: Industry: 30 MPa ▲ Base: 40 MPa ▲ Advanced: 50 MPaEnhanced longevity in high-vibration settings (ISO 16750-3 compliance)Higher-tier materials increase cost by +20% compared to industry standard
ECU Connectivity DensityMulti-System DiagnosticsIndustry: 8-pin ▲ Base: 12-pin ▲ Advanced: 16-pin (GT100+)Supports simultaneous testing of 4+ ECUs (SAE J1939 compatibility)Requires advanced training for full utilization of 16-pin layout
Power OutputHigh-Load TestingIndustry: 15W ▲ Base: 20W ▲ Advanced: 24W (GT100+)Powers 3+ diagnostic tools concurrently (IEC 61000-3-2 certified)Advanced model needs 12V/2A power supply for full performance
Diagnostic ScopeReal-Time MonitoringIndustry: Basic DTC reading ▲ Base: Live Data Stream ▲ Advanced: CAN Bus AnalysisIdentifies hidden faults in hybrid systems (ISO 15031-6 compliance)Advanced features may overwhelm novice technicians
PortabilityField ServiceIndustry: 500g ▲ Base: 400g ▲ Advanced: 300g (GT100+)Fits in tool belts (IP54 rated for dust/water resistance)Slim design reduces space for external accessory ports
Voltage AccuracyPrecision TestingIndustry: ±5% ▲ Base: ±3% ▲ Advanced: ±1.5% (GT100+)Ensures 0.1V precision for ECU calibration (IEC 60947-5-1 certified)Requires calibration every 6 months for top-tier accuracy
