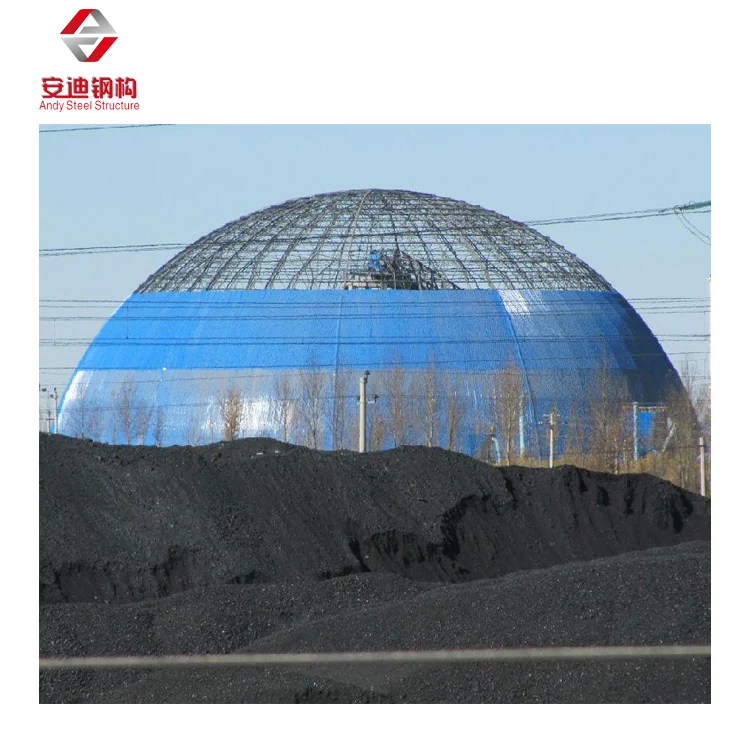

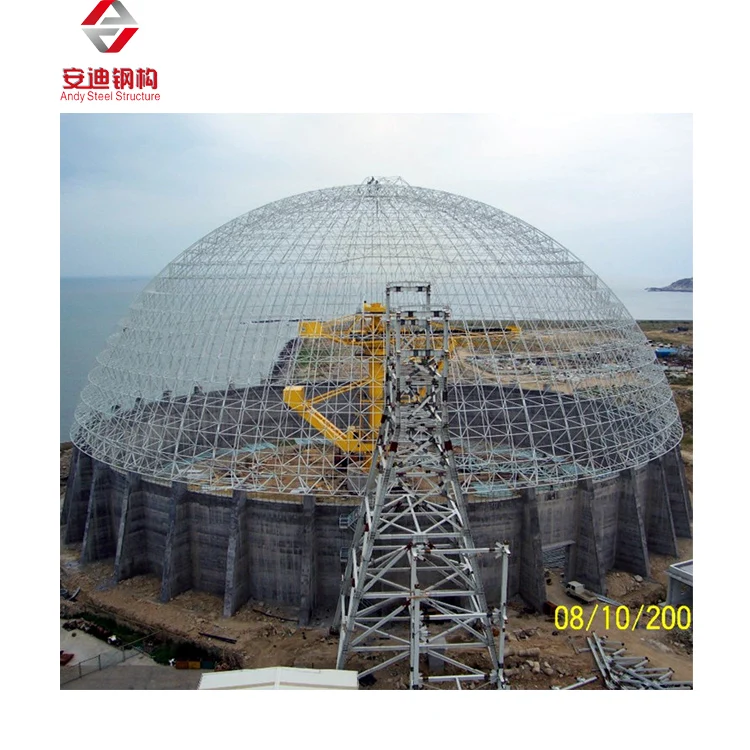

Galvanized Steel Space Grid Frame Truss Dome Structure Dry Coal Shed in Power Plant

Technical specifications

Customization guide

Adjustable dimensions and material grades (Q235/Q345) to meet specific load requirements and environmental conditions. Modular components allow seamless expansion or repurposing for storage, manufacturing, or assembly areas.

Get inspired

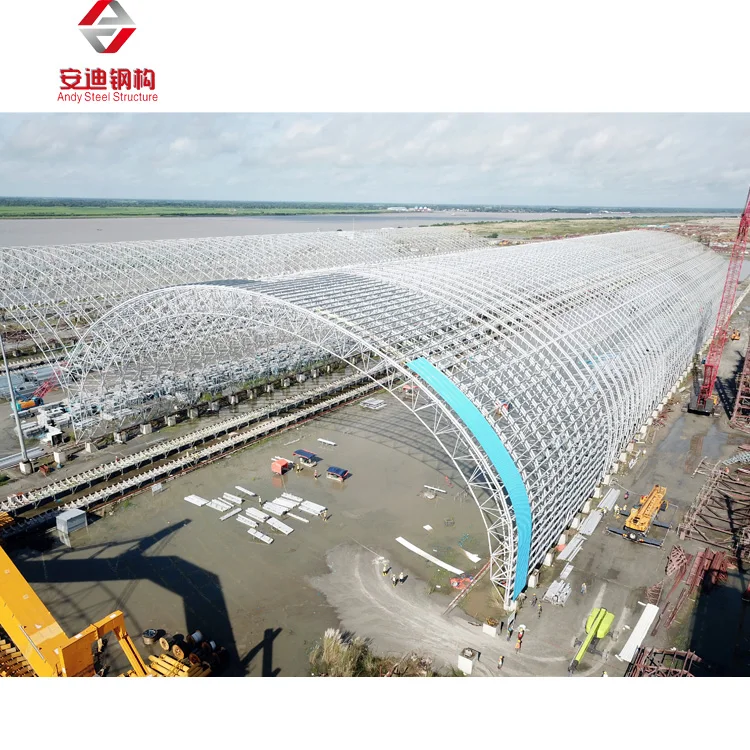

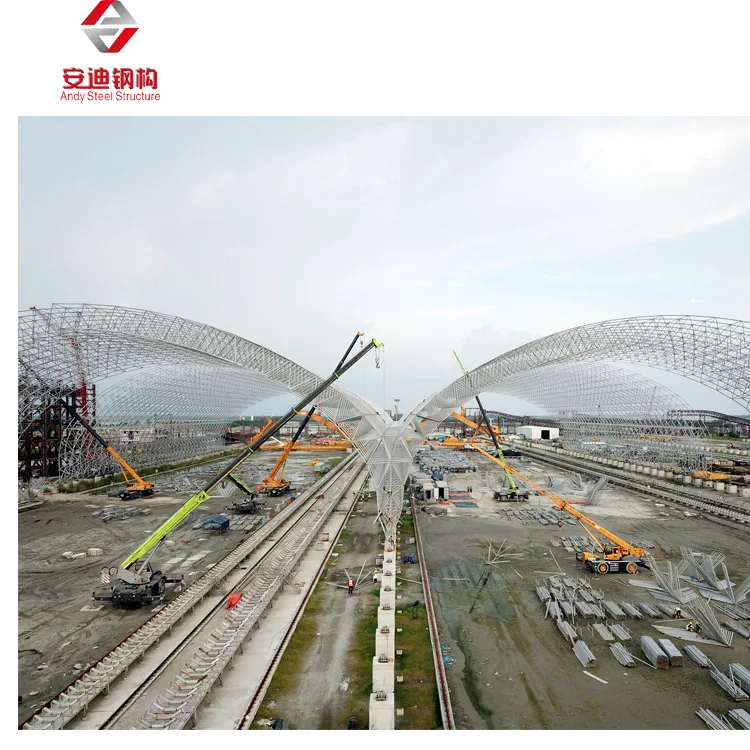

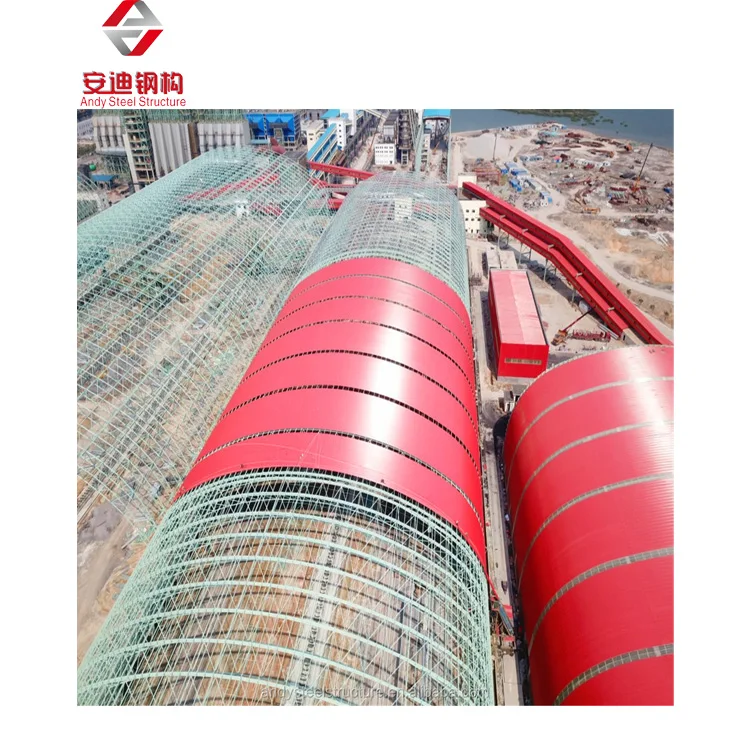

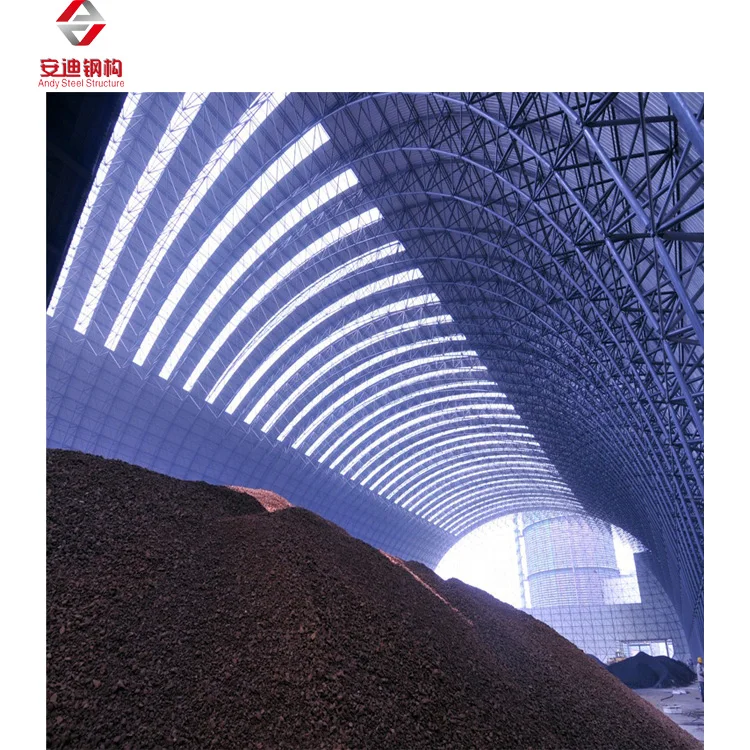

With its arched truss design and galvanized steel framework, this structure maximizes space efficiency while ensuring long-term resilience. Ideal for power plants, it safeguards coal storage from environmental exposure while supporting heavy loads.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Galvanized Steel Coating: Triple-layer corrosion protection in the Pro model outperforms industry benchmarks, enabling safe use in corrosive environments.
   • Modular Welded Trusses: Interconnected beams allow 20% faster assembly than traditional methods, reducing downtime.
   • High-Grade Steel (Q345): Enhanced tensile strength in Advanced/Pro models supports heavier loads (e.g., coal storage in seismic zones).

2. Version Selection Guidance:

   • Base Model: Suitable for standard coal sheds with moderate load requirements (e.g., small-to-medium power plants).
   • Advanced Model: Ideal for industrial sites needing extended durability and adaptability (e.g., chemical resistance paired with adjustable truss spacing).
   • Pro Model: Best for high-stress environments (e.g., coastal power plants or earthquake-prone regions) where extreme load capacity and corrosion resistance are critical.

With the Pro version’s triple-layer coating, you can ensure coal sheds remain intact even in saltwater or acidic conditions. Pair this with its 650 kg/m² load capacity to safely store heavy machinery or bulk materials. The Advanced Model’s adjustable truss spacing offers flexibility for retrofitting existing facilities.
