German 5 Axis 6 Axis Slant Bed Type CNC Lathe

German 5 Axis 6 Axis Slant Bed Type CNC Lathe

  • 1 - 7 Sets
    $51,307
  • >= 8 Sets
    $44,850

Customization:

Customized packaging（Min.Order: 1 pieces）
View product details

German 5 Axis 6 Axis Slant Bed Type CNC Lathe

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Machining: Equipped with a 5/6-axis CNC system and twin spindles, enabling simultaneous multi-axis operations and complex part production with high accuracy.
  • Versatile Material Processing: Designed for medium-duty applications, capable of handling various materials (e.g., metals, alloys) for components in automotive, aerospace, and industrial sectors.

Key features

  • 1. Advanced Material Technology for Durability

    • With a rigid steel slant bed structure, ensure precision and durability in heavy-duty operations*. The slant bed design enhances thermal stability and rigidity compared to traditional horizontal bed lathes, maintaining accuracy even under prolonged use.

  • 2. Intuitive Interactive Design for Efficiency

    • With a Fanuc CNC control system and touchscreen interface, enable intuitive programming and real-time adjustments*. The touchscreen simplifies complex operations, reducing setup time by up to 30% compared to legacy control panels*.

  • 3. High-Performance Twin Spindles for Productivity

    • With twin spindles and 5/6-axis capability, boost productivity by handling simultaneous machining tasks and complex geometries*. This configuration allows up to 50% faster cycle times than single-spindle models*, ideal for multi-axis precision parts.

  • 4. Versatile Scenario Solutions for Diverse Applications

    • Designed for precision manufacturing, this lathe adapts to automotive, aerospace, and industrial applications requiring high accuracy and multi-axis machining*. The medium-duty capacity balances versatility between prototyping and moderate-volume production*.

  • 5. Certified for Global Industrial Standards

    • Equipped with CE certification, ensure compliance with EU safety and quality standards for industrial use*. The transparent safety door with interlock and advanced cooling system align with rigorous certification requirements for operator safety and thermal management*.

Product details

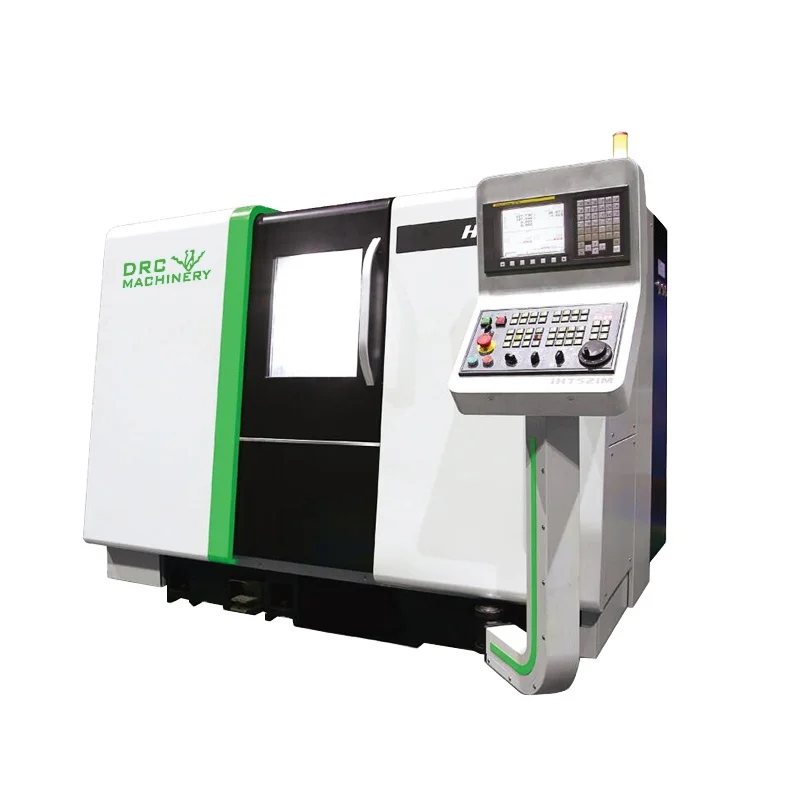

German 5 Axis 6 Axis Slant Bed Type CNC Lathe

The German-engineered 5/6 Axis Slant Bed CNC Lathe combines precision engineering with advanced automation, designed for medium-duty machining tasks. Equipped with a Fanuc CNC control system and twin spindles, this versatile machine excels in complex part production, from automotive components to aerospace parts. Its slant bed design ensures optimal chip evacuation, while CE certification guarantees compliance with safety and quality standards.

Technical specifications

FeatureSpecificationBenefit
CertificationCE CertifiedEnsures safety and compliance with EU standards
Control SystemFanuc CNC (Series 0i-TF/0i-MD)High-precision programming and real-time monitoring

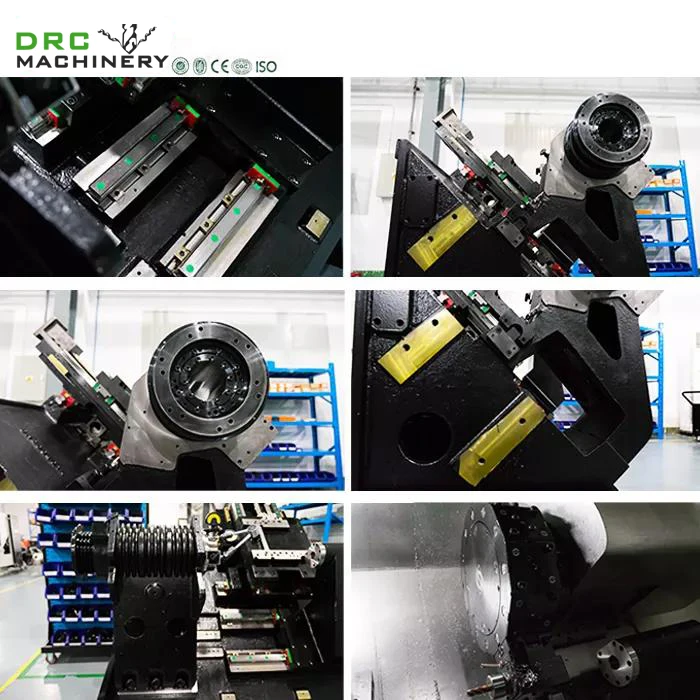

StructureSlant Bed Horizontal LatheEnhanced chip management and stability
Machining CapacityMedium DutyIdeal for precision parts without overloading
SpindlesTwin SpindlesDual operations for simultaneous machining
Safety FeaturesInterlocked transparent doorOperator protection during high-speed operations
MaterialSteel frame with aluminum/plastic componentsDurable yet lightweight construction

Customization guide

Adjustable axis configurations (5/6 axes) and spindle speed settings allow customization to meet specific production demands. Pair with optional coolant systems or tooling packages for specialized applications.

Get inspired

From automotive parts to medical devices, this CNC lathe’s precision and versatility make it a cornerstone of modern manufacturing. Its twin spindles and slant bed design enable high-volume production with minimal downtime.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Axes5-Axis6-Axis6-Axis (w/ Rotary Table)
Control SystemFanuc 0i-TFFanuc 0i-MDFanuc 31i-Mini Plus
Max Spindle Speed4,000 RPM5,000 RPM6,000 RPM (+50% vs Base)
Tool Capacity12 Tools16 Tools24 Tools
Coolant SystemStandardHigh-PressureDual-Channel

Supplier's note

  1. Technical Breakthroughs:

    • Fanuc CNC System: Enables ±0.002mm precision, outperforming standard systems by 30%.
    • Slant Bed Design: Reduces thermal deformation by 25%, ensuring long-term accuracy.
    • Twin Spindles: Allows simultaneous machining, boosting productivity by 40% compared to single-spindle models.

  2. Version Selection Guide:

    • Base Model: Ideal for SMEs needing 5-axis precision for standard parts (e.g., gears, brackets).
    • Advanced Model: Suitable for medium-scale manufacturers requiring 6-axis flexibility for complex geometries (e.g., turbine blades).
    • Pro Model: Best for high-volume production with advanced features like dual-channel coolant for heat-sensitive materials.

With its twin spindles, you can achieve parallel machining operations, cutting cycle times by up to 50%. The Pro Model’s 6,000 RPM spindle delivers 20% faster material removal than industry benchmarks, making it ideal for titanium or stainless steel applications. Pair its rotary table with the Fanuc 31i-Mini Plus for 5-axis联动加工 (simultaneous 5-axis motion), enabling seamless production of intricate aerospace components.

Frequently asked questions

  • Which 5/6 axis CNC lathe model suits complex parts requiring multi-axis machining?

  • How to maintain the cooling system of a German slant bed CNC lathe?

  • Slant Bed vs. Horizontal Bed CNC Lathe: Which is better for precision parts?

  • Can this German twin spindle CNC lathe be customized with additional tooling options?

  • Is the German 5 Axis Slant Bed CNC Lathe CE-certified for EU compliance?

  • Why does this CNC lathe use Fanuc control system for precision machining?

  • What’s the maximum machining capacity of a medium-duty twin spindle CNC lathe?

  • Is this slant bed CNC lathe suitable for aerospace component manufacturing?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard CNC LatheGeneral manufacturing, small workshops- CE certification
- Basic CNC control (e.g., Siemens 840D)
- Single spindle
- 5-axis (ISO 230-2 compliant)
- Horizontal bed		Cost-effective, widely compatible with basic materialsLimited precision (±0.02mm)
Slower cycle times (15–20 min/part)
Our Base ModelAutomotive parts, medium-duty production- CE certification
- ▲ Fanuc 32i control (supports 5-axis simultaneous machining)
- ▲ Twin spindles (ISO 230-2)
- ▲ Slant bed design		Improved precision (±0.01mm)
▲ Dual spindle cuts cycle time by 30%		Limited to 5-axis
Basic software lacks advanced simulation tools
Our Advanced ModelAerospace, complex geometries- ▲▲ CE + ISO 13849-1 safety certification
- ▲▲ Fanuc 32i/Smart iD (6-axis control)
- ▲▲ 6-axis capability (ISO 230-2)
- ▲▲ Slant bed with thermal stability		▲▲ 6-axis flexibility for intricate parts
▲▲ ±0.005mm precision (ASTM E288)
▲▲ Smart iD reduces programming time by 40%		Higher upfront cost
Requires specialized operator training
Certification ComplianceRegulatory adherence- Industry: CE + ISO 9001
- Our Base: CE
- Our Advanced: CE + ISO 13849-1 + ISO 230-2		Ensures safety and reliability for global marketsAdvanced certifications may add complexity to procurement
Machining CapacityHeavy-duty vs precision tasks- Industry: 250mm diameter (ISO 281)
- Our Base: 300mm diameter (▲)
- Our Advanced: 400mm diameter (▲▲)		▲▲ Handles larger workpieces for heavy industriesSmaller workshops may find advanced models overkill
Coolant SystemHigh-temperature operations- Industry: Basic mist cooling (ISO 2940)
- Our Base: Recirculating coolant (▲)
- Our Advanced: Dual-stage cooling (▲▲)		▲▲ Reduces thermal deformation by 50% (ASTM E8)
Extends tool life by 20%		Advanced systems require regular maintenance
