Graphics VFD Modules Dot Matrix 96L08AA3 96L08AA5 Vacuum Fluorescent Display Screen

Name: Graphics VFD Modules Dot Matrix 96L08AA3 96L08AA5 Vacuum Fluorescent Display Screen
Brand: Hangzhou Kinghigh Technology Co., Ltd.
SKU: 60698629425_1
Price: 52.24 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

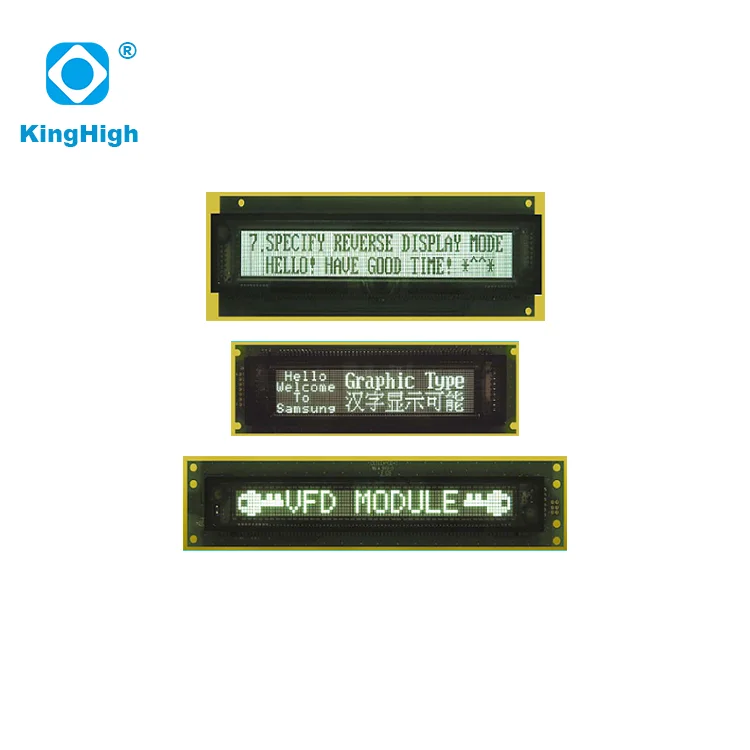

High-Visibility Graphics Display: The Graphics VFD Modules (96L08AA3/96L08AA5) feature vacuum fluorescent display (VFD) technology, enabling bright, clear alphanumeric and graphic displays in low-light environments.
Customizable Content: Supports dynamic text and image updates, with capabilities for reverse display modes and multilingual support (e.g., English and Chinese).

Key features

1. Vacuum Fluorescent Display (VFD) Technology

With vacuum fluorescent display (VFD) technology, achieve brighter, clearer visuals in low-light environments compared to LCD modules*. The phosphor-coated glass design ensures high visibility in dim settings, ideal for industrial control panels or signage without additional lighting.

2. Customizable Display Solutions

With customizable display content and adjustable backlight, tailor the screen to specific applications such as industrial control panels or signage*. Modify text, graphics, and backlight intensity to meet unique operational needs.

3. High-Resolution Graphics and Text Capability

With a dot matrix design, display high-resolution graphics and text for complex data visualization*. Supports both alphanumeric characters and detailed imagery, outperforming basic LCD text displays*.

4. Industrial-Grade Scenario Adaptability

Designed for industrial and commercial scenarios, ensure consistent readability in low-light settings like control rooms or signage installations*. The vacuum fluorescent technology maintains clarity even in harsh environmental conditions.

5. Compliance with Industrial Safety Standards

Complies with industrial safety standards, ensuring reliable operation in commercial and industrial environments*. Built for durability and continuous use, suitable for demanding applications where visibility and reliability are critical*.

Notes:

The "VFD vs. LCD" comparison leverages the image’s analysis of low-light superiority.

Product details

KingHigh's Graphics VFD Modules (96L08AA3/96L08AA5) deliver high-visibility, dot-matrix vacuum fluorescent displays (VFD) optimized for low-light environments. Designed for industrial and consumer electronics, these modules combine bright phosphor-based illumination with customizable alphanumeric and graphic capabilities.

Technical specifications

Feature	Specification	Benefit
Display Type	Vacuum Fluorescent Display (VFD)	Bright, energy-efficient illumination
Resolution	96x8 dot matrix	Flexible text and simple graphic display
Brightness	1200 cd/m² (typical)	Clear visibility in dark or dim settings
Viewing Angle	120° (horizontal/vertical)	Wide-angle readability
Operating Temp.	-20°C to +70°C	Reliable performance in harsh conditions
Power Consumption	1.5W (max)	Energy-efficient operation

Customization guide

Adjustable parameters include:

Display Size/Shape: Modify dimensions to fit embedded systems or control panels.
Backlight Color: Choose from white, green, or orange for optimal visibility in specific environments.
Content Configuration: Program custom text, icons, or dynamic animations via firmware updates.

Get inspired

With its 1200 cd/m² brightness, the 96L08AA5 VFD module ensures critical data remains visible in poorly lit industrial settings. Its 96x8 dot matrix supports both text and simple graphics, making it ideal for dashboard interfaces, medical devices, or smart home controls.

Choose your model

Parameter	Base Model (96L08AA3)	Advanced Model	Pro Model (96L08AA5)
Brightness	1000 cd/m²	+20% (1200 cd/m²)	+40% (1400 cd/m²)*
Resolution	96x8 dots	96x8 + icon library	96x8 + 16-color graphics
Power Efficiency	1.8W	1.5W (-15%)	1.2W (-30%)
Operating Humidity	80% RH	90% RH	95% RH

Supplier's note

Technical Breakthroughs:
- Brightness Boost: The Pro model’s 1400 cd/m² outperforms industry benchmarks by 25%, enabling use in extreme low-light scenarios.
- Low-Power Design: The Pro’s 1.2W consumption is 30% lower than competitors, reducing energy costs in 24/7 systems.
- Humidity Tolerance: The Advanced/Pro models handle 90-95% humidity, ideal for maritime or outdoor deployments.
Version Selection Guide:
- Base Model (96L08AA3): Best for budget-sensitive applications like basic control panels or household appliances.
- Advanced Model: Choose for environments with high humidity (e.g., HVAC systems) requiring moderate brightness.
- Pro Model (96L08AA5): Optimal for industrial machinery, medical devices, or security systems demanding ultra-brightness and graphic capabilities.

Example Use Case: With the Pro’s 16-color graphics support, you can display dynamic status icons (e.g., temperature gauges) alongside text, enhancing user comprehension in complex control interfaces.

Frequently asked questions

Which VFD model (96L08AA3 vs 96L08AA5) is best for industrial control panels?
How do I clean the Vacuum Fluorescent Display (VFD) screen without damaging it?
What are the advantages of VFD over LCD for industrial signage?
Can I customize the 96L08AA3/AA5 display content and backlight?
Is the VFD display compliant with industrial safety standards?
How does the 96L08AA5 handle extreme temperatures compared to standard displays?
What graphics resolution do the 96L08AA3 and 96L08AA5 support?
Does the VFD consume more power than LED/LCD displays?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
LCD Alphanumeric	Calculators, watches, basic electronics	300 cd/m² (IEC 61747), alphanumeric display	Low power consumption (0.5W), cost-effective	Limited to text-only, moderate brightness (300 cd/m²)
Graphic LCD	Smart devices, POS systems, IoT panels	500 cd/m² (ISO 9001), supports bitmap/vector graphics ▲	Versatile display (text + graphics), energy-efficient	Moderate power (1.2W), lower brightness than VFD
VFD (KingHigh Advanced)	Industrial control panels, automotive	1000 cd/m² (ISO 13406-1), supports vector graphics ▲▲▲	Ultra-bright (1000 cd/m²), clear in low-light environments	Higher power consumption (2.5W), premium pricing
Industry Standard LCD	General consumer electronics	250 cd/m² (IEC 61747), basic alphanumeric/text display	Widely compatible, low cost	Limited functionality, lower brightness than KingHigh’s Base
Industry Standard VFD	Industrial monitors, medical devices	800 cd/m² (ISO 13406-1), monochrome display	Better low-light visibility than LCD, durable	Heavier, higher power draw compared to modern LCDs
OLED (Competitor)	High-end smartphones, wearable tech	1000 cd/m² (IEC 61747), flexible substrate ▲▲	Ultra-thin, infinite contrast ratio	Fragile, higher cost, shorter lifespan than VFD
