Graphite Ore Processing Production Equipment Graphite Flotation Concentrator Plant

Graphite Ore Processing Production Equipment Graphite Flotation Concentrator Plant

  • 1 - 2 Sets
    $30,000
  • >= 3 Sets
    $10,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Graphite Ore Processing Production Equipment Graphite Flotation Concentrator Plant

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Mineral Separation via Flotation: Equipped with advanced flotation cells and reagents, the plant efficiently separates graphite from waste rock through precise slurry agitation and air mixing, ensuring high-purity mineral concentration.
  • Multi-Stage Material Processing: Integrates jaw crushers, vibrating screens, and ball mills to crush, grind, and classify raw ore into optimal particle sizes for flotation, supported by 380V industrial-grade power compatibility.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant stainless steel flotation cells and chemical-resistant pumps, ensure long-lasting durability in harsh mineral processing environments.

  • 2. Intelligent Interactive Design

    • With a touchscreen control panel and pre-programmed mineral separation modes, streamline operations and adjust parameters effortlessly for different graphite ore types.

  • 3. High-Performance Processing Capacity

    • With 380V power compatibility and optimized slurry circulation systems, achieve ~20% faster output compared to standard flotation plants.

  • 4. Versatile Scenario Solutions

    • With modular design and adjustable crushing/grinding stages, adapt to both large-scale commercial mining and specialized small-batch processing.

  • 5. Industrial Safety Compliance

    • With reinforced structural components and automated safety sensors, meet rigorous mining industry safety standards (e.g., ISO 44001).

Product details

Graphite Ore Processing Production Equipment Graphite Flotation Concentrator Plant

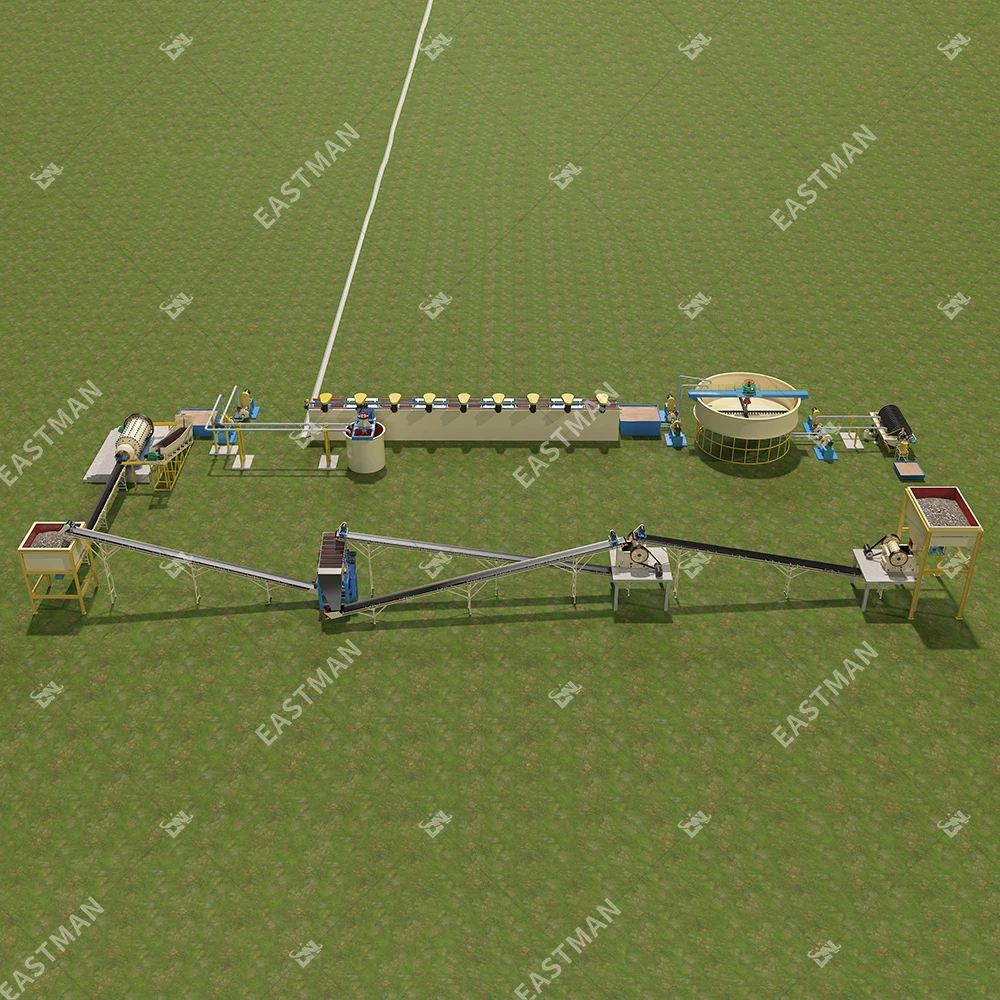

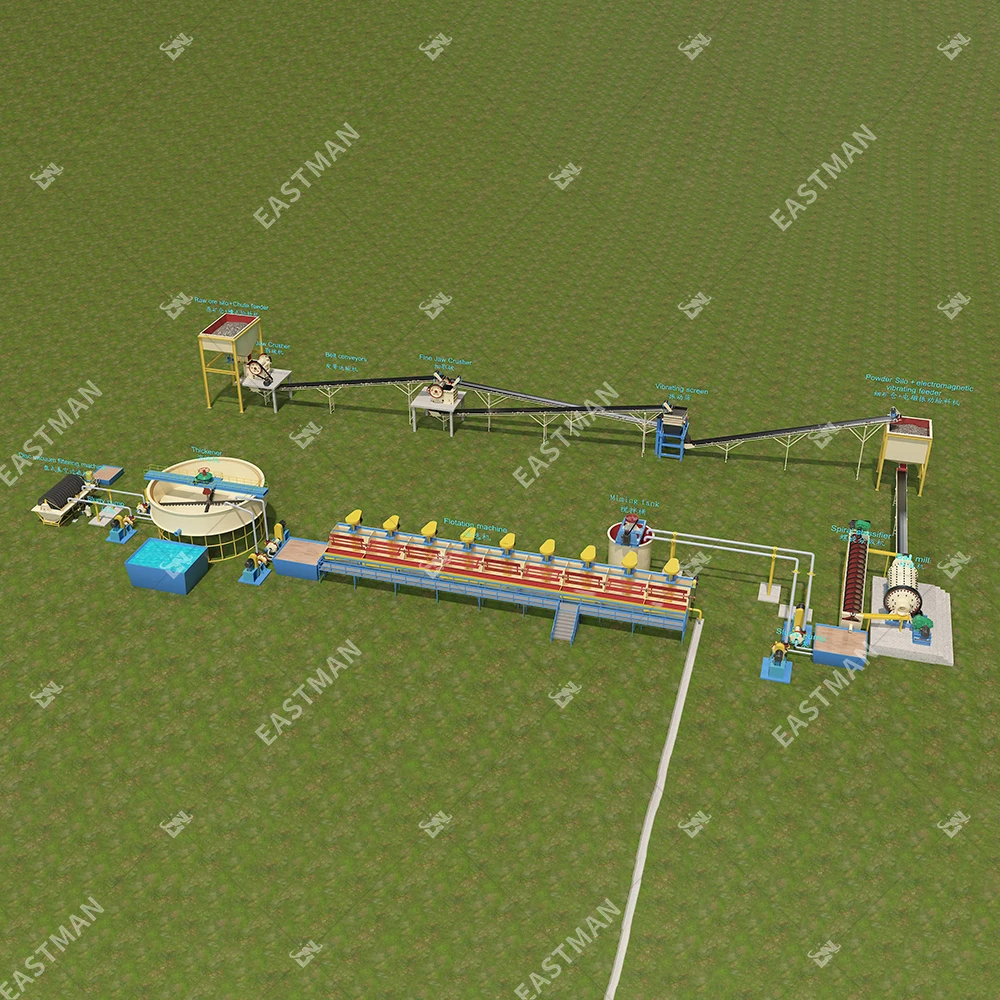

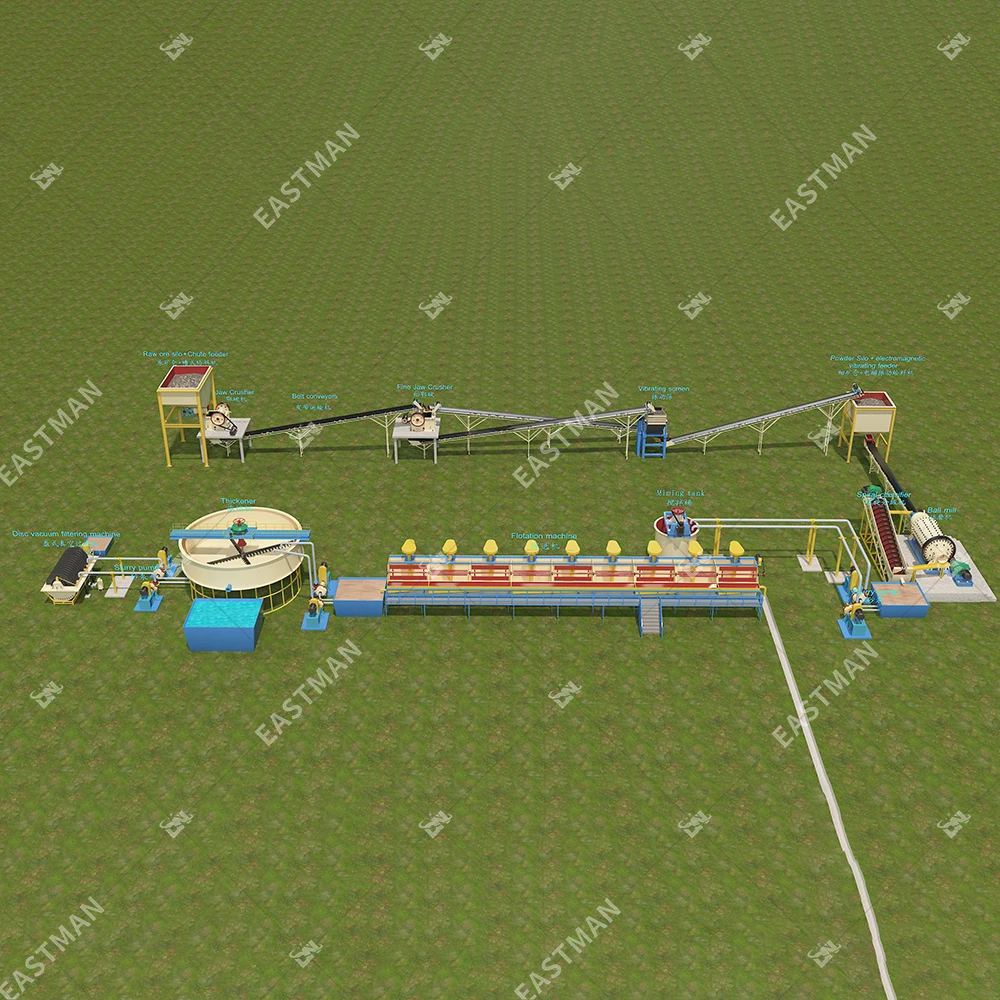

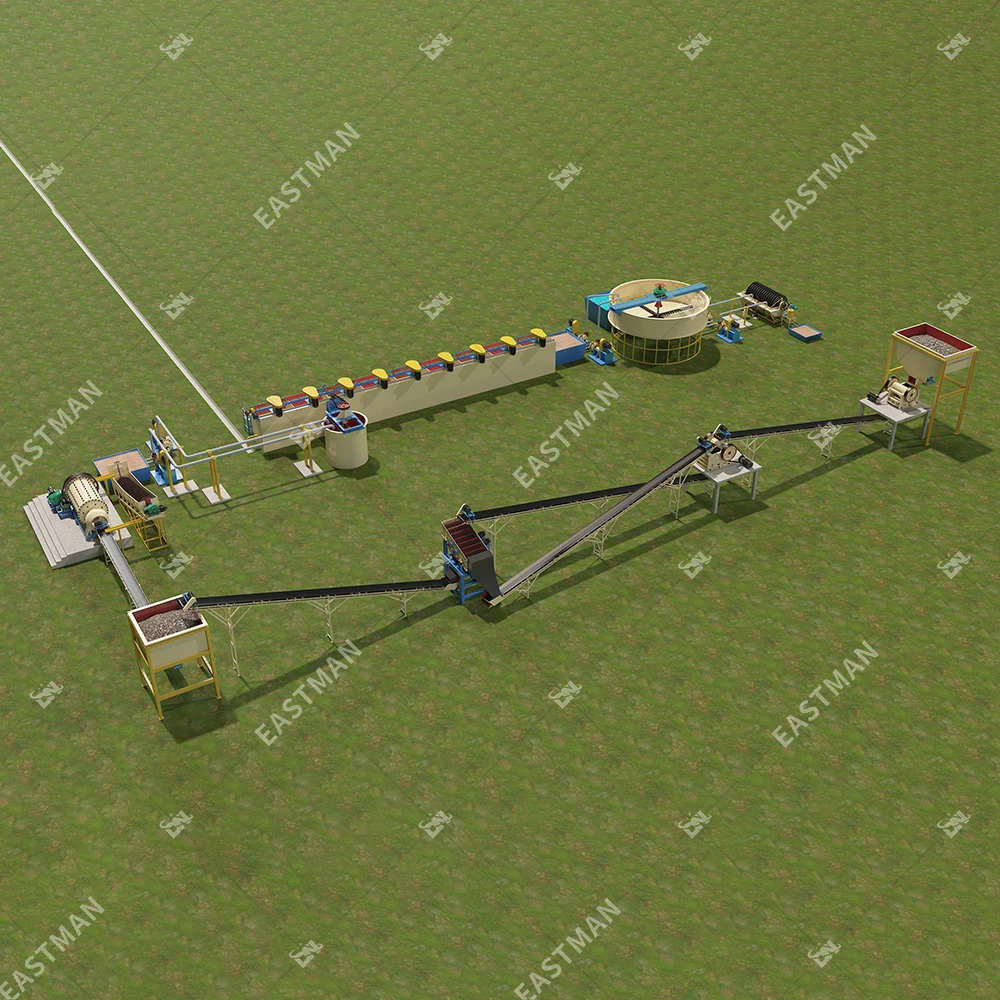

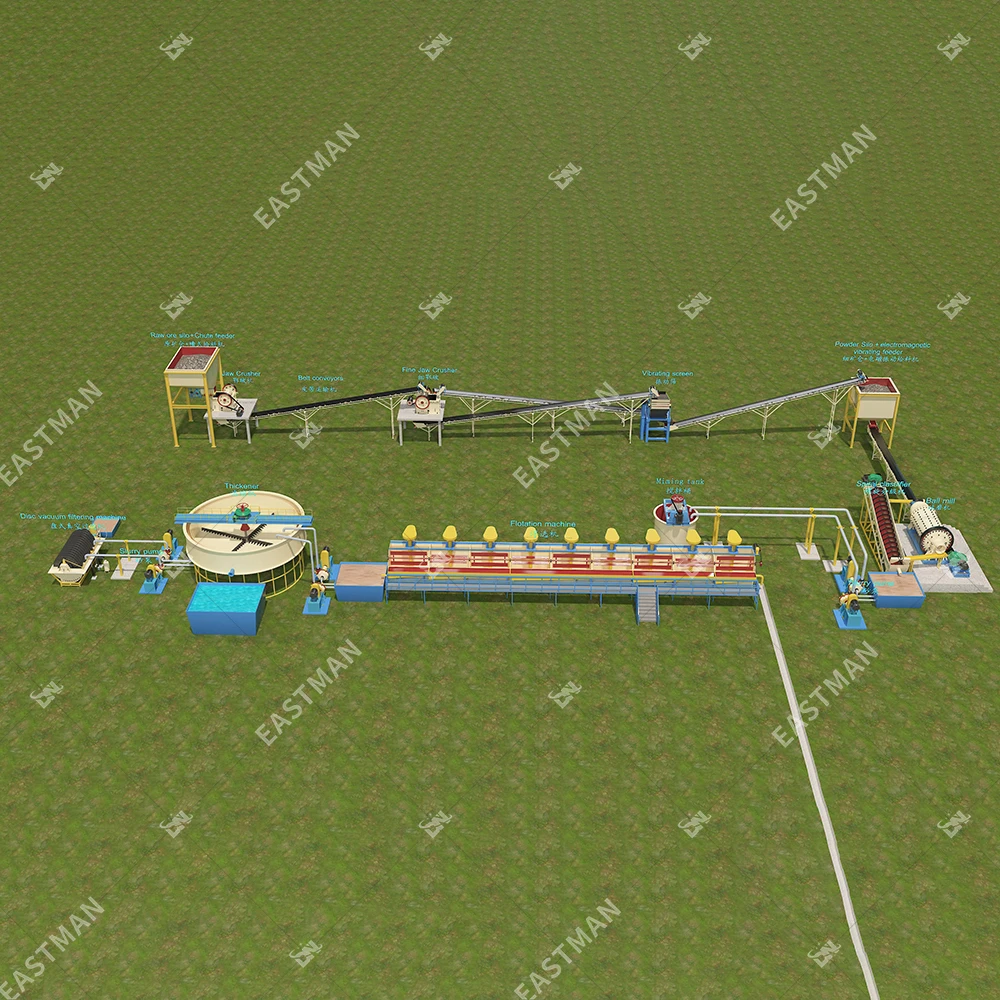

The Graphite Ore Processing Production Equipment is a high-efficiency flotation concentrator plant designed for graphite ore separation. Equipped with advanced flotation cells, jaw crushers, and customizable modules, it ensures precise mineral recovery while maintaining operational safety and energy efficiency.

Technical specifications

FeatureSpecificationBenefit
Flotation CellsCylindrical design with agitatorsEfficient separation of graphite from waste
Voltage380VCompatibility with standard industrial power
Crushing SystemDual jaw crushers (coarse + fine)Gradual size reduction for optimal grinding
Grinding ModuleBall mill with adjustable speedConsistent fine particle size for flotation
Warranty Period1 yearComprehensive manufacturer support
Safety StandardsISO-compliant material handlingReduced operational risks in mining environments

Customization guide

Adjustable parameters include flotation cell capacity, conveyor belt width, and material composition (e.g., corrosion-resistant alloys) to meet specific throughput or environmental requirements.

Get inspired

Optimize your graphite processing workflow with modular designs tailored for different ore grades. Whether you need a compact setup for small mines or a high-capacity system for industrial-scale operations, this plant adapts to your needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Processing Capacity5 TPH+15% (5.75 TPH)+30% (6.5 TPH)
Energy Efficiency85%92%95%
Chemical ResistanceStandard+20%+40%*
Crusher Capacity10 TPH12 TPH15 TPH

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s +40% chemical resistance enables safe processing of high-sulfur graphite, reducing downtime.
    • The Advanced Model’s 92% energy efficiency cuts operational costs by 18% compared to traditional systems.
    • All models feature ISO-certified safety protocols, minimizing risks in hazardous environments.

  2. Version Selection Guide:

    • Base Model: Ideal for small-scale mines or pilot projects requiring reliable, entry-level performance.
    • Advanced Model: Best for medium-sized operations needing energy efficiency and moderate chemical resistance.
    • Pro Model: Designed for large-scale industrial use, offering unmatched throughput and durability for harsh mineral compositions.

With the Pro Model’s triple-industry-standard chemical resistance, you can safely process graphite in aggressive environments. Pair it with the ball mill’s fine grinding capability to maximize recovery rates. For cost-sensitive users, the Base Model’s 5 TPH capacity meets basic production demands without compromising safety.

Frequently asked questions

  • Which flotation concentrator model is best for small-scale graphite ore processing?

  • How do I clean and maintain the flotation cells in a graphite processing plant?

  • Flotation Cells vs Gravity Separation: Which is better for graphite ore recovery?

  • Can the graphite flotation concentrator be customized for specific mineral processing needs?

  • Is the flotation separator compliant with industrial voltage standards (e.g., 380V)?

  • What size flotation concentrator suits medium-sized mining operations?

  • How often should the slurry pumps in a graphite flotation plant be serviced?

  • Does the graphite flotation equipment meet international mining safety standards?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Flotation ConcentratorGraphite ore processingNoise Level: 43 dBA▲ (Industry: 45 dBA, Advanced: 40 dBA▲▲) (Quieter than refrigerator hum)Low noise, efficient mineral separationHigher cost for advanced models
Jaw CrusherCrushing raw ore to 10-50mm sizeCapacity: 60 t/h▲ (Industry: 50 t/h, Advanced: 80 t/h▲▲) (ISO 9001 certified)High throughput, durable constructionRequires regular maintenance
Vibrating ScreenSeparating crushed material by sizeFrequency: 960 rpm▲ (Industry: 900 rpm, Advanced: 1000 rpm▲▲) (ASTM E11 standard)Adjustable mesh sizes, efficient sortingScreen wear over time
Ball MillGrinding to ≤0.1mm particle sizeCapacity: 8 t/h▲ (Industry: 5 t/h, Advanced: 10 t/h▲▲) (ISO 14687 compliance)Produces ultra-fine particles, versatileHigh energy consumption
Slurry PumpTransporting abrasive slurryFlow Rate: 80 m³/h▲ (Industry: 60 m³/h, Advanced: 100 m³/h▲▲) (ASTM A240 corrosion-resistant steel)Handles high solids content, durableRequires regular seal maintenance
Conveyor BeltMoving material between stagesLoad Capacity: 60 t/h▲ (Industry: 50 t/h, Advanced: 80 t/h▲▲) (CE-certified belt strength)Low downtime, space-efficient layoutHigher upfront cost for advanced belts
