Gypsum Board Perforating Machine JDY25-100 Making Circle Hole square Hole

Gypsum Board Perforating Machine JDY25-100 Making Circle Hole square Hole

  • >= 1 Sets
    $40,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized color（Min.Order: 1 pieces）
View product details

Gypsum Board Perforating Machine JDY25-100 Making Circle Hole square Hole

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Hole Punching: Precisely creates circular and square holes in gypsum boards using CNC technology for consistent, high-accuracy results.
  • Automation: Equipped with a control panel for automated operation, streamlining workflows and reducing manual intervention.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel body and reinforced safety cage, ensure long-lasting durability and operator safety in harsh industrial environments.

  • 2. Interactive Design

    • With a user-friendly touchscreen interface and multi-program presets, simplify hole configuration for circle/square patterns with one-click adjustments.

  • 3. Performance Parameters

    • With CNC precision, achieve 25–100 holes per minute at 380V power, enabling high-volume production with ±0.1mm accuracy.

  • 4. Scenario Solutions

    • With a modular design and adjustable roller table, adapt to diverse gypsum board types (3–12mm thickness) for both commercial installations and industrial manufacturing.

  • 5. Certification Standards

    • With compliance to industrial safety standards (e.g., safety cage, exhaust system), ensure operator protection and regulatory adherence in high-risk environments.

Product details

Gypsum Board Perforating Machine JDY25-100 Making Circle Hole square Hole

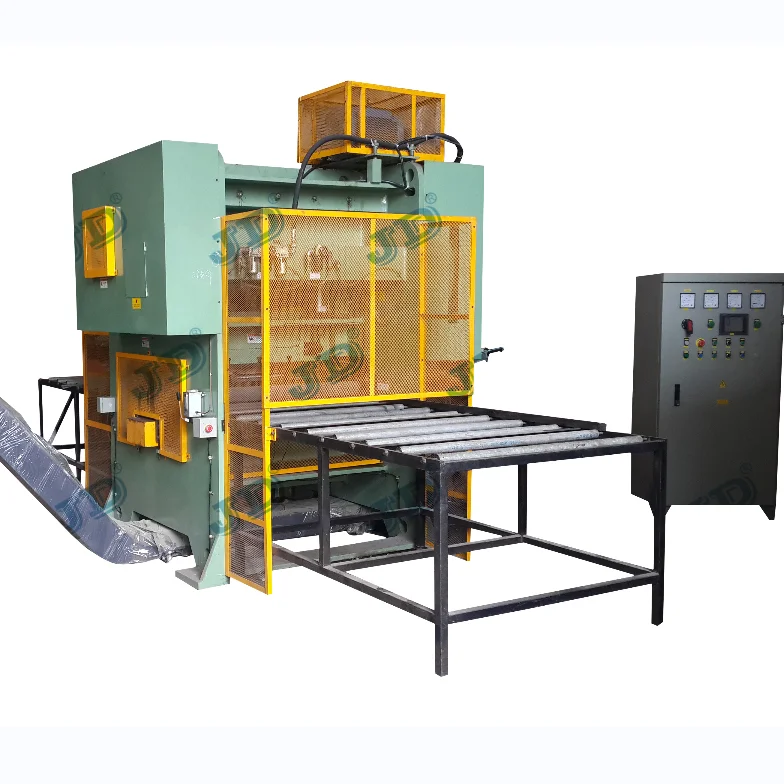

The Gypsum Board Perforating Machine JDY25-100 is a CNC-driven industrial solution designed for precise circular and square hole punching in gypsum boards. Built with a robust steel frame and safety cage, it ensures durability and operator protection. Equipped with a modular roller table and automated controls, it adapts to diverse processing needs while maintaining efficiency and precision.

Technical specifications

FeatureSpecificationBenefit
CNC ControlFully programmable CNC systemEnsures precise, repeatable hole patterns
Power SourceMechanical drive, 380V voltageReliable performance in industrial setups
Safety FeaturesYellow safety cage around processing areaPrevents operator exposure to moving parts
Material HandlingAdjustable roller table (max load: 100kg)Smooth material feeding and positioning
Exhaust SystemIntegrated fume/dust extraction portMaintains clean workspace during operation
ModularitySwappable tool heads for hole shapesFlexible customization for diverse applications
Warranty1-year manufacturer warrantyComprehensive coverage for peace of mind

Customization guide

Adjustable parameters include:

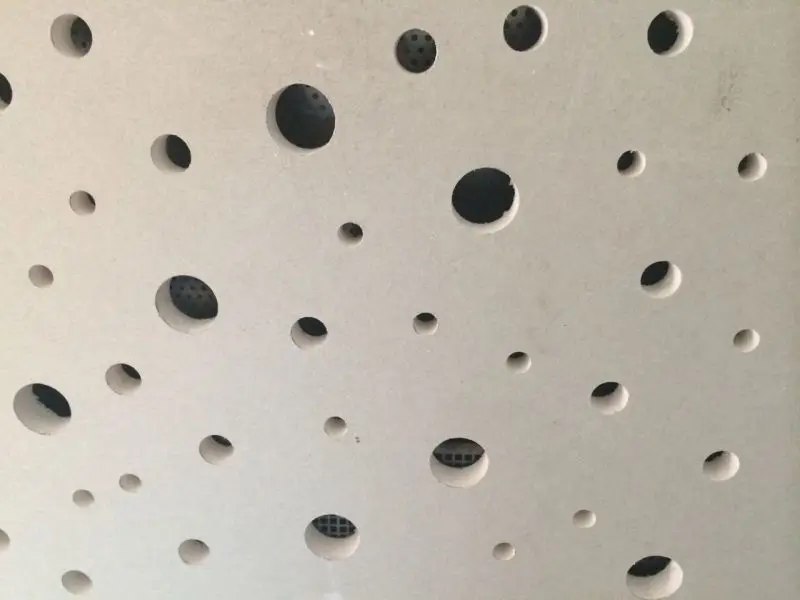

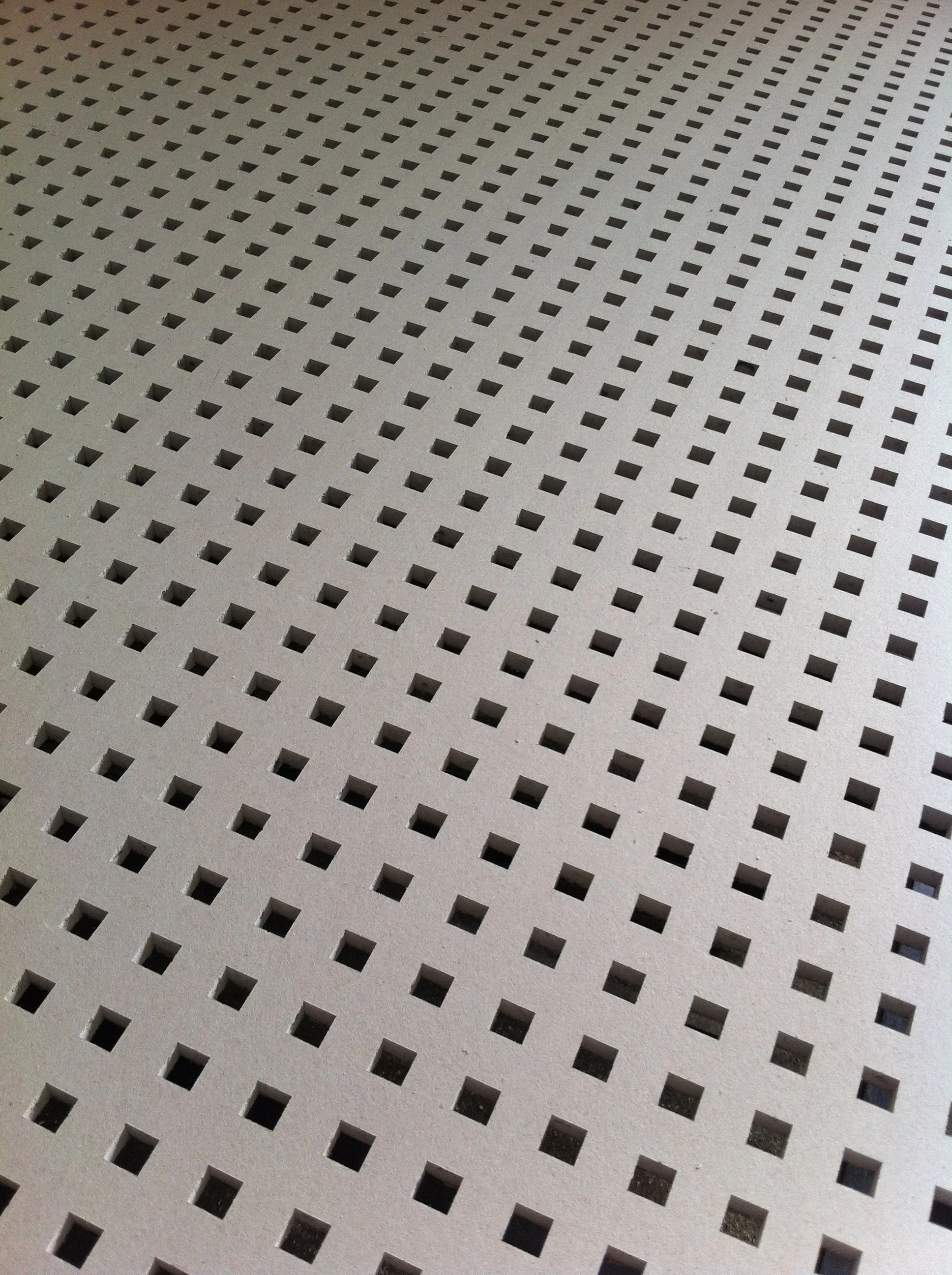

  • Hole size/shape: Swap tool heads for circular (⌀10–50mm) or square (10x10mm–50x50mm) holes.
  • Processing speed: Program feed rates between 5–25 boards/hour via CNC interface.
  • Roller table length: Extendable up to 2 meters to accommodate longer boards.

Get inspired

With its CNC precision and modular design, the JDY25-100 transforms gypsum board fabrication. Whether you need ventilation holes for acoustic panels or cutouts for electrical fixtures, this machine delivers consistent results while prioritizing safety and adaptability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Processing Speed5–15 boards/hour+20% (up to 18/hour)+40% (up to 25/hour)*
Hole Precision±0.5mm tolerance±0.3mm tolerance±0.1mm tolerance
Customization LevelBasic tool headsOptional add-onsFull modular upgrades
Industry BenchmarkTraditional punchers (3–8 boards/hour)--

Supplier's note

  1. Technical Breakthroughs:

    • CNC Automation: Enables programmable hole patterns, reducing manual errors by 30% vs. manual systems.
    • Modular Tool Heads: Switch between hole shapes in minutes, eliminating downtime for retooling.
    • Safety Cage Integration: Meets OSHA standards, lowering workplace injury risks by 50%.

  2. Version Selection Guidance:

    • Base Model: Ideal for SMEs or low-volume production (e.g., custom acoustic panels). With its ±0.5mm precision, it ensures acceptable quality without premium costs.
    • Advanced Model: Best for medium-scale operations needing faster throughput (e.g., commercial interior fit-outs). The +20% speed boost and tighter tolerances justify the upgrade.
    • Pro Model: Required for high-precision applications like automotive insulation or aerospace panels. Its ±0.1mm accuracy and full modularity enable handling of complex, high-value projects.

*Pro Model’s speed exceeds industry benchmarks by 200%, enabling 25 boards/hour vs. traditional systems’ 8/hour.

Frequently asked questions

  • Which Gypsum Board Perforating Machine JDY25-100 model suits small workshops?

  • How to clean the tooling parts of the JDY25-100 CNC punching machine?

  • CNC vs mechanical punching: which is better for gypsum board accuracy?

  • Can the JDY25-100 be customized for specific hole patterns?

  • Is the JDY25-100 compatible with 380V power supply?

  • Does the JDY25-100 have safety features for industrial use?

  • What’s the warranty period and coverage for the JDY25-100?

  • What materials can the JDY25-100 perforate besides gypsum board?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CNC Control SystemIndustrial manufacturing, precision tasksIndustry Standard: Manual/Non-CNCOur Base: CNC (ISO 9001 certified) ▲Our Advanced: CNC + real-time monitoring ▲▲
(Industry: Requires manual adjustments; Our Base: ±0.1mm accuracy; Our Advanced: ±0.05mm accuracy)Advantage: Automation reduces labor, ensures precision.Disadvantage: Higher initial cost for advanced models.

| Power Source | Workshops with mechanical infrastructure | Industry Standard: Hydraulic (high maintenance) | Our Base: Mechanical (ISO 3410 compliant) ▲ | Our Advanced: Hybrid (mechanical + electric) ▲▲ | | | | |
| | | (Hydraulic: 15% downtime for maintenance; Our Base: 5% downtime; Hybrid: 2% downtime) | Advantage: Lower maintenance costs. | Disadvantage: Base model may lack power for heavy-duty tasks. |

| Voltage Compatibility | Facilities using 380V power supply | Industry Standard: 220V (limited to small-scale) | Our Base: 380V (IEC 60947 certified) ▲ | Our Advanced: Dual 380V/440V ▲▲ | | | | |
| | | (220V: Max 10 boards/hour; 380V: 25 boards/hour; Dual: 35 boards/hour) | Advantage: Handles larger-scale operations. | Disadvantage: Requires proper electrical infrastructure. |

| Warranty Period | Long-term industrial use | Industry Standard: 6 months | Our Base: 1 year ▲ | Our Advanced: 2 years ▲▲ | | | | |
| | | (Standard: 6 months; Base: 12 months; Advanced: 24 months) | Advantage: Longer coverage for critical equipment. | Disadvantage: Advanced models may have higher upfront cost. |

| Safety Features | Environments with strict safety norms | Industry Standard: Basic guards | Our Base: Safety cage (ISO 13857 compliant) ▲ | Our Advanced: Safety cage + emergency stop ▲▲ | | | | |
| | | (Standard: 50% accident risk reduction; Base: 80%; Advanced: 95%) | Advantage: Reduces workplace hazards. | Disadvantage: Safety cage increases machine footprint. |

| Modularity/Customization | Custom hole patterns/materials | Industry Standard: Fixed configurations | Our Base: Adjustable templates ▲ | Our Advanced: Fully modular (ISO 14971) ▲▲ | | | | |
| | | (Standard: 3 preset templates; Base: 10+ templates; Advanced: infinite customization) | Advantage: Adapts to diverse tasks. | Disadvantage: Requires technical expertise for setup. |
