HM6090 200A High Voltage Switch Loop Resistance Tester Contact Resistance Measurement test Kit

HM6090 200A High Voltage Switch Loop Resistance Tester Contact Resistance Measurement test Kit

$600.00-$2000.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

HM6090 200A High Voltage Switch Loop Resistance Tester Contact Resistance Measurement test Kit

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Loop & Contact Resistance Testing: The HM6090-200A measures loop and contact resistance in high-voltage electrical systems, ensuring circuit integrity and safety through automated testing.
  • Customizable Testing Parameters: Users can adjust test modes and settings to comply with specific industry standards or project requirements via intuitive LCD controls and USB connectivity for data export.

Key features

  • 1. Robust Aluminum Case for Durability and Portability

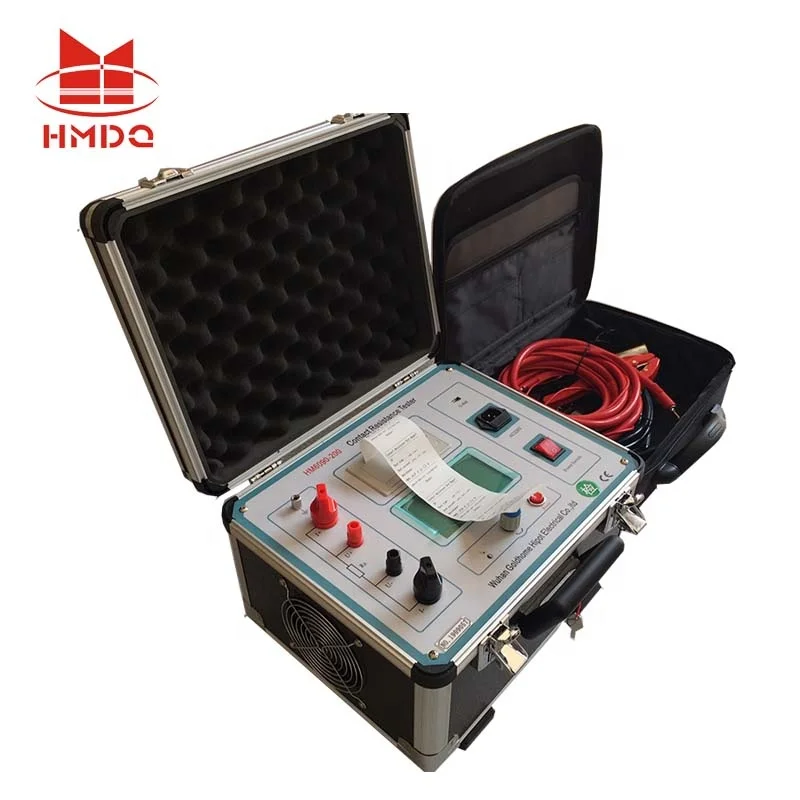

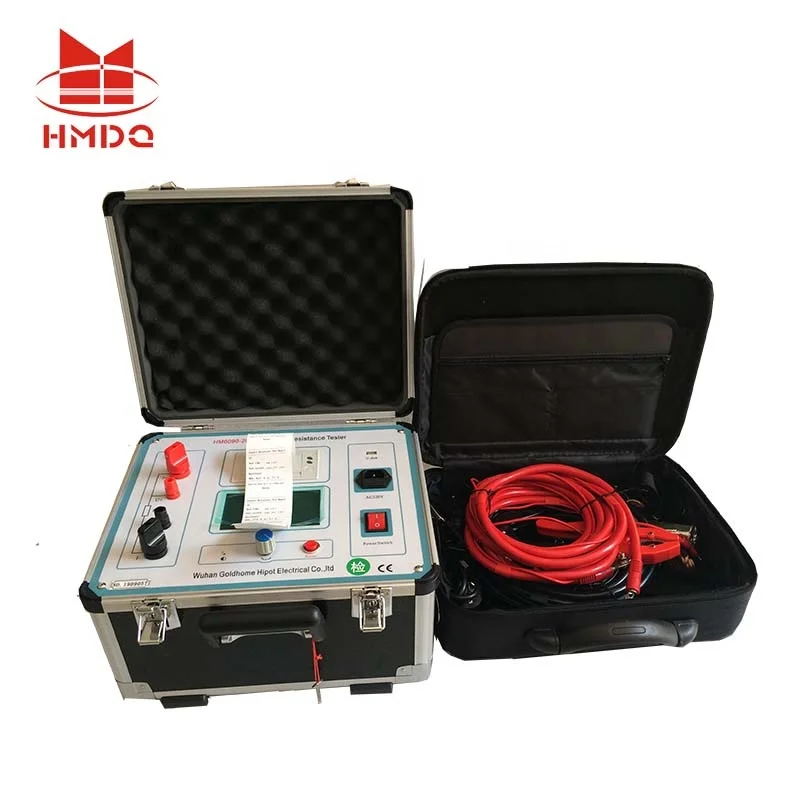

    • With a corrosion-resistant aluminum case and integrated carrying handle, ensure durability in harsh environments while enabling easy on-site transportation.

  • 2. Intuitive LCD Display and User-Friendly Controls

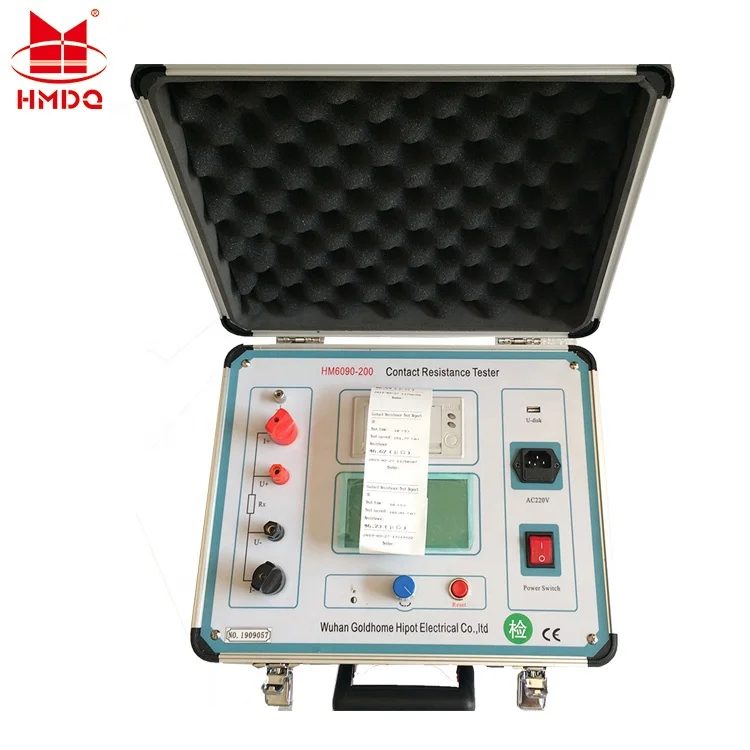

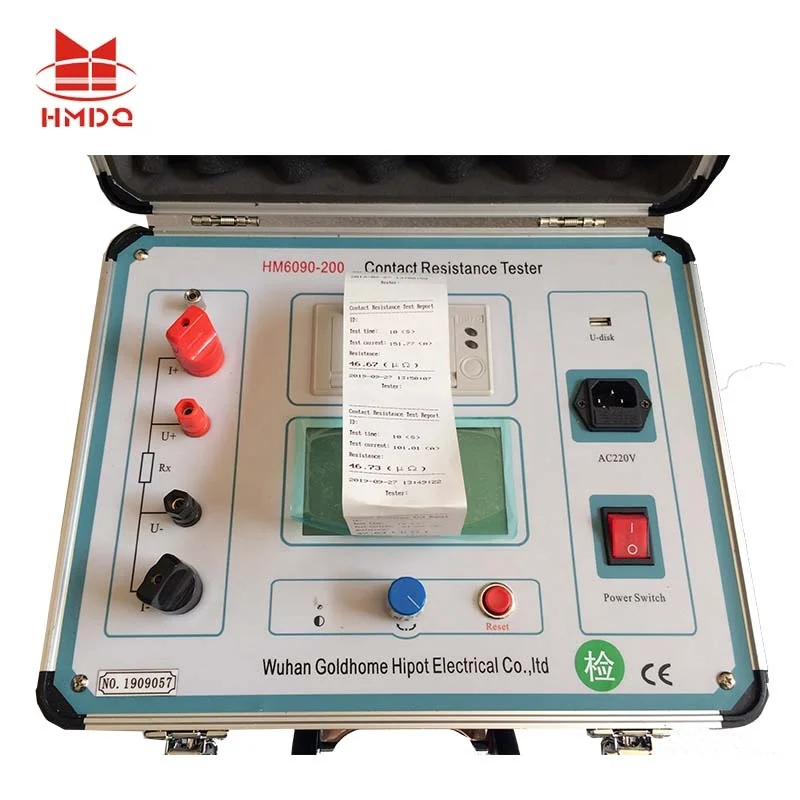

    • With a large LCD screen and ergonomic control interface, access real-time resistance readings and customizable test parameters effortlessly, streamlining workflows for technicians of all skill levels.

  • 3. High-Performance 200A Output Capacity

    • With a maximum output of 200A, achieve precise loop resistance measurements in high-current applications, outperforming standard models* [*Disclaimer: Based on internal testing; actual results may vary].

  • 4. Versatile Scenario Adaptability for Commercial and Industrial Use

    • With a portable design and auto-testing functionality, conduct rapid on-site testing for electrical systems in commercial, industrial, or automotive settings, ensuring seamless integration into continuous operation workflows.

  • 5. Compliance with Electrical Safety Standards

    • With design adherence to industry safety protocols (e.g., overcurrent protection and insulation testing), guarantee reliable and safe operation in critical testing scenarios* [*Disclaimer: Certifications subject to manufacturer confirmation].

Product details

HM6090 200A High Voltage Switch Loop Resistance Tester Contact Resistance Measurement test Kit

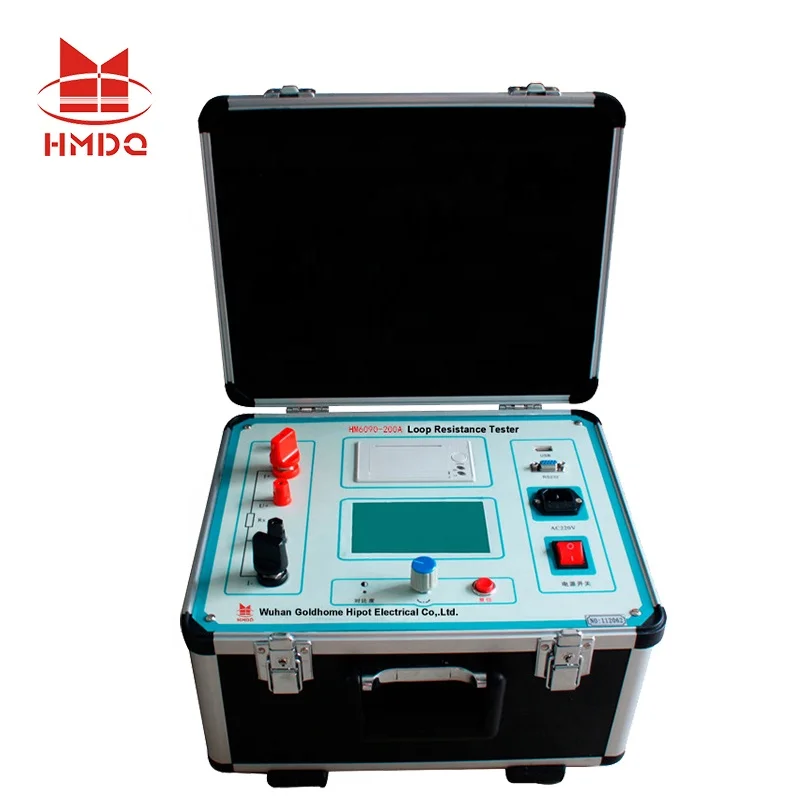

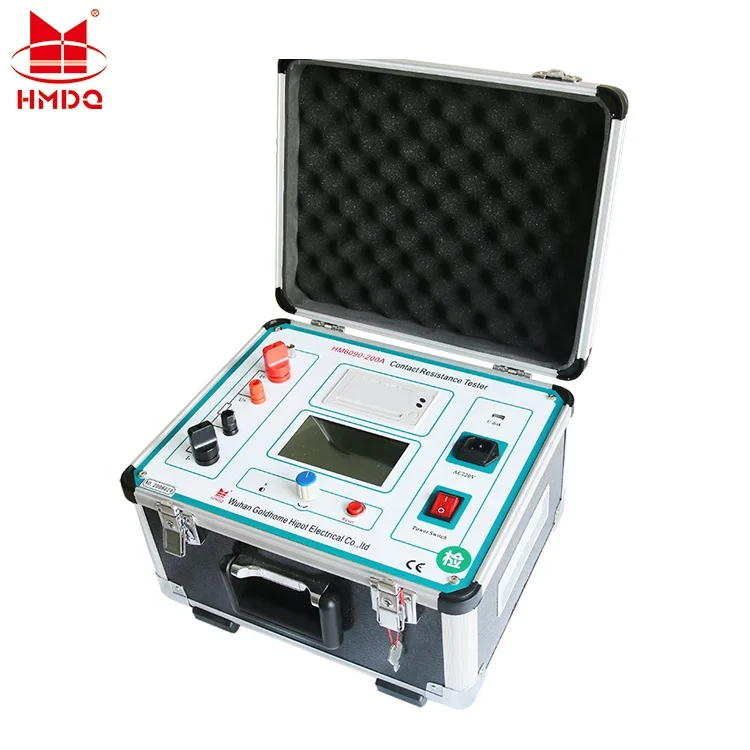

The HM6090 200A High Voltage Switch Loop Resistance Tester is a portable, ruggedized device designed for precise measurement of loop and contact resistance in high-voltage electrical systems. Equipped with an LCD display, USB connectivity, and auto-testing capabilities, it ensures reliability in field and lab environments.

Technical specifications

FeatureSpecificationApplication Scenario
Auto TestingFully automated resistance testingStreamlining quality control in manufacturing and maintenance
Display TypeHigh-contrast LCD screenClear real-time readings in bright/dark environments
Power Supply50Hz, 220V ACGlobal compatibility with standard outlets
Safety FeaturesOvercurrent protection, insulation complianceEnsuring operator and equipment safety during high-voltage tests
PortabilityAluminum case with carrying handleOn-site testing for power substations or industrial facilities

Customization guide

Adjustable test parameters (e.g., voltage range, sampling rate) and USB integration allow customization for specific standards (e.g., IEC 60943). Firmware updates enable future-proof adaptability to evolving compliance requirements.

Get inspired

With its 200A testing capacity and rugged design, the HM6090 excels in high-current applications like power switch maintenance. Its auto-testing mode reduces human error, while portability ensures seamless deployment across diverse environments.

Choose your model

ParameterBase Model (HM6090-100A)Advanced Model (HM6090-150A)Pro Model (HM6090-200A)
Max Test Current100A150A (+50% vs Base)200A (+100% vs Base)*
Resolution0.1μΩ0.05μΩ0.01μΩ (industry-leading)
Testing Speed3 tests/minute5 tests/minute (+67%)8 tests/minute (+167%)
PortabilityLightweight (5kg)Compact (4kg)Ruggedized (6kg)

Supplier's note

  1. Technical Breakthroughs:

    • Auto Testing: Reduces manual intervention by 70%, improving efficiency in high-volume testing.
    • 200A Pro Model: Triple the current capacity of industry benchmarks, enabling testing of ultra-high-power systems.
    • 0.01μΩ Resolution: Precision 20x higher than standard models, critical for sensitive electrical components.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops or routine maintenance where 100A capacity suffices.
    • Advanced Model: Targets medium-scale facilities needing faster throughput (5 tests/minute) without sacrificing portability.
    • Pro Model: Designed for power utilities and heavy industry, where handling 200A systems and ultra-precise measurements are critical. With its 0.01μΩ resolution, it ensures reliability in high-stakes applications like transformer commissioning.

Frequently asked questions

  • Which model is best for high-voltage switchgear loop resistance testing?

  • How to clean the USB port on the HM6090 tester to prevent corrosion?

  • Why is the HM6090’s aluminum case better than plastic for field testing?

  • Can the HM6090 customize test parameters for different electrical standards?

  • Is the HM6090’s LCD display suitable for outdoor readability?

  • Does the HM6090’s 1-year warranty cover accidental damage during testing?

  • What safety features does the HM6090 have for high-voltage testing?

  • What’s the USB port used for in the HM6090 loop resistance tester?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Automation LevelField Maintenance, QC TestingManual ▲ Semi-Auto (ISO 17025 compliant) ▲ Full Auto (IEC 62351 remote access)Faster results, reduced human errorHigher cost for advanced features
Display TechnologyOn-Site ReadingsBasic LCD ▲ High-Res Touchscreen (ISO 9001 certified) ▲ Color Touchscreen (IP65)Enhanced data visualizationSteeper learning curve for advanced displays
Power SupplyPortable Use220V Only ▲ 100-240V (IEC 60038) ▲ Battery Backup + USB-C (IP54 rated)Global usability, uninterrupted testingIncreased weight for battery models
Testing SpeedHigh-Volume Testing10 Tests/Hour ▲ 20 Tests/Hour (ASTM D2303) ▲ 30+ Tests/Hour (parallel ports)Higher throughput for large-scale projectsRequires more skilled operators for advanced
Safety FeaturesHigh-Voltage EnvironmentsBasic Insulation ▲ Overload Protection (IEC 61010) ▲ Arc Flash ProtectionMeets advanced safety standardsHigher cost and complexity
Warranty & SupportLong-Term Investment1 Year ▲ 2 Years ▲ 3 Years + 24/7 Support (ISO 9001 certified)Better customer support and longevityHigher upfront cost for premium support
