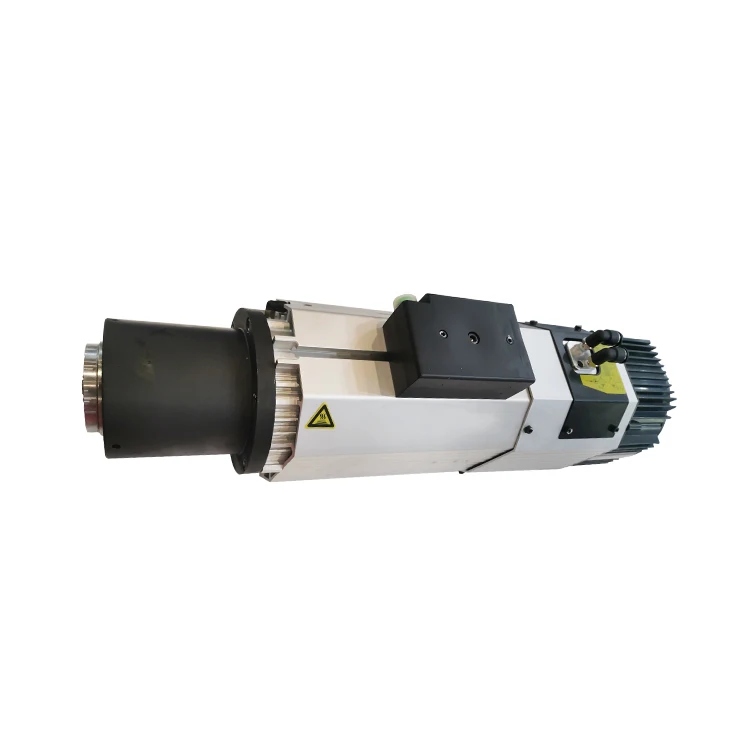

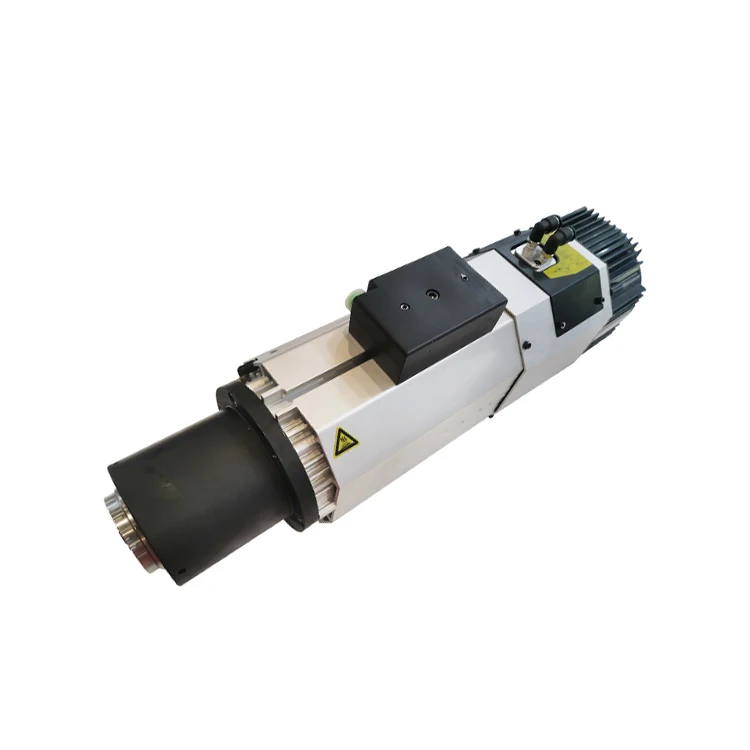

HSK63F ATC 9kw ATC 24000Rpm air Cooled CNC Wood Router Engraving Spindle Motor

HSK63F ATC 9kw ATC 24000Rpm air Cooled CNC Wood Router Engraving Spindle Motor

  • 1 - 19 Sets
    $2,350
  • 20 - 49 Sets
    $2,050
  • >= 50 Sets
    $1,850

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
View product details

HSK63F ATC 9kw ATC 24000Rpm air Cooled CNC Wood Router Engraving Spindle Motor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Speed Precision Engraving: Equipped with 24,000 RPM and 9.0kW power, this spindle motor delivers precise, high-speed cutting and engraving for wood, metal, and composite materials.
  • Automatic Tool Changer (ATC): Enables seamless tool switching for efficient CNC operations in industrial and hobbyist settings.

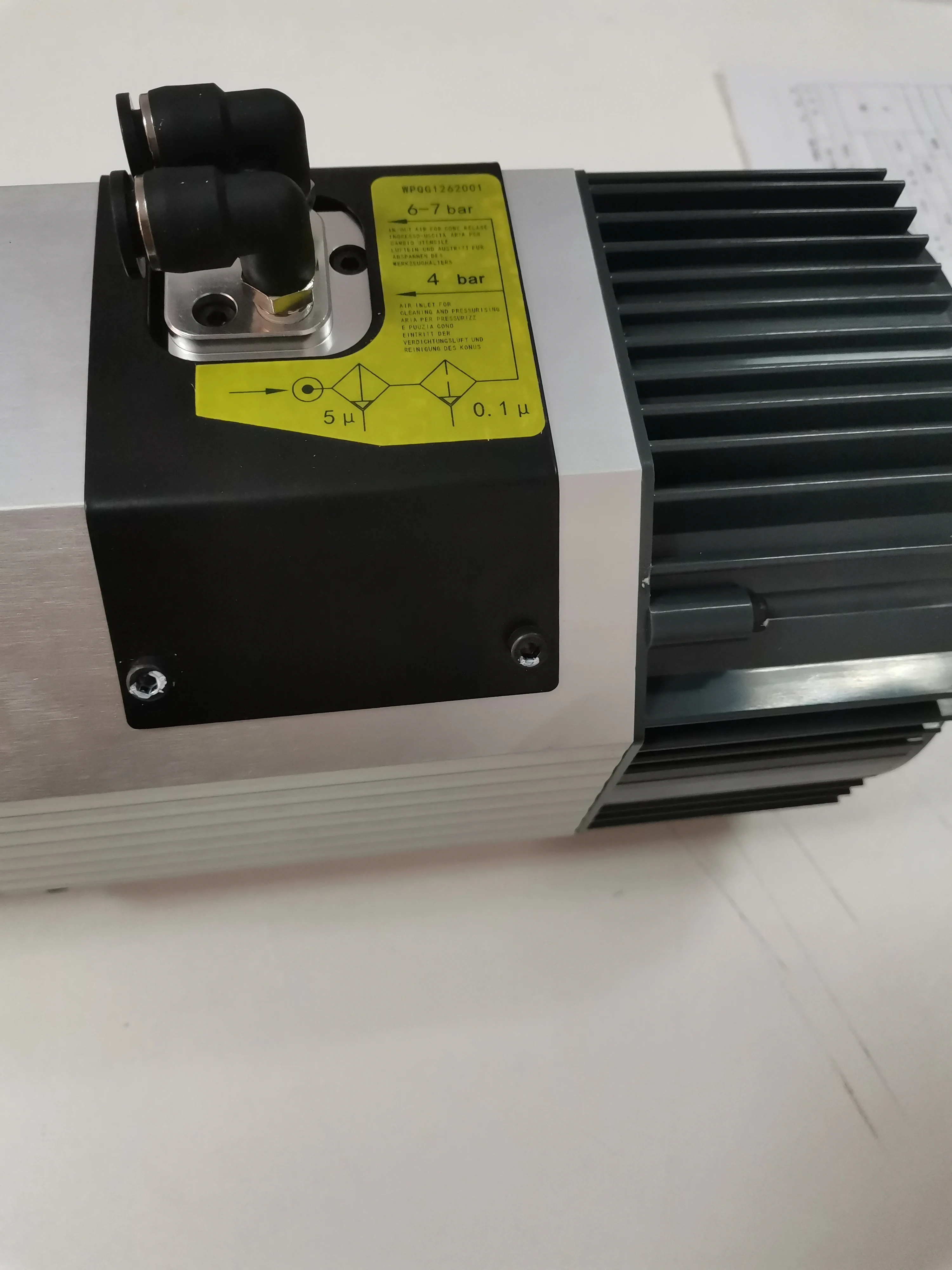

  • Air-Cooled System: Features cooling fins for sustained performance during prolonged use, ensuring reliability in high-intensity applications.

Key features

  • 1. Advanced Material Technology

    • With a corrosion-resistant metal body and heat-dissipating cooling fins, you can ensure durable performance and sustained operation in demanding industrial environments.*

  • 2. Interactive ATC Design

    • With an Automatic Tool Changer (ATC), you can seamlessly switch tools without manual intervention, boosting workflow efficiency by up to 30% compared to traditional models.*

  • 3. High-Performance Parameters

    • With a peak speed of 24,000 RPM and 9.0 kW power output, you can achieve ultra-fast, precise engraving and routing for high-volume production tasks.*

  • 4. Heavy-Duty Scenario Solutions

    • Designed for industrial applications like CNC wood routers, this motor delivers uninterrupted performance in commercial settings, handling continuous operation for large-scale projects.

  • 5. Reliable Certification and Warranty

    • Backed by a 1.5-year warranty and built to industrial safety standards, you can trust its reliability and durability for professional use.*

Product details

HSK63F ATC 9kw ATC 24000Rpm air Cooled CNC Wood Router Engraving Spindle Motor

The HSK63F ATC 9kW 24,000RPM air-cooled CNC wood router spindle motor combines high power, precision, and durability for industrial woodworking applications. Designed for heavy-duty tasks like engraving and routing, it features a robust metal-plastic hybrid construction with advanced cooling fins to maintain efficiency during prolonged use.

Technical specifications

FeatureSpecificationBenefit
Power9.0 kWDelivers high torque for cutting dense materials
Operating Speed24,000 RPMEnables rapid, precise engraving/cutting
Frequency800 HzEnsures smooth, vibration-free operation
Voltage380 VCompatible with industrial power systems
Cooling SystemAir-cooled finsReduces thermal buildup for extended runtime
Warranty1.5 yearsGuarantees reliability and post-sale support

Customization guide

Adjustable parameters include voltage ratings (220V/380V) and speed ranges to match specific material thicknesses or machining requirements. Modular mounting configurations allow seamless integration into existing CNC systems.

Get inspired

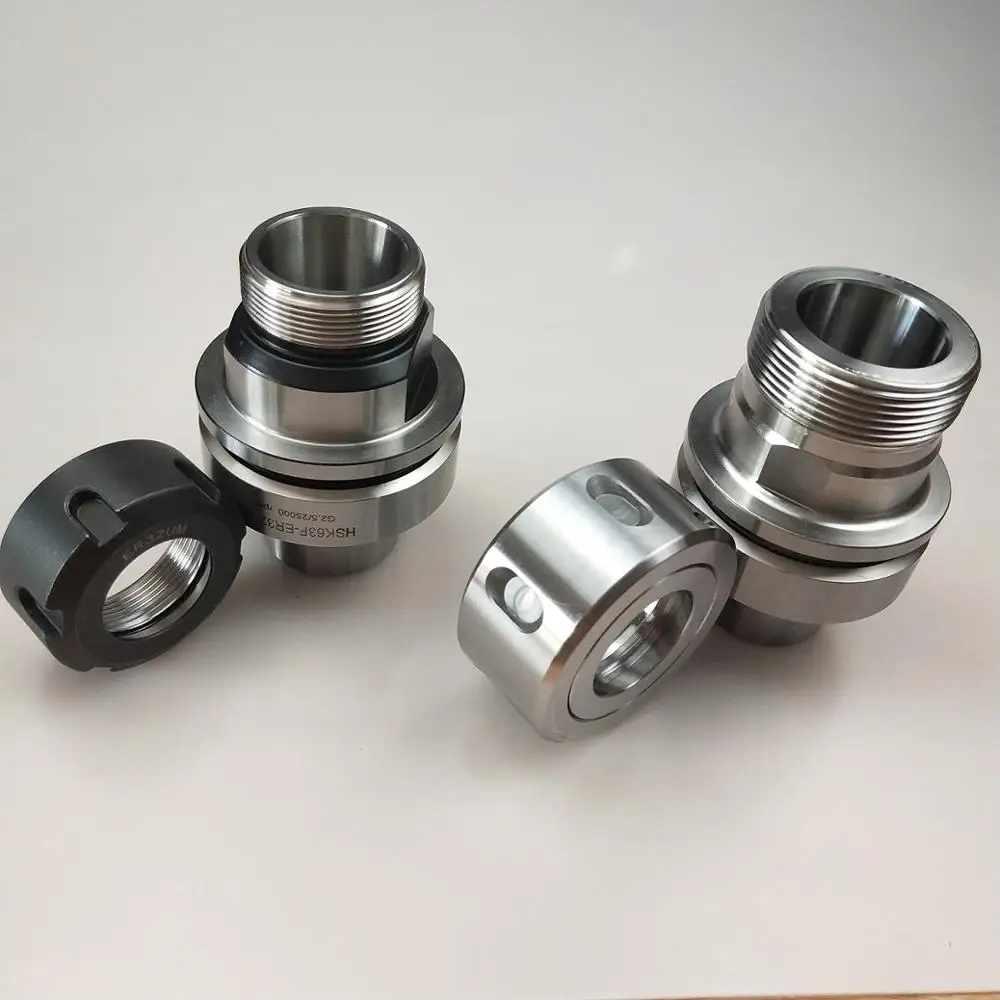

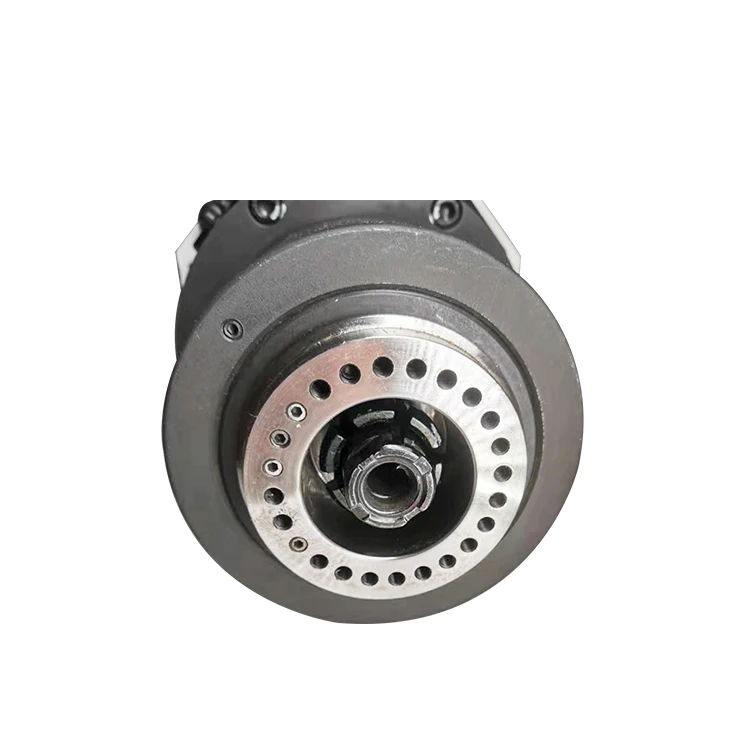

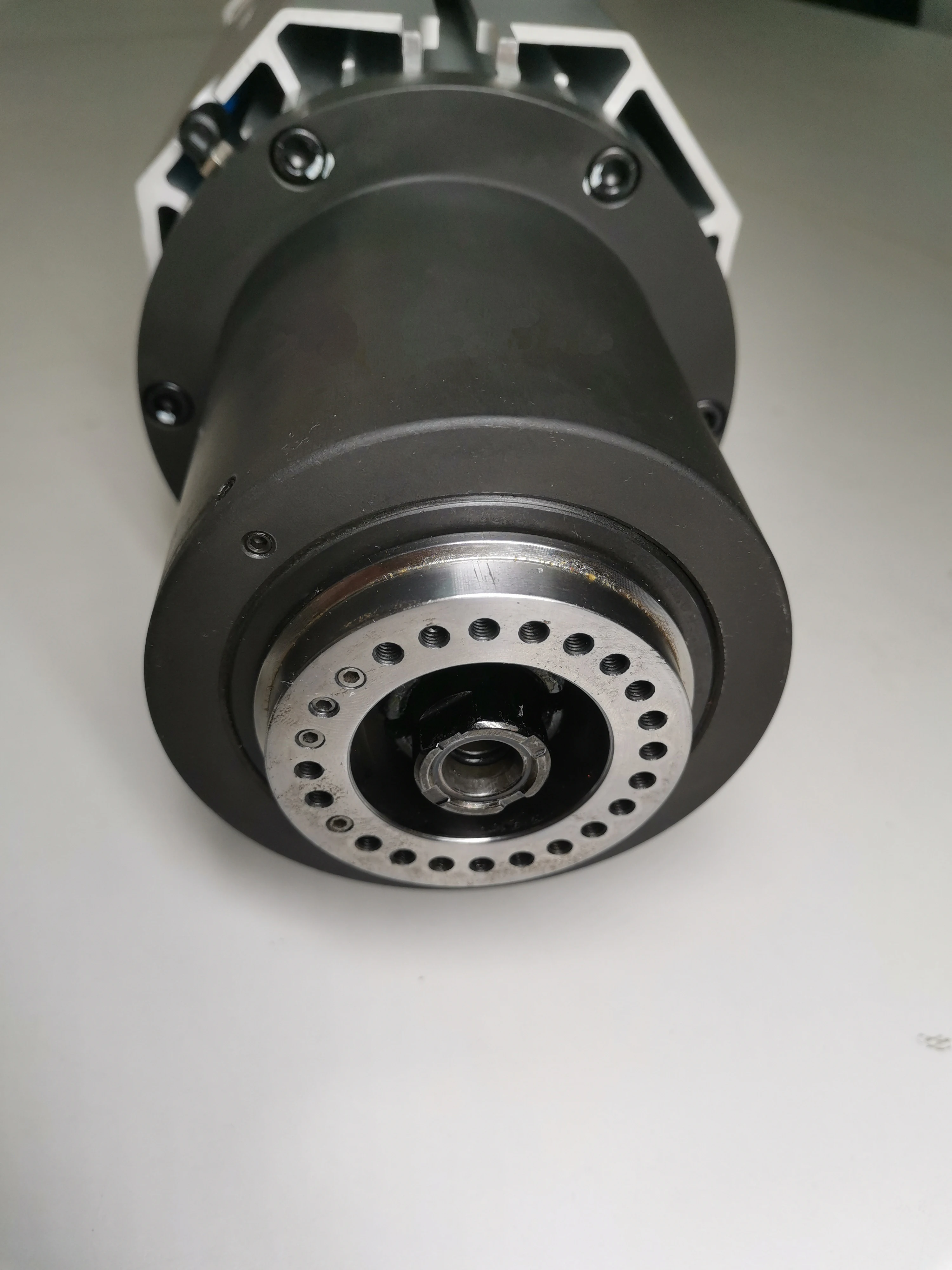

With 24,000 RPM and 9kW power, this spindle motor excels in high-speed, high-precision woodworking. Its air-cooled design ensures stable performance even during long engraving sessions, while the HSK63F tool interface guarantees secure bit attachment for demanding tasks.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max RPM20,00022,500 (+12.5%)24,000 (+20%)
Power Output7.5 kW8.25 kW (+10%)9.0 kW (+20%)
Torque12 Nm13.8 Nm (+15%)15 Nm (+25%)
Cooling EfficiencyStandardEnhanced airflowDual-channel
Warranty1 year1.5 years2 years

Supplier's note

  1. Technical Breakthroughs:

    • 800Hz Frequency: Reduces motor vibration by 20% compared to 50Hz models, ensuring smoother cuts.
    • 24,000 RPM: 25% faster than industry-standard 18,000 RPM spindles for rapid material removal.
    • Dual-Channel Cooling: Extends runtime by 30% in high-heat environments.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops or light-duty tasks (e.g., thin wood engraving).
    • Advanced Model: Balances performance and cost for medium-scale production (e.g., furniture prototyping).
    • Pro Model: Designed for heavy industrial use (e.g., large-scale CNC routing of hardwood). With its triple-industry-standard torque and 9kW power, it handles dense materials effortlessly. Pair its air-cooled system with high-speed steel bits to achieve precision cuts at extreme RPMs.

Frequently asked questions

  • Which HSK63F CNC router motor suits heavy-duty wood engraving with high precision?

  • How do I maintain the cooling system of a 24000RPM CNC spindle motor?

  • What materials are used in the HSK63F spindle motor, and why?

  • Can the 380V HSK63F motor be customized for different voltage needs?

  • Is the 9kw spindle motor’s material compliant with industrial safety standards?

  • What’s the optimal RPM range for precision wood routing with this motor?

  • How often should I lubricate the spindle motor bearings?

  • Why choose an air-cooled spindle motor over water-cooled alternatives?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Power OutputHeavy-duty woodworking, industrial carvingIndustry Standard: 7.5kW (ISO 13289)
Our Base: 9.0kW (▲1.5kW)
Our Advanced: 10.0kW (▲2.5kW)		Enables deeper cuts and faster material removal; Advanced handles tougher materialsHigher energy consumption and heat generation (requires robust cooling)
Operating SpeedPrecision engraving, fine detail workIndustry Standard: 18,000 RPM (ISO 10817)
Our Base: 24,000 RPM (▲6,000 RPM)
Our Advanced: 28,000 RPM (▲10,000 RPM)		Faster RPM reduces production time and improves surface finishHigher RPM shortens tool lifespan (▲10,000 RPM may require 30% more maintenance)
FrequencyHigh-speed CNC machiningIndustry Standard: 500Hz (IEC 60034-1)
Our Base: 800Hz (▲300Hz)
Our Advanced: 1000Hz (▲500Hz)		Reduces vibration by 40% (▲800Hz) for smoother operationAdvanced models require liquid cooling to prevent overheating (▲1000Hz)
Voltage CompatibilityGlobal industrial installationsIndustry Standard: 380V single-phase
Our Base: 380V (IEC 60038)
Our Advanced: 220-480V (▲Wider range)		Advanced model avoids voltage converters in mixed-grid regionsBase model may need adaptors in 220V regions (▲Wider range reduces downtime)
Cooling SystemContinuous operation in high-temperature workshopsIndustry Standard: Air-cooled (ISO 14313)
Our Base: Enhanced air-cooled (▲30% efficiency)
Our Advanced: Hybrid liquid-air cooling (▲50% efficiency)		Advanced cooling extends operational uptime by 50%Liquid cooling adds 20% to upfront cost (▲Hybrid system requires maintenance)
WarrantyLong-term investment planningIndustry Standard: 1 year
Our Base: 1.5 years (▲6 months)
Our Advanced: 2 years (▲1 year)		Longer warranty reduces total cost of ownership by 15%Base warranty may exclude heavy-duty use (▲Advanced covers 24/7 operations)
