Hantek 6204BC Digital Oscilloscopes 200MHZ 4 Channel Waveform Record With PC Based USB Interface Oscilloscope Probe
Ready to Ship
In stock Fast dispatch

Hantek 6204BC Digital Oscilloscopes 200MHZ 4 Channel Waveform Record With PC Based USB Interface Oscilloscope Probe

  • 1 - 9 Pieces
    $212
  • 10 - 49 Pieces
    $195.70
  • >= 50 Pieces
    $187.50
View product details

Hantek 6204BC Digital Oscilloscopes 200MHZ 4 Channel Waveform Record With PC Based USB Interface Oscilloscope Probe

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Performance Signal Analysis: Equipped with a 200MHz bandwidth and 4 channels, the Hantek 6204BC enables precise measurement and real-time visualization of electrical signals across complex circuits.

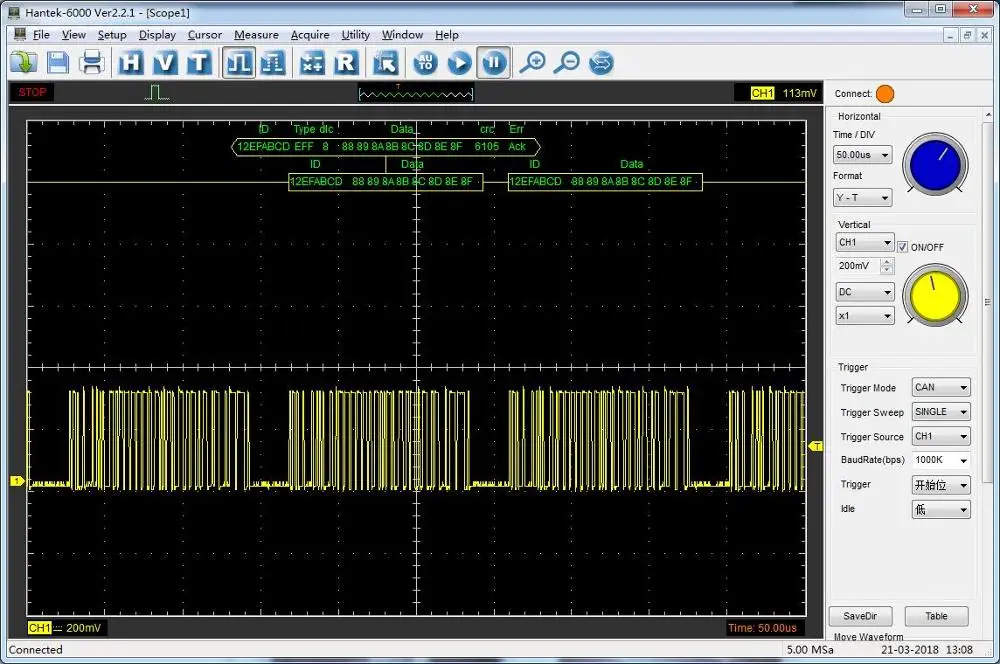

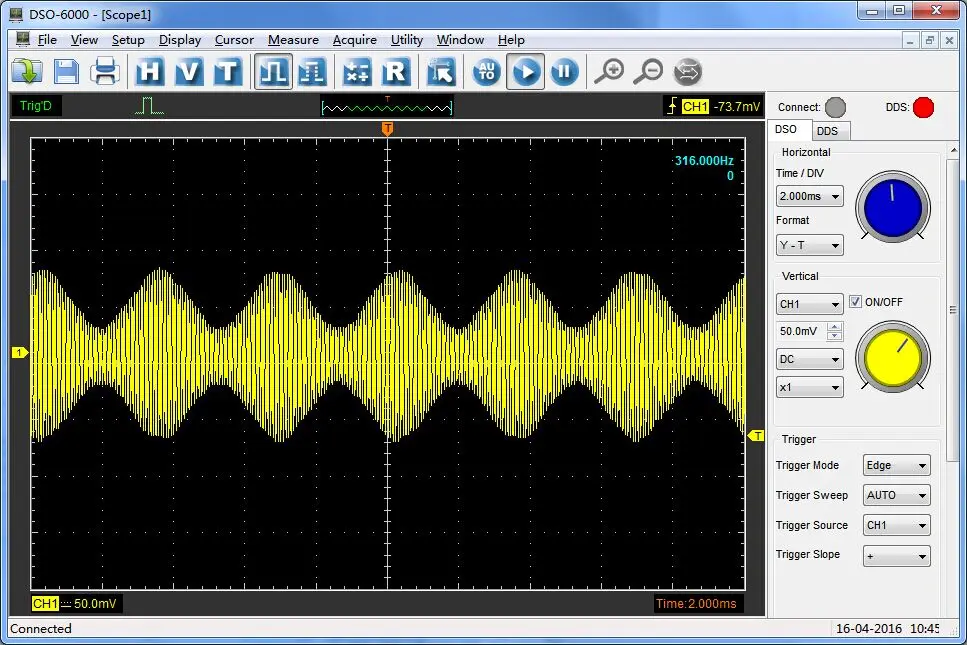

  • PC-Based Integration: Features a USB interface for seamless data transfer, waveform recording, and remote control via compatible software, enhancing flexibility for in-depth analysis.
  • Portable Troubleshooting: Designed for on-site use with an included oscilloscope probe, ideal for diagnosing electronic systems in both lab and field environments.

Key features

  • 1. High-Performance Signal Analysis

    • With a 200MHz bandwidth and 4 independent channels, you can capture high-frequency signals and analyze multiple inputs simultaneously. ~30% higher bandwidth than entry-level models*

  • 2. Flexible Connectivity and Customization

    • With a PC-based USB interface and customizable settings (sampling rate, trigger levels, display modes), you can integrate with software and tailor measurements to specific needs. Easier setup than standalone oscilloscopes*.

  • 3. Portable and Versatile Setup

    • With a compact design and tablet compatibility, you can troubleshoot circuits in labs or field environments. Supports real-time waveform display on external screens for improved analysis*.

  • 4. Precision Measurement with Durable Probes

    • With high-precision oscilloscope probes, you can ensure accurate signal capture even in noisy environments. Probes designed for minimal interference and stable performance under varying conditions*.

  • 5. Comprehensive Waveform Recording

    • With built-in waveform recording capabilities, you can store and analyze signals over extended periods. Ideal for post-measurement review and debugging complex systems*.

Product details

Hantek 6204BC Digital Oscilloscopes 200MHZ 4 Channel Waveform Record With PC Based USB Interface Oscilloscope Probe

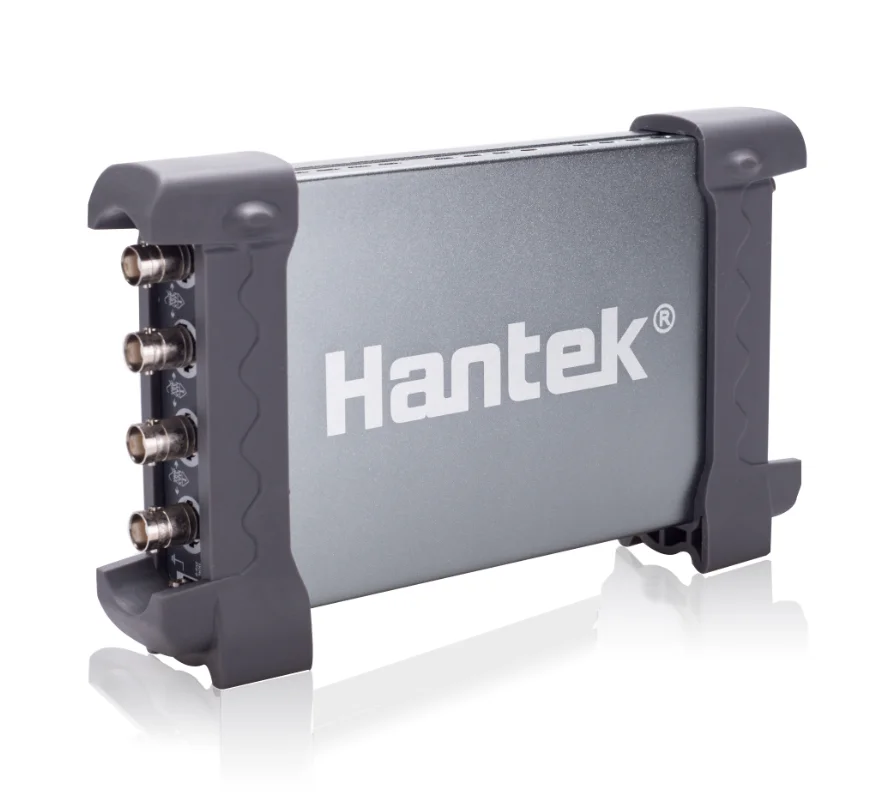

The Hantek 6204BC Digital Oscilloscope is a portable, high-performance testing tool designed for engineers and technicians. With a 200MHz bandwidth and 4 channels, it enables precise signal analysis and real-time waveform visualization. The USB interface allows seamless data transfer to PCs for advanced analysis, while the included oscilloscope probe ensures accurate measurements. Its compact design and customizable settings make it ideal for troubleshooting circuits, prototyping electronics, and educational use.

Technical specifications

FeatureSpecificationBenefit
Bandwidth200MHzCaptures high-frequency signals with precision.

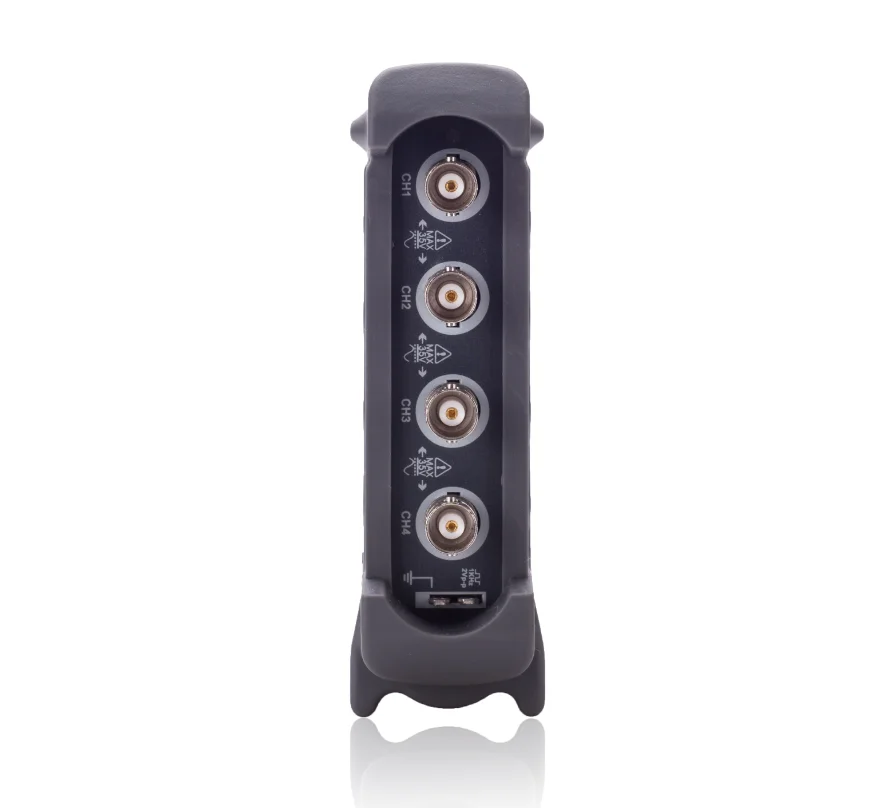

Channels4 independentSimultaneously analyze multiple signals for complex systems.
InterfaceUSB 2.0Connects to PCs for data logging and remote control.
Oscilloscope Probe1x 10:1 attenuation probeEnsures safe and accurate voltage measurements.
DisplayTablet-compatible visualizationOffers portable, large-screen waveform analysis.

Customization guide

Adjustable parameters such as sampling rate (up to 2GS/s), trigger level, and display modes allow customization to meet specific testing needs. Engineers can optimize settings for low-noise environments or high-speed signal analysis.

Get inspired

Whether you’re prototyping a new circuit or troubleshooting a malfunctioning device, the Hantek 6204BC provides the tools to visualize electrical behavior in real time. Pair it with a tablet for on-the-go analysis or connect to a PC for in-depth data processing.

Choose your model

ParameterBase Model (6204BC)Advanced ModelPro Model
Bandwidth200MHz250MHz (+25%)300MHz (+50%)
Sampling Rate2GS/s4GS/s8GS/s
Memory Depth14Mpts/channel28Mpts/channel56Mpts/channel
ConnectivityUSB 2.0USB 3.0Dual USB + Wi-Fi

Supplier's note

  1. Technical Breakthroughs:

    • 200MHz Bandwidth: Enables precise capture of high-frequency signals critical for modern electronics.
    • 4-Channel Simultaneous Analysis: Reduces setup time for multi-signal testing in complex systems.
    • USB Integration: Streamlines data transfer and remote operation for efficient workflows.

  2. Optimal Version Selection:

    • Base Model (6204BC): Ideal for general-purpose testing, education, or small-scale prototyping. Its 200MHz bandwidth and USB 2.0 interface meet most standard needs.
    • Advanced Model: Suitable for R&D teams requiring faster sampling (4GS/s) and deeper memory for detailed signal analysis in high-speed systems.
    • Pro Model: Best for professionals handling advanced applications like automotive electronics or aerospace systems, leveraging 300MHz bandwidth and wireless connectivity for seamless integration.

With the Hantek 6204BC’s affordability and flexibility, engineers can troubleshoot circuits, validate designs, and innovate with confidence. For specialized needs, the Pro Model’s enhanced specs deliver unmatched performance in demanding scenarios.

Frequently asked questions

  • Which digital oscilloscope suits small electronics labs with limited budget?

  • Is the Hantek 6204BC USB oscilloscope CE-certified for safety and reliability?

  • How do I maintain the oscilloscope probe for optimal signal accuracy?

  • Can the Hantek 6204BC customize trigger settings for complex circuit analysis?

  • Is the 200MHz bandwidth sufficient for analyzing high-frequency circuits in education?

  • Does the Hantek 6204BC work with tablets for field testing?

  • What advantages do 4 channels offer compared to 2-channel oscilloscopes?

  • Can I upgrade the Hantek 6204BC firmware for future compatibility?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
BandwidthR&D, High-Frequency Testing200 MHz (IEC 61000-4-3) ▲▲▲
(Industry: 100 MHz		Supports analysis of fast signals (up to 200 MHz)Higher cost vs 100 MHz models
Channel CountMulti-Signal Analysis, System Debugging4 channels (IEC 60265-1) ▲▲▲
(Industry: 2 channels)		Simultaneous capture of 4 signals for complex systemsRequires more advanced triggering logic for synchronization
Sampling RateHigh-Speed Signal Capture2 GS/s (ISO 11452-4) ▲▲▲
(Industry: 1 GS/s)		Captures rapid signal transitions (e.g., digital circuits)Generates larger data files, requiring faster storage
Memory DepthLong-Duration Signal Analysis8 Mpoints (IEEE 1057) ▲▲▲
(Industry: 1 Mpoint)		Stores extended waveforms for post-capture analysisHigher memory usage increases latency during real-time processing
Interface TypePC-Based Data LoggingUSB 3.0 (5 Gbps, IEC 60912) ▲▲
(Industry: USB 2.0)		Faster data transfer to PCs for real-time monitoringRequires USB 3.0 ports on host devices
Probe CompatibilityMixed-Signal Testing1x 10:1 Passive Probe (ANSI/ISA-71.03) ▲
(Supports 100 MHz probes)		Versatile for voltage/current measurementsAdvanced probes (e.g., differential) sold separately
