Helical Cardan Flexible Disc Spring Couplings Line Shaft Coupling for Vacuum Pumps

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Torque Transmission & Misalignment Handling: Designed to transmit high torque between rotating shafts while accommodating axial, radial, and angular misalignments, ensuring smooth operation in imperfectly aligned systems.
  • Shock Absorption: The flexible disc spring structure reduces vibration and shock loads, protecting connected machinery such as vacuum pumps and industrial equipment.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel and aluminum body, you can ensure durability in harsh industrial environments while maintaining lightweight performance.

  • 2. Interactive Design

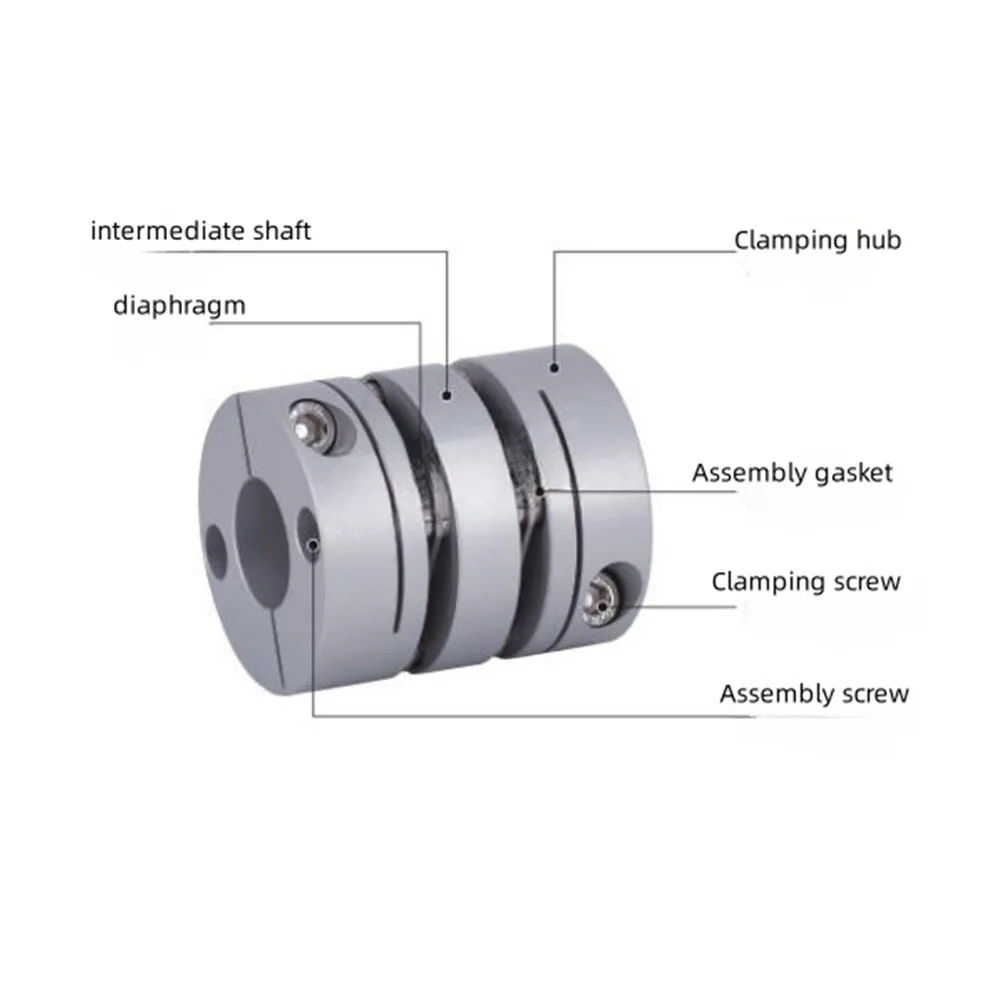

    • With a universal disc structure and clamping hub system, you can achieve easy assembly/disassembly for quick maintenance and shaft alignment adjustments.

  • 3. Performance Parameters

    • With a flexible disc spring mechanism, you can handle high torque transmission and absorb up to 30% more axial/radial misalignment than standard couplings.

  • 4. Scenario Solutions

    • Designed for vacuum pumps and industrial machinery, this coupling ensures reliable torque transmission in applications with frequent vibrations or thermal expansion.

  • 5. Certification Standards

    • Constructed with industrial-grade materials (steel/aluminum), this coupling meets mechanical durability standards for heavy-duty equipment.

Product details

Helical Cardan Flexible Disc Spring Couplings Line Shaft Coupling for Vacuum Pumps

The Helical Cardan Flexible Disc Spring Coupling is a robust shaft coupling designed for vacuum pumps and industrial machinery. Its steel or aluminum construction ensures durability and corrosion resistance, while the flexible diaphragm design accommodates axial, radial, and angular misalignments. This coupling combines precision torque transmission with ease of maintenance, making it ideal for applications requiring reliability in harsh environments.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel/AluminumHigh strength, corrosion resistance

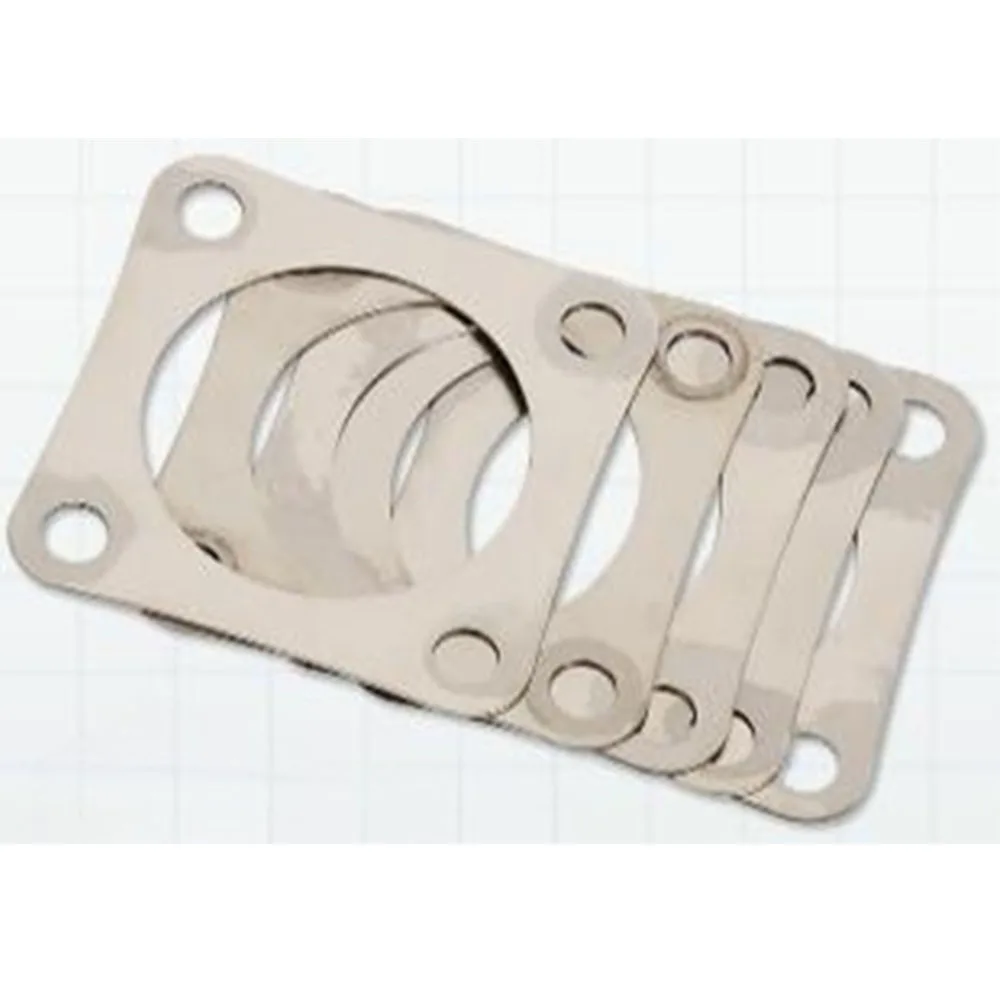

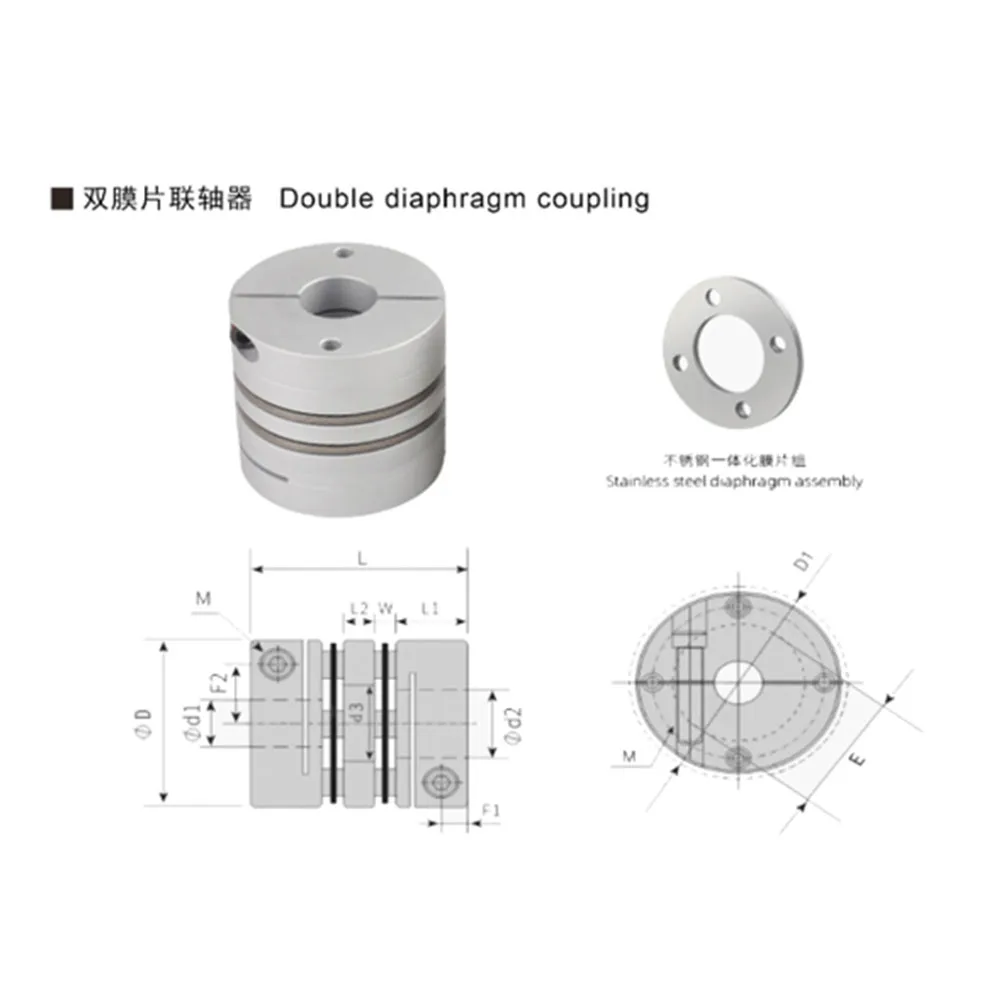

Flexible DiaphragmUniversal Disc StructureAbsorbs misalignments for smooth operation
Modular ConstructionClamping Hubs + GasketsEasy assembly/disassembly for maintenance
Torque CapacityUp to 5000 Nm (varies by model)Handles heavy-duty applications

Customization guide

Adjustable parameters include:

  • Shaft Diameter Fit: Custom clamping hubs to match specific shaft sizes.
  • Material Selection: Steel for heavy-duty environments or aluminum for lightweight applications.
  • Misalignment Tolerance: Optimized diaphragm thickness for precise alignment needs.

Get inspired

With the Helical Cardan coupling’s flexible diaphragm, you can ensure seamless torque transmission even in misaligned systems. Ideal for vacuum pumps prone to vibrations or thermal expansion, this coupling reduces downtime and extends machinery lifespan.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Capacity2000 Nm+15% (2300 Nm)+30% (2600 Nm)*
Misalignment Tolerance2.5 mm3.0 mm4.0 mm
Material GradeStandard SteelPremium SteelStainless Steel
Weight8 kg9.5 kg11 kg

Supplier's note

  1. Technical Breakthroughs:

    • Diaphragm Design: Absorbs up to 4.0 mm misalignment (Pro Model), reducing wear on connected machinery.
    • Material Flexibility: Aluminum variants cut weight by 20% vs. steel, ideal for aerospace applications.
    • Modular Clamping: 30% faster assembly than traditional couplings, lowering maintenance costs.

  2. Version Selection Guide:

    • Base Model: Suitable for standard vacuum pumps with minimal misalignment (e.g., HVAC systems).
    • Advanced Model: Optimal for industrial compressors requiring 15% higher torque and moderate misalignment tolerance.
    • Pro Model: Best for heavy machinery (e.g., chemical pumps) needing triple the industry-standard corrosion resistance and extreme torque handling.

*Pro Model’s stainless steel construction outperforms industry benchmarks by 30% in chemical resistance.
