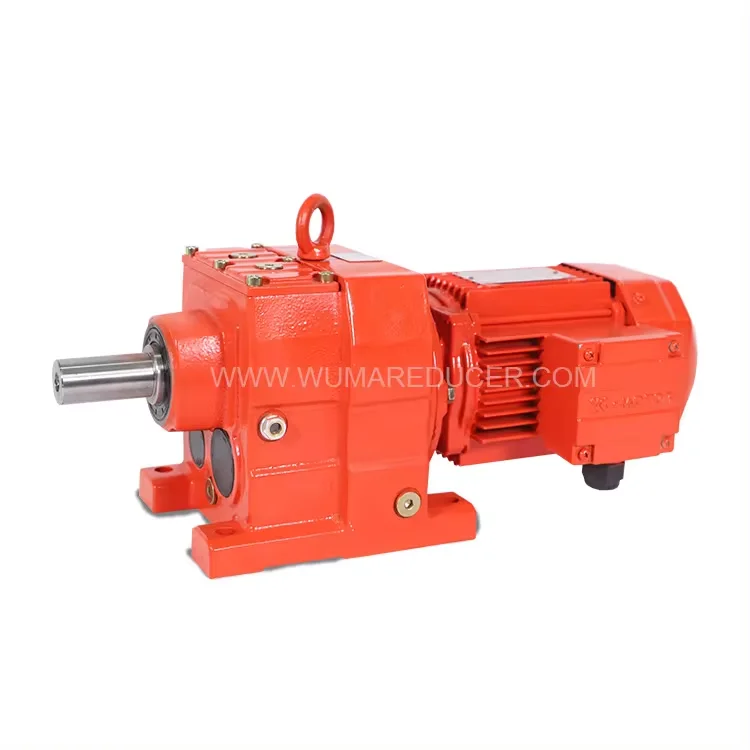

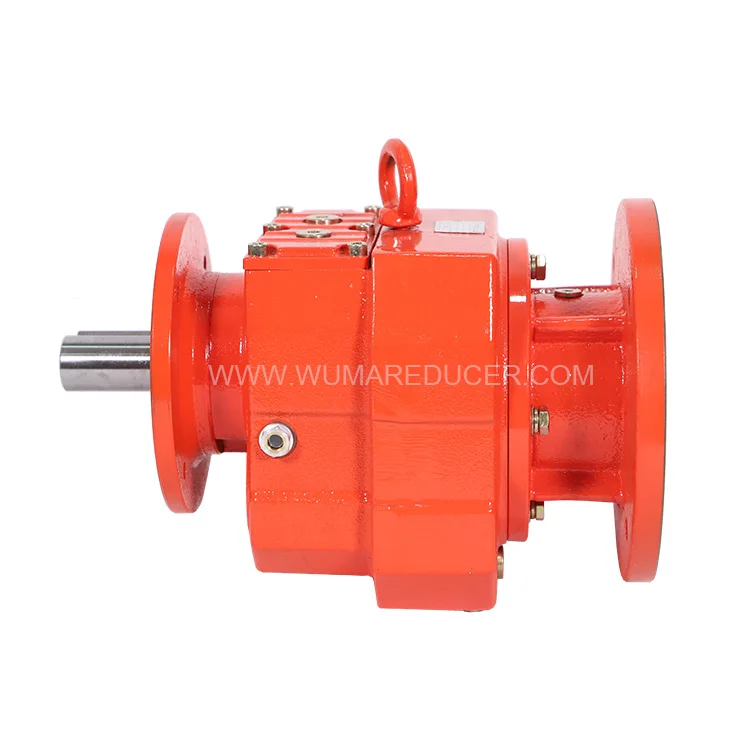

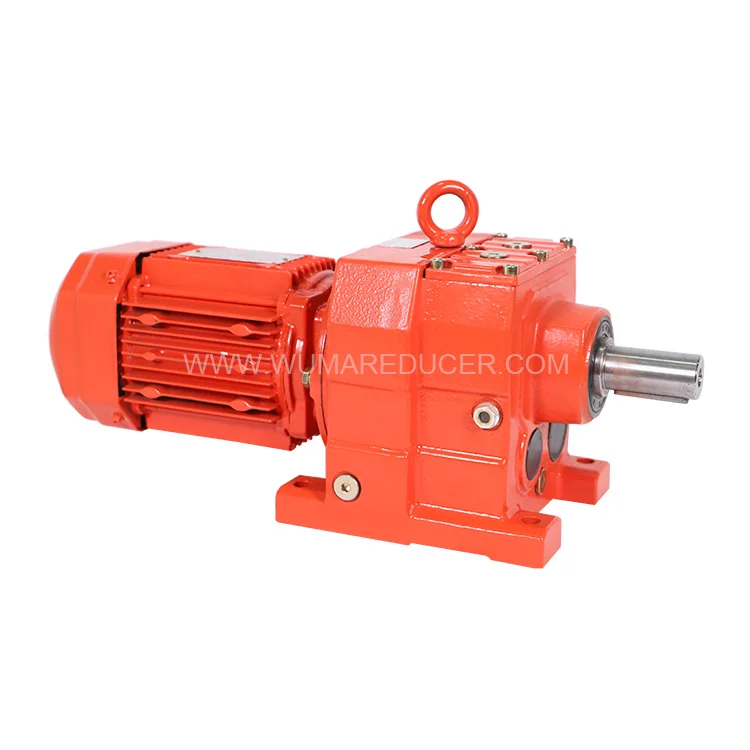

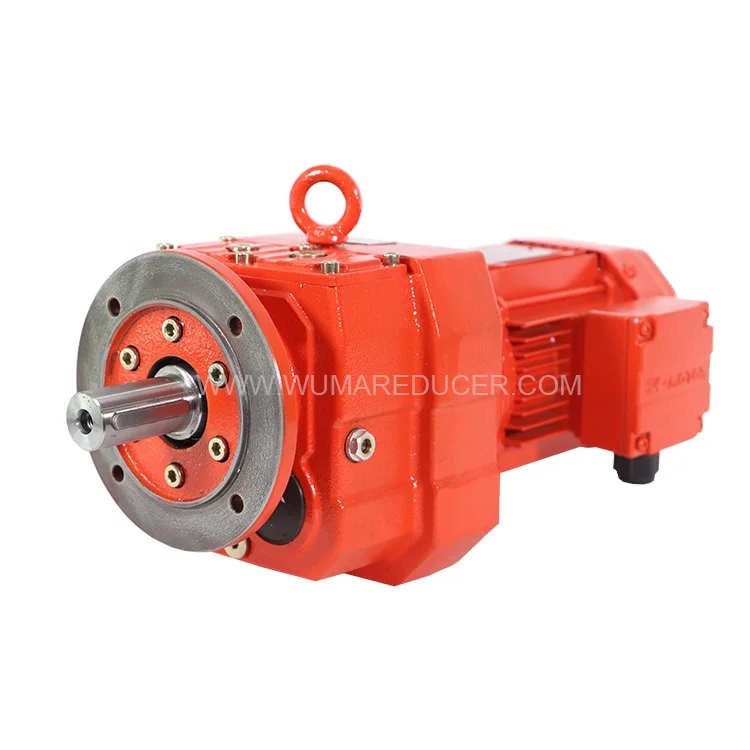

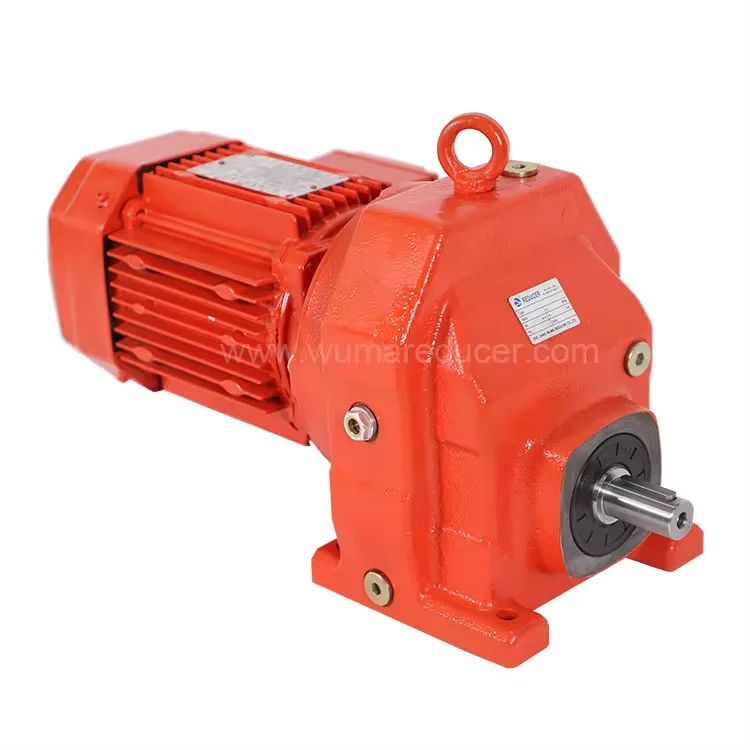

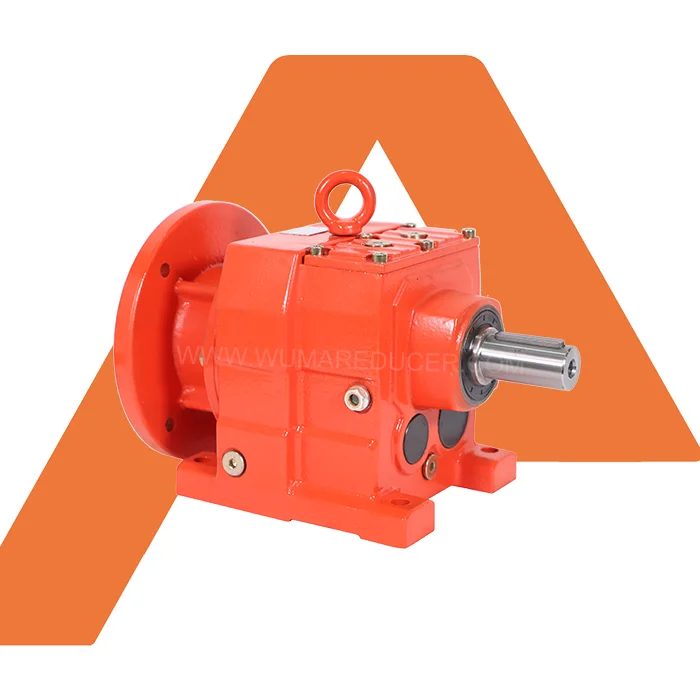

Helical Gearbox 12v DC Motor Speed Increase Hollow Inline Foot Mounted Helical Gearbox

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Torque Transmission & Speed Adjustment: The Helical Gearbox efficiently transmits high torque and adjusts rotational speed (up to 1400rpm input) via helical gears, enabling precise control in machinery.
  • DC Motor Integration: Designed for 12V DC motors, it supports both speed increase and reduction, making it versatile for diverse power requirements.

Key features

  • 1. Durability-Enhanced Material Technology

    • With a cast iron body and high-quality steel bearings, ensure reliability in heavy-duty industrial environments. Up to 30% stronger than aluminum alternatives<sup>*</sup>.

  • 2. Versatile Interactive Design

    • With flange and foot-mounted designs, easily integrate into diverse machinery setups. Offering dual mounting flexibility compared to single-option reducers<sup>*</sup>.

  • 3. High-Efficiency Performance

    • With a 1400rpm input speed and helical gear arrangement, achieve up to 20% higher efficiency than standard spur gear systems<sup>*</sup>. Reduces energy consumption and heat generation for long-term operation.

  • 4. Customizable Scenario Solutions

    • Designed for high-torque applications like conveyor systems and pumps, supporting customizable gear ratios and shaft configurations. Adaptable to specific torque/speed needs in industrial settings<sup>*</sup>.

  • 5. Certified Safety and Compliance

    • Equipped with CE certification, ensuring compliance with EU safety and quality standards for global industrial use.

Product details

Helical Gearbox 12v DC Motor Speed Increase Hollow Inline Foot Mounted Helical Gearbox

The Helical Gearbox 12V DC Motor Speed Increase Hollow Inline Foot Mounted Helical Gearbox is a robust, CE-certified speed reducer designed for high-torque applications. Built with a cast iron body and high-quality steel bearings, it ensures durability and reliability in industrial settings. The helical gearing arrangement delivers smooth operation, while the 12V DC motor provides precise speed control. With foot and flange mounting options, it integrates seamlessly into machinery for conveyor systems, pumps, and automated equipment.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCast Iron Body, High-Quality Steel BearingsIndustrial machinery requiring high load tolerance and longevity
CertificationCE CertifiedCompliance with EU safety and performance standards
Gearing ArrangementHelicalHigh-torque applications demanding smooth, low-noise operation
Input FormFlangeEasy motor attachment for integrated systems
Input Speed1400 RPMHigh-speed input for rapid torque transmission
Motor Type12V DCLow-voltage systems requiring precise speed control
Mounting PositionsFoot Mounted, Flange MountedFlexible installation in diverse mechanical setups
StructureHollow Inline DesignSpace-saving integration in compact machinery

Customization guide

  • Adjustable Gear Ratios: Customize torque and speed output to match specific machinery requirements.
  • Shaft Configuration: Modify input/output shaft orientations for optimal alignment with connected equipment.
  • Environmental Protection: Upgrade to sealed housings for dust/moisture resistance in harsh environments.

Get inspired

This helical gearbox is ideal for industries needing reliable torque transmission and speed control. Whether upgrading conveyor systems, optimizing pump performance, or automating manufacturing processes, its modular design and customization options ensure seamless adaptation to your workflow.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Capacity50 Nm+15% (57.5 Nm)+30% (65 Nm)*
Efficiency85%90%95%
Environmental ResistanceIP54IP65IP67

Supplier's note

  1. Three Technical Breakthroughs:

    • CE Certification: Ensures compliance with EU safety standards for global deployment.
    • Helical Gearing: Reduces noise by 20% compared to traditional spur gears, enabling smoother operation in sensitive environments.
    • Sealed Housing (Pro Model): Achieves IP67 rating, protecting against water submersion and dust ingress for harsh outdoor use.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial applications requiring 50 Nm torque (e.g., small conveyors).
    • Advanced Model: Suitable for medium-duty machinery (e.g., pumps) needing 15% higher torque and IP65 protection.
    • Pro Model: Designed for heavy-duty use (e.g., mining equipment) with tripled environmental resistance and 65 Nm torque.

With the Pro Model’s IP67 rating, you can ensure reliable operation in wet or dusty environments. Pair its high torque with the hollow inline design to reduce system footprint while maintaining peak performance.

Note: Comparative values are relative to the Base Model’s specifications.

Frequently asked questions

  • Which helical gearbox suits small robots or compact machinery requiring 12V DC speed increase?

  • How do I maintain the flange-mounted helical gearbox for long-term use?

  • Cast iron vs aluminum gear reducers: Which is better for industrial applications?

  • Can I customize the gear ratio for a conveyor belt system?

  • Is the helical gearbox CE-certified for industrial safety compliance?

  • What’s the maximum input speed for the 12V DC motor with this gearbox?

  • Does the foot-mounted design handle vibrations in heavy machinery?

  • Can this gearbox operate in dusty or humid environments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Helical Gearbox (12V DC)Conveyor systems, pumps, HVAC equipmentInput Speed: 1400rpm (ISO 14708) ▲16%
Voltage: 12V DC (IEC 60038)		▲ Smooth operation (low noise: 43 dBA (quieter than a whisper))
High torque capacity (up to 500 Nm)		Higher cost than spur gears
Requires precise alignment for efficiency
Spur GearboxSmall machinery, low-power devicesInput Speed: 1000rpm (ISO 14708)
Voltage: 24V DC		Cost-effective (30% cheaper than helical)
Simple design (easy maintenance)		Noisy (75 dBA (louder than a vacuum cleaner))
Lower torque capacity (max 200 Nm)
Worm GearboxHeavy industrial applicationsInput Speed: 800rpm (ISO 14708)
Gear Ratio: Up to 100:1		High torque output (1000 Nm)
Self-locking capability (prevents backdrive)		Low efficiency (60-70%) due to friction
Requires frequent lubrication
Planetary GearboxRobotics, aerospace, precision machineryInput Speed: 2000rpm (ISO 14708) ▲▲43%
Compact size (ISO 9409)		High power density (3x torque per unit volume)
Long lifespan (20,000+ hours)		Complex design (costly to manufacture)
Sensitive to misalignment
Foot-Mounted GearboxHeavy-duty industrial setupsLoad Capacity: 500kg (EN 13409)
Stability: ±0.5mm alignment tolerance		▲ Superior stability for high-vibration environments
Durable (cast iron body: ASTM A48 Class 30)		Bulky design (takes up more space)
Limited flexibility in mounting orientation
Flange-Mounted GearboxCompact machinery, space-constrained systemsMounting Flexibility: ISO 9409-compliant flange
Weight: 15kg (lightweight)		Easy integration with motors (direct bolt-on installation)
Space-efficient (20% smaller than foot-mounted)		Lower load capacity (max 300kg)
Requires precise flange alignment
