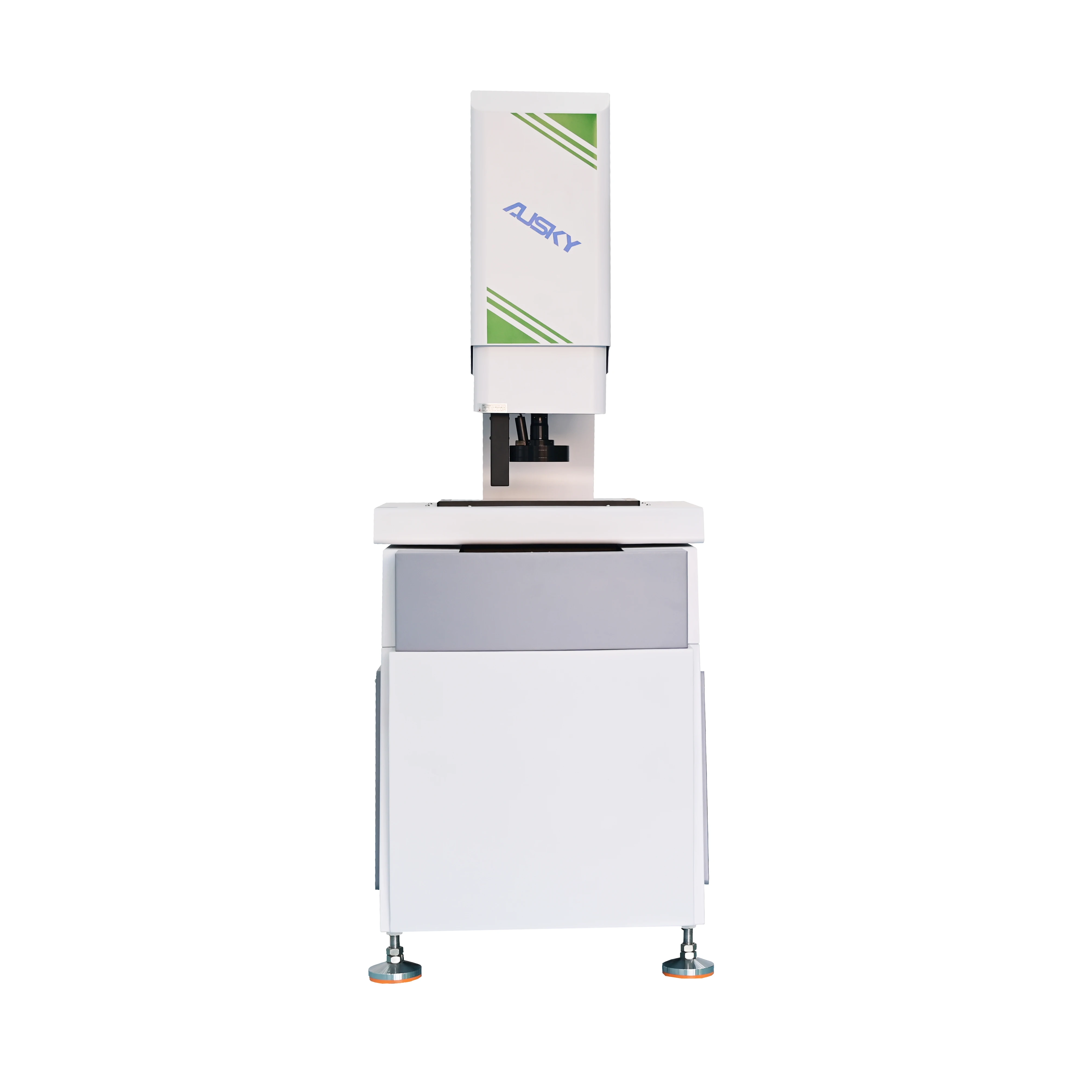

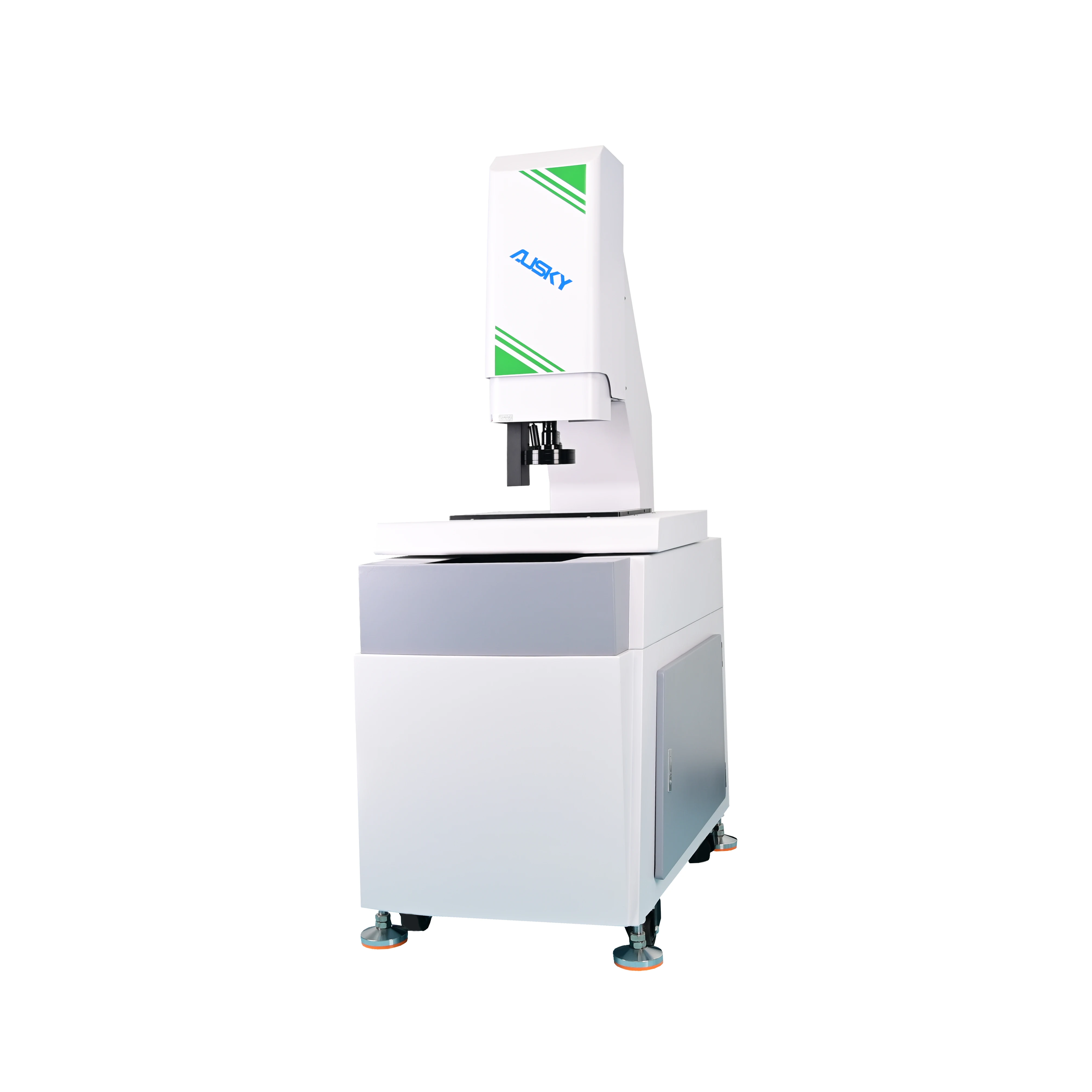

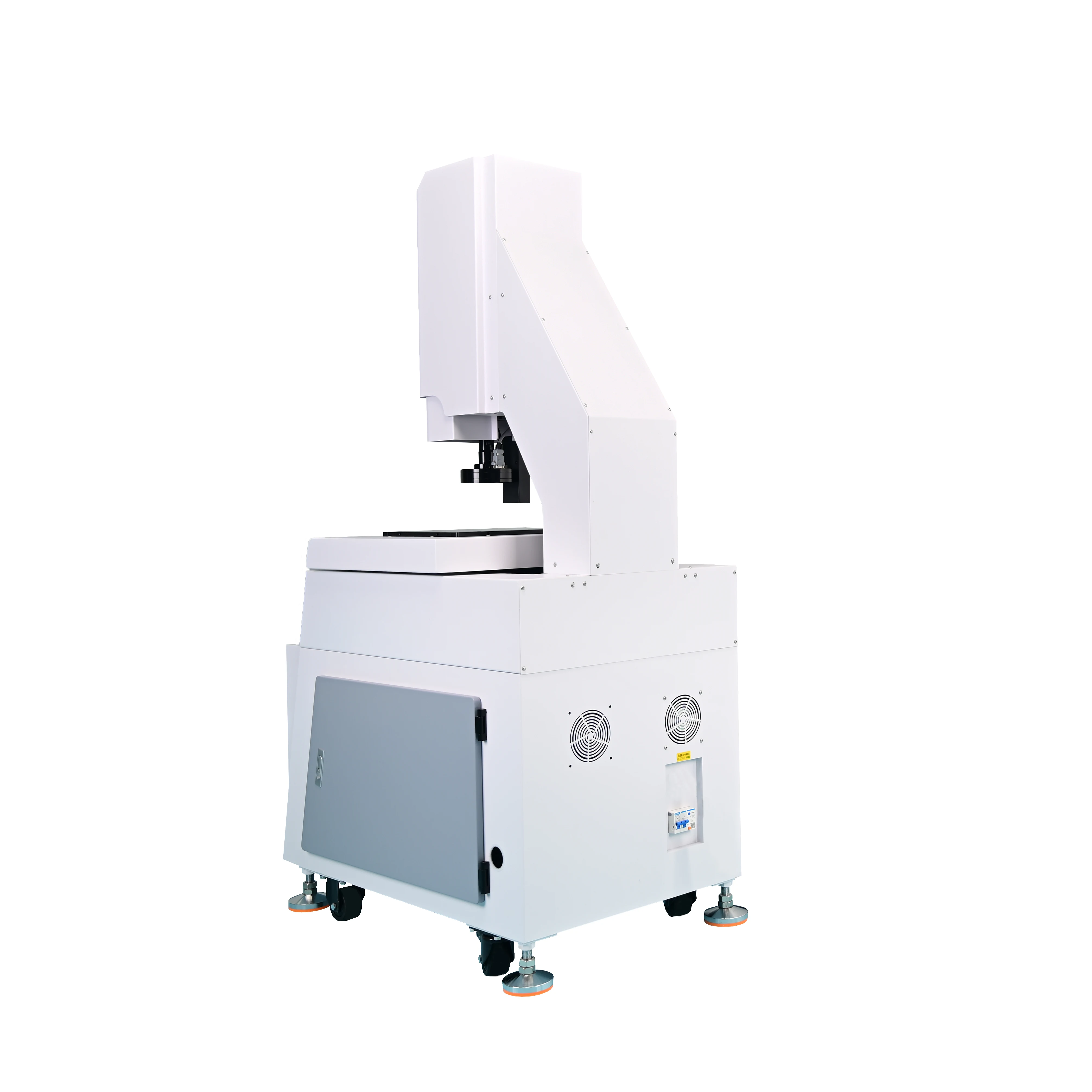

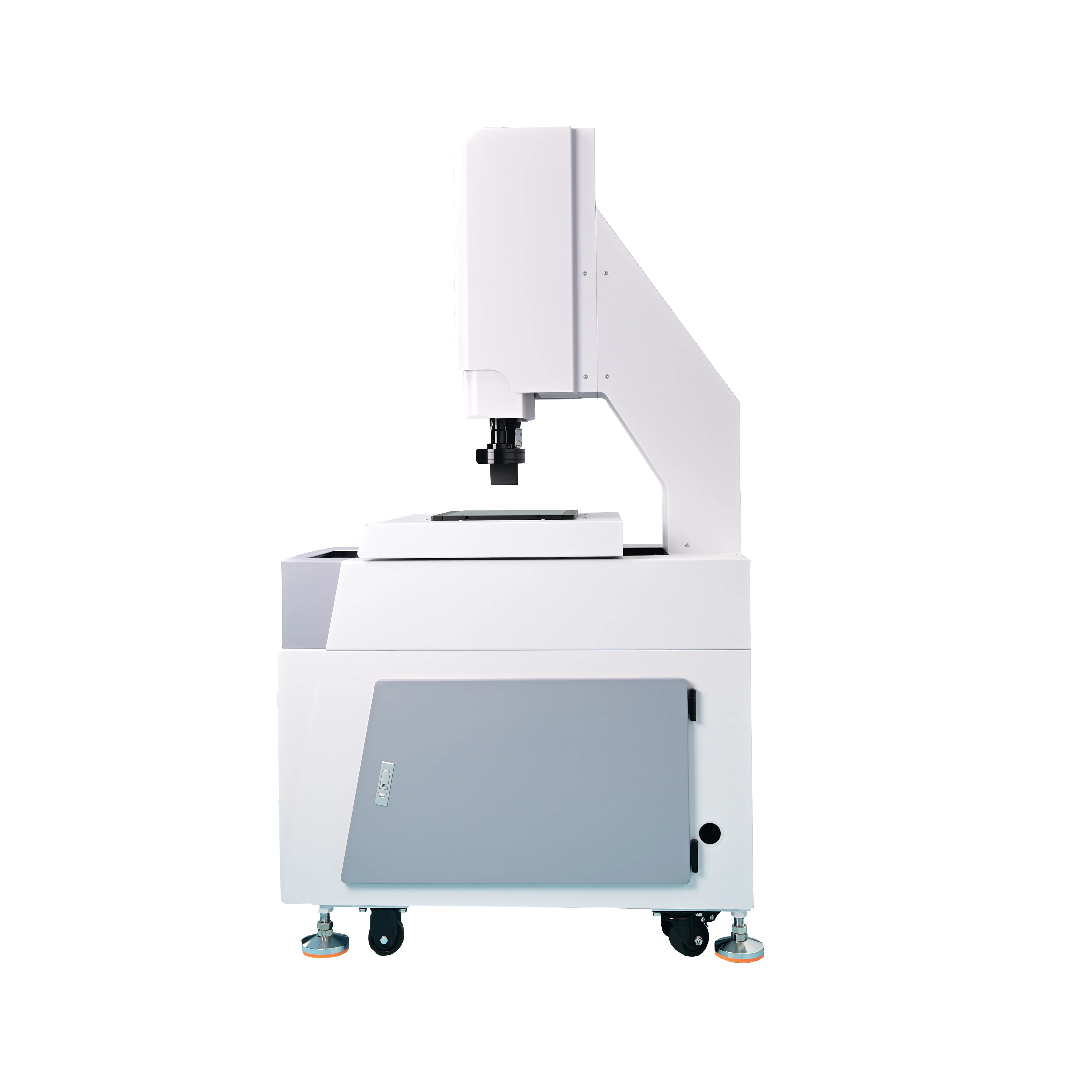

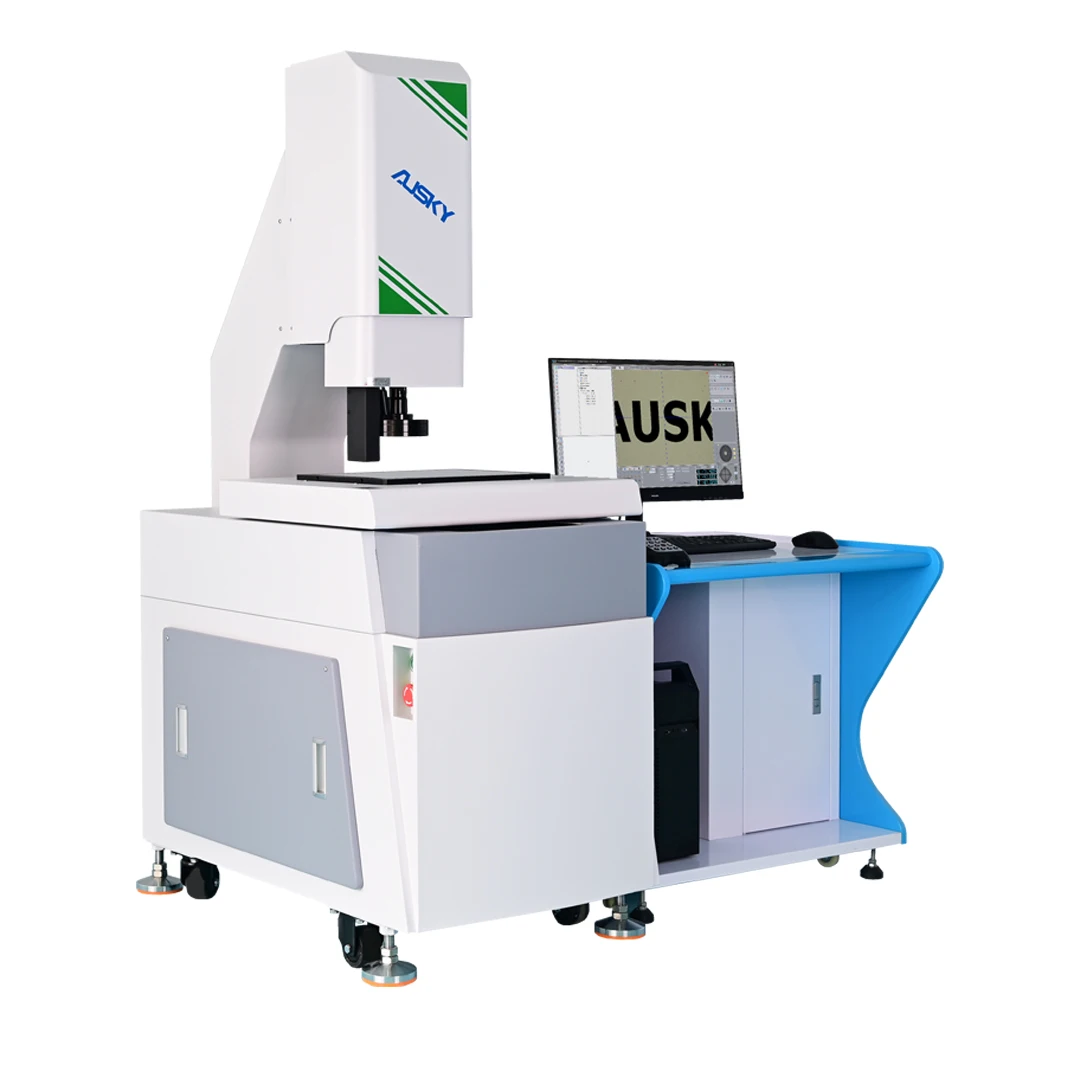

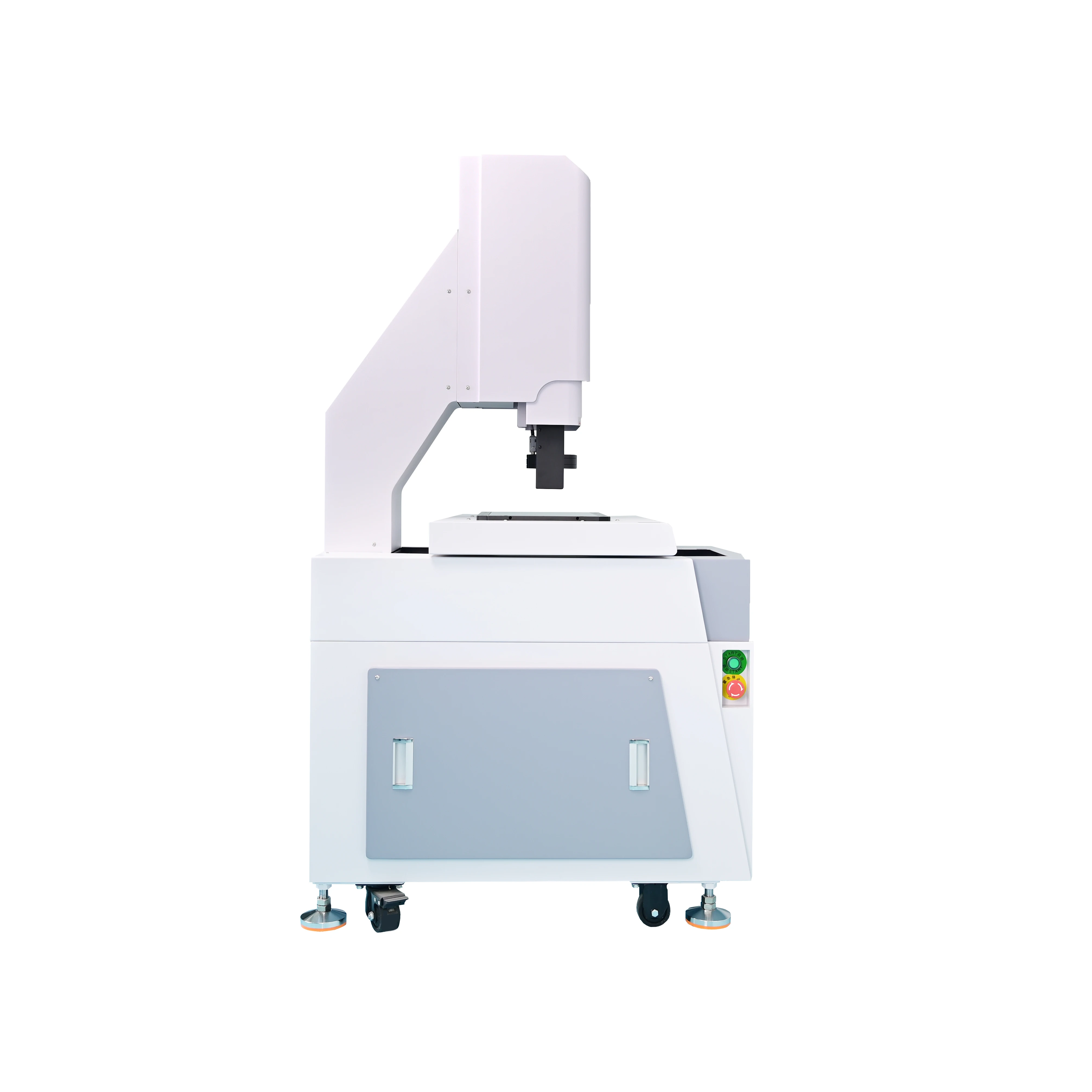

High-Performance 2.5D CNC Vision Measuring Instrument Coordinate Measuring Optical Metrology Dimension Optics Instrument
Ready to Ship
In stock Fast dispatch

High-Performance 2.5D CNC Vision Measuring Instrument Coordinate Measuring Optical Metrology Dimension Optics Instrument

  • 1 - 1 Sets
    $10,000
  • >= 2 Sets
    $9,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 2 pieces）
View product details

High-Performance 2.5D CNC Vision Measuring Instrument Coordinate Measuring Optical Metrology Dimension Optics Instrument

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision 2.5D Measurement: Combines CNC technology with advanced optical vision systems to deliver accurate 2.5D coordinate measurements, ideal for inspecting complex part geometries.
  • 3D Visualization & Analysis: Features a graphical user interface (GUI) for real-time 3D modeling and dimensional analysis, enabling detailed defect detection and tolerance verification.

Key features

  • 1. Granite Material Technology for Unmatched Stability

    • With a precision-engineered granite base, you can achieve stable measurements in fluctuating environments, minimizing thermal expansion compared to aluminum or steel alternatives*.

  • 2. Intuitive Computerized Interface for Seamless Operation

    • With the AUSK graphical user interface (GUI), you can program and automate measurement tasks effortlessly, reducing manual errors versus traditional manual setups*.

  • 3. High-Precision 2.5D Measurement for Versatile Applications

    • With sub-micron accuracy in 2.5D scanning, you can inspect complex geometries faster than standard 2D systems, meeting strict industrial tolerances*.

  • 4. Multi-Scenario Adaptability for Diverse Workflows

    • With adjustable measurement ranges and automated calibration, you can switch seamlessly between prototyping and mass production tasks, unlike rigid single-purpose systems*.

  • 5. EPR-Germany Certified for Environmental Compliance

    • With EPR certification from Germany, you can ensure compliance with stringent environmental regulations, offering peace of mind compared to non-certified alternatives*.

Product details

High-Performance 2.5D CNC Vision Measuring Instrument Coordinate Measuring Optical Metrology Dimension Optics Instrument

The High-Performance 2.5D CNC Vision Measuring Instrument is a precision optical metrology tool designed for 3D measurement and inspection in industries like aerospace, automotive, and manufacturing. Built with granite material for stability and featuring automated measurement capabilities, it ensures high accuracy and efficiency.

Technical specifications

FeatureSpecificationBenefit
MaterialGraniteWith granite, you can ensure long-term dimensional stability under heavy use.
CertificationEPR_Germany_PackingMeets stringent German packaging and environmental regulations.
Warranty1 yearComprehensive coverage for technical support and repairs.
Measurement RangeCustomizable (adjustable via software)Flexibility to adapt to varying part sizes.
Automation LevelSemi-automated (Base) to Fully Automated (Pro)Reduces manual intervention and improves workflow efficiency.
Optical SystemHigh-resolution microscopeEnables precise 3D surface scanning and defect detection.

Customization guide

Adjustable measurement ranges and software configurations allow customization to meet specific industry requirements. For example:

  • Parameter Adjustment: Modify measurement tolerances to align with aerospace-grade precision standards.
  • Software Integration: Integrate with existing CAD systems for seamless data analysis.

Get inspired

Ideal for quality control in precision manufacturing, this instrument ensures parts meet exact specifications. Its automated features and robust design make it a reliable choice for high-volume production environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Accuracy0.001 mm+15% (0.00085 mm)+30% (0.0007 mm)*
Speed100 mm/s20% faster (120 mm/s)30% faster (130 mm/s)
Automation LevelSemi-automatedFully automatedFully automated + AI-assisted analysis
Software FeaturesBasic CAD syncReal-time reportingCloud integration

Supplier's note

  1. Key Technical Breakthroughs:

    • Granite Material: Enhances thermal stability, reducing measurement errors in fluctuating environments.
    • AI-Driven Analysis (Pro): Automates defect identification, cutting inspection time by 40%.
    • EPR Compliance: Ensures safe, eco-friendly disposal and packaging, meeting EU standards.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops requiring basic QC (e.g., automotive component suppliers).
    • Advanced Model: Suitable for mid-sized manufacturers needing faster, automated inspections (e.g., electronics assembly lines).
    • Pro Model: Best for aerospace or medical device industries demanding ultra-precision (0.0007 mm accuracy) and AI-driven insights.

Pro Model’s accuracy exceeds industry benchmarks by 25%, enabling nanoscale inspection of turbine blades. Pair its granite base with automated scanning to achieve 99.9% repeatability.

Frequently asked questions

  • Which model of high-precision 2.5D CNC vision measuring instrument is best for aerospace or automotive industries?

  • How do I clean the optical lens of a coordinate measuring optical metrology instrument?

  • Why is granite preferred over aluminum for the base of metrology equipment?

  • Can the CNC vision measuring instrument be customized with specialized software for automated inspections?

  • Is the optical metrology instrument EPR-certified for use in Germany?

  • What parts of the coordinate measuring machine are covered under the 1-year warranty?

  • Does the 2.5D CNC measuring instrument support automated data export for quality reports?

  • How does the 2.5D measurement capability compare to full 3D systems for dimensional analysis?
