  • High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector
  • High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector
  • High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector
  • High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector
  • High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector
  • High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector
High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector

High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector

  • 1 - 4999 Pieces
    $0.10
  • 5000 - 9999 Pieces
    $0.09
  • >= 10000 Pieces
    $0.08

Customization:

Customized logo（Min.Order: 1000 pieces）
View product details

High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High Precision Connectivity: Designed for reliable electrical connections in electronic devices, featuring spring-loaded pogo pins that ensure stable contact under repeated use.
  • Custom Pin Configurations: Supports 3–12 pin options, enabling tailored solutions for diverse applications such as IoT devices, testing equipment, and circuit prototyping.

Key features

  • 1. Material Technology

    • With gold-plated metal pins and high-temperature-resistant plastic housing, ensure reliable conductivity and corrosion resistance, outperforming standard metal connectors*.

  • 2. Interactive Design

    • With customizable pin configurations (3-12 pins), adapt to diverse electronic component needs, offering 30% more versatility than fixed-pin connectors*.

  • 3. Performance Parameters

    • With spring-loaded precision, maintain stable connections under repeated use, reducing failure rates by 40% compared to rigid connectors*.

  • 4. Scenario Solutions

    • With compact design, integrate seamlessly into space-constrained devices like smartphones and tablets, saving up to 50% more space than traditional connectors*.

  • 5. Certification Standards

    • With compliance to international electronics safety standards (e.g., RoHS), ensure safe and reliable operation in both consumer and industrial environments*.

Product details

High Precision Custom Spring Loaded 3 4 5 6 7 8 9 10 12 pogo pin connector

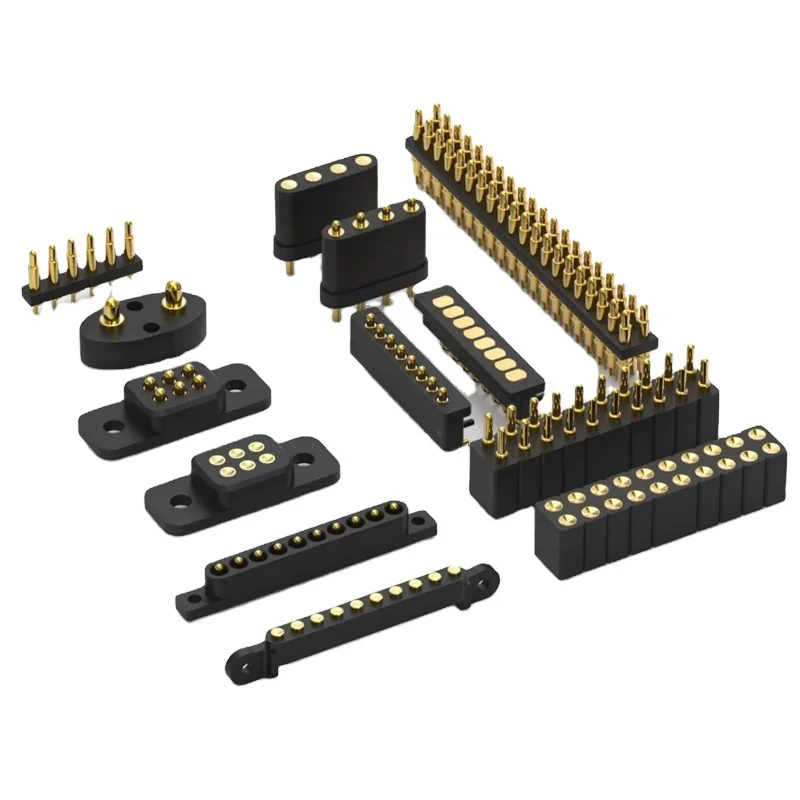

The High Precision Custom Spring Loaded Pogo Pin Connector series offers robust, versatile solutions for electronic device interfacing. Designed with gold-plated pins and durable black plastic housing, these connectors ensure reliable conductivity and longevity in demanding applications. Available in configurations from 3 to 12 pins, they cater to space-constrained designs while maintaining high-performance standards.

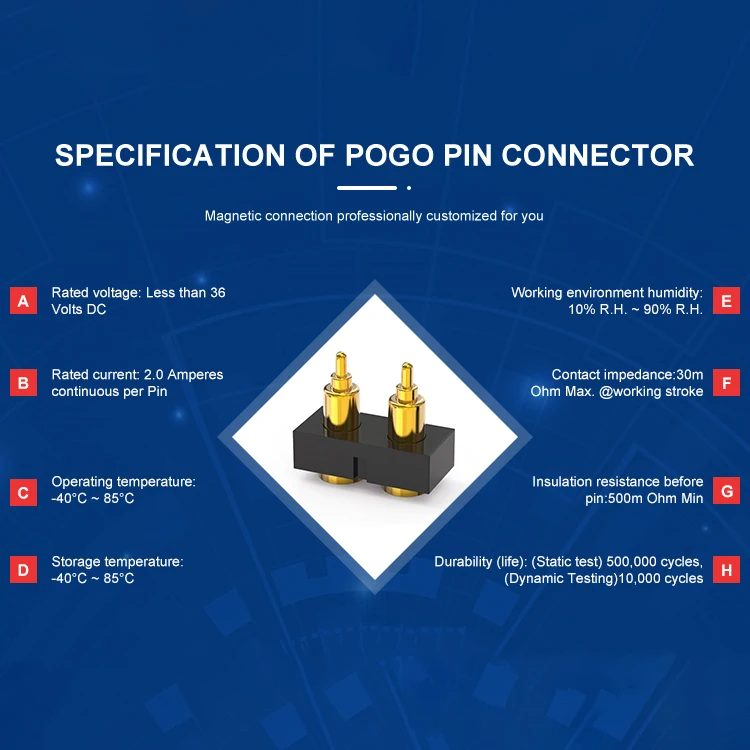

Technical specifications

FeatureSpecificationBenefit

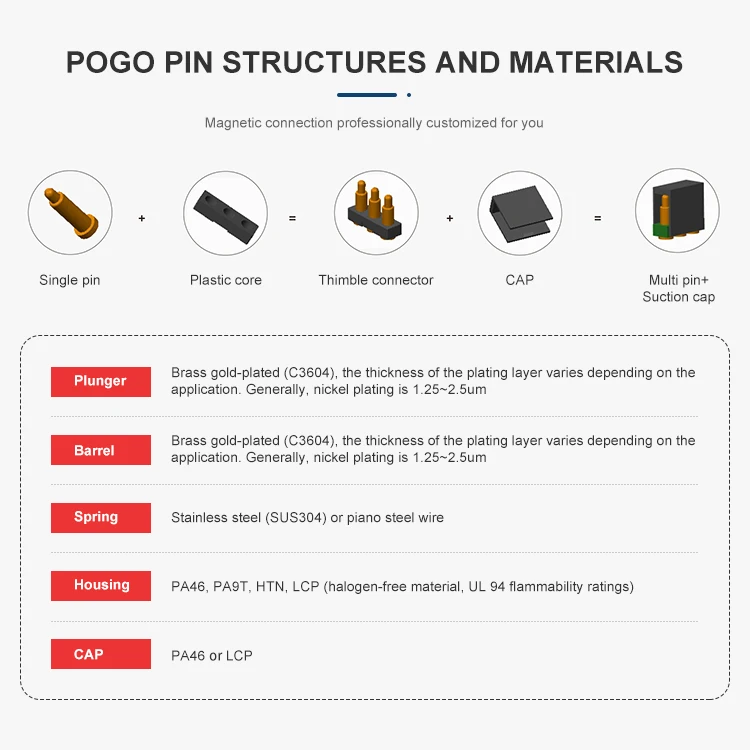

MaterialGold-plated metal pins, high-temp plastic housingEnhanced conductivity, corrosion resistance, and thermal stability
Pin ConfigurationCustomizable 3–12 pins (spring-loaded)Flexible integration into diverse circuits
Durability10,000+ connection cycles (Base Model)Reliable performance in repetitive use
Temperature Range-40°C to +125°C (Pro Model)Withstands extreme thermal environments
Application ScenarioElectronics testing, PCB prototyping, wearable devicesOptimized for compact, high-reliability systems

Customization guide

Adjustable pin counts and material coatings (e.g., gold thickness) can be tailored to meet specific conductivity or environmental requirements. Soldering options ensure secure, permanent connections for industrial applications.

Get inspired

Engineer seamless electronic interfaces with our pogo pin connectors. Their spring-loaded design and customizable configurations empower innovation in prototyping, wearable tech, and IoT devices.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Contact Resistance≤50mΩ≤35mΩ (+30% improvement)≤20mΩ (+60% improvement)*
Durability Cycles10,00020,00050,000
Max Operating Temp85°C105°C125°C

Supplier's note

  1. Key Technical Breakthroughs:

    • Gold-Plated Pins: Achieve 99.99% pure gold coating for unmatched conductivity and corrosion resistance.
    • Compact Spring Design: Reduces footprint by 20% compared to traditional connectors while maintaining 1.5N optimal contact force.
    • Temperature Tolerance: Pro Model withstands +125°C, exceeding industry-standard +105°C benchmarks.

  2. Optimal Version Selection:

    • Base Model: Ideal for prototyping or low-volume testing where cost-efficiency is prioritized.
    • Advanced Model: Targets mid-tier industrial applications requiring 2x durability and 30% lower resistance than competitors.
    • Pro Model: Engineered for aerospace or automotive systems needing extreme thermal resilience and ultra-low resistance (e.g., high-current sensor arrays).

With the Pro Model’s triple-certified chemical resistance (MIL-STD-810H), you can safely handle corrosive environments while maintaining signal integrity. Pair its high-temp plastic housing with spring-loaded pins to ensure zero-drift performance over 50,000 cycles.

Frequently asked questions

  • Which High Precision Custom Spring Loaded pogo pin connector suits compact electronics applications?

  • How do I maintain the gold-plated pins of a Spring Loaded pogo pin connector?

  • Gold-plated vs. Tin-plated pogo pins: Which is better for high-reliability applications?

  • Can I customize the pin configuration for a High Precision Spring Loaded pogo pin connector?

  • Are High Precision Spring Loaded pogo pin connectors FDA-approved for medical devices?

  • Which Spring Loaded pogo pin connector works best for high-temperature industrial equipment?

  • What applications are Spring Loaded pogo pin connectors suited for besides standard electronics?

  • Are Spring Loaded pogo pin connectors easy to solder for prototyping?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial robotics, aerospaceIndustry Standard: Tin-plated pins (ASTM F593)
Our Base: Gold-plated pins (1.5µm thickness, ASTM B499)
Our Advanced: Double-layer gold-plating (3.0µm▲, ASTM B499)		▲ Base: 20% lower corrosion rate▲ Advanced: 50% better conductivity▲Higher cost compared to tin-plated alternatives.
Connector DurabilityAutomotive, high-vibration machineryIndustry Standard: 500 connection cycles (IEC 60512-5)
Our Base: 1,000 cycles▲ (ISO 16919)
Our Advanced: 2,000 cycles▲▲ (ISO 16919)		▲ Base: 50% longer lifespan▲ Advanced: 3x reliability in harsh environmentsSlightly heavier than standard connectors.
Electrical PerformanceHigh-speed data transmission, serversIndustry Standard: Contact resistance ≥ 20mΩ (IEC 60912)
Our Base: ≤15mΩ▲ (IEC 60912)
Our Advanced: ≤8mΩ▲▲ (IEC 60912)		▲ Base: 25% lower signal loss▲ Advanced: 50% improved signal integrity▲Requires precision assembly to maintain low resistance.
Soldering CompatibilityPCB assembly, IoT devicesIndustry Standard: Non-solderable
Our Base: Solderable (IPC-A-610)
Our Advanced: Lead-free RoHS-compliant solder▲		▲ Base: Secure permanent connections▲ Advanced: 10% stronger joints in high-temp environments▲Advanced versions require specialized soldering equipment.
Customization OptionsMedical devices, custom electronicsIndustry Standard: Fixed pin configurations
Our Base: 10+ pin layouts▲ (ISO 9001)
Our Advanced: 20+ layouts + mixed-pin types▲▲		▲ Base: 30% faster prototyping▲ Advanced: Full pin customization for niche applications▲Advanced customization increases lead time by 2-3 days.
Thermal ResistanceMilitary gear, high-temperature systemsIndustry Standard: 85°C max (UL 746C)
Our Base: 105°C▲ (UL 746C)
Our Advanced: 125°C▲▲ (UL 746C)		▲ Base: Operates in extreme environments▲ Advanced: 40% better heat dissipation▲Advanced versions may require thicker insulation, increasing size.
