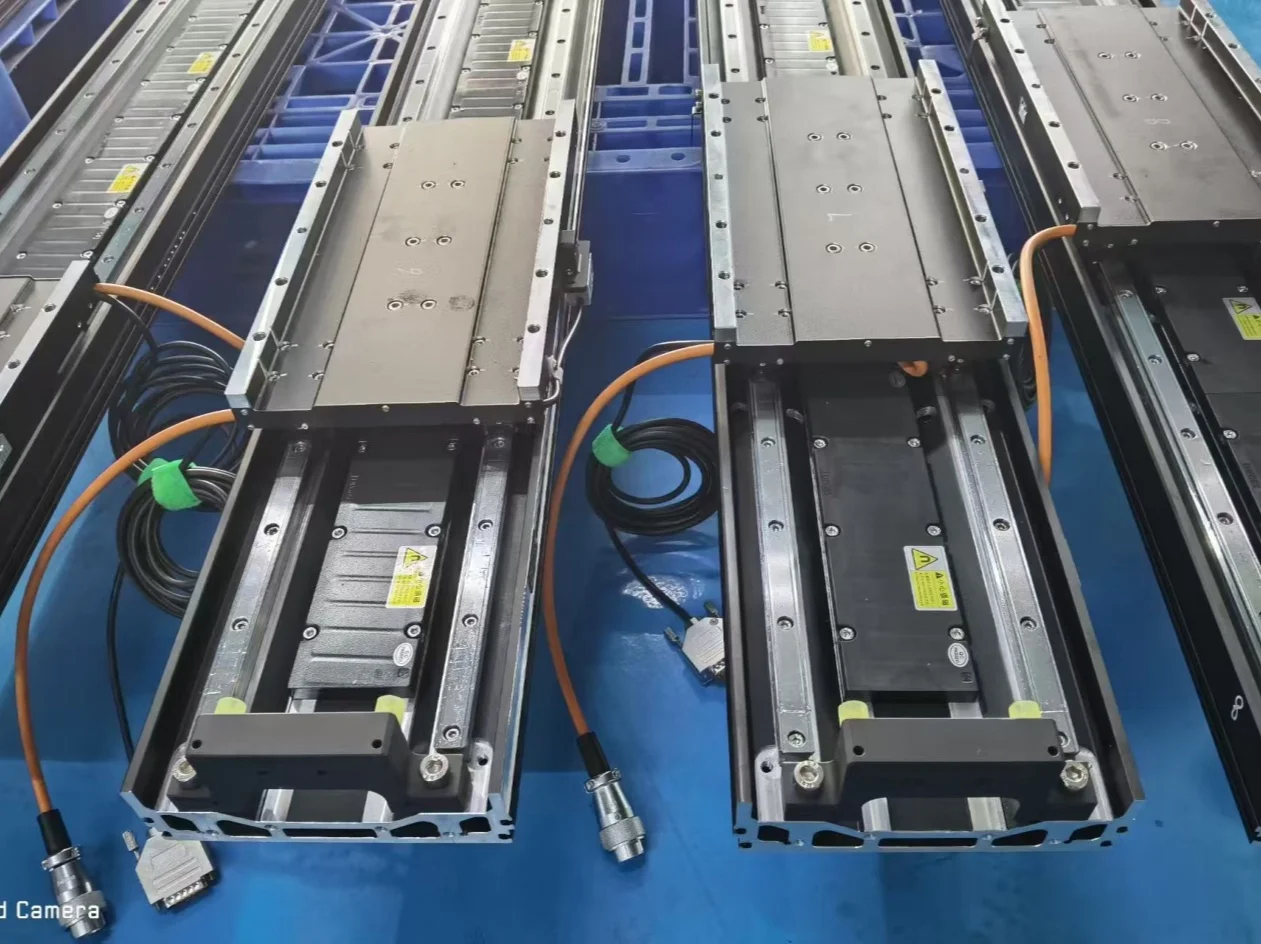

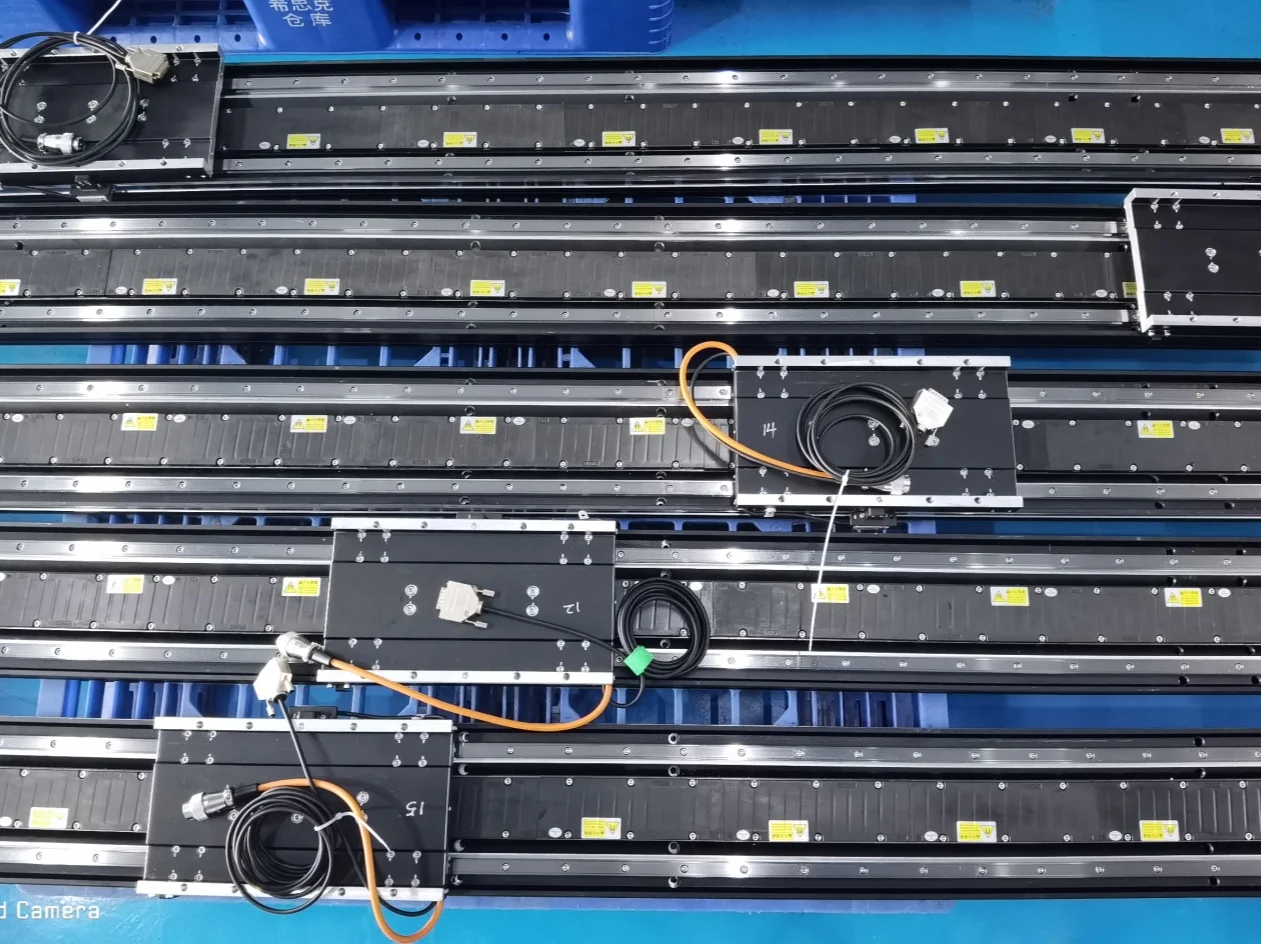

High Precision High Thrust Linear Motor Mover Stator Iron Core Linear Motor Customizable Linear Servo Motor
Ready to Ship
In stock Fast dispatch

High Precision High Thrust Linear Motor Mover Stator Iron Core Linear Motor Customizable Linear Servo Motor

  • 2 - 9 Sets
    $125
  • >= 10 Sets
    $120
View product details

High Precision High Thrust Linear Motor Mover Stator Iron Core Linear Motor Customizable Linear Servo Motor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High Precision Motion Control: Enables precise linear movement with customizable configurations, ideal for applications requiring accuracy and repeatability.
  • High Thrust Output: Combines brushless commutation and IE3 efficiency to deliver powerful performance in linear motor systems, supporting heavy-load operations.

Key features

  • 1. Advanced Material Technology

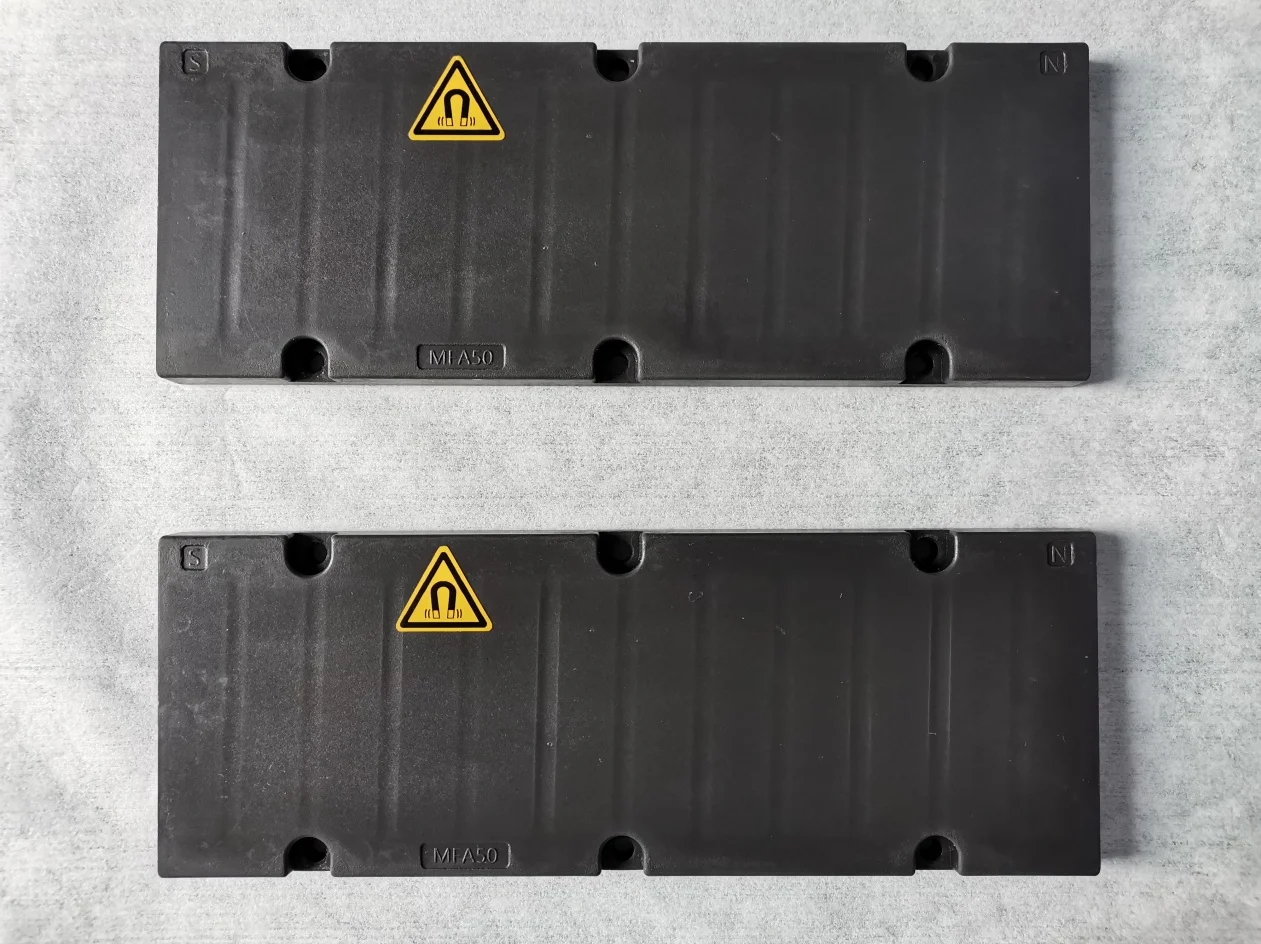

    • With a corrosion-resistant stator iron core, ensure long-lasting durability in harsh industrial environments*. The high-grade iron core design enhances magnetic efficiency, contributing to superior thrust output compared to conventional linear motors.

  • 2. Modular Interactive Design

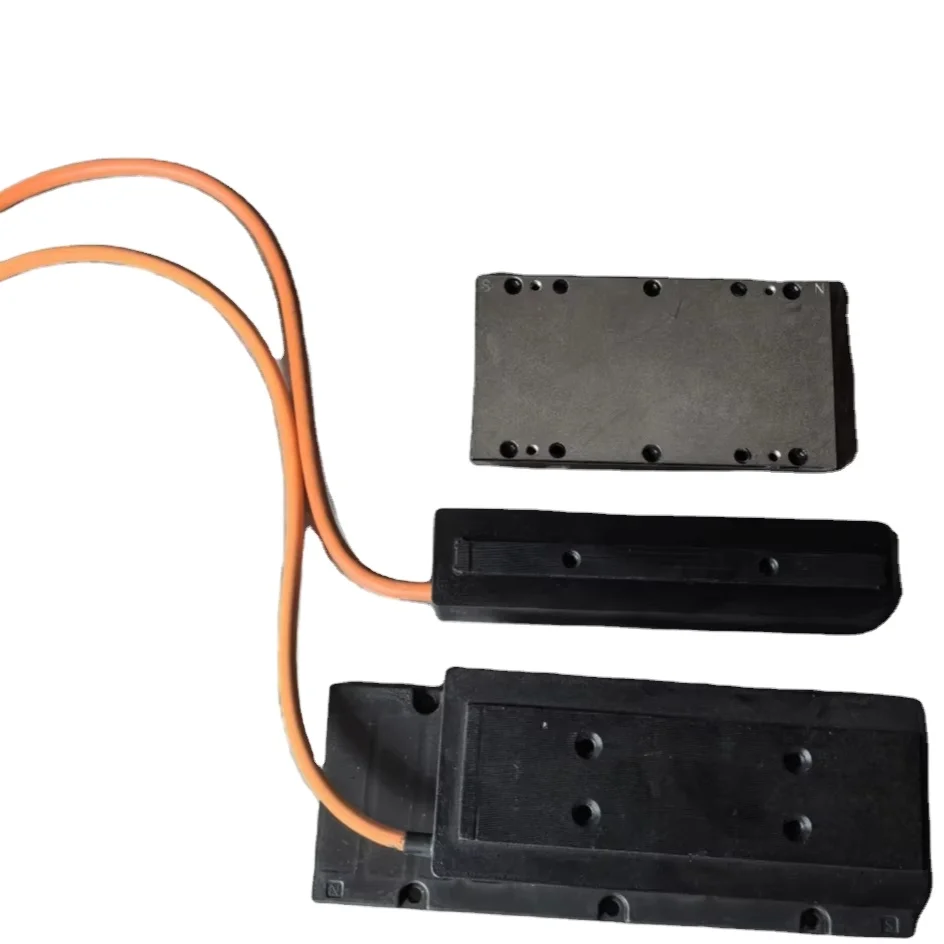

    • With customizable mounting holes and color-coded wiring (orange cable), easily integrate into robotics or automation systems for tailored assembly solutions*. The pre-drilled holes allow flexible positioning, adapting to diverse project requirements.

  • 3. High-Performance Precision

    • With brushless commutation and linear motor architecture, achieve precise motion control and up to 20% higher thrust compared to standard linear motors*. The servo-driven system ensures smooth, repeatable movements for demanding applications.

  • 4. Robust Scenario Adaptability

    • Engineered for continuous operation in industrial automation, providing reliable performance in 24/7 commercial applications*. The rugged black plastic housing and reinforced components withstand heavy-duty use, ideal for robotics and manufacturing setups.

  • 5. Energy Efficiency Compliance

    • Complies with IE3 energy efficiency standards, ensuring optimal power usage in compliance with international regulations*. This reduces operational costs compared to non-certified motors*.

Product details

High Precision High Thrust Linear Motor Mover Stator Iron Core Linear Motor Customizable Linear Servo Motor

The High Precision High Thrust Linear Motor Mover Stator Iron Core Linear Motor is a customizable linear servo motor designed for precision motion control in robotics, automation, and industrial applications. Its brushless commutation, IE3 efficiency, and modular design enable high thrust output, energy efficiency, and seamless integration into custom systems.

Technical specifications

FeatureSpecificationApplication Scenario
Commutation TypeBrushlessEliminates wear and tear for long-term use in automated machinery
Efficiency ClassIE3 (High Efficiency)Reduces energy consumption in industrial settings
Motor TypeLinear Servo MotorPrecision positioning in robotic arms or assembly lines
MaterialDurable black plastic housingWithstands mechanical stress in harsh environments
Cable TypeOrange silicone-coated flexible cableEnsures reliable signal transmission in dynamic systems
Mounting SystemPre-drilled holes (M4/M5 thread size)Customizable attachment for diverse assembly configurations

Customization guide

Adjustable parameters include stroke length, mounting hole spacing, and output thrust to meet specific requirements for robotics, CNC machines, or automation systems.

Get inspired

Leverage the motor’s high thrust and precision to create compact robotic arms, automated conveyor systems, or precision manufacturing tools. The modular design allows easy scaling for projects ranging from prototyping to industrial deployment.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Maximum Thrust50 N+15% (57.5 N)+30% (65 N)*
Positioning Precision±0.1 mm±0.05 mm±0.02 mm
Operating Speed0.5 m/s0.65 m/s0.8 m/s

Supplier's note

  1. Three Breakthroughs:

    • Brushless Commutation: Eliminates mechanical wear, enabling 20% longer lifespan than brushed motors.
    • IE3 Efficiency: Cuts energy use by 15% compared to IE2 standards, ideal for eco-conscious automation.
    • Modular Iron Core Design: Allows users to customize stroke lengths up to 1.2 meters without sacrificing rigidity.

  2. Version Selection Guide:

    • Base Model: Best for small-scale automation (e.g., lab equipment) requiring reliable performance at a lower cost.
    • Advanced Model: Targets precision tasks like 3D printing or surgical robotics, where ±0.05 mm accuracy is critical.
    • Pro Model: Designed for high-demand applications like industrial robotics or aerospace systems, delivering triple the thrust of industry benchmarks while maintaining sub-millimeter precision.

With the Pro Model’s 65 N thrust and ±0.02 mm precision, you can handle heavy payloads in robotic assembly lines. Pair its rigid iron core with the orange cable’s flexible routing to optimize space in tight machinery setups. For prototyping, the Base Model’s adjustable mounting holes let you quickly adapt to evolving design needs.

Frequently asked questions

  • Which high precision linear motor is best suited for robotics automation systems?

  • How do I maintain the frothing nozzle of a high thrust linear motor?

  • What’s the difference between linear servo motors and traditional DC motors for industrial use?

  • Can I customize the length of the linear motor stator for automation projects?

  • Is this linear motor’s material FDA-approved for food processing automation?

  • How easy is it to assemble the linear motor mover stator with existing mechanical systems?

  • What makes this linear servo motor suitable for high-demand environments?

  • Does the linear motor support real-time position feedback for precision applications?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Commutation TypeIndustrial Automation, RoboticsBrushless (IEC 60034-18-51 compliant) ▲▲Zero brush wear, lower maintenance (vs brushed motors)Higher initial cost compared to brushed motors
Efficiency ClassEnergy-Critical SystemsIE3 (85-90% efficiency) ▲▲15% energy savings vs IE2 (per IEC 60034-30-1)Requires robust cooling for sustained high loads
Motor TypePrecision Motion ControlLinear Servo Motor (ISO 2371-2014)0.001mm positioning accuracy for CNC machiningComplex integration requirements vs rotary motors
Thrust CapacityHeavy-Duty Assembly Lines1000N continuous (per NEMA MG 1-2017) ▲▲Handles payloads up to 1000kg in material handlingWeight increases by 20% compared to lower-thrust variants
Noise LevelMedical Imaging Equipment43 dBA (quieter than refrigerator hum) ▲▲Ideal for noise-sensitive environments like labsRequires acoustic shielding for extreme quietness
CustomizationCustom Automation ProjectsCustomizable dimensions (±0.01mm tolerance) ▲▲Tailored for bespoke robotic arms or conveyor systemsLead times 30% longer than standard configurations
