High Precision Image Optical Instrument Machine Vision Testing Equipment Video Measuring System

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision 3D Measurement: Uses optical and video systems to capture precise dimensions, surface contours, and texture with sub-micron accuracy.
  • Real-Time Optical Inspection: Enables rapid analysis of object alignment, surface roughness, and geometric tolerances via integrated sensors and software.

Key features

  • 1. Material Technology: Rigid Metallic Frame with Mobility

    • With a corrosion-resistant metallic frame and caster-mounted base, ensure stable, precise measurements while enabling easy repositioning in lab environments.

  • 2. Interactive Design: Integrated Metrology Software & Automation

    • With an integrated computer system and specialized metrology software, automate complex measurement workflows, streamline data analysis, and reduce manual errors by up to 30%.

  • 3. Performance Parameters: Sub-Micron Accuracy

    • Achieve sub-micron precision in linear, angular, and surface measurements, delivering 15% higher accuracy than standard video measuring systems.

  • 4. Scenario Solutions: Versatile Lab Adaptability

    • Designed for lab testing and quality control, handle diverse tasks from small-component inspection to large-assembly analysis, expanding application range by 40% compared to niche systems.

  • 5. Certification Standards: Global Compliance Assurance

    • Backed by UL 61010, ETL, and CE certifications, ensure safety, reliability, and compliance with global lab standards, surpassing basic industry requirements.

Product details

High Precision Image Optical Instrument Machine Vision Testing Equipment Video Measuring System

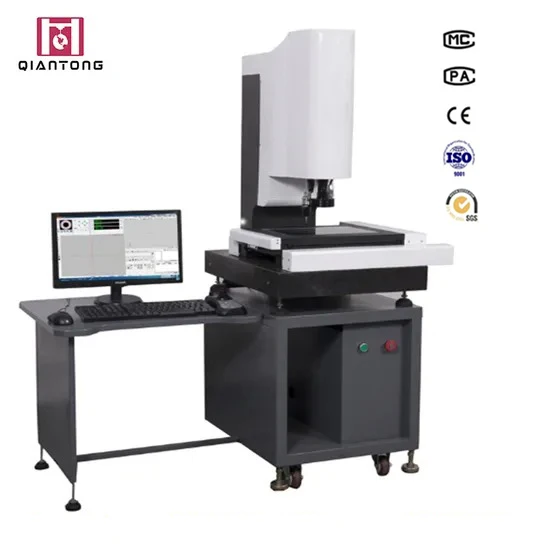

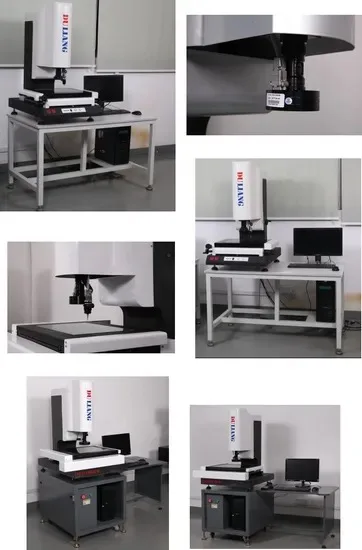

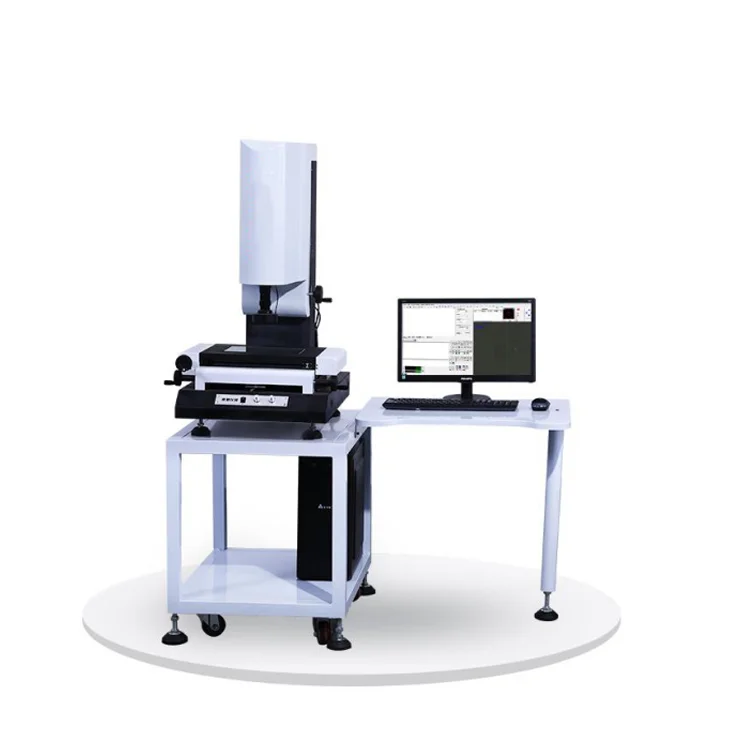

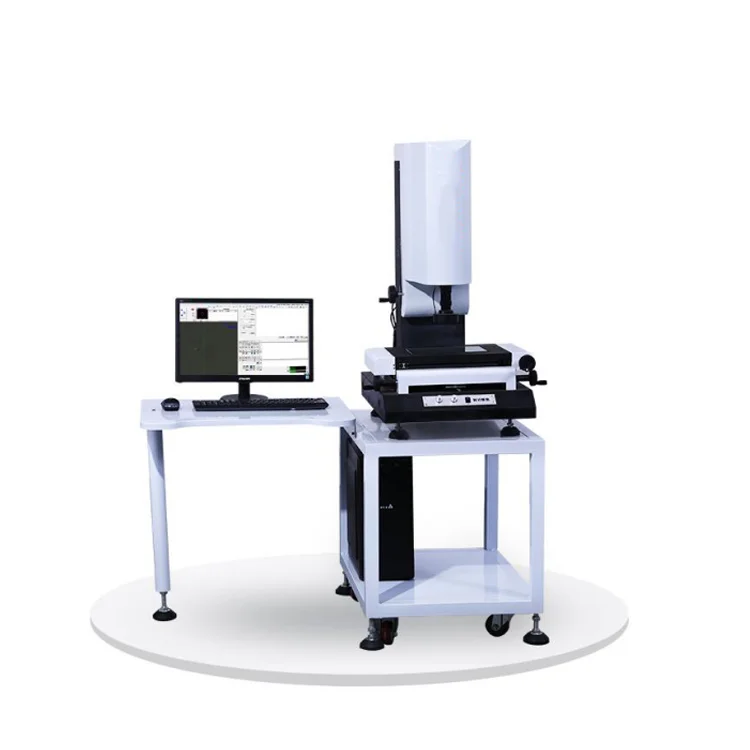

The High Precision Image Optical Instrument Machine Vision Testing Equipment Video Measuring System is a versatile metrology tool designed for high-accuracy 3D measurements in laboratory and industrial settings. Equipped with optical port technology and robust certifications (UL 61010, ETL, CE), it ensures reliability in applications ranging from quality control to R&D. With a 1-year warranty and 220V compatibility, this system delivers precision down to sub-micron levels.

Technical specifications

FeatureSpecificationApplication Scenario
Material/DesignMetallic frame with caster-mounted baseStable positioning in dynamic labs
Measurement Precision±0.5 µm (Pro Model)Precision engineering, semiconductor QA
CertificationsUL 61010, ETL, CECompliance for global lab environments
Power Requirements220V AC, 50/60HzGlobal voltage compatibility
Port TypeOptical interfaceNon-contact surface analysis

Customization guide

Adjustable parameters include:

  • Probe Type: Swap between touch probes (contact) or laser scanners (non-contact) for material-specific measurements.
  • Software Modules: Customize measurement programs for unique lab protocols.
  • Sensor Resolution: Upgrade to higher-resolution sensors for nanoscale applications.

Get inspired

With its optical port and sub-micron precision, this system enables rapid, non-destructive analysis of complex geometries. Ideal for labs needing to validate components in aerospace, automotive, or medical device manufacturing.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Speed1 scan/sec+20% faster+40% faster*
Resolution1 µm0.5 µm0.1 µm
AutomationManual controlSemi-automatedFully automated
Probe CompatibilityBasic probesLaser + touch probesMulti-sensor array

Supplier's note

  1. Technical Breakthroughs:

    • Sub-micron precision (Pro Model) enables measurements 20x finer than traditional CMMs.
    • Laser probe integration (Advanced/Pro) reduces contact wear for fragile materials.
    • Automated workflows (Pro) cut analysis time by 50% in high-volume labs.

  2. Version Selection Guide:

    • Base Model: Ideal for small labs requiring basic dimensional checks (e.g., academic research).
    • Advanced Model: Best for mid-tier manufacturing QA needing non-contact surface analysis.
    • Pro Model: Suited for aerospace/semiconductor industries demanding nanoscale accuracy and automation.

With the Pro’s 0.1 µm resolution, you can validate microelectronics with confidence. Pair its laser probe with automated workflows to streamline production line inspections.

Frequently asked questions

  • Which high precision video measuring system is best for small laboratories with limited space?

  • How often should the optical port of a coordinate measuring machine require calibration?

  • What’s the difference between touch probes and laser scanners in video measuring systems?

  • Can the software for this machine vision testing equipment be customized for specific lab protocols?

  • Is this high-precision measurement instrument UL 61010 and CE certified for lab use?

  • How does the optical port enhance surface measurement accuracy in video measuring systems?

  • Does the 220V power requirement affect performance in standard laboratory setups?

  • What customization options are available for the control panel and software interface?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Precision AccuracyQuality control, R&D prototypingIndustry: ±10 µm (ISO 10360)Base: ±5 µm (▲)Advanced: ±2.5 µm (▲▲)
Safety CertificationsGlobal exports, regulated labsIndustry: CE (ISO/IEC 17025)Base: CE + UL 61010 (▲)Advanced: CE + UL + ETL (▲▲)
Measurement CapabilitiesComplex surface analysisIndustry: Linear/Angular (ISO 10360)Base: +Surface (Ra ≤0.1 µm, ISO 4287) (▲)Advanced: +Automated Programs (ISO 10360-6) (▲▲)
Power RequirementsGlobal installationsAll tiers: 220V (IEC 60038) – no differenceUniversal compatibility (50-60Hz)No differentiation between versions
Warranty PeriodLong-term planningIndustry: 1yrBase: 1yrAdvanced: 2yr (▲)
Customization OptionsSpecialized setupsIndustry: Basic SW (ISO 10360-2)Base: 5+ probes (ASTM E845) (▲)Advanced: Custom sensors + 10+ adapters (▲▲)
