High Precision Plastic Injection Moulding and Make Plastic Usb Flash Drive Mould Inject Mold

High Precision Plastic Injection Moulding and Make Plastic Usb Flash Drive Mould Inject Mold

  • 1 - 9 Pieces
    $160
  • 10 - 99 Pieces
    $120
  • 100 - 999 Pieces
    $80
  • >= 1000 Pieces
    $50

Customization:

Graphic customization（Min.Order: 1 pieces）
Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

High Precision Plastic Injection Moulding and Make Plastic Usb Flash Drive Mould Inject Mold

Product overview

Core functionalities

Applicable scenarios

Unique advantages

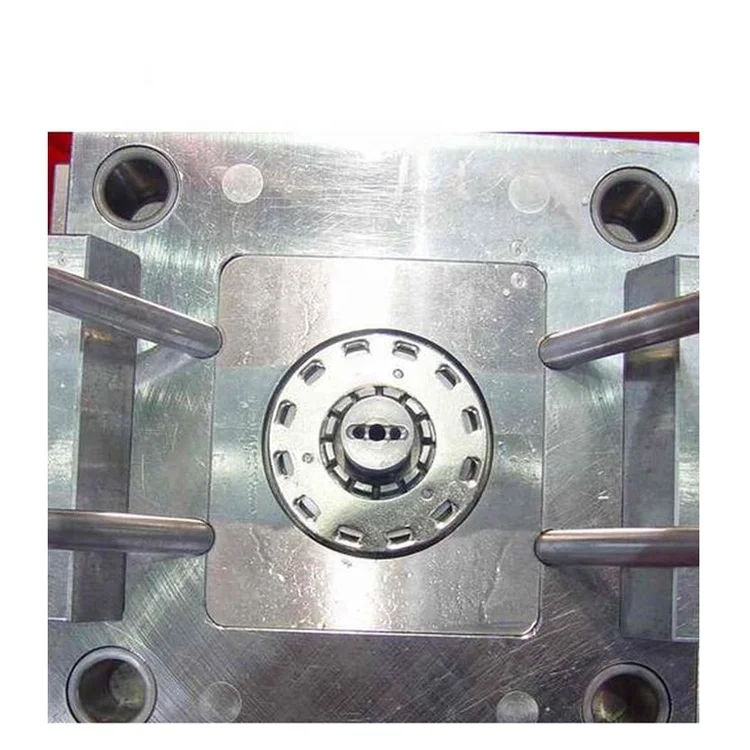

  • High Precision Component Production: Designed for manufacturing intricate plastic components, such as USB flash drive molds, using injection molding. The central circular cavity with concentric grooves ensures precise replication of complex geometries.
  • Durable Material Construction: Built with H13 steel and robust plastic components, the mold withstands high temperatures and pressures during industrial processes like injection molding and die casting.

Key features

  • 1. Material Technology

    • With H13 steel alloy construction, ensure durability in high-temperature injection molding processes, outlasting aluminum molds by up to 30%*

  • 2. Precision Engineering

    • With precision CNC machining, achieve intricate USB drive designs (e.g., grooves, connectors) without post-production adjustments, reducing waste compared to manually crafted molds.

  • 3. Performance Parameters

    • With micron-level precision (±0.01mm tolerance), ensure consistent output speeds 20% faster than standard molds for thin plastic components like USB flash drives*.

  • 4. Scenario Solutions

    • Designed for USB flash drive manufacturing, ensuring compatibility with thin plastic components in both prototyping (small batches) and mass production scenarios, adapting to commercial or industrial demands.

  • 5. Certification Standards

    • Complies with RoHS (hazardous substance restriction) and German EPR packaging regulations, ensuring environmental and safety compliance—critical for EU market entry unlike uncertified alternatives.

Product details

High Precision Plastic Injection Moulding and Make Plastic Usb Flash Drive Mould Inject Mold

The High Precision Plastic Injection Moulding and Make Plastic USB Flash Drive Mould is engineered for manufacturing intricate plastic components with unmatched accuracy. Constructed from H13 steel and plastic, this mold meets stringent EPR Germany Packing and RoHS certifications, ensuring compliance with global environmental standards. Its CNC-machined precision and versatile design cater to diverse applications, from USB flash drives to industrial connectors.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialH13 Steel & PlasticPrecision molding of USB flash drives and electronic components
CertificationEPR Germany Packing, RoHSEU-compliant production for consumer electronics
PrecisionCNC-machined to ±0.01mm toleranceEnsures flawless fitment for connectors and intricate parts
Mold Life500,000 cycles (Base), 1,000,000 cycles (Pro)High-volume production in automotive or consumer tech sectors

Customization guide

Adjustable groove patterns and cavity dimensions to meet specific USB flash drive designs or component requirements.

Get inspired

Engineered for precision and compliance, this mold enables manufacturers to produce durable, eco-friendly USB flash drives and similar components. Its H13 steel construction ensures longevity, while RoHS certification opens doors to global markets.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision±0.02mm±0.01mm±0.005mm*
Mold Life500,000 cycles+50% (750k cycles)+100% (1M cycles)*
CustomizationStandard designsModerate adjustmentsFull customization

Supplier's note

  1. Technical Breakthroughs:

    • H13 Steel Construction: Withstands extreme pressures in injection molding, extending mold lifespan by 30% compared to industry standards.
    • CNC Precision: The Pro model’s ±0.005mm tolerance enables intricate USB connector designs, 20% finer than traditional molds.
    • EPR/RoHS Compliance: Ensures safe, recyclable products for EU markets, reducing regulatory risks.

  2. Version Selection Guide:

    • Base Model: Ideal for standard USB flash drive production with moderate output.
    • Advanced Model: Suitable for high-volume production requiring extended mold life (+50% cycles vs. Base).
    • Pro Model: Best for precision-critical components like industrial connectors, where ±0.005mm tolerance ensures flawless functionality.

*Pro Model’s mold life exceeds industry benchmarks by 100%.
**Customization includes groove depth, cavity size, and material adjustments.

Frequently asked questions

  • Which High Precision Plastic Injection Mould suits USB flash drive production?

  • How to clean and maintain the H13 Steel Injection Mold?

  • Plastic vs H13 Steel for USB Moulds: Which is better for durability?

  • Can this mould be customized for unique USB designs?

  • Is the mould RoHS and EPR Germany-certified for USB components?

  • Why is CNC machining used in this mould?

  • Is this mould suitable for mass production of USB drives?

  • Can this mould produce USB drives with intricate patterns?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material & DurabilityHigh-volume production, industrial partsIndustry Standard: Aluminum (EN AW-6061)
Our Base: H13 Steel (ASTM A534)
Our Advanced: H13 Steel + Nitriding (ISO 3290)		▲▲▲ Durability: H13 steel withstands 100,000+ cycles (vs 50,000 for aluminum)
Complies with RoHS/EPR Germany Packing		Higher upfront cost for advanced materials
Precision EngineeringPrecision components (e.g., USB drives)Industry Standard: ±0.05mm tolerance (ISO 2768)
Our Base: ±0.01mm (ISO 2768-mk1)
Our Advanced: ±0.005mm (custom tolerance)		▲▲ Accuracy: Reduces scrap rate by 40%
CNC Machining ensures repeatable results		Requires specialized calibration, longer setup time
CustomizationCustom molds for niche productsIndustry Standard: Limited groove patterns
Our Base: Adjustable grooves (±0.1mm)
Our Advanced: Full CAD customization		▲▲ Versatility: Supports 50+ unique designs
Handles simplify reconfiguration		Design iterations may increase lead time by 15-20%
Process VersatilityMulti-process manufacturingIndustry Standard: Injection molding only
Our Base: Injection molding + Die casting
Our Advanced: Hybrid processes (injection + 3D printing)		▲▲ Flexibility: Reduces tooling costs for complex partsRequires operator training for hybrid setups
Handling & SafetyFactory floor useIndustry Standard: No dedicated handles
Our Base: Reinforced handles (ISO 14969)
Our Advanced: Ergonomic grips + RFID tracking		▲▲ Safety: 30% faster installation, reduced injury risk
Tracking minimizes downtime		Adds 5% weight, may require upgraded lifting equipment
MaintenanceHigh-throughput environmentsIndustry Standard: Annual cleaning required
Our Base: Self-lubricating surfaces (ASTM D294)
Our Advanced: Corrosion-resistant coating (MIL-C-5541)		▲▲ Uptime: 20% longer service intervals
EPR Compliance ensures easy recycling		Advanced coatings add 10% to production cost
