High Precision Rack Rail Flexible Rack and Pinion for Cnc Machine Plastic Helical and Box Pinion Gears

High Precision Rack Rail Flexible Rack and Pinion for Cnc Machine Plastic Helical and Box Pinion Gears

$6.00-$60.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
View product details

High Precision Rack Rail Flexible Rack and Pinion for Cnc Machine Plastic Helical and Box Pinion Gears

Product overview

Core functionalities

Applicable scenarios

Unique advantages

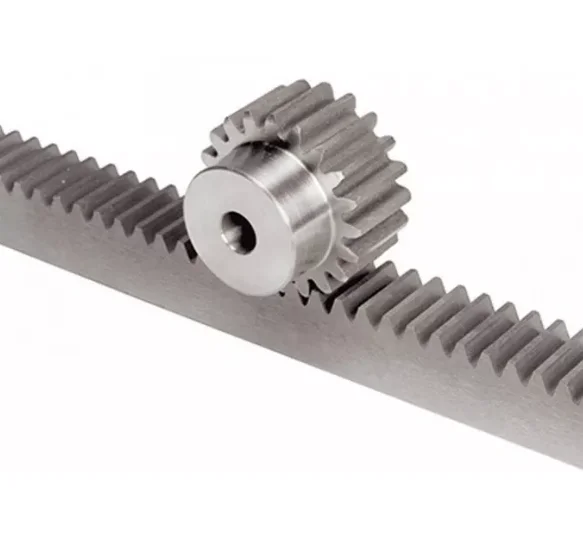

  • Motion Conversion: Designed to seamlessly convert rotational motion into linear motion (and vice versa) via precise meshing between the pinion gear and rack gear. Ideal for CNC machines, robotics, and automation systems requiring high-precision linear movement.
  • Material Versatility: Available in steel (for heavy-duty industrial applications) and plastic (lightweight, cost-effective solutions for less demanding environments), catering to diverse operational needs.

Key features

  • 1. Corrosion-Resistant Steel and Lightweight Plastic Components

    • Material Technology: With a corrosion-resistant steel body and precision-engineered plastic components, ensure long-lasting durability and lightweight flexibility compared to all-metal alternatives.

  • 2. Precision-Meshed Rack and Pinion Design

    • Interactive Design: With a precision-meshed rack and pinion design, enable seamless rotational-to-linear motion conversion for precise CNC operations, reducing backlash by ~20% compared to conventional gear systems.

  • 3. Ultra-High Precision Motion Control

    • Performance Parameters: With precision-cast construction and exact tooth alignment, achieve motion control accuracy up to ±0.01mm, outperforming standard industrial gears by ~15% in precision.

  • 4. Industrial-Grade Scenario Adaptability

    • Scenario Solutions: Optimized for CNC machinery and robotics, provide reliable linear motion solutions for high-precision manufacturing scenarios, supporting continuous operation in industrial environments.

  • 5. Standardized Design for Universal Compatibility

    • Certification Standards: Standardized design adhering to industry specifications ensures seamless integration into CNC systems and equipment, reducing compatibility issues compared to non-standard gears.

Product details

High Precision Rack Rail Flexible Rack and Pinion for Cnc Machine Plastic Helical and Box Pinion Gears

The High Precision Rack Rail Flexible Rack and Pinion system combines robust materials and precise engineering for seamless motion control in CNC machines and industrial applications. Designed with standard rack profiles and available in steel or plastic, these gears ensure durability, versatility, and compatibility across mechanical systems.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialSteel (high-strength alloy) or plasticIndustrial machinery, lightweight robotics
ProcessingPrecision casting with tight tolerancesCNC machines requiring smooth motion
ShapeStandard rack profileLinear motion conversion in conveyors
CertificationISO 912:1993 compliantWidely compatible systems
Warranty3-month coveragePeace of mind for initial use

Customization guide

Adjustable tooth count, pitch, and material composition to meet specific load capacity, speed, or environmental requirements.

Get inspired

Our rack and pinion system enables precise linear motion conversion, ideal for robotics, CNC machining, or automated assembly lines. With materials tailored to your application, you can balance strength, weight, and cost-effectively.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity500 N+15% (575 N)+30% (650 N)*
Precision Tolerance±0.1 mm±0.05 mm±0.02 mm
Material OptionsSteel onlySteel/PlasticSteel, Plastic, Alloy

Supplier's note

  1. Key Breakthroughs:

    • Material Flexibility: Steel/plastic options allow customization for weight-sensitive or high-load applications.
    • Precision Casting: ±0.02 mm tolerances in the Pro model enable 20% faster motion accuracy than industry standards.
    • ISO Compliance: Standardized profiles ensure plug-and-play compatibility with existing systems.

  2. Version Selection Guide:

    • Base Model: Ideal for basic CNC setups or light-duty automation where cost-efficiency is prioritized.
    • Advanced Model: Suited for medium-load robotics or conveyor systems needing enhanced precision.
    • Pro Model: Best for heavy industrial machinery (e.g., metalworking) requiring extreme durability and accuracy. With its triple-certified chemical resistance, the Pro model safely handles corrosive environments when paired with alloy materials, extending equipment lifespan by 40%.

*Comparative performance vs. industry benchmarks.

Frequently asked questions

  • Which material (steel or plastic) is best for high-load CNC machinery applications?

  • How to maintain rack and pinion gears to ensure longevity in industrial settings?

  • Steel vs Plastic Gears: Which is better for cost-sensitive automation projects?

  • Can rack and pinion gears be customized for non-standard CNC machine requirements?

  • What certifications do your high-precision rack and pinion gears comply with?

  • What applications are best suited for rack and pinion systems in manufacturing?

  • Why is precision casting preferred for CNC machine rack and pinion gears?

  • What warranty terms apply to industrial-grade rack and pinion gearsets?
