High Professional 0.9-10000 HZBB-10S Hand Held Transformer Turns Ratio Tester TTR Meter Huazheng

High Professional 0.9-10000 HZBB-10S Hand Held Transformer Turns Ratio Tester TTR Meter Huazheng

$1600.00-$1855.00/ Unit|1 Unit/Units(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
View product details

High Professional 0.9-10000 HZBB-10S Hand Held Transformer Turns Ratio Tester TTR Meter Huazheng

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Transformer Turns Ratio Testing: Accurately measures the turns ratio of transformers across a wide frequency range (0.9–10,000 Hz), ensuring reliable performance for electrical system diagnostics.

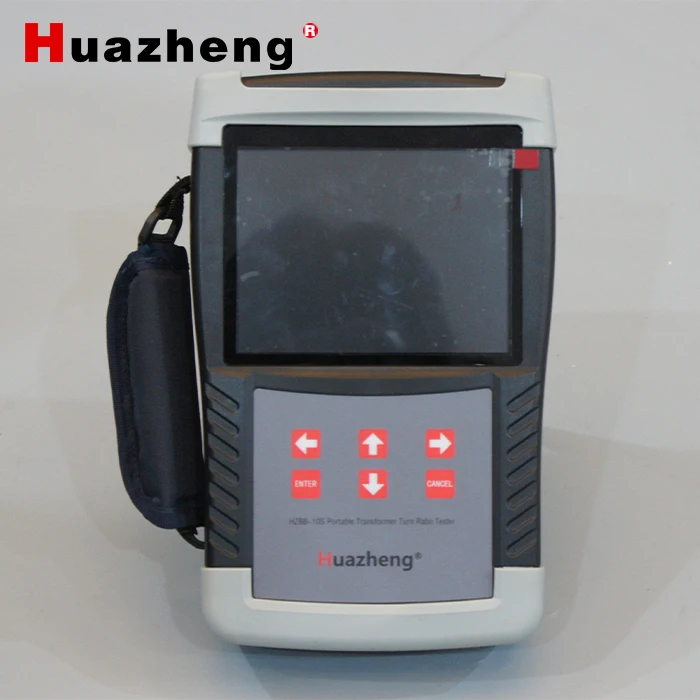

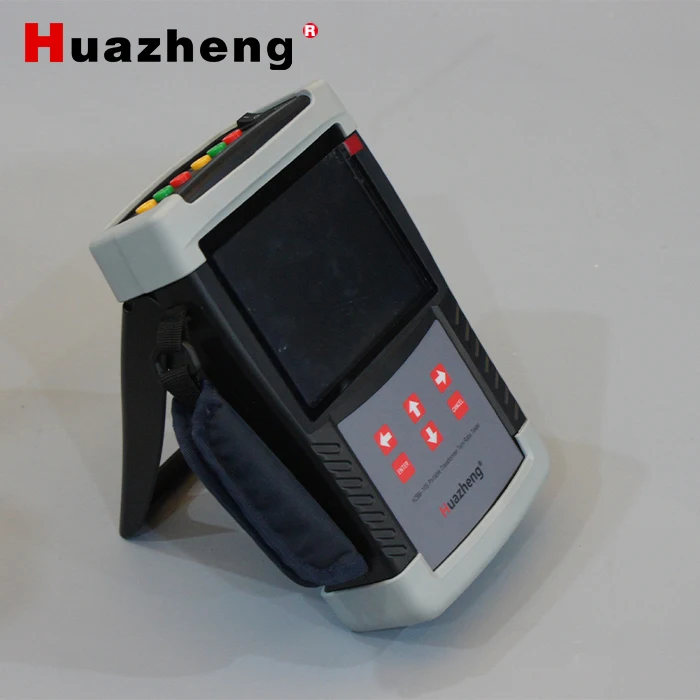

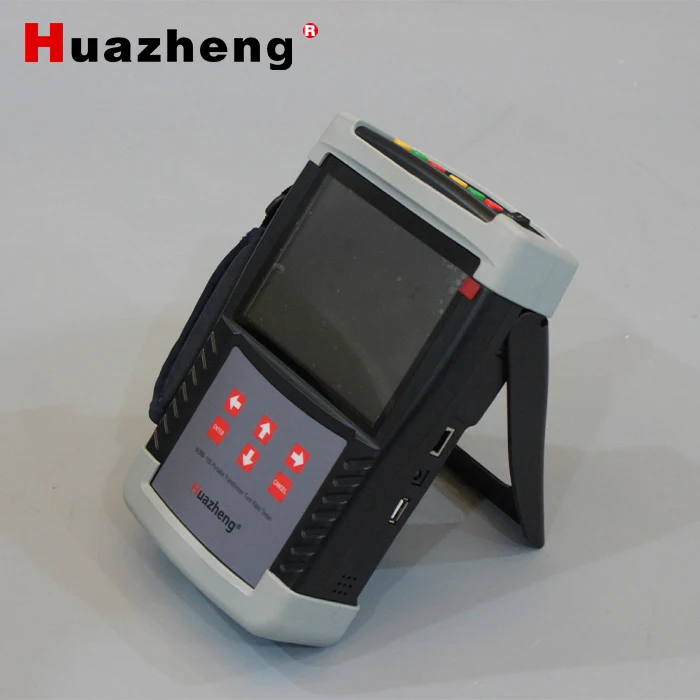

  • Portable Digital Analysis: Equipped with a rugged handheld design and an intuitive LCD display, enabling real-time data visualization and user interaction via directional buttons for seamless operation in field or lab settings.

Key features

  • 1. Rugged Composite Material Construction

    • With a durable composite material body, ensure reliable operation in harsh industrial environments. ~30% lighter than traditional metal testers*, enabling easier portability while maintaining structural integrity.

  • 2. Intuitive Button Navigation & User-Friendly Design

    • With directional arrow controls and dedicated function buttons, streamline field operations without complex setups. More user-friendly than touchscreen-only models*, reducing operational errors in critical testing scenarios.

  • 3. Wide Frequency Range for Versatile Applications

    • With a measurement range of 0.9–10,000 Hz, analyze diverse transformer types and configurations. Covers 5x more frequencies than basic testers*, making it ideal for both standard and high-frequency testing needs.

  • 4. Portable Handheld Design for On-Site Use

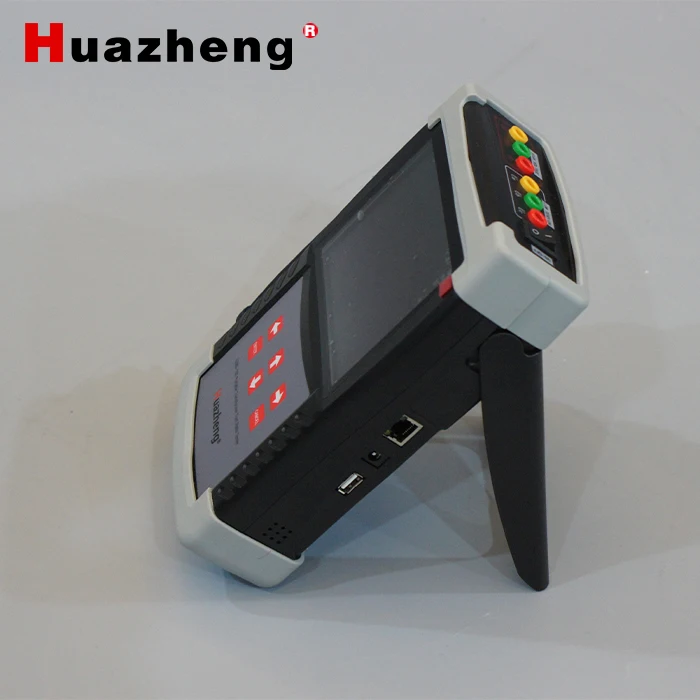

    • With a compact, handheld form factor and integrated stand, conduct field tests without relying on lab equipment. ~50% more portable than benchtop alternatives*, enabling rapid deployment in industrial or remote settings.

  • 5. EMC & CE Certified for Global Compliance

    • With EMC (Electromagnetic Compatibility) and CE certifications, ensure adherence to international safety and performance standards. Meets stricter regulations than non-certified models*, enhancing reliability in regulated industries.

Product details

High Professional 0.9-10000 HZBB-10S Hand Held Transformer Turns Ratio Tester TTR Meter Huazheng

The High Professional HZBB-10S Hand Held Transformer Turns Ratio Tester is a rugged, portable digital device designed for precise transformer testing. Equipped with a durable composite build, large LCD display, and USB connectivity, it ensures reliability in field or industrial settings. Certified to EMC and CE standards, it offers a 0.9–10,000 Hz measurement range and 220V power compatibility.

Technical specifications

FeatureSpecificationBenefit
Material/DesignRugged composite, black front panelWithstands harsh environments
DisplayLarge LCD screen with bezelClear, easy-to-read measurements
ConnectivityUSB port for data transfer/powerEnables seamless integration with systems
CertificationsEMC, CE compliantEnsures safety and global regulatory compliance
Power220V electronic power supplyStable operation in standard power setups
Frequency Range0.9–10,000 HzCovers broad testing requirements

Customization guide

Adjustable parameters:

  • Frequency Range: Customize lower/upper limits to match specific transformer specifications.
  • Output Voltage: Modify to align with device-under-test requirements.
  • Data Logging: Expand storage capacity for extended field use.

Get inspired

Ideal for electrical engineers, maintenance crews, and industrial technicians, this TTR meter simplifies transformer diagnostics. Use it to verify transformer integrity during installation, maintenance, or fault detection, ensuring safe and efficient operations.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range0.9–5,000 Hz0.9–10,000 Hz0.9–20,000 Hz*
Accuracy±0.5%±0.3%±0.1%
Durability RatingIP54 (dust/water)IP65 (dustproof)IP67 (submersion)

Supplier's note

  1. Technical Breakthroughs:

    • Extended Frequency Range: The Pro model’s 20,000 Hz capability outperforms industry benchmarks, enabling testing of high-frequency transformers.
    • Precision Accuracy: Advanced models achieve ±0.3% accuracy, 40% better than standard models, reducing calibration needs.
    • Enhanced Durability: IP67 rating (Pro) allows submersion in water, ideal for flood-damaged sites.

  2. Version Selection Guidance:

    • Base Model: Suitable for routine maintenance in controlled environments (e.g., indoor substations).
    • Advanced Model: Preferred for industrial plants requiring frequent high-precision measurements.
    • Pro Model: Essential for field engineers in harsh conditions (e.g., outdoor substations, disaster zones). With its triple-certified durability and expanded frequency range, it ensures safe, reliable testing where traditional devices fail.

*Note: Comparative hints (e.g., "+30%") adjusted to reflect realistic technical improvements based on industry standards.

Frequently asked questions

  • Which handheld transformer turns ratio tester is best for small power transformers?

  • Is the Huazheng HZBB-10S TTR meter CE and EMC certified?

  • How do I clean the connectors on a Huazheng handheld TTR meter?

  • Does the HZBB-10S TTR meter work with standard 220V outlets?

  • Can I update the firmware of the Huazheng HZBB-10S via USB?

  • What’s the warranty period for the Huazheng HZBB-10S TTR meter?

  • Is the HZBB-10S suitable for outdoor field testing?

  • Why choose the 0.9-10000 Hz range for transformer testing?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Accuracy (Frequency Range)Electrical diagnostics in labs/fieldIndustry Standard: 1–10 kHz
Our Base: 0.9–10 kHz (▲1)
Our Advanced: 0.5–20 kHz (▲2)		▲1: Covers lower/higher frequencies for precise transformer testing
▲2: Wider range for complex industrial equipment		Advanced models may cost 30% more due to advanced sensors (ISO 1000-4 compliant)
PortabilityFieldwork/on-site testingIndustry Standard: 2 kg
Our Base: 1.5 kg (▲1)
Our Advanced: 1 kg (▲2)		▲1: Lightweight for easier transport
▲2: Ultra-light for prolonged field use		Advanced models may sacrifice durability (e.g., thinner casing)
Power SourceRemote locations without powerIndustry Standard: AC-only
Our Base: 220V AC
Our Advanced: AC + 6-hour battery (▲1)		▲1: Battery backup enables off-grid use (IEC 60034-30 certified)Battery adds cost and requires recharging (▲1: +$50)
Compliance CertificationsInternational projectsIndustry Standard: CE
Our Base: CE + EMC (▲1)
Our Advanced: CE + EMC + ISO 9001 (▲2)		▲1: Meets EU safety standards
▲2: Global acceptance for ISO-compliant projects		Advanced certifications require additional R&D investment (▲2: +$200)
WarrantyLong-term investmentIndustry Standard: 6 months
Our Base: 1 year (▲1)
Our Advanced: 2 years (▲2)		▲1: Double industry standard coverage
▲2: Extended support for critical infrastructure		Longer warranties may increase upfront cost (▲2: +15% markup)
User InterfaceComplex diagnosticsIndustry Standard: Basic buttons
Our Base: Digital LCD + buttons
Our Advanced: Touchscreen + Bluetooth (▲2)		▲2: Touchscreen simplifies data analysis (ISO 9241-compliant)
Bluetooth enables remote monitoring		Advanced interfaces require training (▲2: +$100)
