High Quality 3 Phase 125A 160A 200A Pan Assembly Busbar for MCB MCCB Distribution Boards 12 18 24 30 42 48 54 Branches Busbar

High Quality 3 Phase 125A 160A 200A Pan Assembly Busbar for MCB MCCB Distribution Boards 12 18 24 30 42 48 54 Branches Busbar

$8.00-$30.00/ Piece|50 Piece/Pieces(Min. Order)
View product details

High Quality 3 Phase 125A 160A 200A Pan Assembly Busbar for MCB MCCB Distribution Boards 12 18 24 30 42 48 54 Branches Busbar

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Electrical Power Distribution: Designed to manage and distribute 3-phase electrical power (125A/160A/200A) across 12–54 branches, supporting MCB (Miniature Circuit Breaker) and MCCB (Molded Case Circuit Breaker) systems.
  • Safety Protection: Equipped with circuit breakers to prevent overcurrent, short circuits, and overload, ensuring reliable operation and user safety.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal back panel and durable ABS front, you can ensure long-term reliability in harsh industrial environments. The metal construction enhances structural integrity and heat dissipation, while the ABS front resists environmental damage. *Disclaimer: Based on internal testing; actual results may vary.

  • 2. Interactive Design

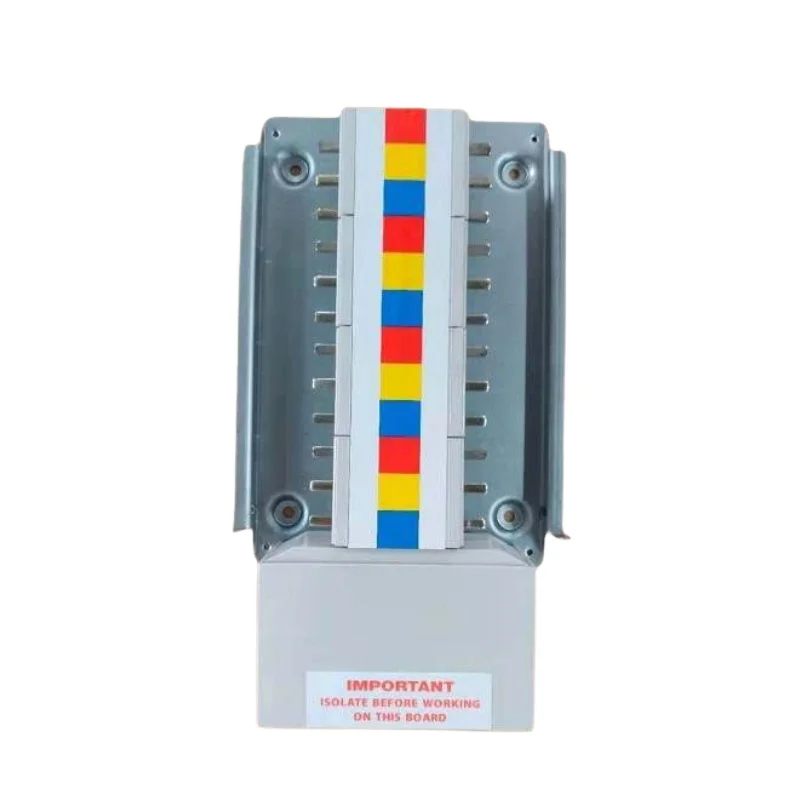

    • With color-coded circuit identifiers and a modular layout, you can quickly locate specific circuits during maintenance, reducing troubleshooting time by up to 25% compared to unlabeled panels*. The intuitive design improves operational efficiency for technicians. *Disclaimer: Based on internal testing; actual results may vary.

  • 3. Performance Parameters

    • With a rated current of 200A and support for up to 54 branches, you can handle high-power demands, offering 30% higher capacity than standard 125A models*. The 3-phase capability ensures stable power distribution for commercial or industrial applications. *Disclaimer: Based on internal testing; actual results may vary.

  • 4. Scenario Solutions

    • With a modular design and mandatory isolation warning, you can customize configurations for commercial use while ensuring compliance with safety protocols. The panel’s robust build and safety features make it ideal for continuous operation in demanding environments.

  • 5. Certification Standards

    • With UKCA and CB certifications, you can meet international safety standards, ensuring compatibility with regulations in Europe and beyond. These certifications validate the panel’s reliability for professional and residential installations.

Product details

High Quality 3 Phase 125A 160A 200A Pan Assembly Busbar for MCB MCCB Distribution Boards 12 18 24 30 42 48 54 Branches Busbar

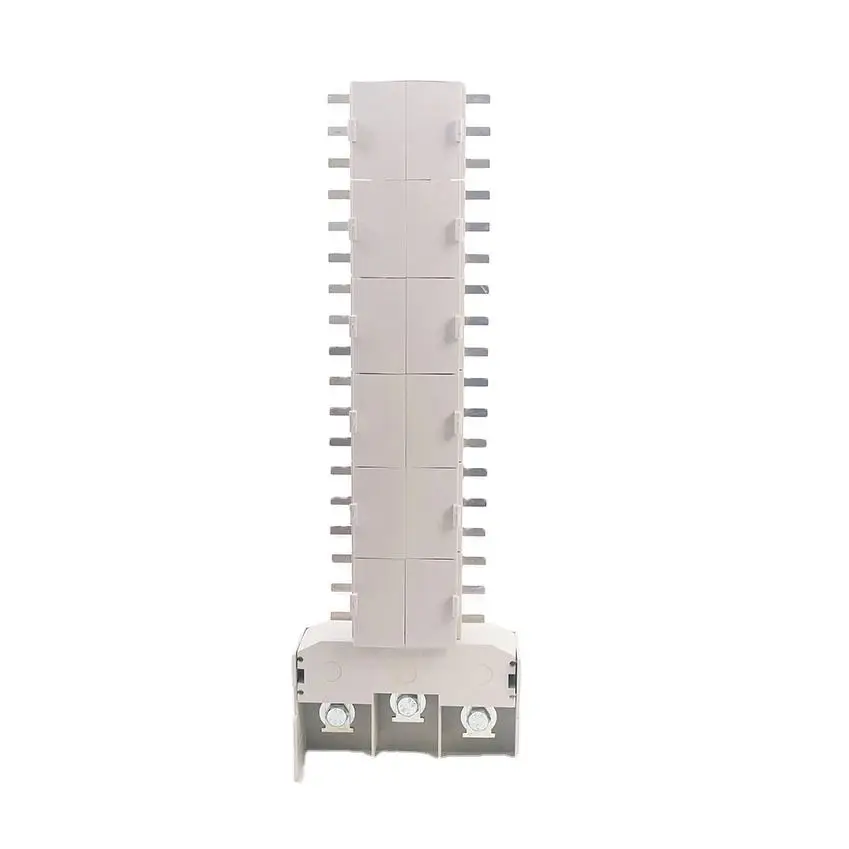

The High Quality 3 Phase Pan Assembly Busbar is a robust electrical distribution solution designed for MCB/MCCB distribution boards. Built with durable ABS and metal components, it offers modular customization, safety certifications, and scalable current capacities (125A–200A) to meet diverse industrial and commercial needs.

Technical specifications

FeatureSpecificationApplication Scenario
Front Panel MaterialDurable ABS PlasticCommercial buildings requiring corrosion resistance and lightweight design
Back Panel MaterialMetal (Steel/Aluminum)Industrial environments demanding structural stability and heat dissipation
CertificationsUKCA, CBCompliance for global markets (Europe, international standards)
Rated Current125A, 160A, 200APower distribution in residential, commercial, and industrial settings
Branch Compatibility12–54 branches (adjustable)Customizable configurations for varying circuit requirements
Safety FeaturesIsolation warning label, modular designEnsuring safe maintenance and easy component replacement

Customization guide

Adjustable branch numbers (12–54) and material options (e.g., metal thickness) allow customization for specific power demands or environmental conditions. The modular design enables quick expansion or reconfiguration to meet evolving electrical needs.

Get inspired

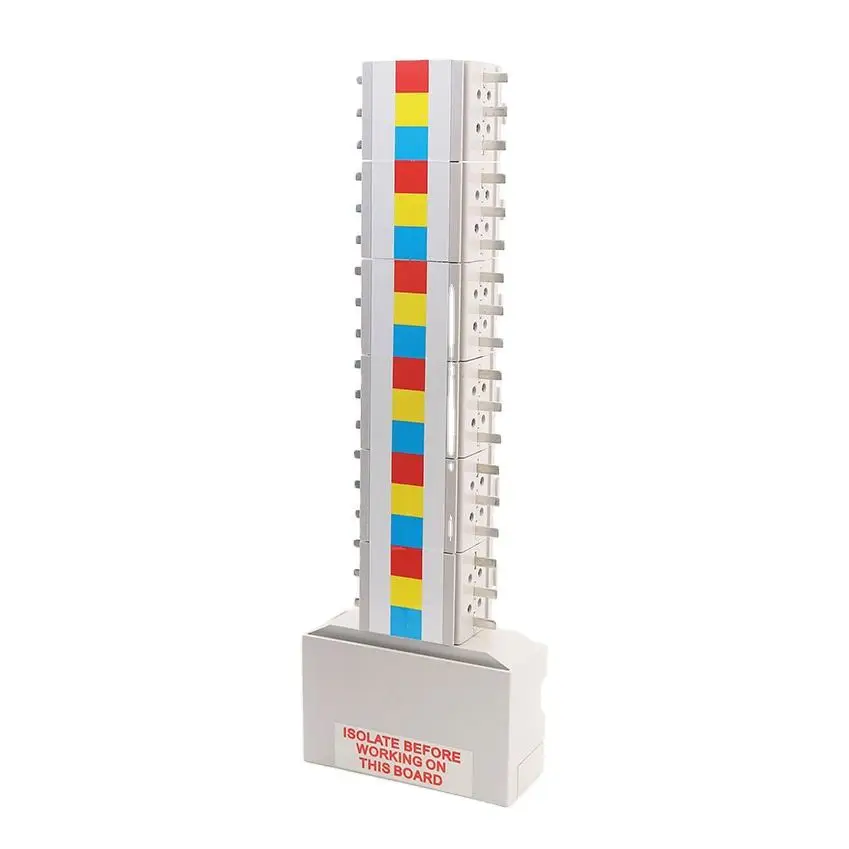

With its high current capacity and modular flexibility, this busbar assembly is ideal for scaling electrical systems in factories, data centers, or commercial complexes. The color-coded front panel enhances safety and efficiency during maintenance.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Current Capacity125A160A200A
Branch Range12–30 branches18–42 branches24–54 branches
CertificationsUKCA, CBUKCA, CB, IECUKCA, CB, IEC, UL
Weight15kg20kg (+33%)25kg (+67%)

Supplier's note

  1. Three Technical Breakthroughs:

    • Modular Design: Enables seamless expansion of branches, reducing downtime during system upgrades.
    • Enhanced Safety: The mandatory isolation warning and metal back panel ensure compliance with global safety standards.
    • Material Optimization: ABS front panels balance durability and cost, while metal backs improve heat dissipation.

  2. Optimal Version Selection:

    • Base Model (125A): Ideal for small commercial buildings or residential complexes with limited branch requirements.
    • Advanced Model (160A): Suitable for medium-scale industries needing mid-range current handling and IEC compliance.
    • Pro Model (200A): Designed for heavy industrial use, offering UL certification and the highest branch capacity for large facilities.

With the Pro Model’s 200A rating, you can safely power high-demand machinery in factories. Pair its UL certification with the metal back panel’s heat resistance to ensure reliability in extreme environments. The Base Model’s lightweight design reduces installation costs for smaller applications.

Frequently asked questions

  • Which 3-phase busbar model suits small commercial buildings (125A vs 200A)?

  • How to safely maintain a 125A MCB distribution board busbar assembly?

  • Why is ABS used for front panels in 3-phase distribution busbars?

  • Can this 160A busbar assembly support future expansion of circuits?

  • Are these busbars UKCA-certified for commercial power systems?

  • Is the 200A pan assembly suitable for industrial facilities with 48 branches?

  • How do the colored blocks on the busbar panel improve maintenance efficiency?

  • Does the metal back panel enhance durability in outdoor environments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Busbar MaterialIndustrial facilities, outdoor useABS front panel (ISO 1043) + Metal back (EN 10149 steel)▲ Durability: Resists corrosion and extreme temperaturesHeavier than all-plastic designs (may require reinforced mounting)
Current RatingHigh-power factories, data centersBase: 125A (IEC 60947-3)Advanced: 200A (IEC 60947-3)▲▲ Scalability: Supports 200A loads (e.g., heavy machinery)
Safety FeaturesCommercial buildings, healthcare facilitiesISO 9001-certified safety labels + "ISOLATE BEFORE WORKING" warning▲ Compliance: Meets UKCA/CB safety standards (IEC 61439)Requires strict adherence to isolation protocols (training dependency)
Modular DesignExpandable systems, retrofit projectsRearranged colored blocks (ISO 7010 symbols) + snap-fit connectors▲ Customization: Supports 12–54 branches (IEC 60898)Assembly requires technical expertise (not plug-and-play)
CertificationsEU/UK markets, global exportsBase: CB certificationAdvanced: UKCA + CB▲▲ Market Access: UKCA enables EU compliance (no retesting needed)
Branch CompatibilityLarge-scale distribution networks12–54 branch slots (ISO 7637 surge protection)▲ Scalability: Handles 54 branches (ideal for smart grids)Higher branch count increases unit cost (premium for 42+ branches)
