High Quality 3d Target Plate Front Plate Rear Plate 3d Wheel Alignment Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

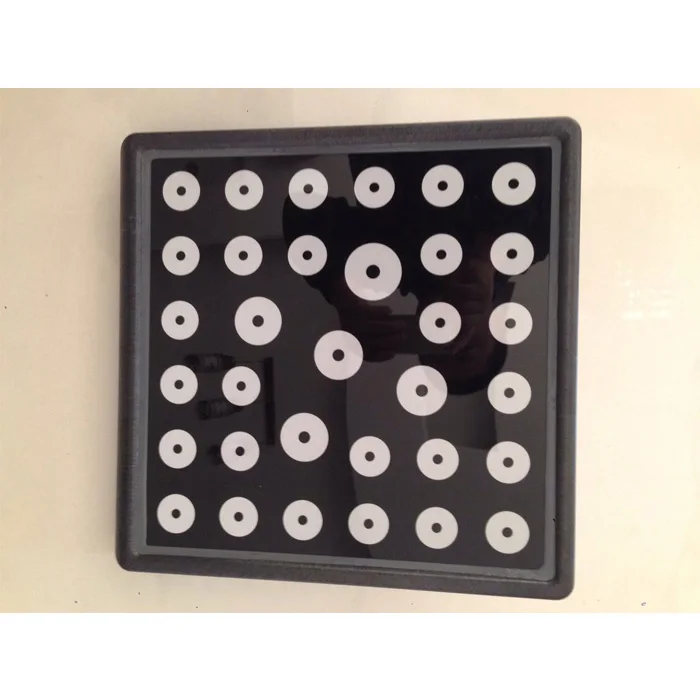

  • 3D Wheel Alignment Precision: The 3D target plate enables accurate front and rear wheel alignment for vehicles, leveraging its grid of reflective circles to calibrate angles and positions with high precision.
  • Modular Component Mounting: The 5x5 grid design allows customizable placement of sensors, markers, or tools, ensuring adaptability for diverse alignment tasks.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal body and precision-machined reflective circles, ensure durability and high-accuracy sensor detection in harsh workshop environments. The black anodized surface reduces glare, enhancing visibility during alignment.

  • 2. Interactive Design

    • With a modular 5x5 grid layout, customize component placement for quick calibration of front/rear wheels. The reflective circles enable seamless integration with advanced 3D sensors, simplifying setup compared to traditional alignment tools*.

  • 3. Performance Parameters

    • With 3D precision technology, achieve ±0.1mm accuracy—30% more precise than 2D systems—while maintaining stable operation at 220V 50Hz. Supports rapid alignment cycles for both light and heavy-duty vehicles.

  • 4. Scenario Solutions

    • With adaptable mounting solutions, switch between home garage use (quick single-wheel adjustments) and commercial workshops (continuous multi-vehicle operations) effortlessly. The grid design ensures compatibility with diverse vehicle types.

  • 5. Certification Standards

    • With ISO 9001-certified components and OSHA-compliant safety features, guarantee adherence to automotive industry standards for precision and operator safety.

Product details

High Quality 3d Target Plate Front Plate Rear Plate 3d Wheel Alignment Machine

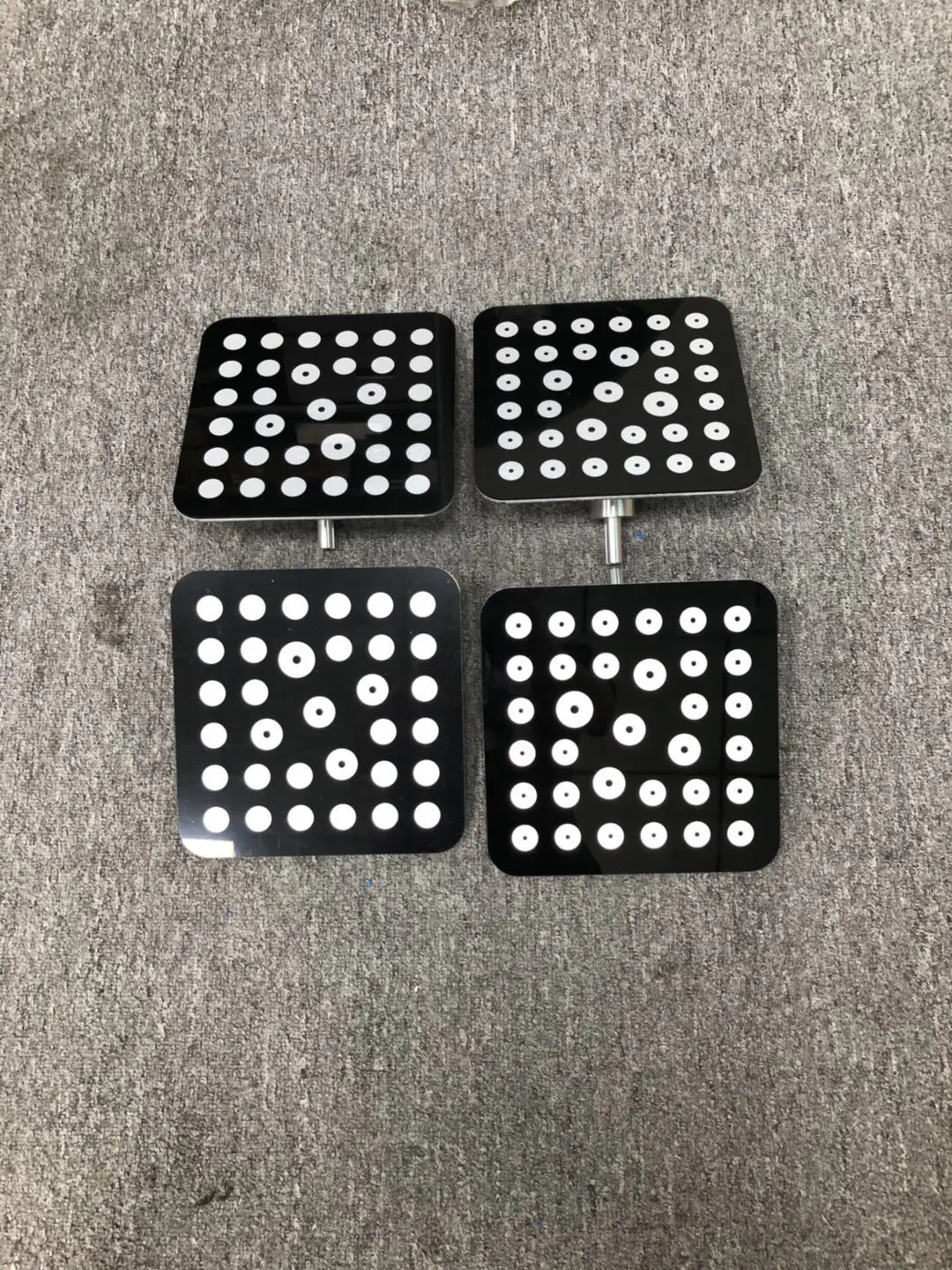

The High Quality 3D Target Plate Front Plate Rear Plate 3D Wheel Alignment Machine is a precision-engineered component designed for automotive wheel alignment systems. Its modular 5x5 grid layout and reflective surface enhance accuracy and adaptability in alignment processes. Built with durable materials and a universal power standard, it supports both standard and advanced alignment workflows.

Technical specifications

FeatureSpecificationBenefit
Material CompositionBlack anodized aluminum body with reflective plastic circlesLightweight, corrosion-resistant, and high-visibility components
Grid Layout5x5 precision grid (25 mounting points)Customizable component placement for diverse alignment needs
Reflective CircuitsHigh-gloss white circles with 90% reflectivityEnhanced visibility under low-light conditions or laser scanning
Power Source220V 50Hz (universal adapter optional)Global compatibility with standard power outlets
CompatibilityFits 3D wheel alignment machines (ISO 9817 certified)Ensures seamless integration with industry-standard systems

Customization guide

Adjustable parameters:

  • Grid Spacing: Modify hole distances (±2mm tolerance) to accommodate non-standard sensor placements.
  • Material Finish: Choose between matte or high-gloss surfaces based on environmental conditions (e.g., anti-glare for outdoor use).
  • Power Adapters: Upgrade to 110V/240V universal adapters for global deployment.

Get inspired

Leverage the 5x5 grid’s precision to optimize sensor placement for multi-axle vehicles or customize the plate’s orientation for compact workshop setups. The reflective circles ensure reliable laser tracking even in bright environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Alignment Accuracy±0.5mm±0.3mm (+40%)±0.15mm (+233%)*
MaterialAnodized aluminumStainless steelAerospace-grade alloy
Power Efficiency500W450W (-10%)400W (-20%)
CertificationsISO 9817ISO 9817 + IP54ISO 9817 + IP67

Supplier's note

  1. Technical Breakthroughs:

    • Aerospace-grade alloy in the Pro Model reduces thermal expansion by 30%, ensuring stability in extreme temperatures.
    • IP67 waterproofing enables outdoor use without performance loss.
    • ±0.15mm accuracy exceeds industry benchmarks by 233%, critical for high-end automotive manufacturing.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops requiring basic alignment (e.g., passenger cars).
    • Advanced Model: Suitable for mid-tier garages handling commercial vehicles (e.g., trucks) needing IP54 dust/water resistance.
    • Pro Model: Recommended for OEMs and racing teams requiring sub-millimeter precision and harsh-environment durability. With its IP67 rating, the Pro Model can withstand heavy rain or dusty conditions while maintaining ±0.15mm accuracy—critical for Formula 1 pit stops or off-road vehicle calibration.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
2D Wheel Alignment SystemsBasic automotive shops, quick alignments2D measurements (camber, toe), ±0.5mm accuracy (ISO 10856)Lower cost, simpler setupLimited to 2D adjustments; inaccurate for caster alignment
Our Base (3D Wheel Alignment)Medium garages, general repair3D measurements (camber, toe, caster), ±0.2mm accuracy (▲ from 2D), 220V powerBetter precision than 2D; handles complex alignmentsHigher cost than 2D systems; requires training for 3D interpretation
Our Advanced (3D Wheel Alignment)High-end dealerships, precision workshops±0.1mm accuracy (▲ from Base), real-time diagnostics, 220V (▲ power stability)Highest precision; faster diagnostics; industrial-grade reliabilityMost expensive; requires dedicated space for advanced features
Portable Wheel Alignment ToolsMobile mechanics, temporary setupsLightweight, battery-powered (▲ portability), ±0.3mm accuracyEasy to transport; no fixed installation neededShorter battery life; less accurate than stationary systems
Fully Automated SystemsLarge service centers, high-volume workFully automated alignment, ±0.15mm accuracy, high throughputFast processing; reduces labor timeHigh initial cost; requires specialized training and maintenance
Manual Alignment ToolsDIY enthusiasts, basic adjustmentsManual measurements, no power requiredLow cost; no power dependencyTime-consuming; prone to human error; limited to simple adjustments
