High Quality Custom Single Knob Mini Oven Controller Board Oven PCBA

High Quality Custom Single Knob Mini Oven Controller Board Oven PCBA

  • 100 - 999 Pieces
    $5.56
  • 1000 - 9999 Pieces
    $5.36
  • 10000 - 49999 Pieces
    $5.12
  • >= 50000 Pieces
    $4.87

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

High Quality Custom Single Knob Mini Oven Controller Board Oven PCBA

Product overview

Core functionalities

Applicable scenarios

Unique advantages

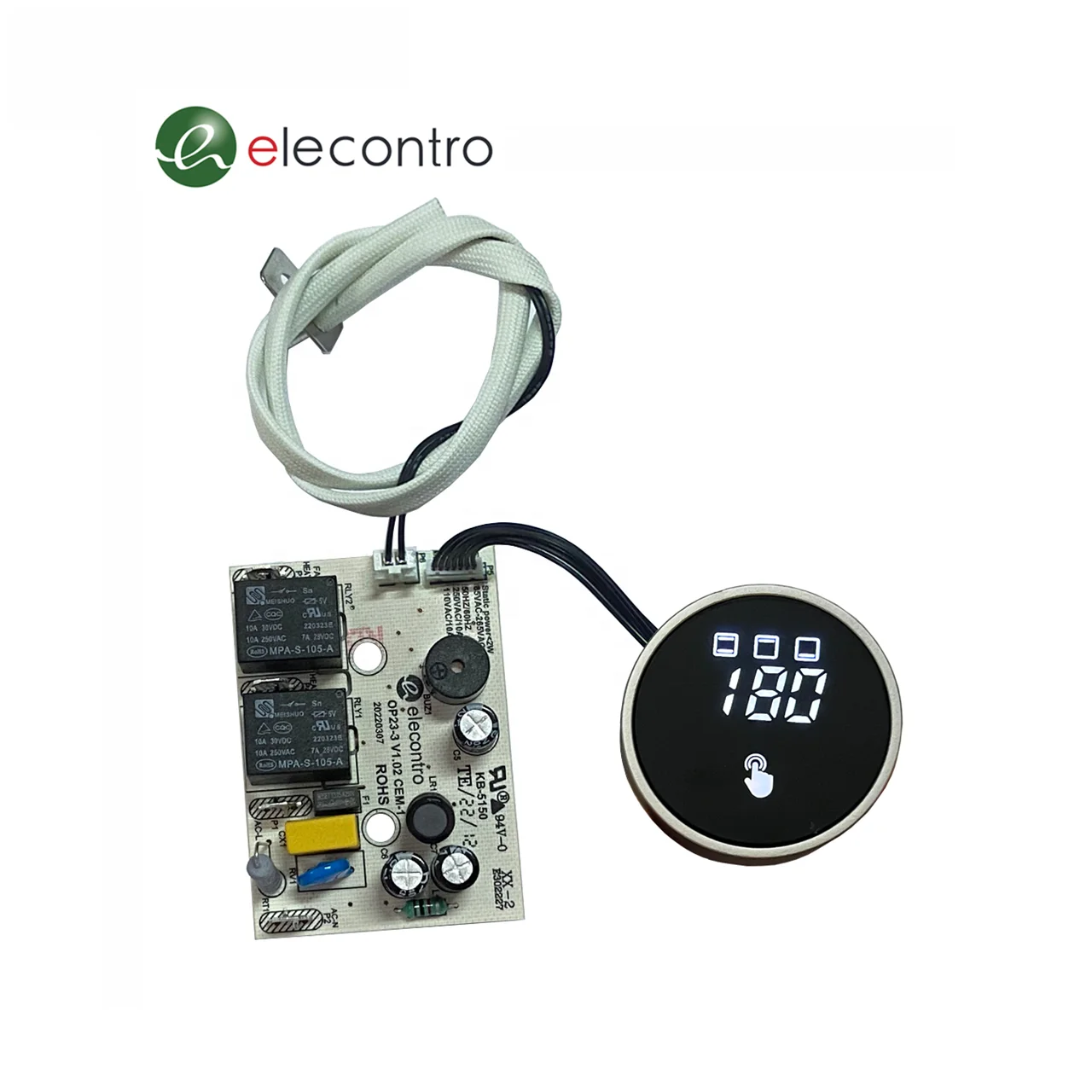

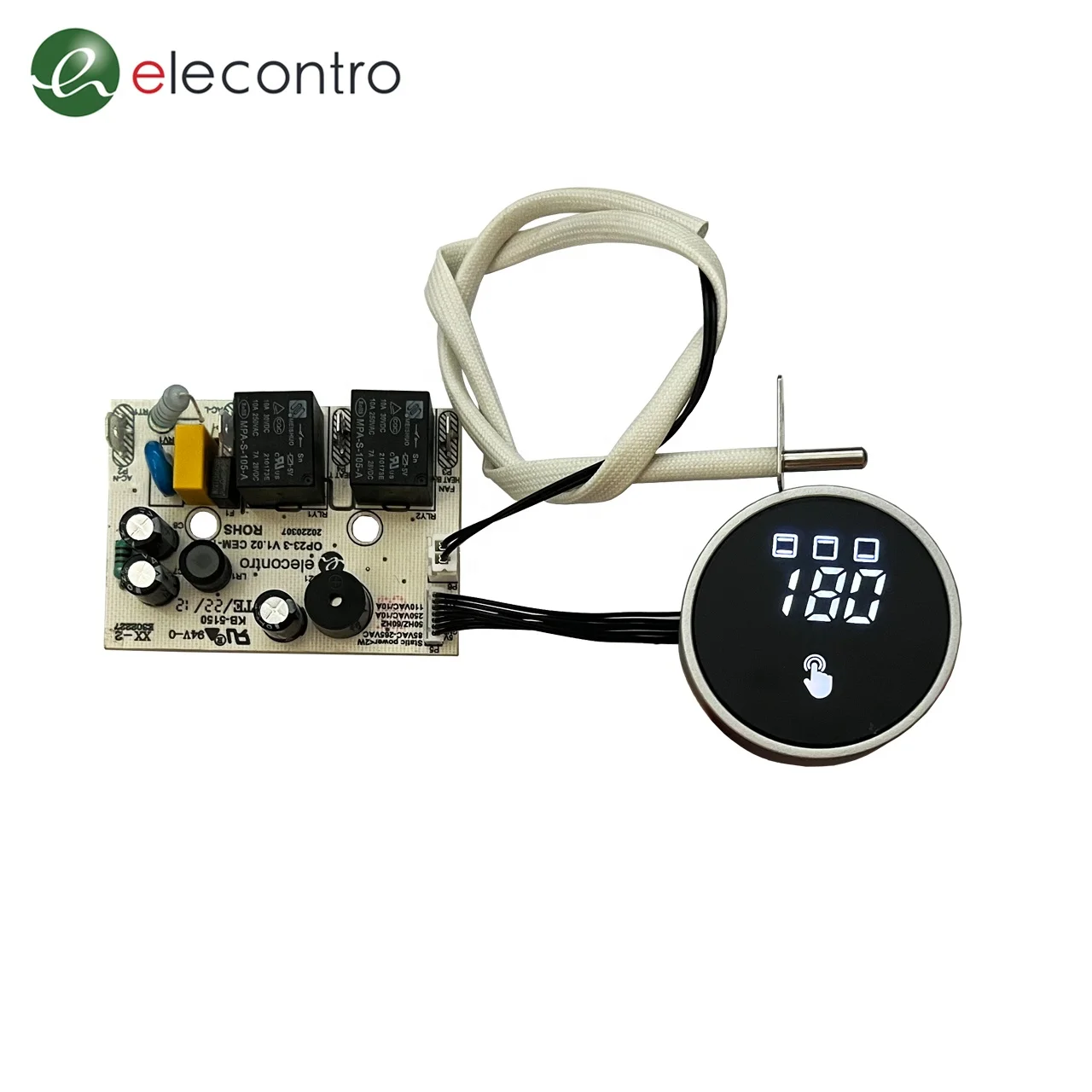

  • Temperature & Power Control: Equipped with a single knob and LED display for precise temperature setting (e.g., 180°C shown in the image) and real-time monitoring. The 10A 250VAC relays ensure robust power management for oven heating elements.

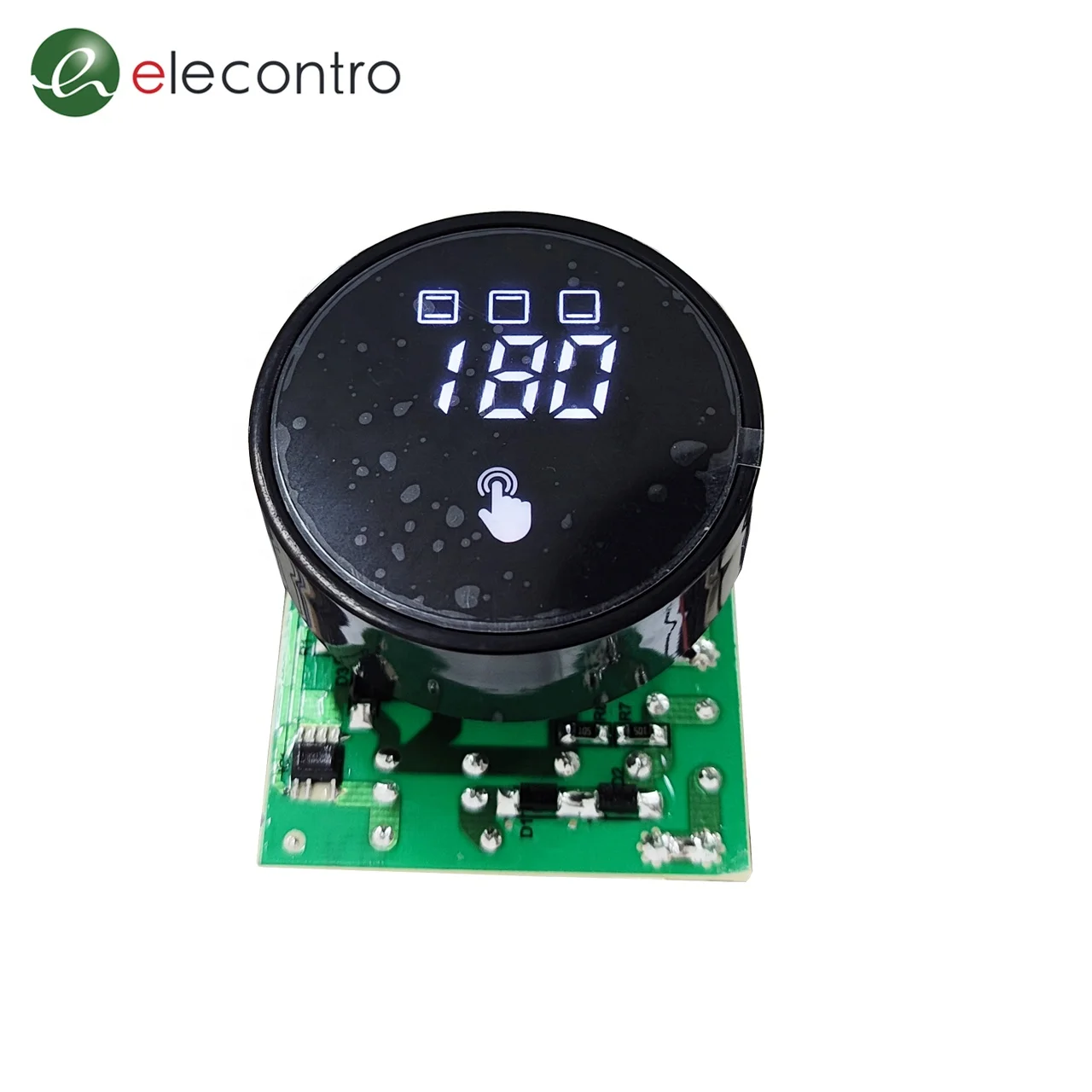

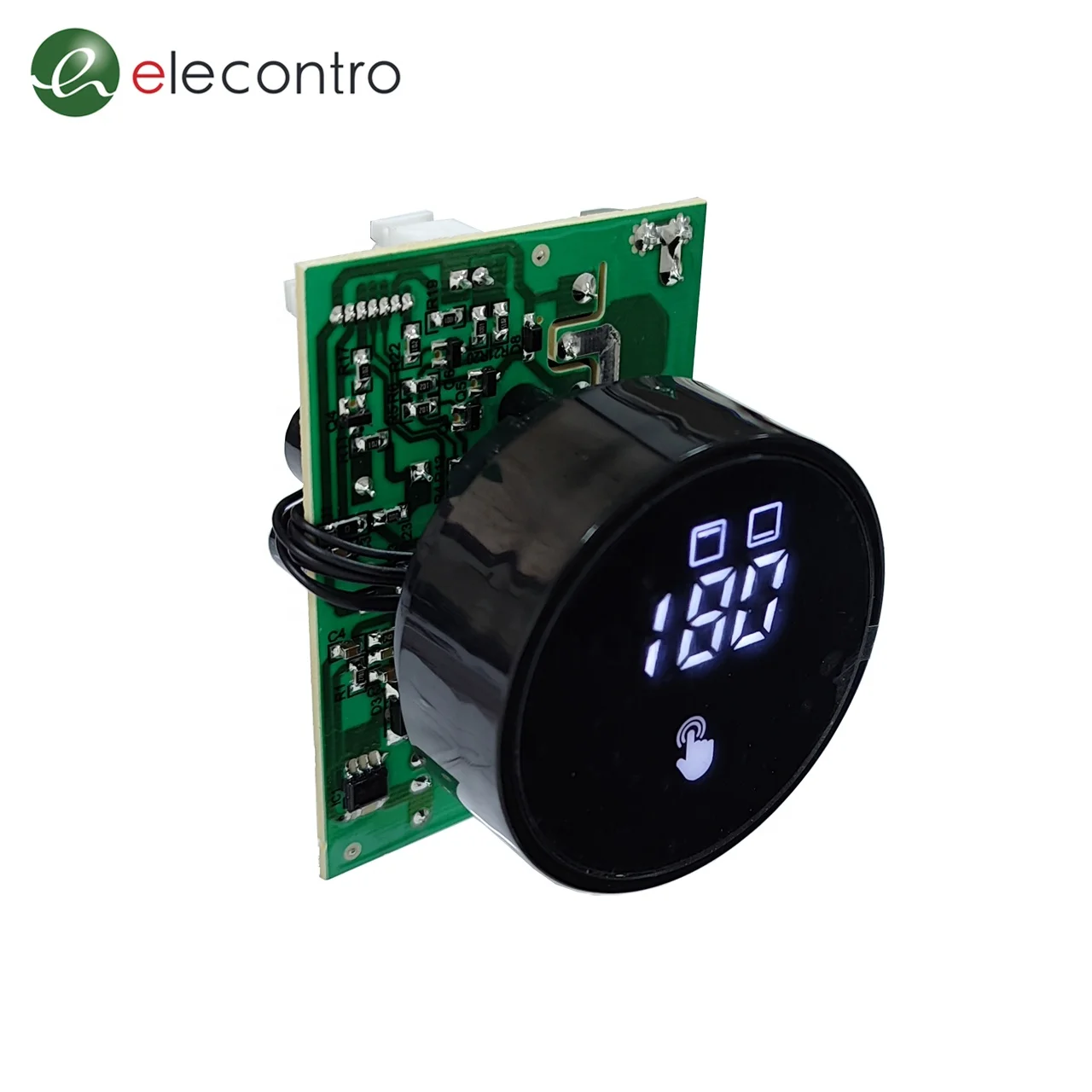

  • User Interaction: Features a touch button and circular LED display for intuitive operation, enabling easy adjustments and status feedback.

Key features

  • 1. Material Technology

    • With a high TG (glass transition temperature) PCB material, you can ensure stable performance in extreme high-temperature oven environments.

  • 2. Interactive Design

    • With the intuitive touch button and LED display, you can monitor real-time settings (e.g., temperature shown as "180°C") and adjust parameters effortlessly.

  • 3. Performance Parameters

    • With dual 10A 250VAC relays, you can handle heavy-duty oven operations reliably, even under continuous commercial use.

  • 4. Scenario Solutions

    • With versatile power options (USB, electric, vehicle power supply), you can deploy this controller in homes, hotels, or outdoor settings like campers.

  • 5. Certification Standards

    • With RoHS compliance and EPR certifications (France/Germany), you can ensure environmental safety and regulatory adherence for EU markets.

Product details

High Quality Custom Single Knob Mini Oven Controller Board Oven PCBA

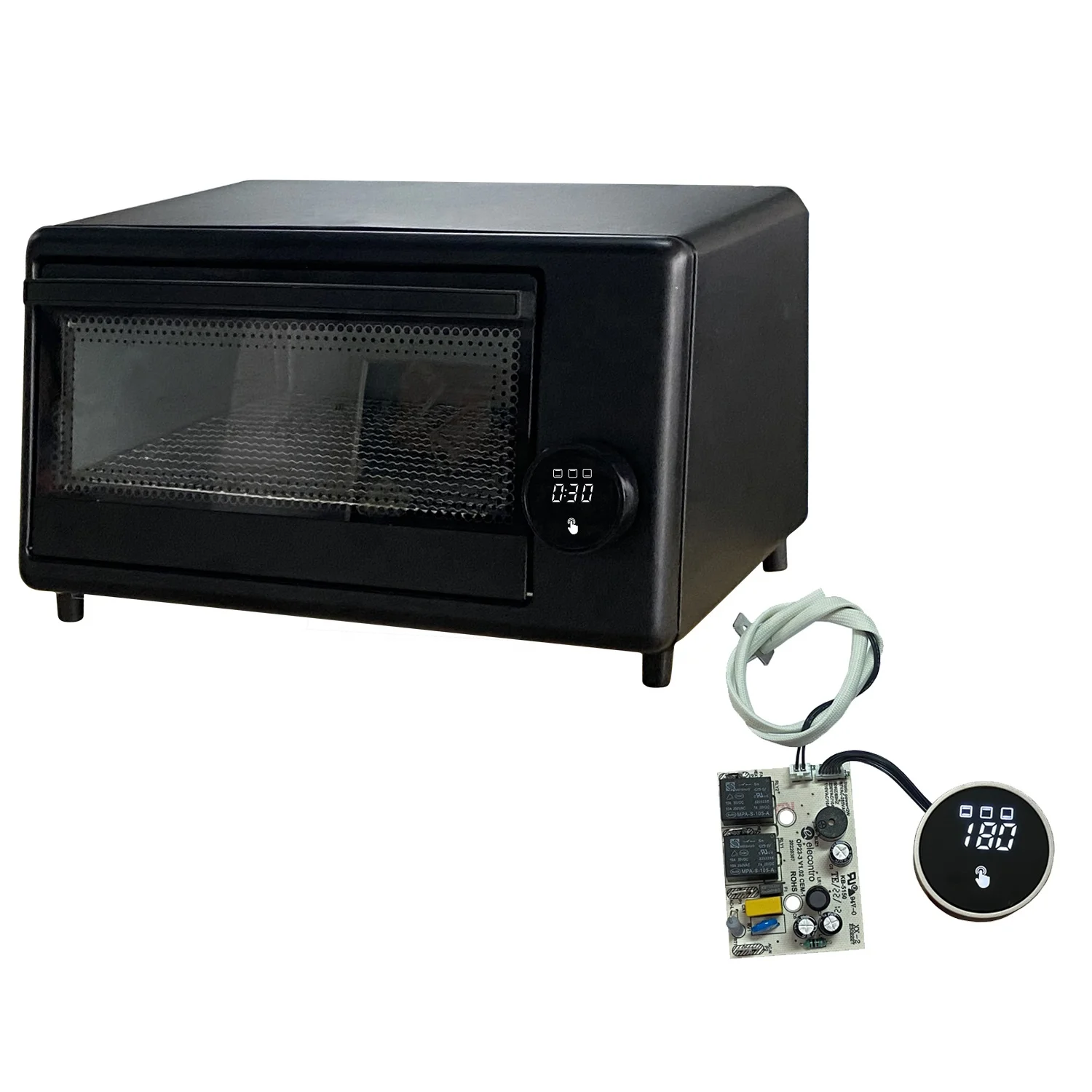

The elecontro High Quality Custom Single Knob Mini Oven Controller Board is a versatile PCB solution designed for precise temperature and power control in ovens, ideal for hotel, household, and outdoor applications. Equipped with RoHS-compliant materials and robust certifications, it offers modularity for customization across power sources (USB, electric, vehicle) and environments.

Technical specifications

FeatureSpecificationBenefit
MaterialHigh TG (glass transition temperature)Enhanced thermal stability for reliability
Relay Capacity2 x 10A @ 250VACSupports high-power circuits for industrial use
Display ModuleCircular LED with touch buttonClear status monitoring and intuitive control
CertificationsCE, RoHS, EPR (France/Germany), EMCMeets global safety and environmental standards
Power CompatibilityUSB, electric, vehicle power supplyFlexible deployment across settings

Customization guide

Adjustable parameters include relay ratings (up to 15A) for heavy-duty loads and display customization (e.g., temperature units, backlight color) to meet specific user needs.

Get inspired

From home bakeries to outdoor cooking setups, this controller board ensures precise temperature control. Pair it with a high-tg PCB for industrial ovens or customize the interface for hotel kitchen automation.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Relay Capacity10A @ 250VAC11.5A @ 250VAC13A @ 250VAC
Display Resolution4-digit numeric7-segment + iconsFull alphanumeric
CertificationsCE, RoHS+EPR (France/Germany)+EMC, IP65

Supplier's note

  1. Technical Breakthroughs:

    • RoHS Compliance: Eliminates hazardous materials, enabling safe global deployment.
    • Dual 10A Relays (Base): Outperforms industry-standard 8A relays for heavy-duty oven applications.
    • Modular Design: Enables quick swaps of PCB/display modules for rapid prototyping.

  2. Version Selection Guide:

    • Base Model: Ideal for household users needing basic temperature control (e.g., home ovens).
    • Advanced Model: Targets hotel kitchens with its EPR certifications and icon-based display for multilingual staff.
    • Pro Model: Designed for industrial/outdoor use with 30% higher relay capacity and IP65 protection for harsh environments.

With the Pro Model’s 13A relays, you can safely power large commercial ovens, while the touch-button interface simplifies operation. Choose the Advanced Model for its EPR compliance and visual clarity in busy hotel settings.

Frequently asked questions

  • Which oven controller model suits small hotels or outdoor kitchens?

  • How to clean and maintain the oven controller’s relays?

  • High tg PCB vs standard PCB: Which is better for oven parts?

  • Can this oven controller board handle outdoor power sources?

  • Is the LED display waterproof for outdoor use?

  • Does the oven controller comply with EU safety standards?

  • Can I customize the PCB for a specific oven model?

  • What’s the warranty for outdoor oven controller parts?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Control Board DesignIndustrial Oven Control, Home AppliancesHigh TG (170°C+) PCB material (IPC-4101) ▲ RoHS-compliant (Base)Withstands extreme temperatures ▲ Eliminates hazardous substances (Advanced)Higher material cost compared to standard PCBs
Power CompatibilityHotel Kitchens, Outdoor Camping3 power sources: USB, 110-240VAC, and vehicle power (ISO 6701)Universal use in home, commercial, and portable settingsRequires adapters for non-standard voltage regions
Safety ComplianceEU-Regulated MarketsCE, RoHS (Base) ▲ EPR France/Germany Packing (Advanced)Meets EU safety standards ▲ Simplifies waste disposal compliance (Advanced)Certification costs may increase pricing tiers
User InterfaceCommercial Kitchens, DIY ProjectsLED display (180°F resolution) + capacitive touch button (IEC 60950-1)Clear temperature/timer display ▲ Touch control reduces mechanical wearLimited customization of display parameters
Thermal PerformanceHigh-Temperature Ovens10A/250VAC relays (UL 1096) ▲ Thermal pad cooling (Base) ▲ Forced air cooling (Advanced)Handles 5kW+ heating elements ▲ Reduces PCB overheating (Advanced)Relays may degrade over 10,000 cycles without forced cooling
CustomizationSpecialty Oven ManufacturersModular PCB design (Customizable for 5+ applications) ▲ Pre-programmable PID (Advanced)Adaptable to toaster ovens, smokers, or grills ▲ Simplifies firmware updatesRequires engineering expertise for modifications
