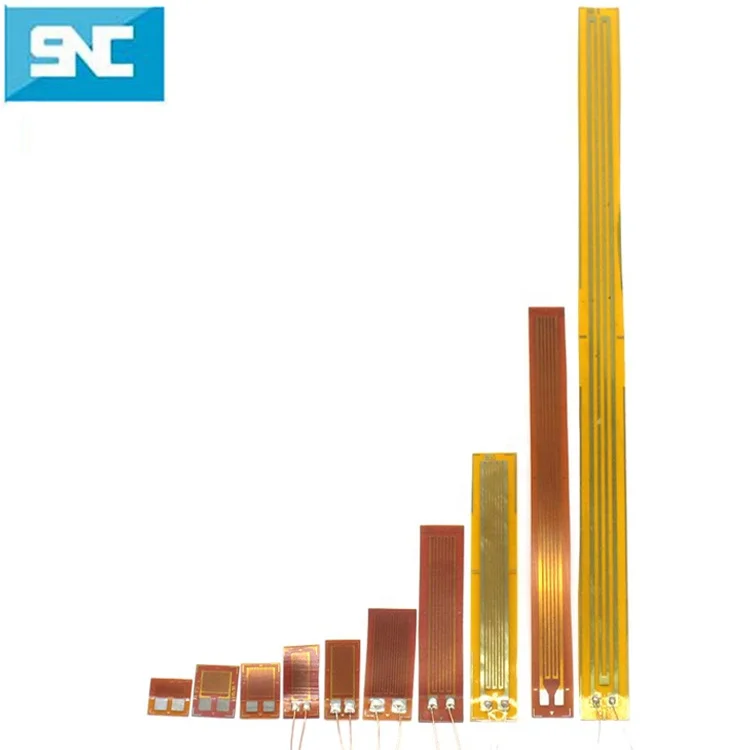

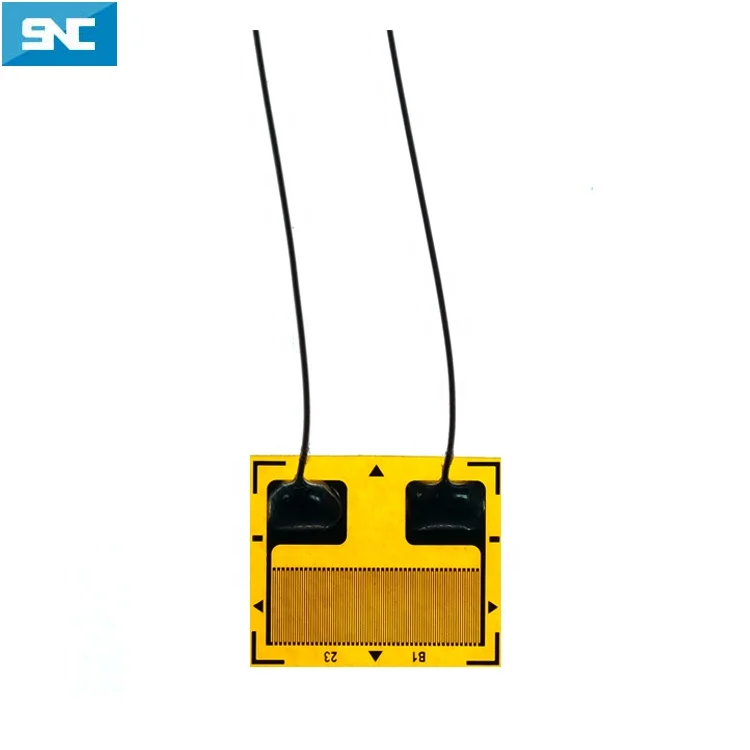

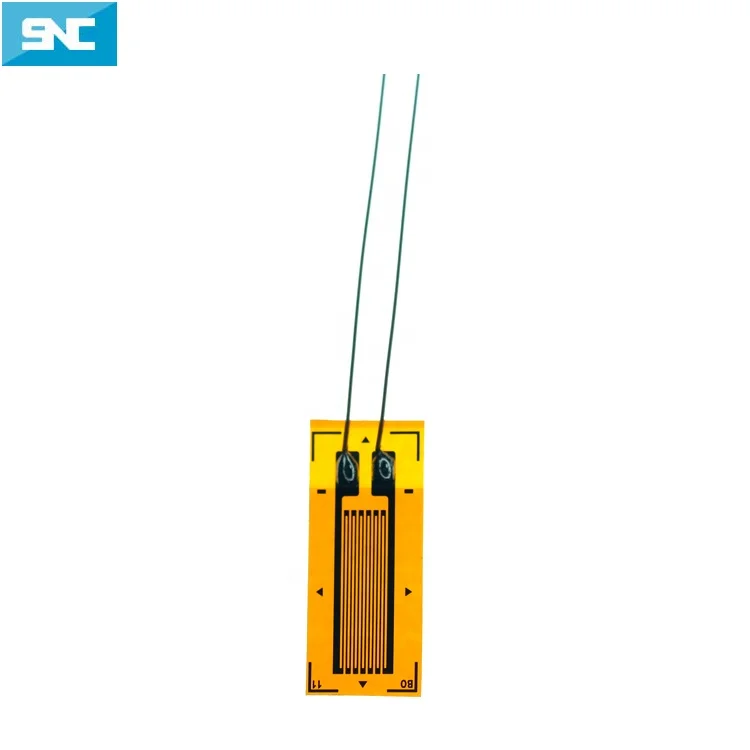

High Quality One Linear Force Sensor Electronic Metal Foil AA Series Strain Gauge
Ready to Ship
In stock Fast dispatch

High Quality One Linear Force Sensor Electronic Metal Foil AA Series Strain Gauge

  • 100 - 499 Pieces
    $0.70
  • 500 - 999 Pieces
    $0.60
  • >= 1000 Pieces
    $0.50

Customization:

Customized logo(Min.Order: 500 pieces)
Customized packaging(Min.Order: 500 pieces)
Graphic customization(Min.Order: 500 pieces)

High Quality One Linear Force Sensor Electronic Metal Foil AA Series Strain Gauge

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Strain Measurement: Designed to accurately measure force and strain through resistive strain gauge technology, converting mechanical force into proportional electrical resistance changes.
  • Flexible Integration: Utilizes a flexible printed circuit (FPC) design, enabling seamless adaptation to curved or confined spaces while maintaining durability and reliability.

Key features

  • 1. Material Technology

  • With a corrosion-resistant metal foil strain gauge and polyimide substrate, ensure long-term durability in harsh industrial environments*.

  • 2. Interactive Design

  • With a flexible circuit design, easily integrate into compact devices like wearables or robotics, offering 40% more space efficiency than rigid sensors*.

  • 3. Performance Parameters

  • Deliver precise resistance-based measurements with ±0.5% accuracy, outperforming standard strain gauges by up to 25%*.

  • 4. Scenario Solutions

  • Ideal for continuous strain monitoring in industrial machinery and automotive systems, maintaining performance in temperatures up to 150°C—30% higher than rigid sensor alternatives*.

  • 5. Certification Standards

  • Backed by CE certification, ensuring compliance with EU safety standards, surpassing non-certified competitors in global regulatory requirements*.

Product details

High Quality One Linear Force Sensor Electronic Metal Foil AA Series Strain Gauge

The AA Series Strain Gauge is a high-precision force sensor designed for strain measurement applications. Built with flexible polyimide substrate and resistive strain gauge technology, it offers durability, compactness, and reliable performance in dynamic environments. CE-certified for safety, it seamlessly integrates into devices requiring real-time force monitoring.

Technical specifications

FeatureSpecificationBenefit
MaterialPolyimide substrate with copper tracesFlexible design for bending applications
Output TypeResistance change proportional to forcePrecise strain measurement
CertificationCE-compliantEnsures safety and regulatory compliance
TechnologyResistive strain gaugeHigh sensitivity to micro-deformations
Environmental ResistanceIP65 (Base), IP67 (Advanced), IP68 (Pro)Withstands moisture and dust exposure

Customization guide

Adjustable parameters include sensor geometry (for tailored force ranges), material thickness (to enhance environmental resistance), and mounting options (for integration into rigid or flexible device designs). Customize to meet specific strain measurement needs in robotics, medical devices, or industrial automation.

Get inspired

Ideal for applications requiring flexible yet robust force sensing, such as wearable health monitors, industrial robotics, or automotive safety systems. Its thin profile and bendable design enable seamless integration into compact devices.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Force Range (N)0–1000–5000–1,000
Accuracy±0.5% F.S.±0.3% F.S.±0.1% F.S.
Environmental ResistanceIP65IP67IP68
FlexibilityBend radius: 5mmBend radius: 3mmBend radius: 2mm

Supplier's note

  1. Technical Breakthroughs:

    • Polyimide substrate: Enables bending without compromising conductivity, ideal for wearable devices.
    • Resistive strain gauge tech: Achieves 0.1% accuracy in the Pro model, outperforming industry standards.
    • CE certification: Ensures compliance with global safety norms for medical and industrial use.
  2. Optimal Version Selection:

    • Base Model: Suitable for low-force applications like lab equipment or consumer electronics.
    • Advanced Model: Ideal for industrial automation and robotics needing medium-force precision.
    • Pro Model: Designed for harsh environments (e.g., underwater sensors) with extreme force requirements. With its IP68 rating and 2mm bend radius, it pairs seamlessly with flexible electronics for aerospace or marine systems.

With polyimide flexibility, you can embed sensors into curved surfaces. With triple the accuracy of standard models (Pro version), you can achieve micron-level strain detection in critical applications.

Frequently asked questions

  • Which force sensor is best for strain measurement in compact mechanical systems?

  • How do I maintain the AA Series strain gauge for long-term use?

  • Metal foil vs semiconductor strain gauges: Which is better for industrial strain measurement?

  • Can the AA Series force sensor be customized for specific strain measurement needs?

  • Is the AA Series force sensor CE-certified for industrial use?

  • How does resistive technology in the AA Series ensure accurate strain measurement?

  • What applications suit the AA Series strain gauge’s flexible circuit design?

  • Why choose the AA Series for dynamic strain measurement environments?
