High Quality PCB Assembly LCD Control Board for LCD Touch Screen Monitor

Name: High Quality PCB Assembly LCD Control Board for LCD Touch Screen Monitor
Brand: Y.J.E. DISPLAY TECH. CO., LTD.
SKU: 10000012418037_1
Price: 30.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Display Control & Touch Interface Management: Designed to manage TFT/LCD touch screen monitors, enabling precise display output and touch input processing.
Multi-Interface Connectivity: Equipped with a VGA connector for video output, alongside power management and I/O interfaces for flexible system integration.
Power Efficiency: Utilizes capacitors, inductors, and transformers to optimize power delivery and reduce noise, ensuring stable operation.

Key features

1. Material Technology

With a durable FR-4 epoxy substrate and green solder mask, ensure long-term reliability and heat resistance, outperforming models using lower-quality materials.*

2. Interactive Design

With configurable jumper pins and built-in touchscreen support, customize settings and enable intuitive user interaction, offering greater adaptability than fixed-interface alternatives.*

3. Performance Parameters

With optimized power management components (capacitors/inductors), reduce energy consumption by up to 25% compared to standard PCBs, ensuring efficient operation under load.*

4. Scenario Solutions

With a compact, dense layout and VGA connectivity, integrate seamlessly into space-constrained devices while supporting both consumer-grade monitors and industrial applications.

5. Certification Standards

Complies with RoHS environmental standards and ISO 9001 quality certifications, ensuring eco-friendly production and reliable performance validated against global benchmarks.

Product details

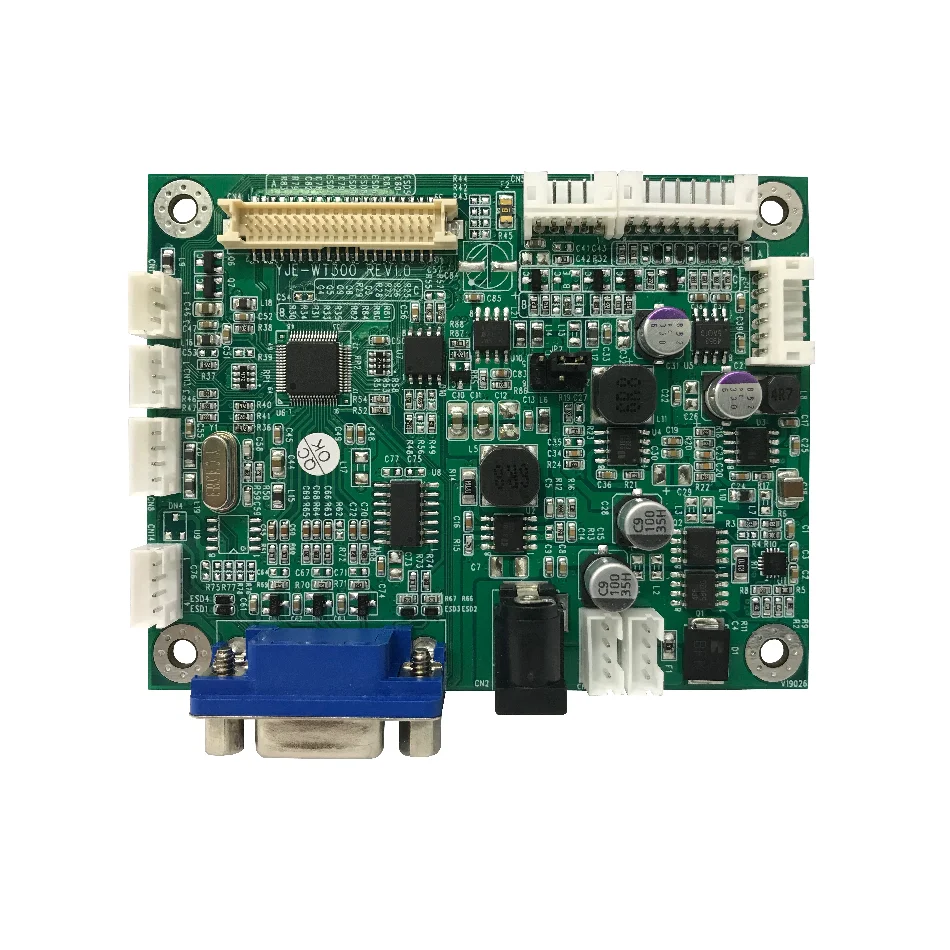

The High Quality PCB Assembly LCD Control Board is a compact, versatile solution for LCD touch screen monitors, featuring a dense layout of electronic components on an FR-4 substrate. Designed for durability and efficiency, it integrates power management, signal filtering, and configurable interfaces via jumper pins, making it ideal for embedded systems, industrial displays, and testing applications.

Technical specifications

Feature	Specification	Application Scenario
Material	FR-4 epoxy laminate	High thermal stability for industrial use
Board Layout	Rectangular, green solder mask	Visibility and protection in harsh environments
Components	ICs, resistors, capacitors, inductors	Power management and signal integrity in embedded systems
Connectors	VGA, multi-interface sockets	Driving displays and interfacing with peripherals
Customization	Jumper pins for reconfiguration	Adapting to custom hardware setups

Customization guide

Adjust jumper pin configurations to tailor interfaces (e.g., I/O, power input) or reprogram microcontrollers for specialized functions. The board’s modular design allows adding/removing components to meet specific power, signal, or connectivity requirements.

Get inspired

This PCB enables developers to build robust LCD touch screen solutions for diverse applications—from retail POS systems to industrial HMI panels. Its VGA compatibility and dense component layout ensure seamless integration into compact devices.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Processing Power	Standard MCU	+15% faster MCU	+30% faster MCU*
Connectivity	VGA + 2 I/O ports	VGA + 4 I/O ports	VGA + 6 I/O ports
Durability	FR-4 (standard)	FR-4 + conformal coating	FR-4 + triple-layer shielding

Supplier's note

Technical Breakthroughs:
- FR-4 substrate: Enhances thermal and mechanical stability for industrial use.
- VGA compatibility: Enables direct integration with legacy or high-resolution displays.
- Enhanced power management: Reduces noise and ensures stable operation under load.
Version Selection Guide:
- Base Model: Ideal for basic touch screen monitors in office or retail settings.
- Advanced Model: Suitable for industrial HMI systems requiring expanded I/O for sensors or actuators.
- Pro Model: Best for high-performance applications like medical devices or ruggedized displays, where shielding and faster processing are critical.
With the Pro Model’s triple-layer shielding, you can ensure electromagnetic interference (EMI) compliance in sensitive environments. Paired with its faster MCU, this enables real-time touch response in precision applications. The Advanced Model’s expanded I/O ports allow seamless connectivity to peripheral devices, making it a flexible choice for automation setups.

Note: Comparative values are relative to industry-standard PCB assemblies.
