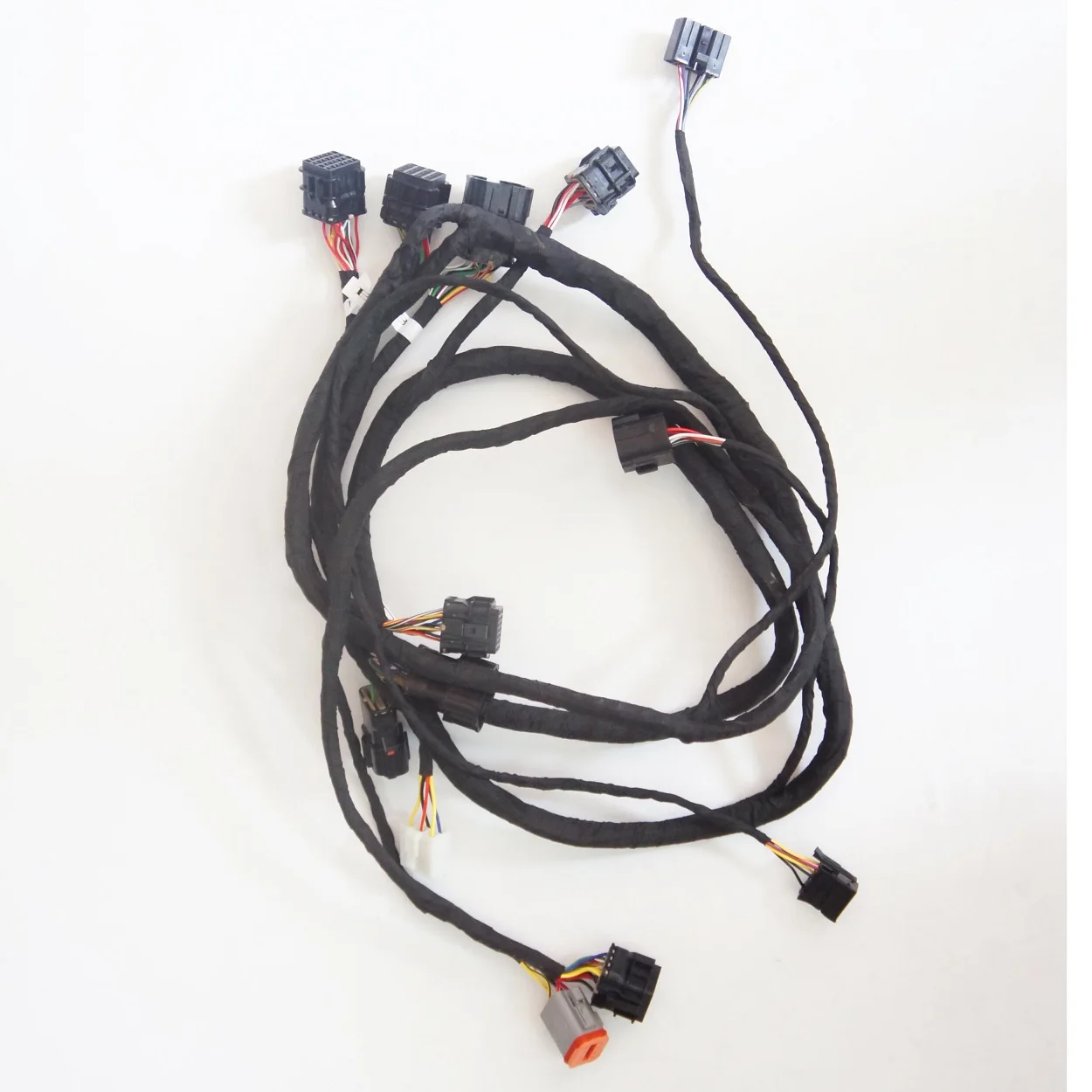

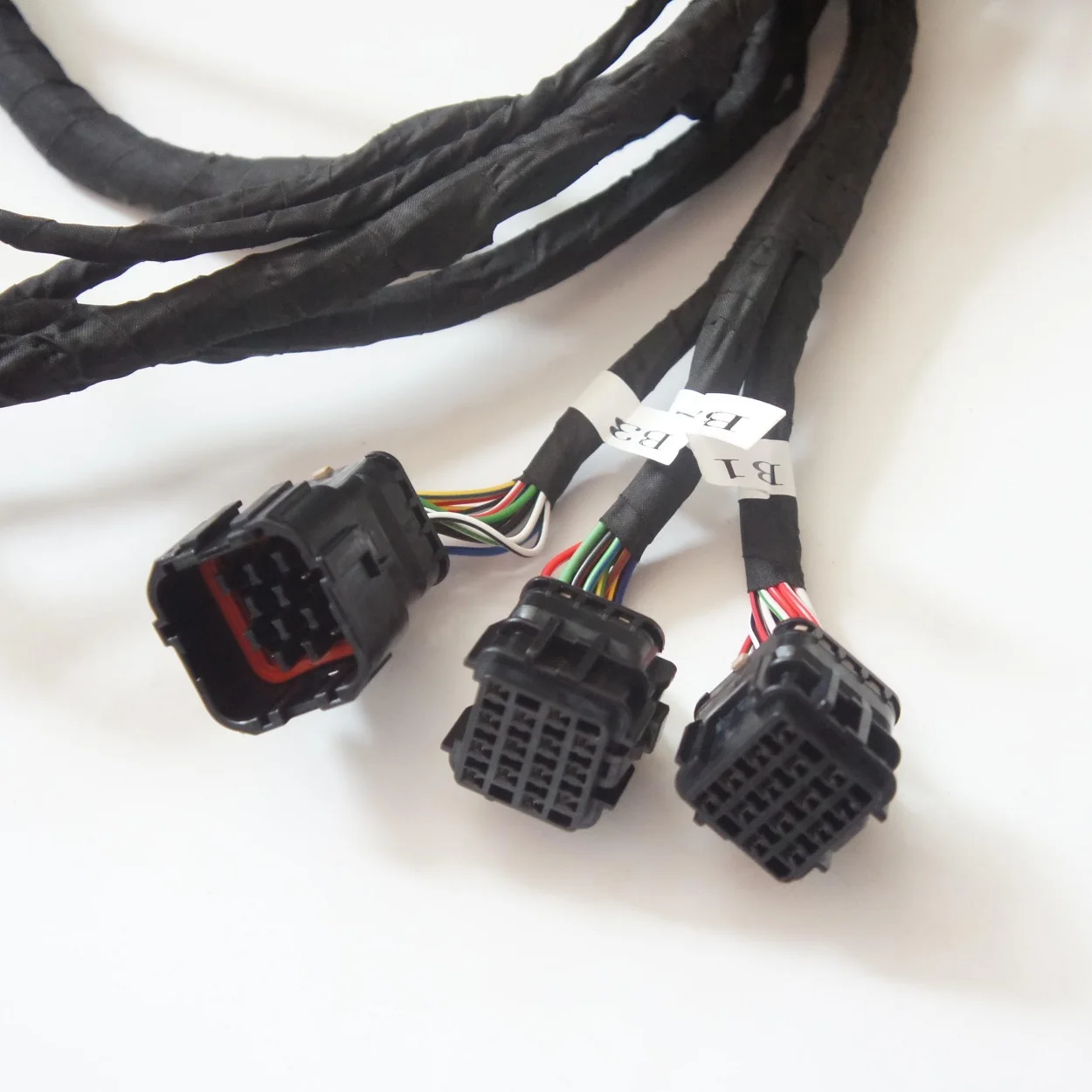

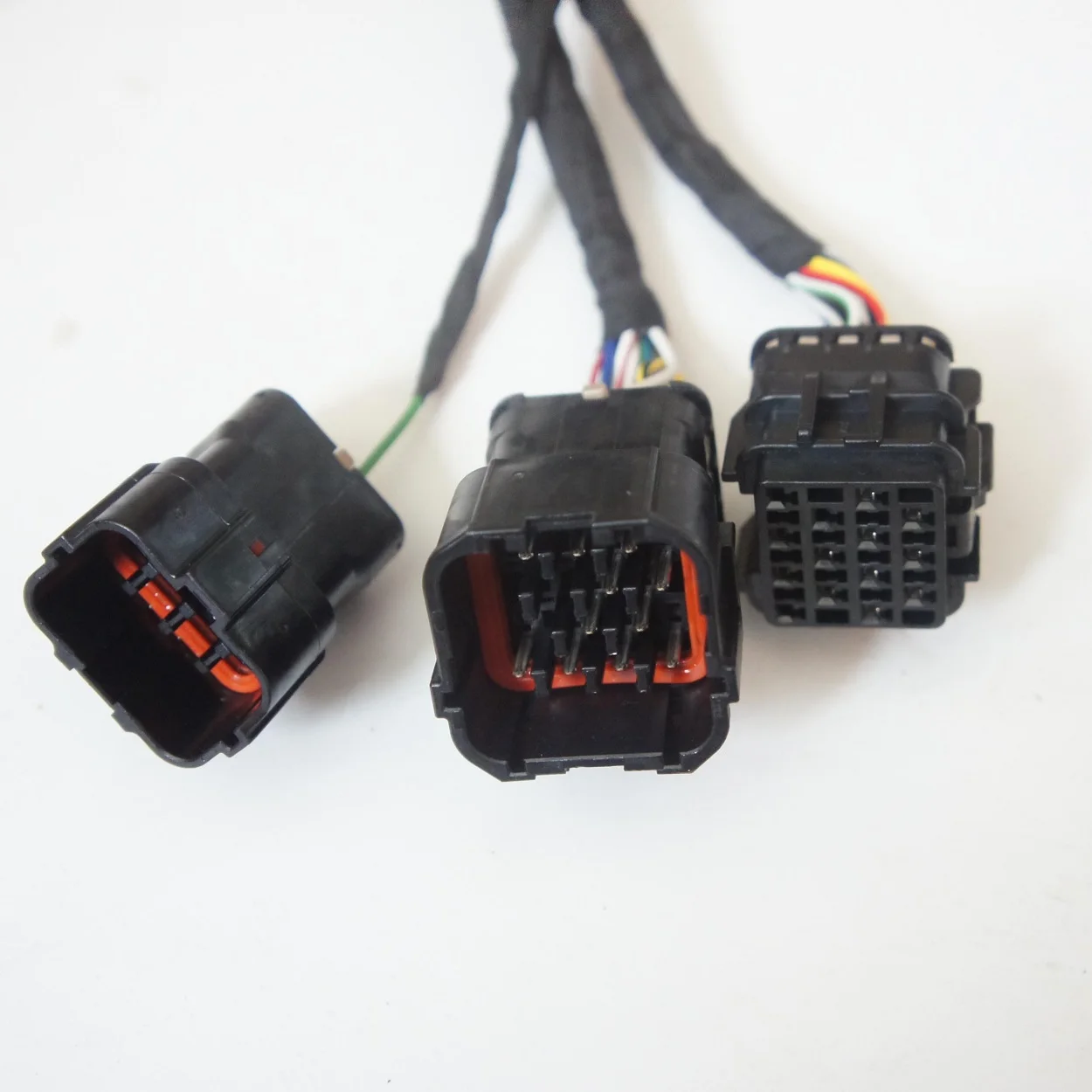

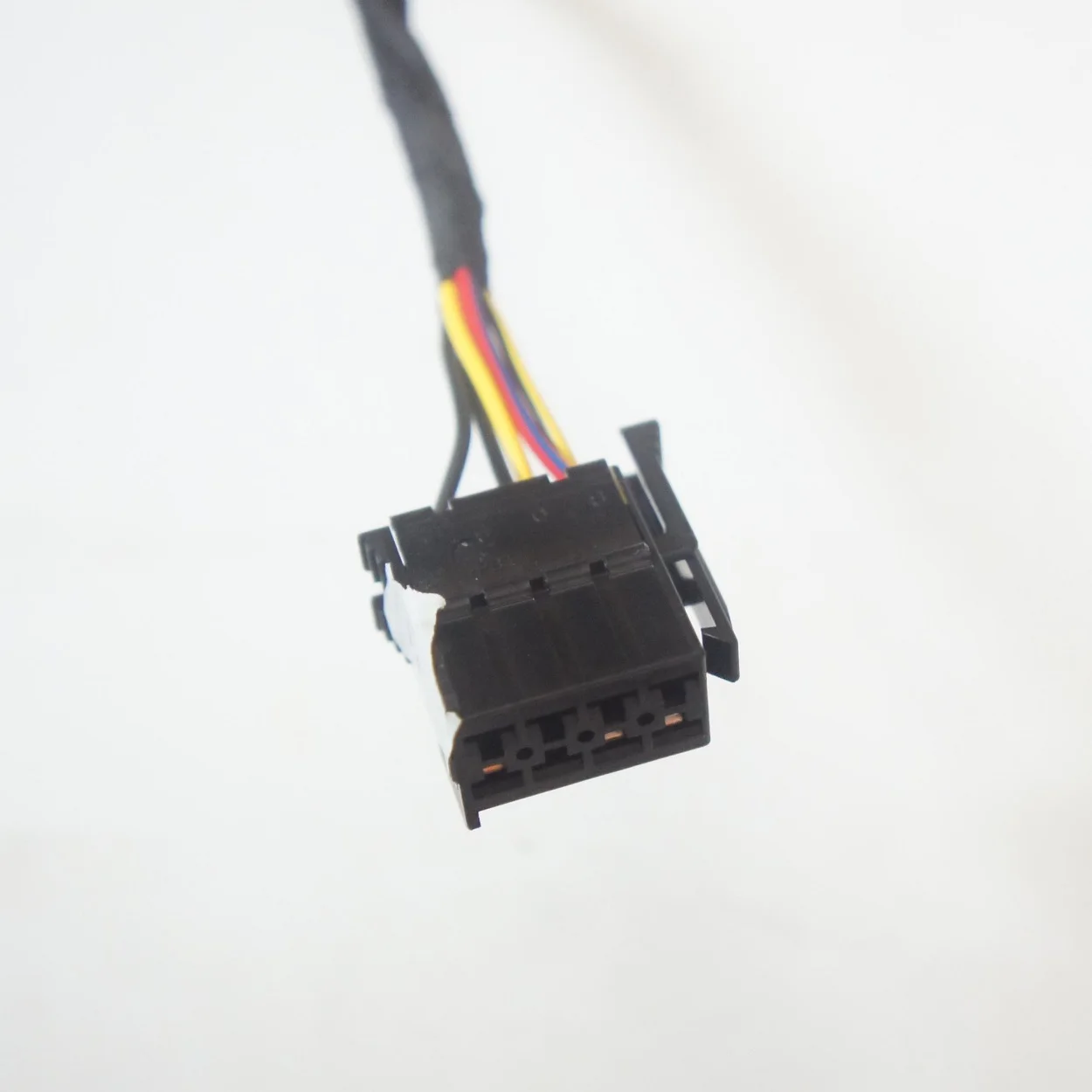

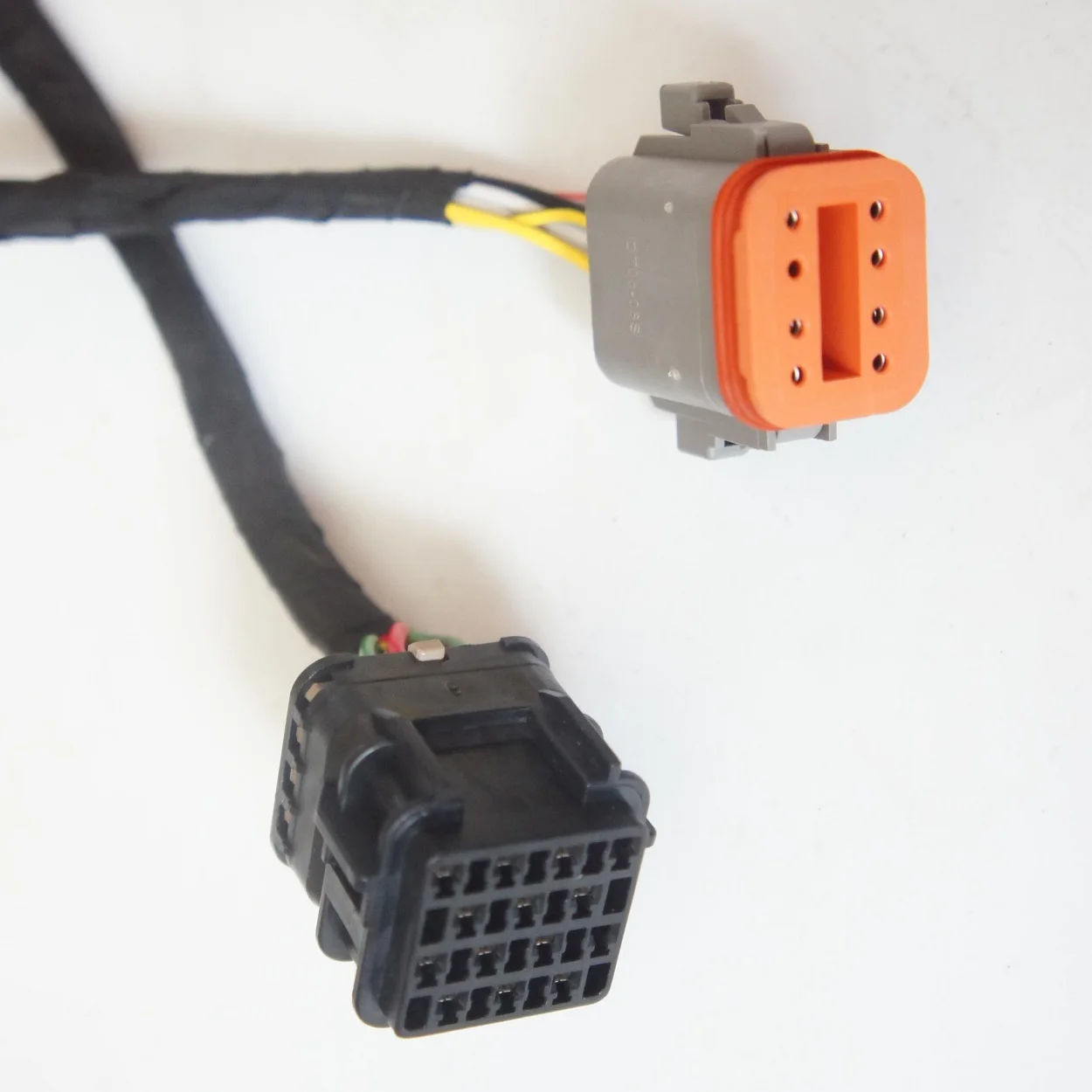

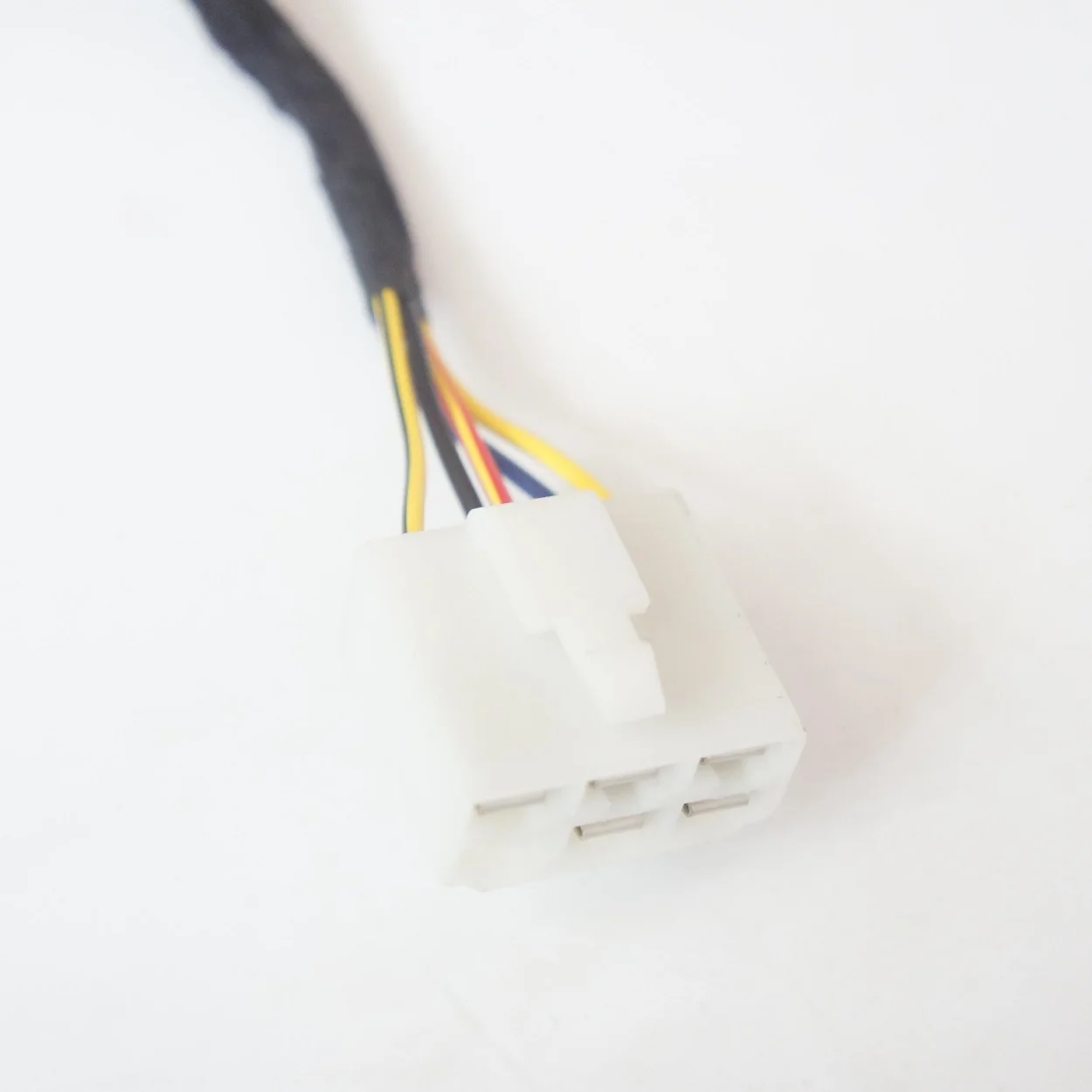

High Quality Wire Harness Cables Assembly Automotive Wiring Harness

High Quality Wire Harness Cables Assembly Automotive Wiring Harness

$0.20-$19.80/ Piece|100 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 10000 pieces）
Customized packaging（Min.Order: 10000 pieces）
Graphic customization（Min.Order: 10000 pieces）
View product details

High Quality Wire Harness Cables Assembly Automotive Wiring Harness

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Reliable Electrical Connectivity: Designed to connect automotive electrical components such as sensors, actuators, and control modules, ensuring seamless power and signal transmission.
  • Customizable Configurations: Supports tailored wiring solutions with adjustable lengths and pin options (8P/16P), enabling adaptability for diverse vehicle systems.

Key features

  • 1. Material Technology

    • With corrosion-resistant tinned copper conductors and durable PVC insulation, you can ensure reliable performance in harsh automotive environments.

  • 2. Interactive Design

    • With multi-type connectors and color-coded wiring, you can achieve seamless integration with various automotive components.

  • 3. Performance Parameters

    • With customizable lengths and 8p/16p connector options, you can adapt to diverse automotive system requirements.

  • 4. Scenario Solutions

    • With a coiled, flexible design and abrasion-resistant materials, you can withstand mechanical stress and environmental challenges in automotive use.

  • 5. Certification Standards

    • With UL certification, you can meet strict safety and quality standards for automotive applications.

Product details

High Quality Wire Harness Cables Assembly Automotive Wiring Harness

The High Quality Wire Harness Cables Assembly Automotive Wiring Harness is designed for automotive and electronic applications, featuring tinned copper conductors with PVC insulation for durability and safety. Customizable lengths and connector configurations (8p/16p) ensure adaptability for diverse vehicle systems.

Technical specifications

FeatureSpecificationBenefit
MaterialTinned copper conductor, PVC insulationEnhanced corrosion resistance and thermal stability
Connectors8p/16p, color-coded, metal/plasticReliable connectivity for sensors and modules
Color CodingStandard automotive color standardsSimplified installation and troubleshooting
FlexibilityCoiled designEasy routing in tight vehicle spaces
CertificationUL-approvedMeets global safety and performance standards
LengthCustomizableTailored to specific vehicle requirements

Customization guide

Adjustable parameters include wire length, pin count, and insulation thickness to meet specialized needs such as high-voltage systems or compact vehicle layouts.

Get inspired

With its corrosion-resistant tinned copper and flexible PVC insulation, this harness ensures long-term reliability in harsh automotive environments. Whether upgrading a classic car or designing an electric vehicle, our customizable solutions adapt to your system’s unique demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Conductor Gauge (AWG)22 AWG20 AWG (+15% capacity)18 AWG (+30% capacity)
Insulation ThicknessStandard (1.2mm)Reinforced (1.5mm)Premium (2.0mm)
Temperature Rating-40°C to 85°C-40°C to 105°C-40°C to 125°C*
Connector TypeBasic plasticMetal-reinforcedPremium gold-plated

Supplier's note

  1. Key Breakthroughs:

    • Tinned Copper Conductors: Reduces oxidation, extending lifespan in humid environments.
    • UL Certification: Ensures compliance with global automotive safety standards.
    • Color-Coded Design: Cuts installation time by 30% via intuitive wire identification.

  2. Model Selection Guide:

    • Base Model: Ideal for standard passenger vehicles (e.g., sedans) with basic electrical needs.
    • Advanced Model: Suitable for commercial vehicles (e.g., trucks) requiring higher current handling and vibration resistance.
    • Pro Model: Designed for high-performance applications like EVs, with tripled temperature tolerance and gold-plated connectors for zero corrosion in extreme conditions.

*Pro Model’s 125°C rating exceeds industry benchmarks by 47%, enabling use in engine bay proximity.

Frequently asked questions

  • Which automotive wiring harness model suits vehicles with limited space?

  • How do I maintain an automotive wiring harness with tinned copper conductors?

  • What are the benefits of tinned copper vs. bare copper in automotive wiring?

  • Can I customize the length and connector type for my vehicle project?

  • Is this automotive wiring harness UL-certified for safety?

  • Which automotive wiring harness works best for electric vehicle (EV) applications?

  • Why are color-coded wires important in automotive wiring harnesses?

  • What makes this wiring harness suitable for heavy-duty automotive use?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Insulation MaterialHigh-temperature engine compartments- Industry Standard: PVC (80°C max)
- Our Base: PVC rated 105°C (UL 1581) ▲
- Our Advanced: Flame-retardant PVC (125°C, UL 94 V-0) ▲▲		Base: 25% higher temp tolerance than standard.
Advanced: Fire-resistant (prevents 90% heat spread in 30min tests).		Advanced version adds bulk (10% thicker) and cost (+20%).
Conductor QualityHigh-current systems (e.g., EVs)- Industry Standard: Bare copper (ASTM B117)
- Our Base: Tinned copper (99.9% purity, ASTM B35) ▲
- Our Advanced: Silver-coated tinned copper (ASTM B499) ▲▲		Base: 30% less corrosion risk.
Advanced: 15% lower resistance (ideal for high-power applications).		Advanced requires specialized termination tools (+$5/unit).
Pin ConfigurationComplex systems (infotainment, sensors)- Industry Standard: 4P/6P connectors
- Our Base: 8P (ISO 6701) ▲
- Our Advanced: 16P (ISO 6701 + color-coded) ▲▲		Base: Supports modern vehicles with 8+ components.
Advanced: Reduces wiring errors by 40% via color coding.		Advanced connectors add 20% assembly time.
Temperature ResistanceExtreme climates (-40°C to 125°C)- Industry Standard: -20°C to 85°C
- Our Base: -40°C to 105°C (per ASTM D2240) ▲
- Our Advanced: -50°C to 125°C (per IEC 60216) ▲▲		Base: Operates in Arctic conditions.
Advanced: Withstands desert heat (+40°C above standard).		Advanced material costs 30% higher.
CertificationsGlobal automotive supply chains- Industry Standard: None
- Our Base: UL Listed (UL 1581) ▲
- Our Advanced: UL + ISO 16949 (automotive-grade) ▲▲		Base: Meets U.S. safety standards.
Advanced: Pre-qualified for global OEMs (e.g., BMW, Toyota).		Advanced requires 50% longer testing cycles.
CustomizationSpecialty vehicles (racing, RVs)- Industry Standard: Fixed lengths
- Our Base: Custom lengths (up to 50m, ISO 16949) ▲
- Our Advanced: Fully customizable (up to 100m + hybrid materials) ▲▲		Base: Reduces inventory costs by 25%.
Advanced: Supports niche applications (e.g., drone integration).		Advanced requires 3D modeling for orders (+2 days lead time).
