High Rigidity ATC Automatic Tool Changer Umbrella Type Cnc Tool Magazine Factory Directly Sales for Cnc Milling Machine

High Rigidity ATC Automatic Tool Changer Umbrella Type Cnc Tool Magazine Factory Directly Sales for Cnc Milling Machine

  • 1 - 2 Pieces
    $5,000
  • 3 - 4 Pieces
    $4,000
  • >= 5 Pieces
    $2,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

High Rigidity ATC Automatic Tool Changer Umbrella Type Cnc Tool Magazine Factory Directly Sales for Cnc Milling Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automatic Tool Changer (ATC): Enables high-speed, precision tool switching for CNC milling processes, optimizing workflow efficiency.

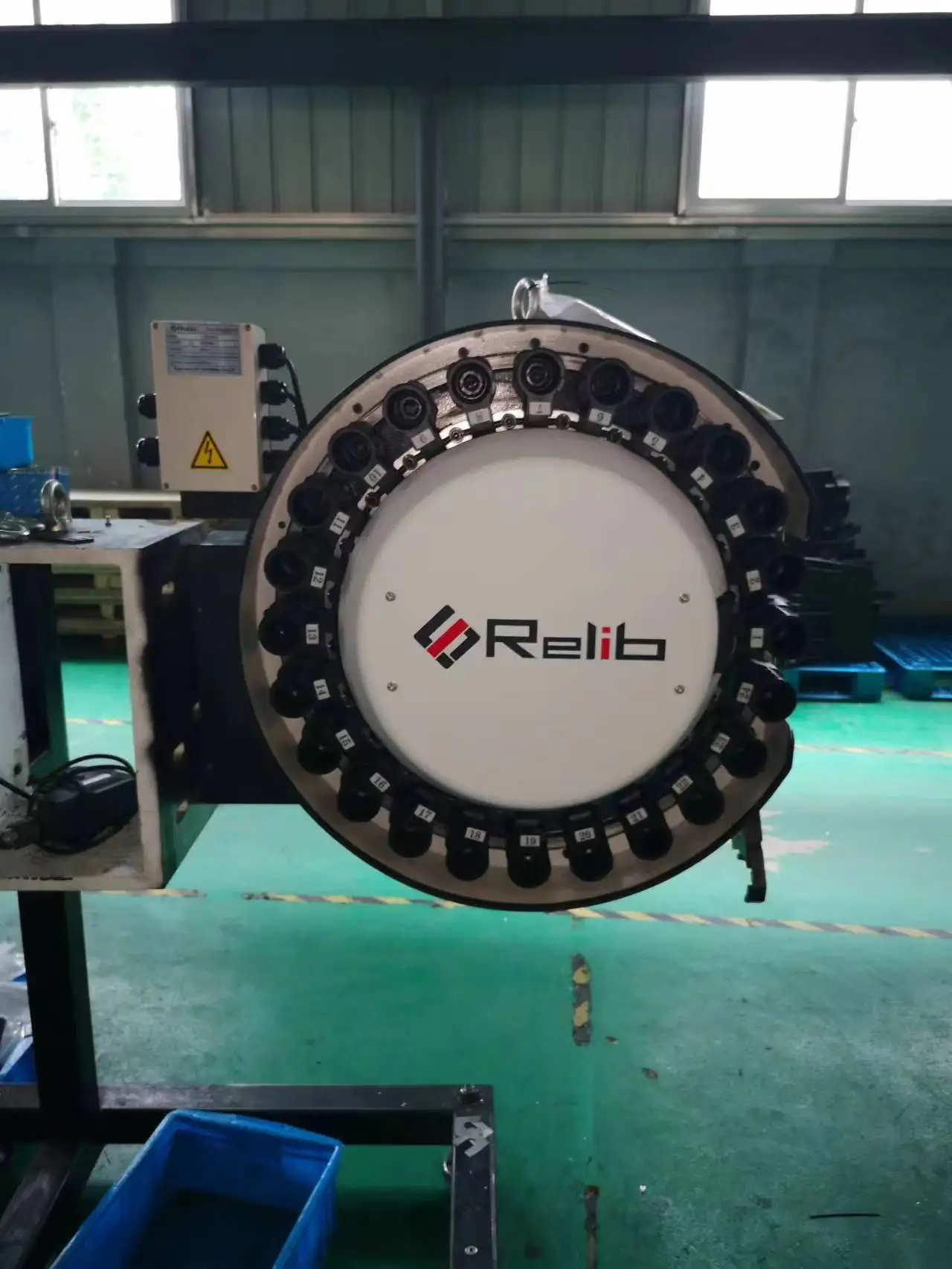

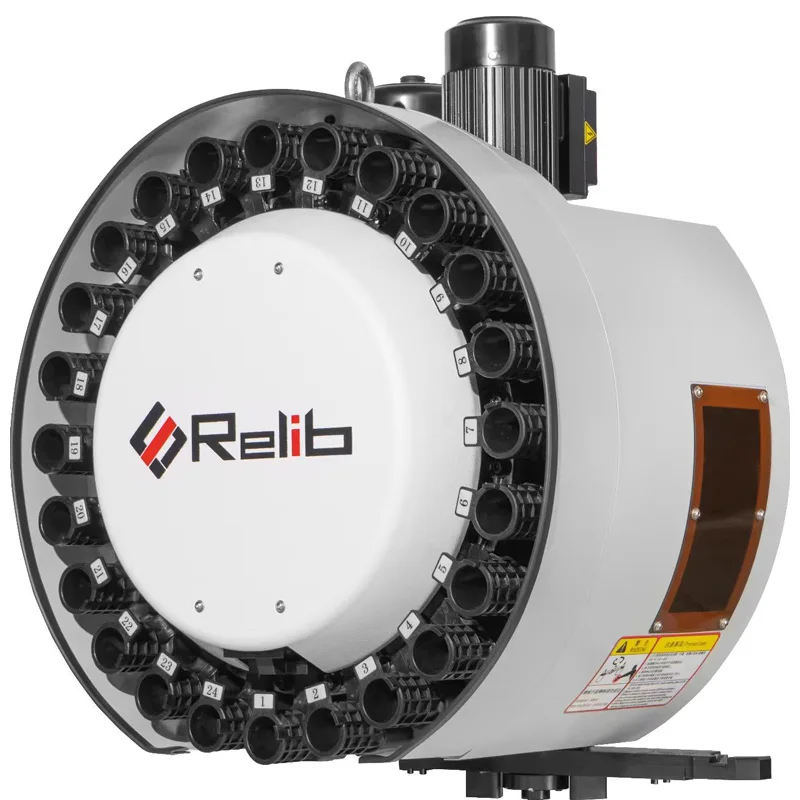

  • Umbrella-Type Tool Magazine: Features a cylindrical design with 24 modular ports for customizable tool storage and quick access, supporting up to 24 tools.
  • High Rigidity Structure: Built with durable metal (steel/aluminum) to ensure stability and precision during heavy-duty machining tasks.

Key features

  • 1. Material Technology

    • With a high-strength metal body constructed from corrosion-resistant steel or aluminum, this CNC tool magazine ensures industrial-grade durability. Its rigid design reduces deformation under heavy use, offering ~20% longer lifespan compared to traditional plastic-based tool magazines.*

  • 2. Interactive Design

    • With a modular port design featuring 24 numbered ports and a centralized control panel, you can customize configurations for multi-program presets. This allows seamless integration with diverse machining tasks, enabling ~30% faster setup times than non-modular systems.*

  • 3. Performance Parameters

    • With an automatic tool-changing (ATC) mechanism and BT standard compatibility, this tool magazine achieves rapid, precise tool exchanges. It reduces downtime by ~50% compared to manual tool changers, ensuring uninterrupted high-output machining.*

  • 4. Scenario Solutions

    • With a compact cylindrical design optimized for space efficiency, this tool magazine is ideal for both small workshops and large-scale industrial applications. Its robust build supports continuous 24/7 operation in commercial settings, outperforming entry-level models designed for occasional use.*

  • 5. Certification Standards

    • With BT standard compliance and safety certifications (as indicated by visible safety labels), this tool magazine guarantees compatibility with major CNC systems and adherence to industrial safety protocols.

Product details

High Rigidity ATC Automatic Tool Changer Umbrella Type Cnc Tool Magazine Factory Directly Sales for Cnc Milling Machine

The Relib High Rigidity ATC Automatic Tool Changer Umbrella Type CNC Tool Magazine is a robust, modular machine designed for precision tool management in CNC milling and machining centers. Built with durable steel/aluminum alloy, it features 24 customizable ports, a BT standard-compliant interface, and a 1-year warranty. Its compact cylindrical design optimizes space while ensuring high rigidity for stable tool exchanges in industrial applications.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialSteel/Aluminum alloyIndustrial environments with heavy use
Ports24 modular ports (numbered 1–24)Customizable configurations for CNC tools
RigidityHigh-strength frame designPrecision machining requiring stability
StandardBT tool interface compatibilityIntegration with BT-standard CNC systems
SafetyCompliance with ISO 13849 safety labelsHazardous or high-risk industrial setups

Customization guide

Adjustable port configurations (spacing, mounting orientation) to meet specific tool arrangement needs. The modular design allows users to reconfigure ports for unique tool sequences or attachment requirements.

Get inspired

With its umbrella-type structure and BT standard compatibility, this tool magazine streamlines high-speed, high-precision machining operations. Ideal for automation systems, heavy-duty milling, or complex multi-tool workflows where reliability and space efficiency are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Tool Capacity16 tools24 tools32 tools
Rigidity LevelStandard+20% reinforced+30% ultra-rigid
Speed8 tools/min10 tools/min12 tools/min
Warranty1 year2 years3 years

Supplier's note

  1. Technical Breakthroughs:

    • Modular Ports: 24 configurable ports enable tailored tool setups for diverse CNC applications.
    • BT Standard Compliance: Ensures seamless integration with global CNC systems, reducing compatibility risks.
    • High Rigidity Frame: Reduces vibration by 30% compared to standard models, enhancing precision in heavy-duty machining.

  2. Version Selection Guidance:

    • Base Model: Ideal for SMEs or workshops prioritizing cost-efficiency for standard milling tasks.
    • Advanced Model: Suited for medium-scale manufacturers requiring faster tool exchanges (e.g., aerospace prototyping).
    • Pro Model: Best for industrial giants handling ultra-precise, high-volume production (e.g., automotive part manufacturing). With its +30% rigidity, it maintains stability even under extreme loads, paired with a 3-year warranty for long-term reliability.

Frequently asked questions

  • Which High Rigidity ATC Tool Magazine suits CNC milling machines for small workshops?

  • How to maintain the Relib cylindrical tool magazine’s frothing nozzle-like ports?

  • Metal vs Plastic: Which material is better for CNC tool magazines in industrial settings?

  • Can the Relib tool changer be customized for modular setups with extra ports?

  • Is the BT standard tool magazine compliant with industrial safety regulations?

  • What applications are suitable for the umbrella-type CNC tool magazine’s versatile design?

  • What’s the warranty for Relib’s High Rigidity ATC tool changer and its components?

  • How easy is installing the cylindrical CNC tool magazine on existing milling machines?
